Head Up Display (HUD) Module: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

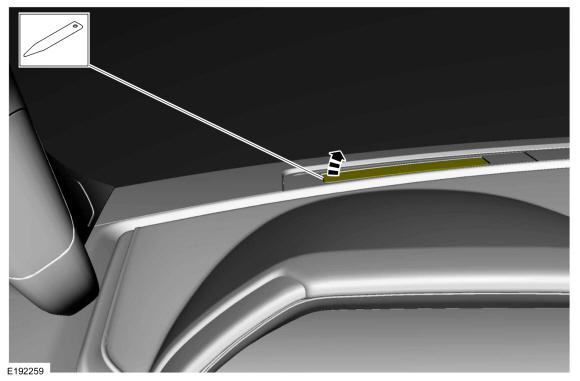

- Using a non-marring tool, release the heads up display tab and position the heads up display aside.
 Courtesy of FORD MOTOR COMPANY
|

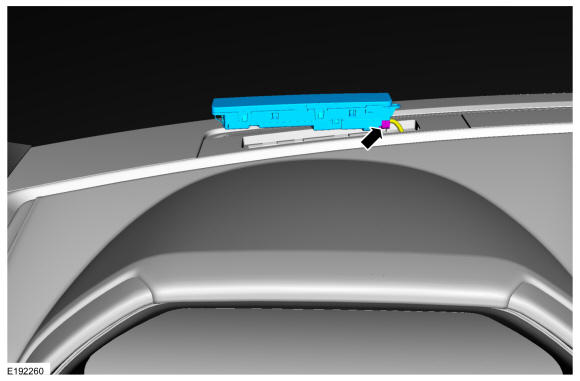

- Disconnect the electrical connector and remove the heads up display.
 Courtesy of FORD MOTOR COMPANY
|
