Trailer Module (TRM): Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Adjustable brake pedal and bracket shown, fixed brake pedal and bracket similar.
All vehicles
-
NOTE: This step is only necessary if the TRM is being replaced.
Using a diagnostic scan tool, begin the PMI process for the TRM following the on-screen instructions.
Vehicles equipped adjustable pedals
- Move the pedals to the full forward (away from the driver) position.
All vehicles
- Pull outward on the steering column opening cover detaching the clips and allow the cover to hinge downward.
- Disconnect the electrical connector(s) and the wiring retainer(s).

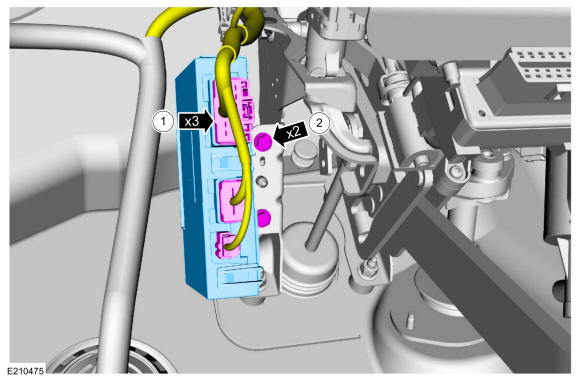

- Remove the TRM.
- Disconnect the TRM electrical connectors.
- Remove the bolts.
Torque: 106 lb.in (12 Nm)
