Transfer Case Control Module (TCCM): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Using the diagnostic scan tool, begin the PMI process for the TCCM following on-screen instructions.

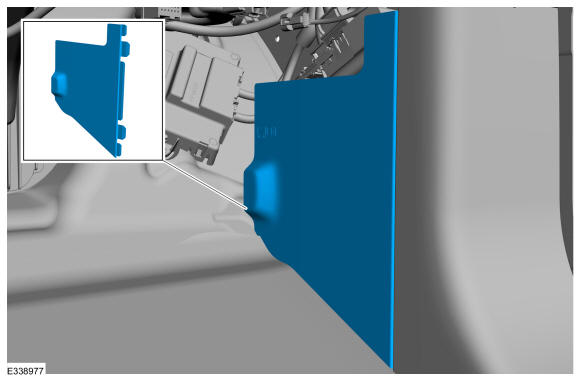

Remove the CJB cover.

Courtesy of FORD MOTOR COMPANY

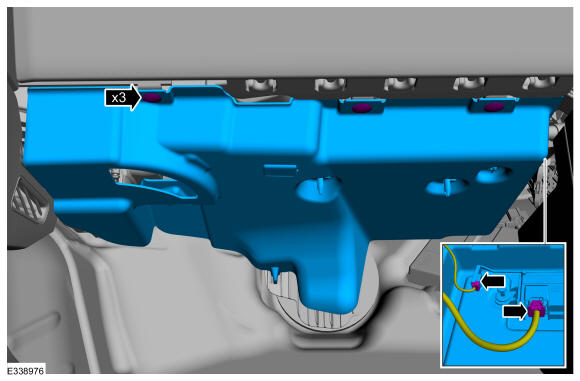

Remove and disconnect the electrical connectors the lower access panel.

Courtesy of FORD MOTOR COMPANY
NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LHTCCM nut when removing the TCCM.

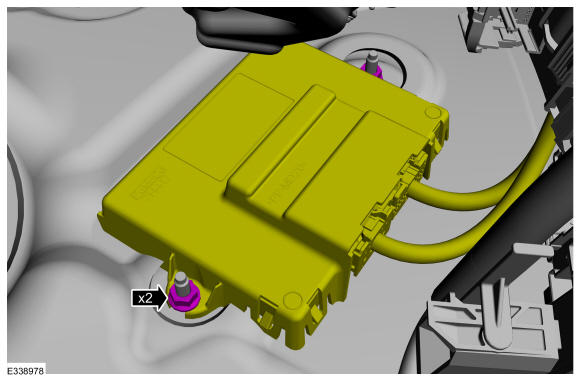

Loosen the LHTCCM nut and remove the RHTCCM nut.

Torque: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY

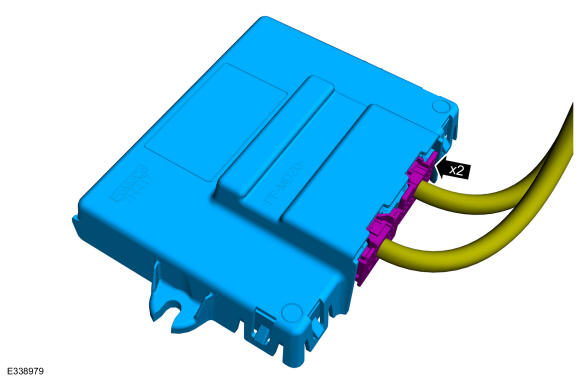

Disconnect the electrical connectors and remove the TCCM.

Courtesy of FORD MOTOR COMPANY
