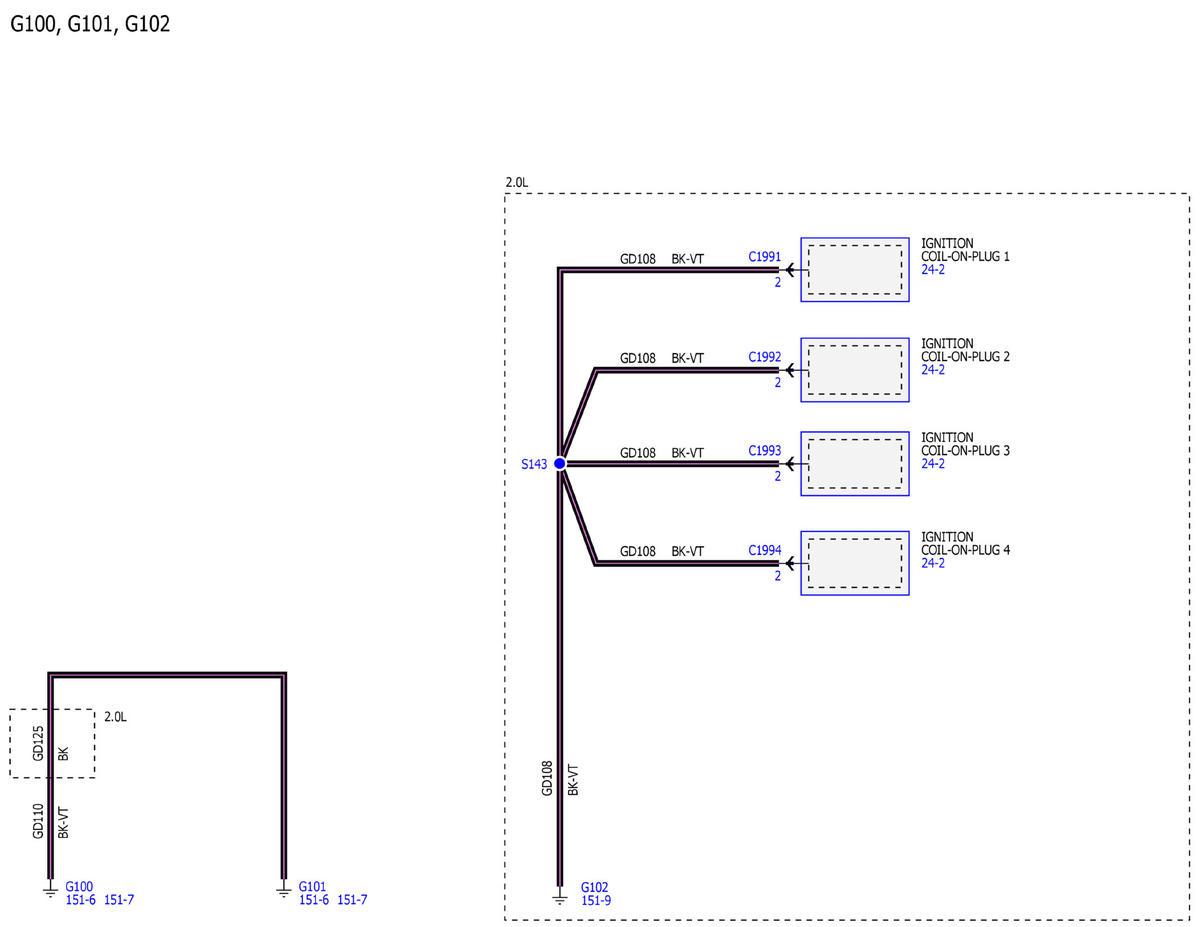

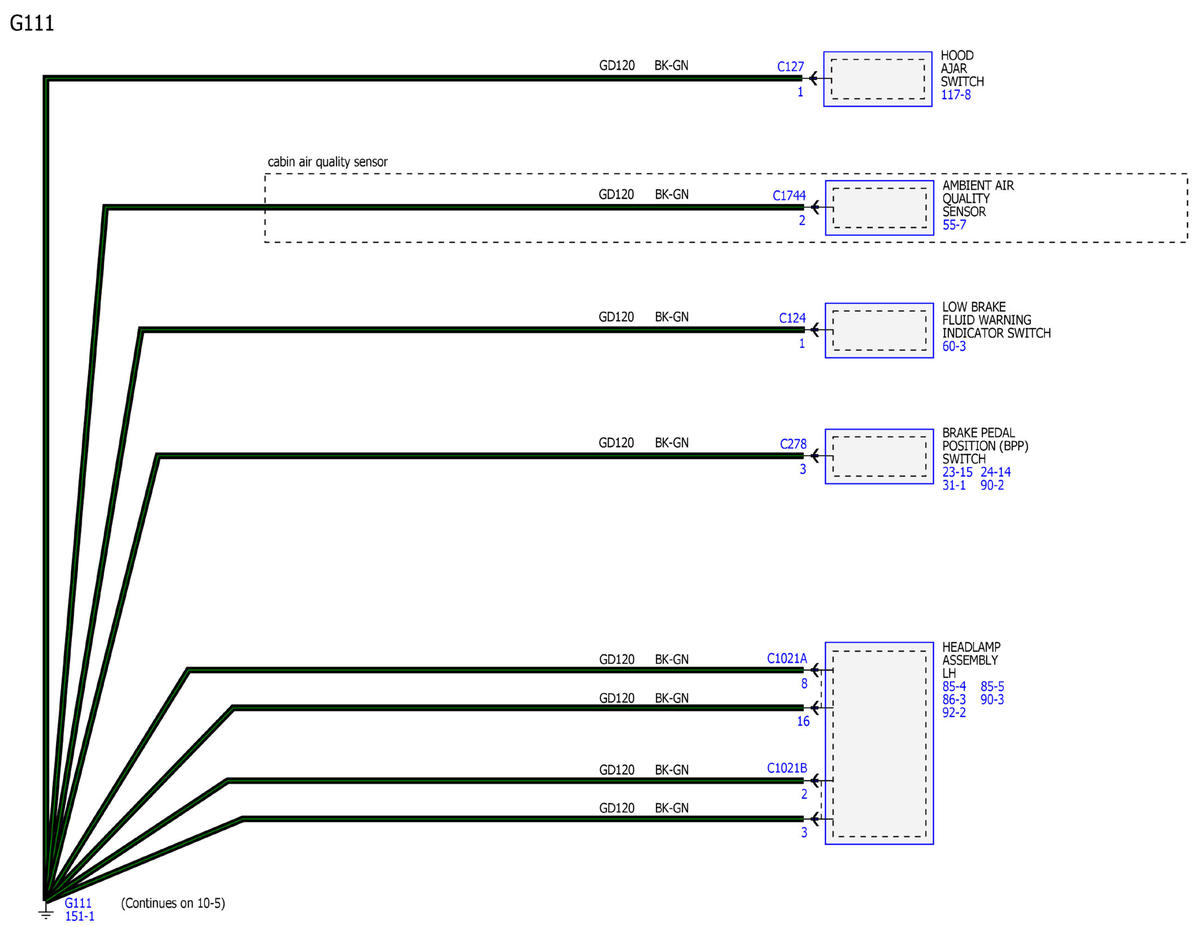

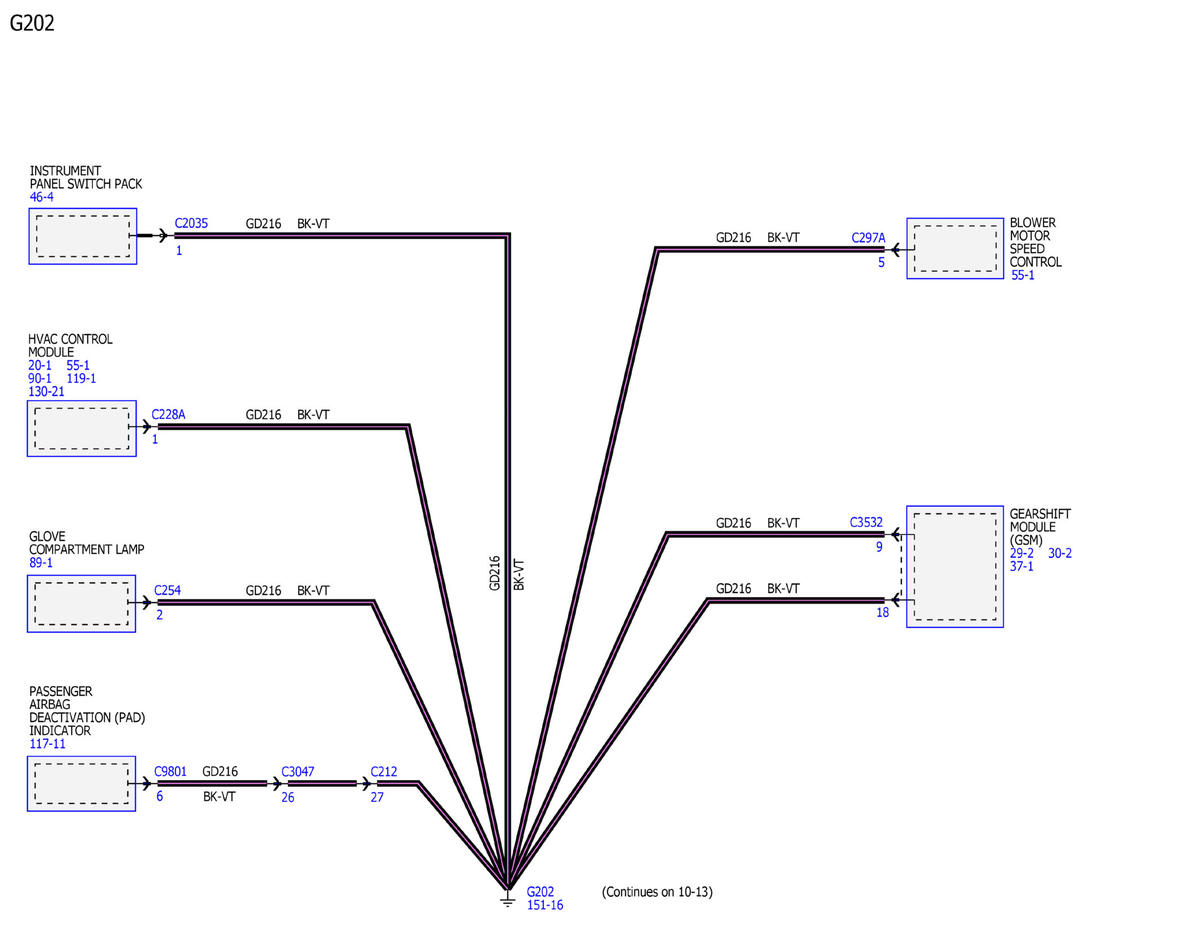

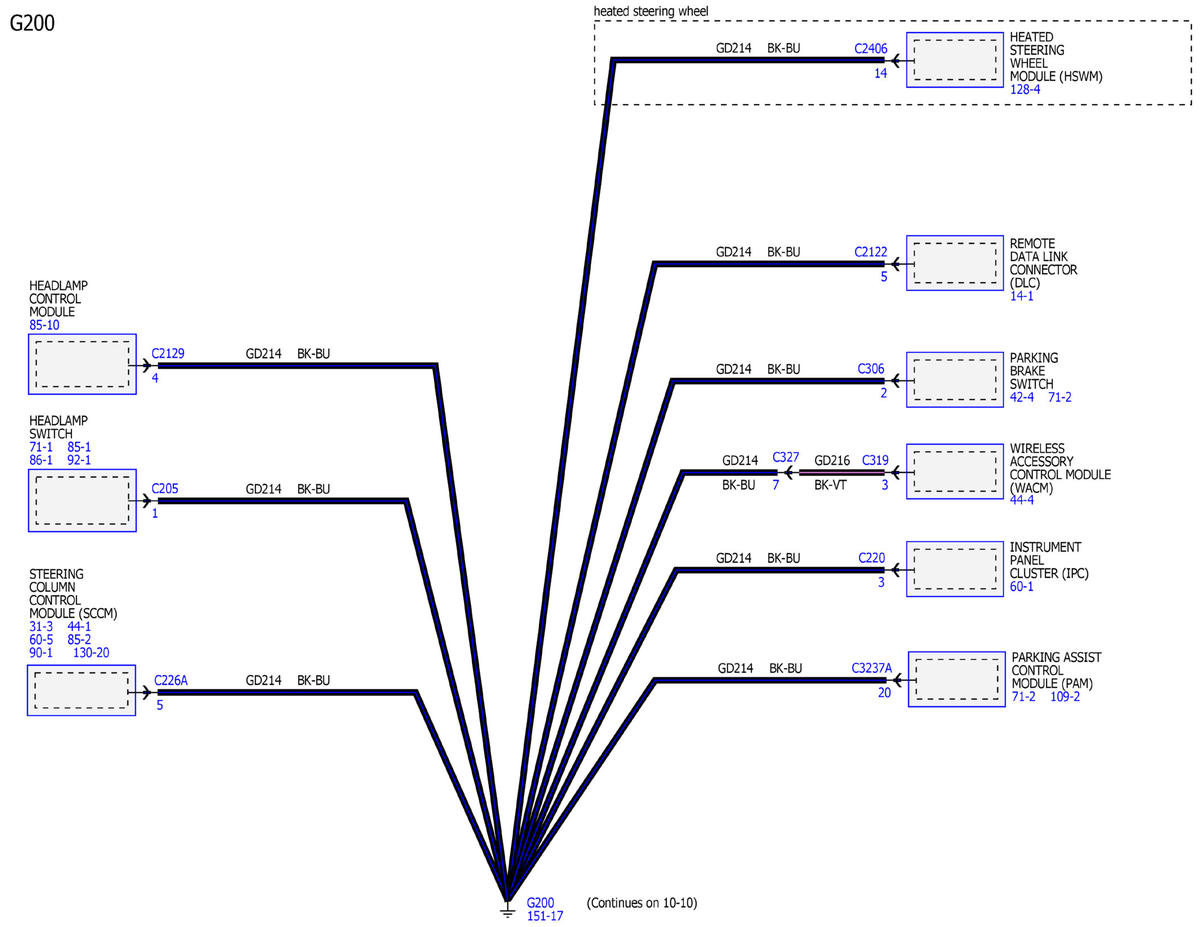

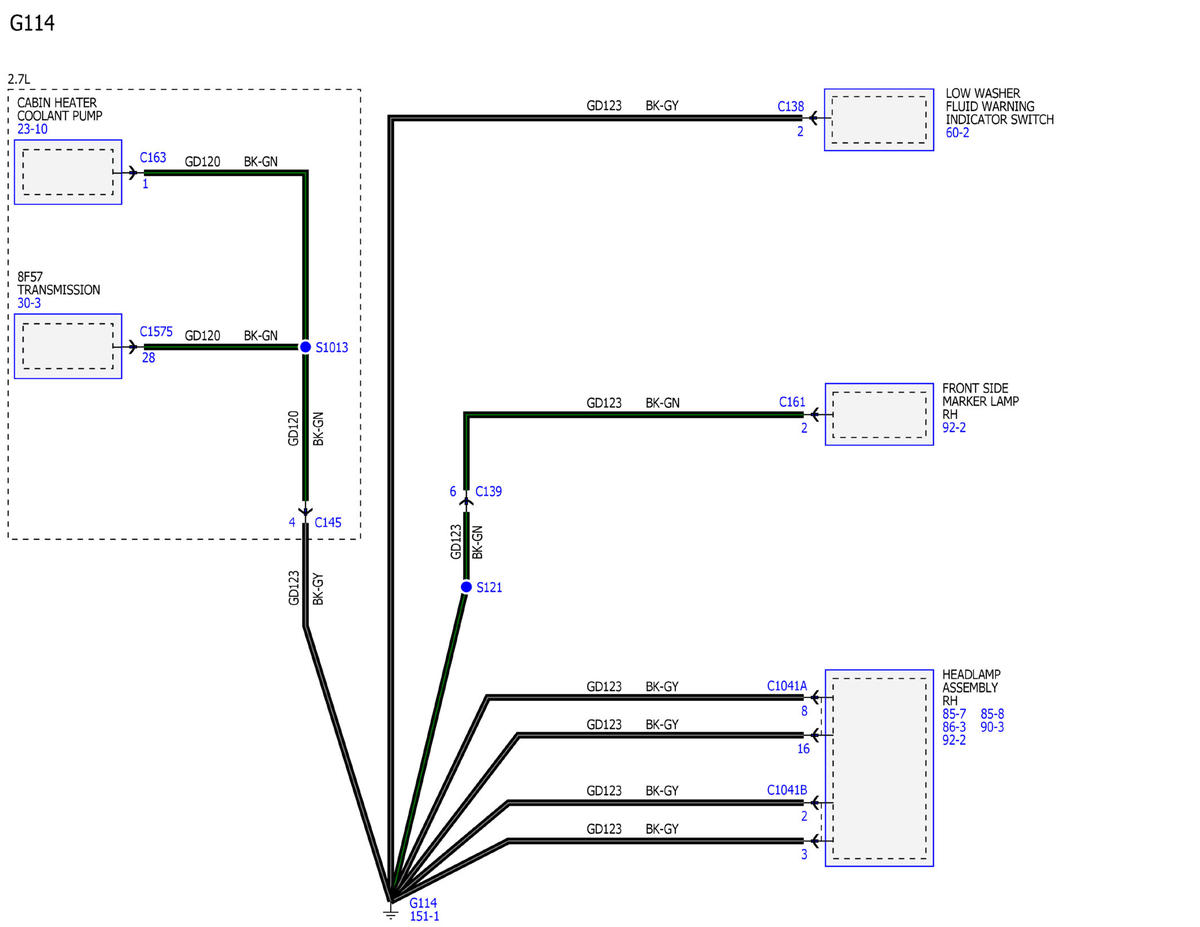

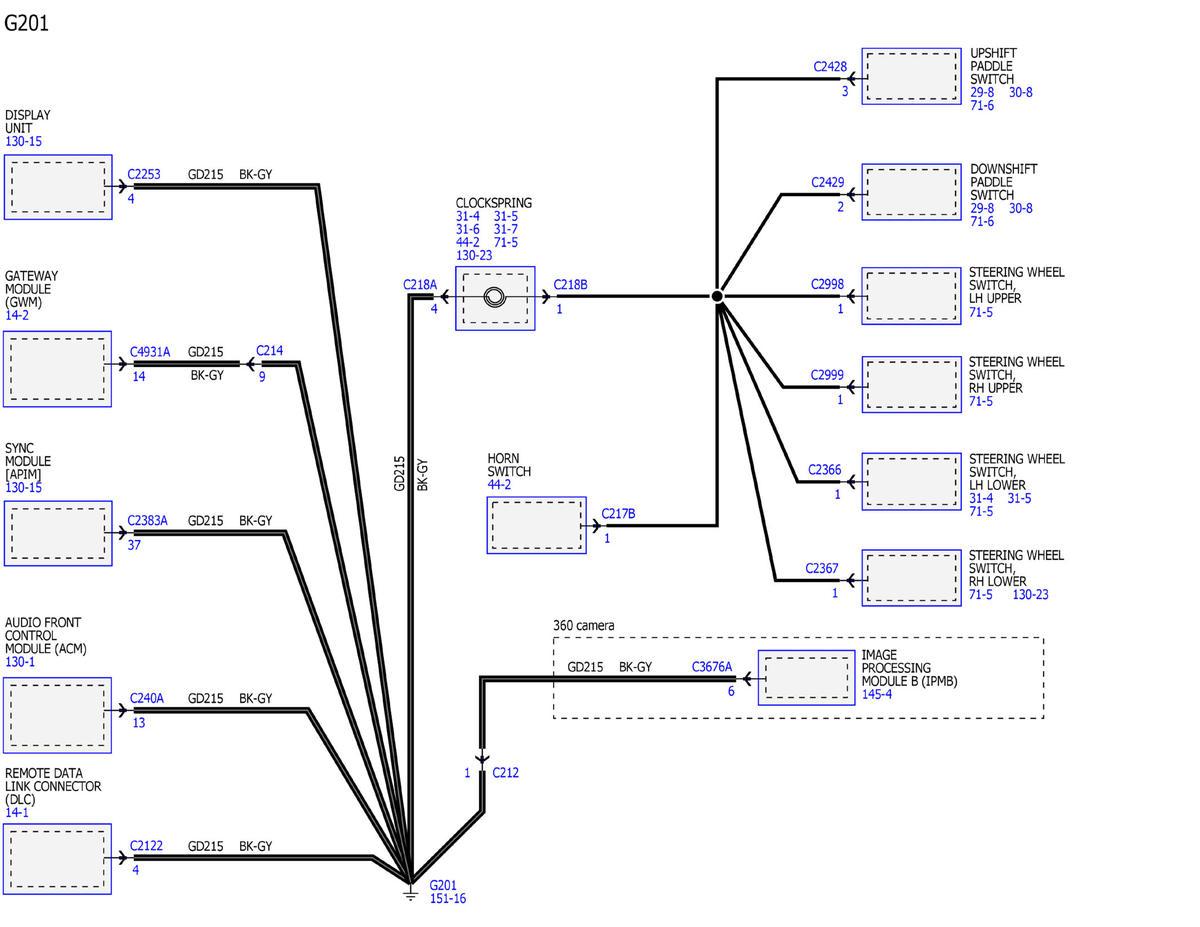

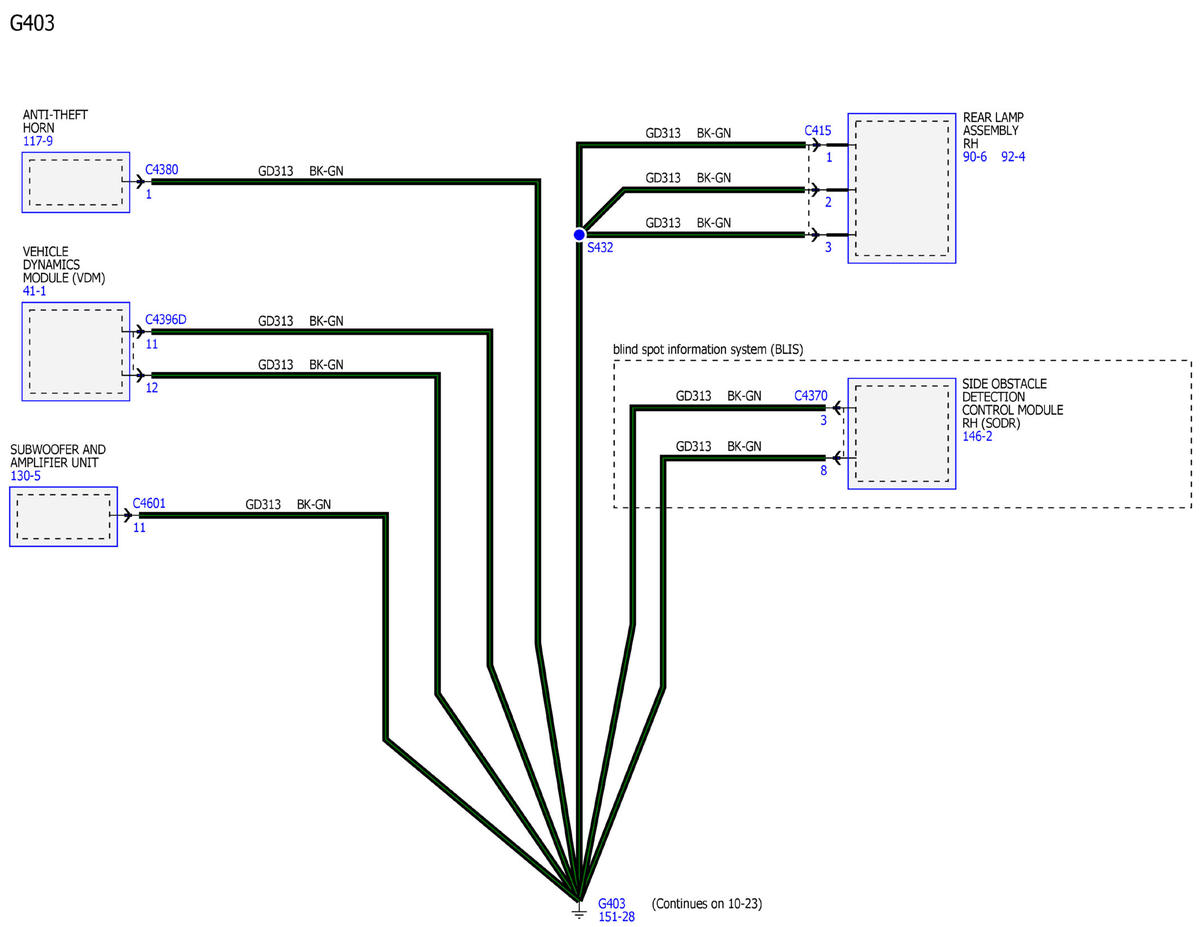

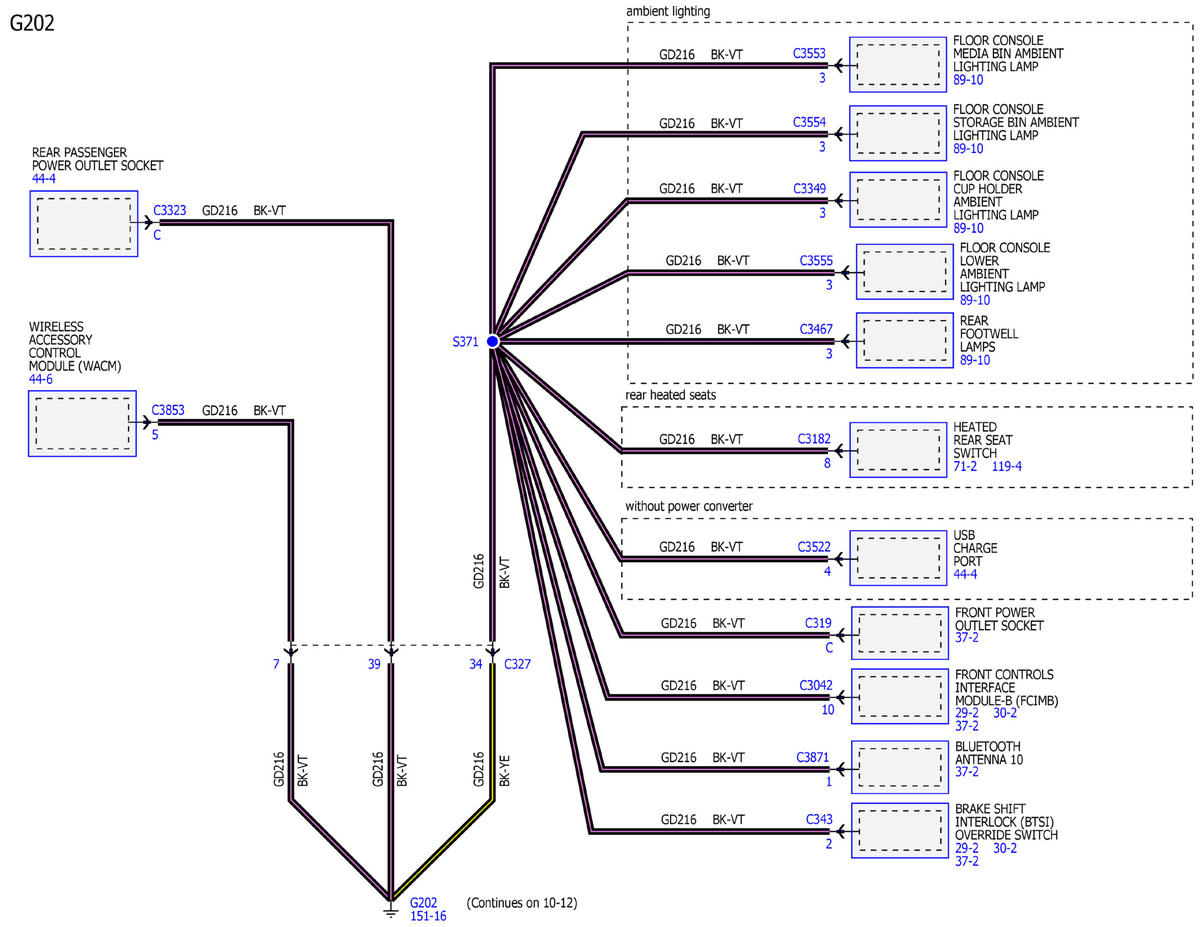

Section 756 (OEM Ground Distribution): Grounds
WARNING:
This page is about a different car, the 2022 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

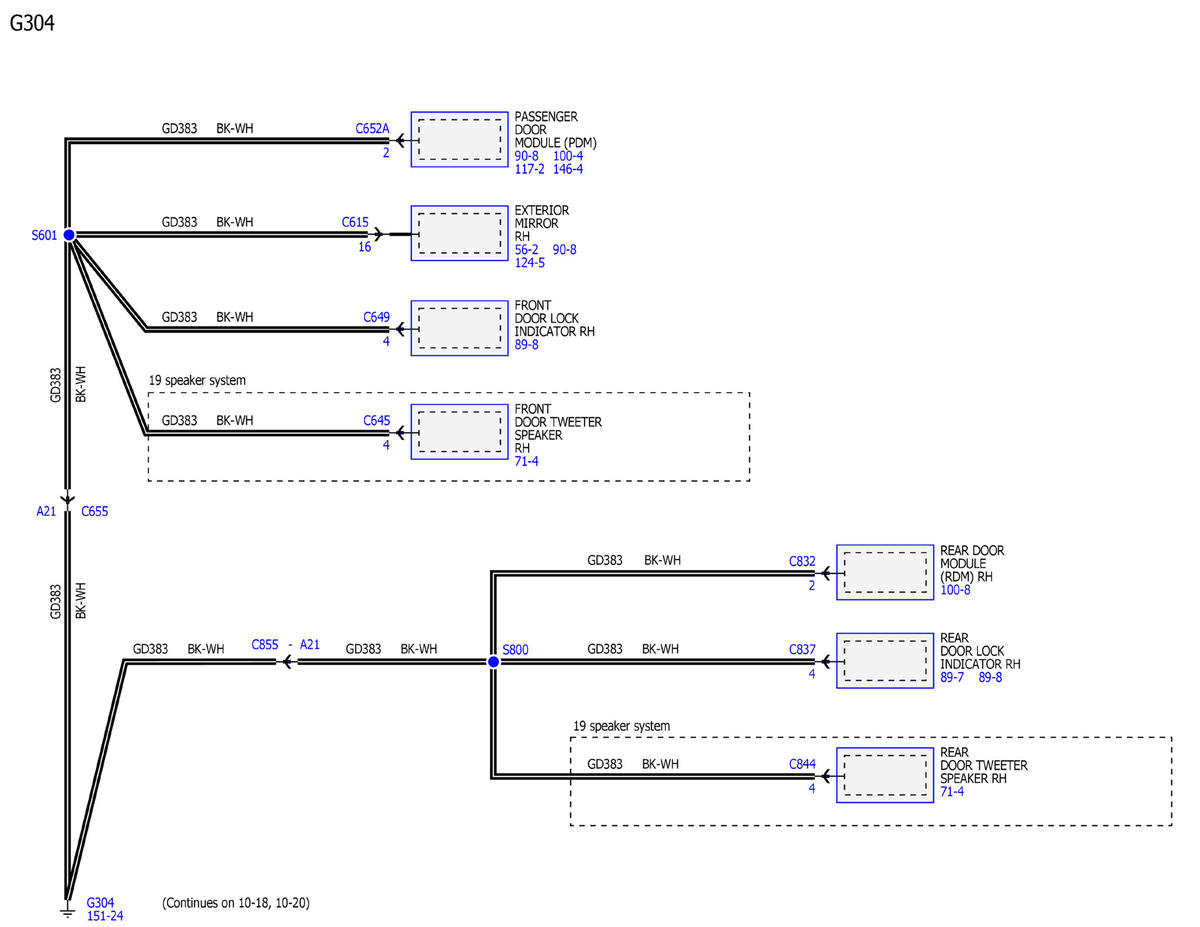

Courtesy of FORD MOTOR COMPANY

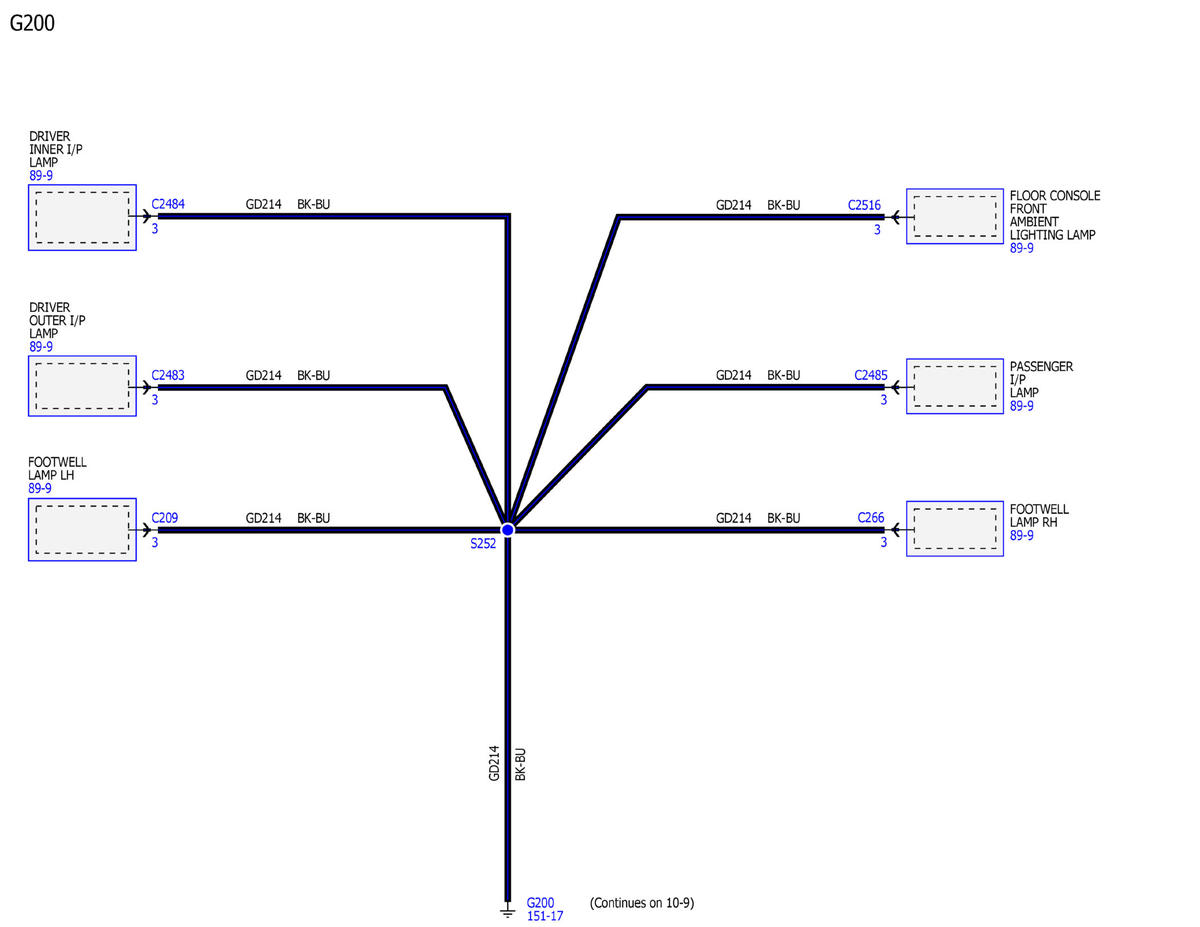

Courtesy of FORD MOTOR COMPANY

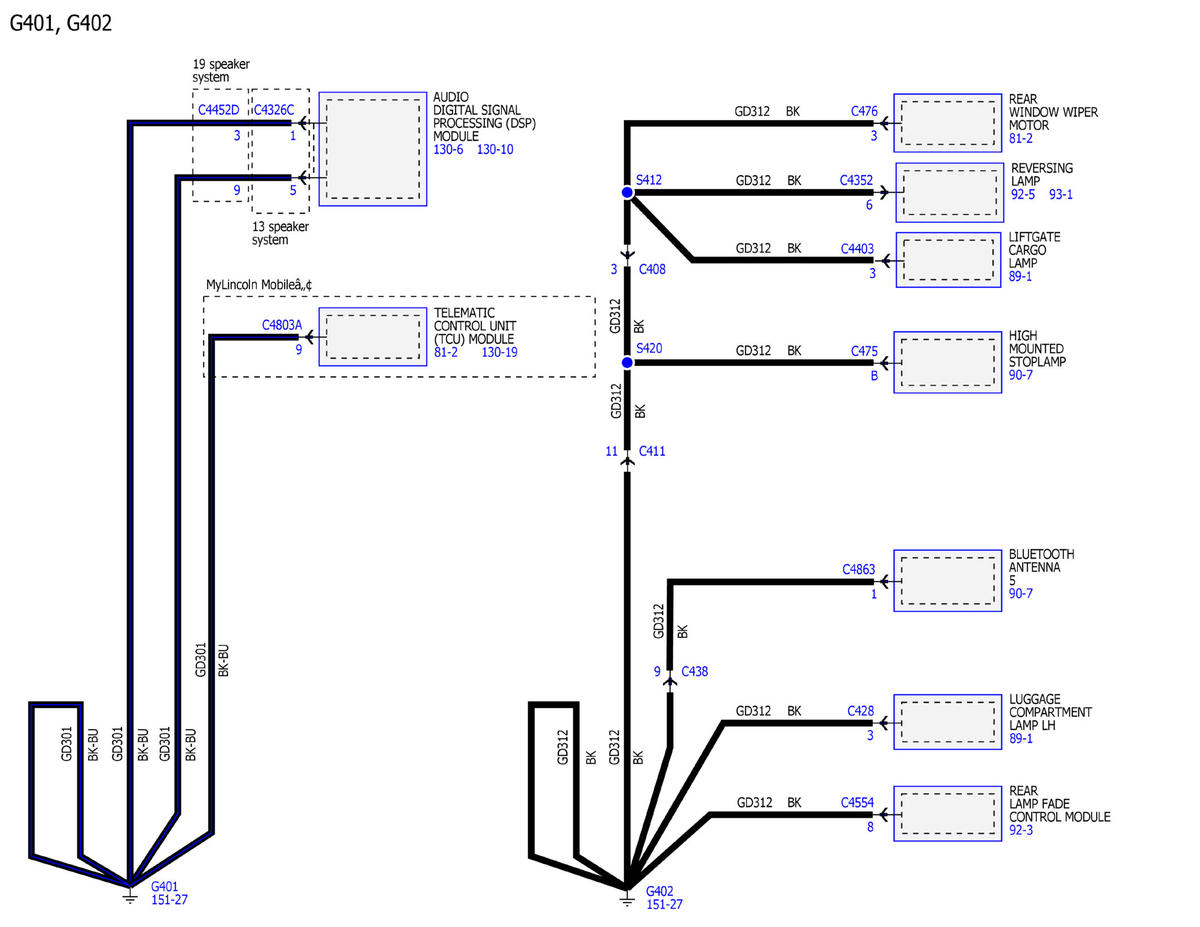

Courtesy of FORD MOTOR COMPANY

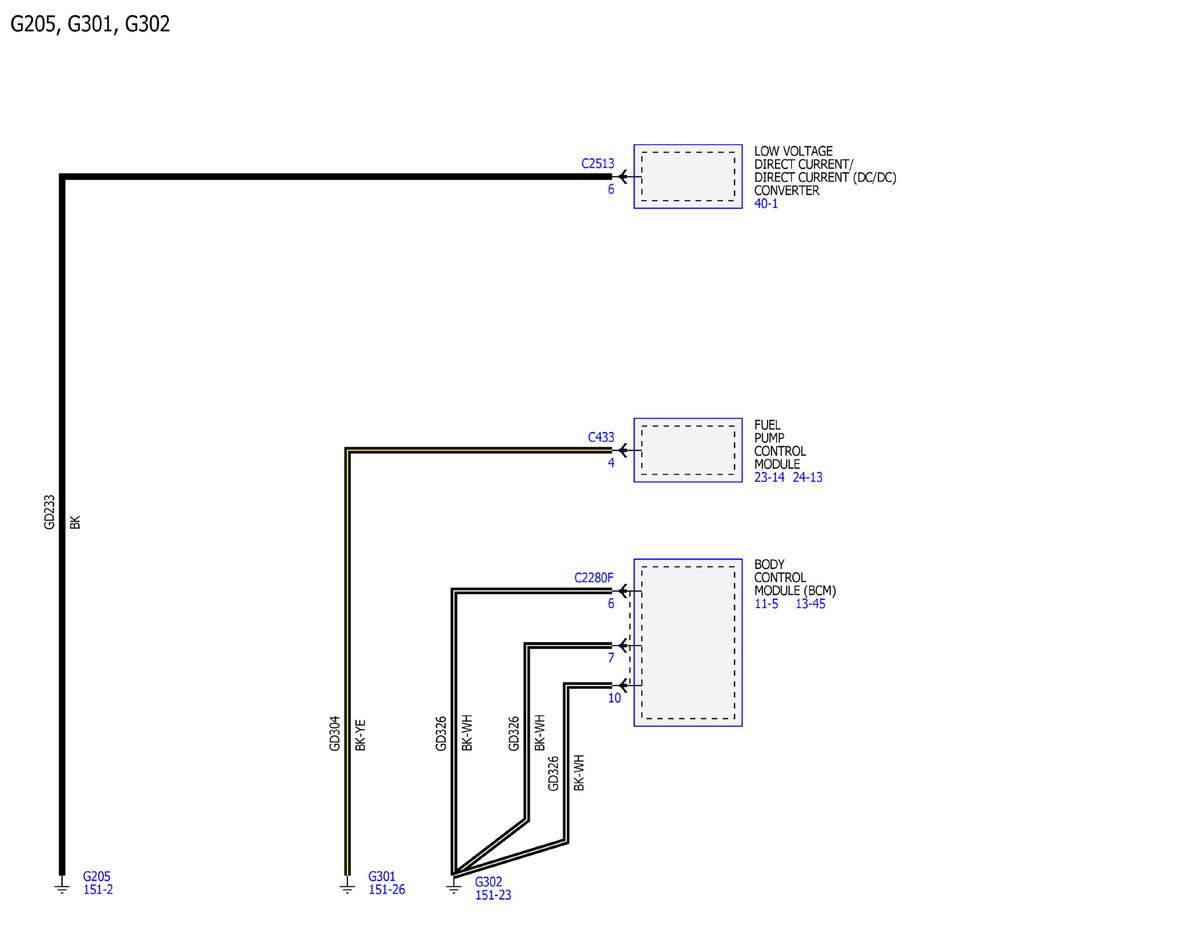

Courtesy of FORD MOTOR COMPANY

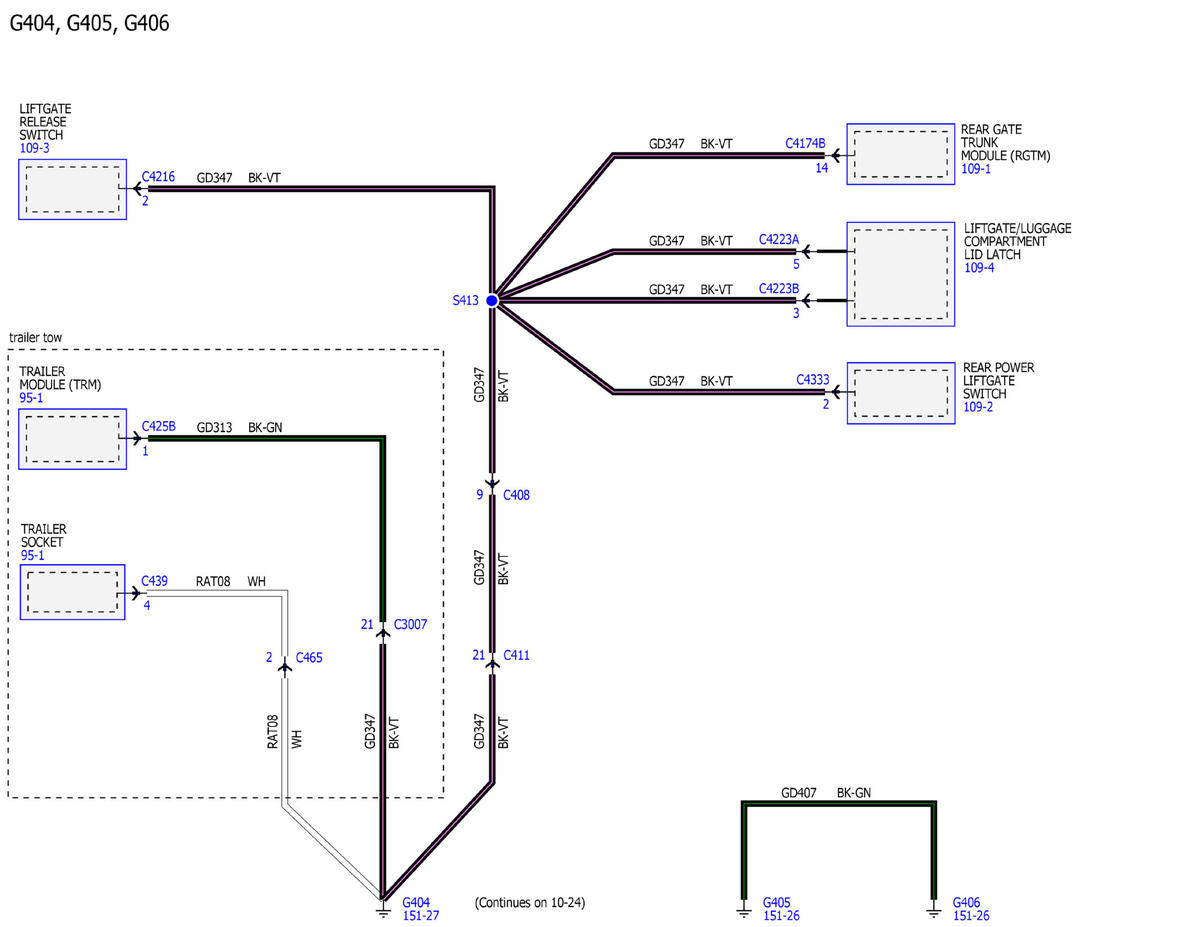

Courtesy of FORD MOTOR COMPANY

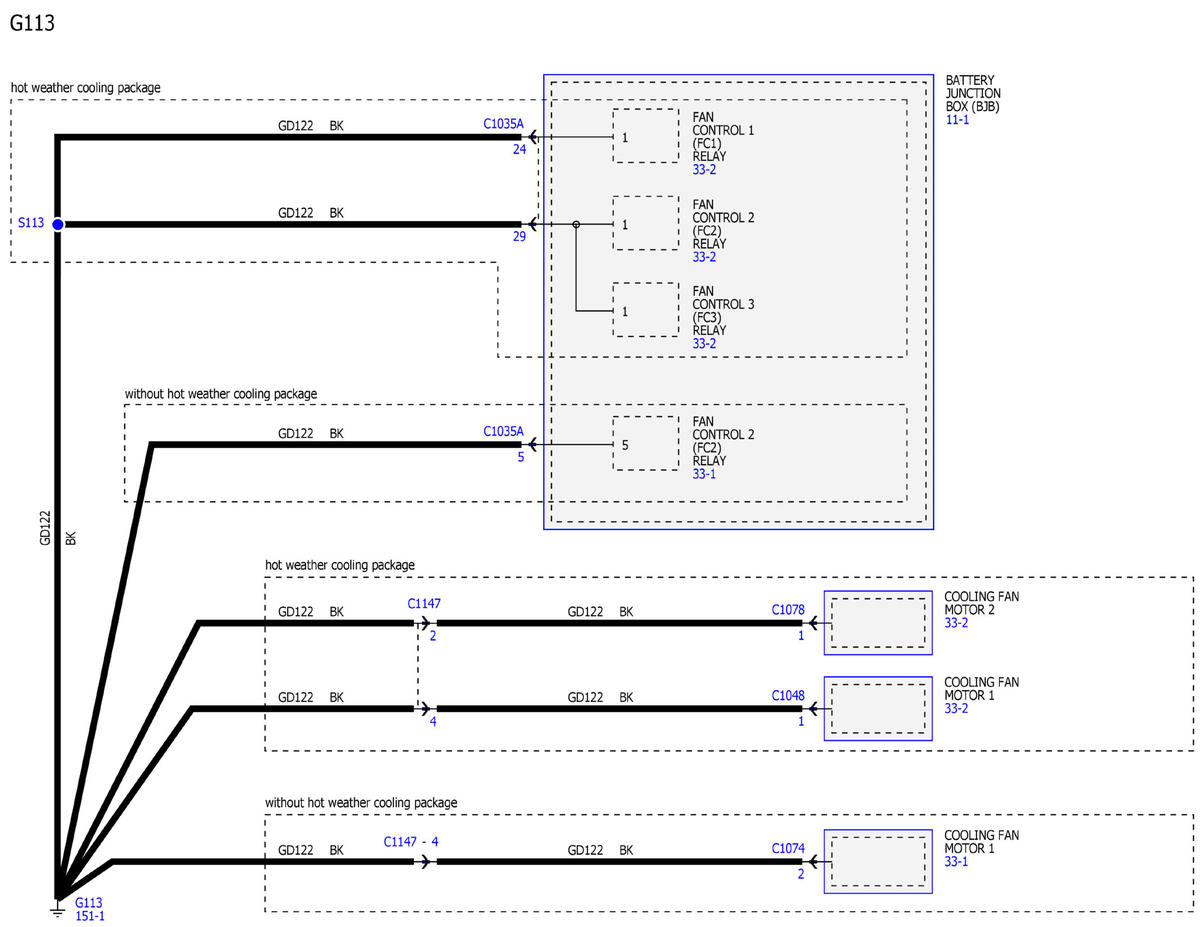

Courtesy of FORD MOTOR COMPANY

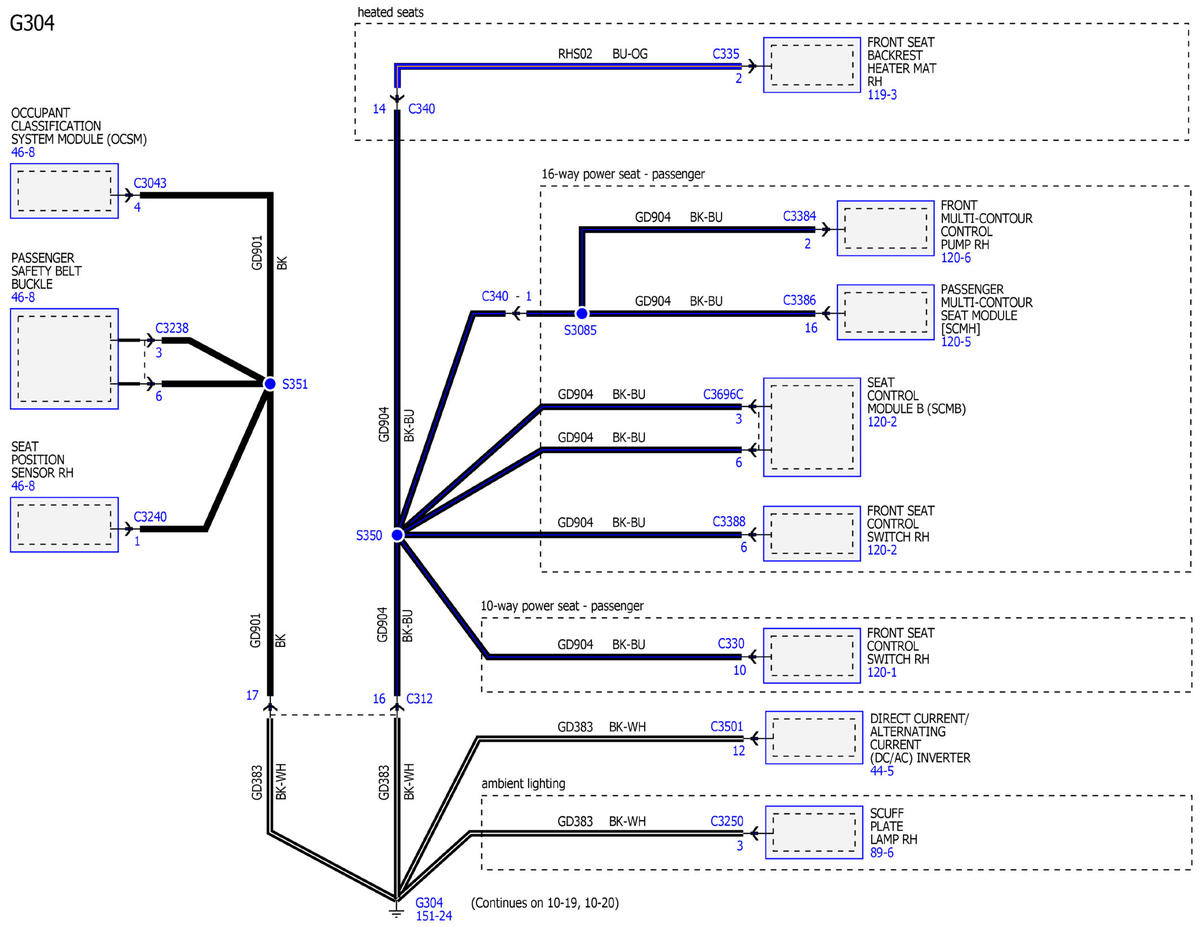

Courtesy of FORD MOTOR COMPANY

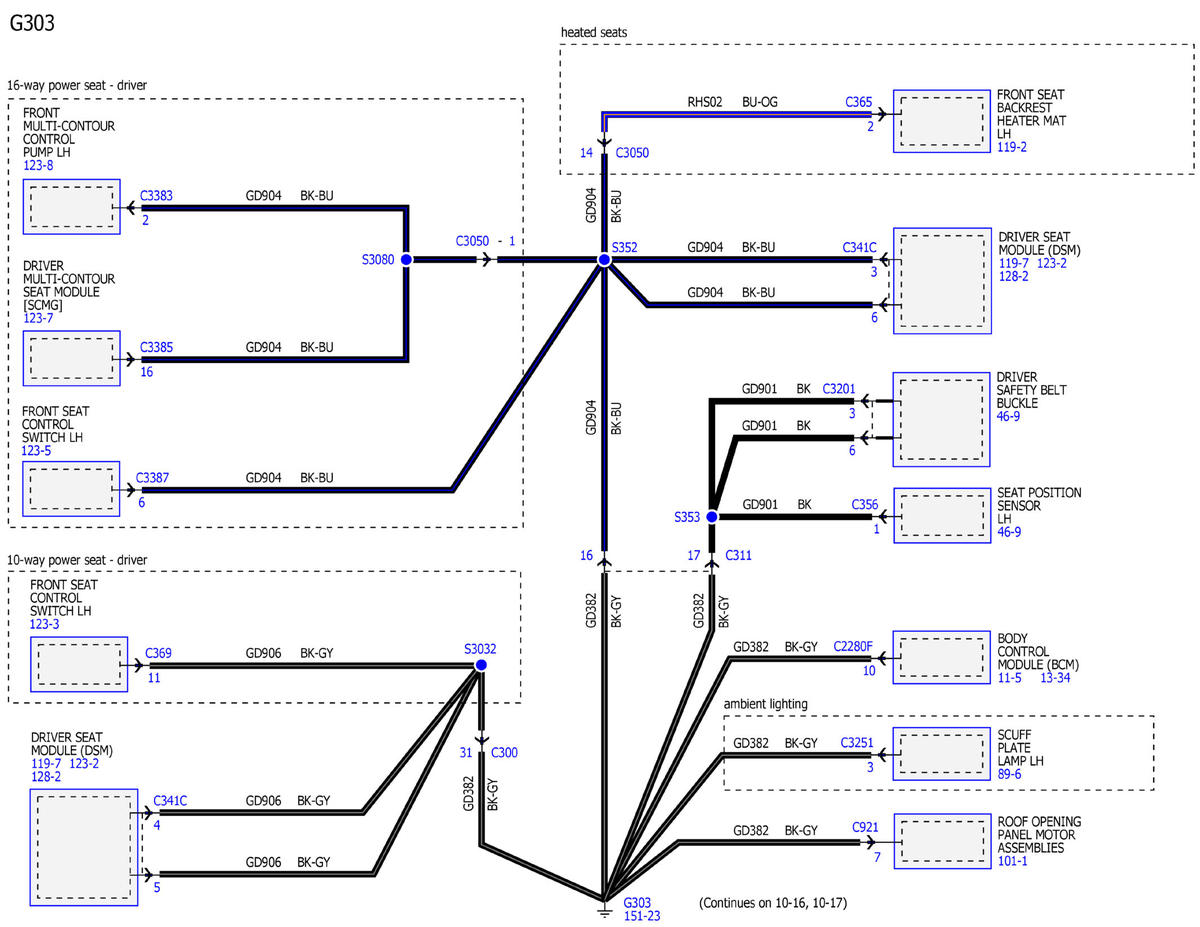

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
