Component Testing: Relays

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

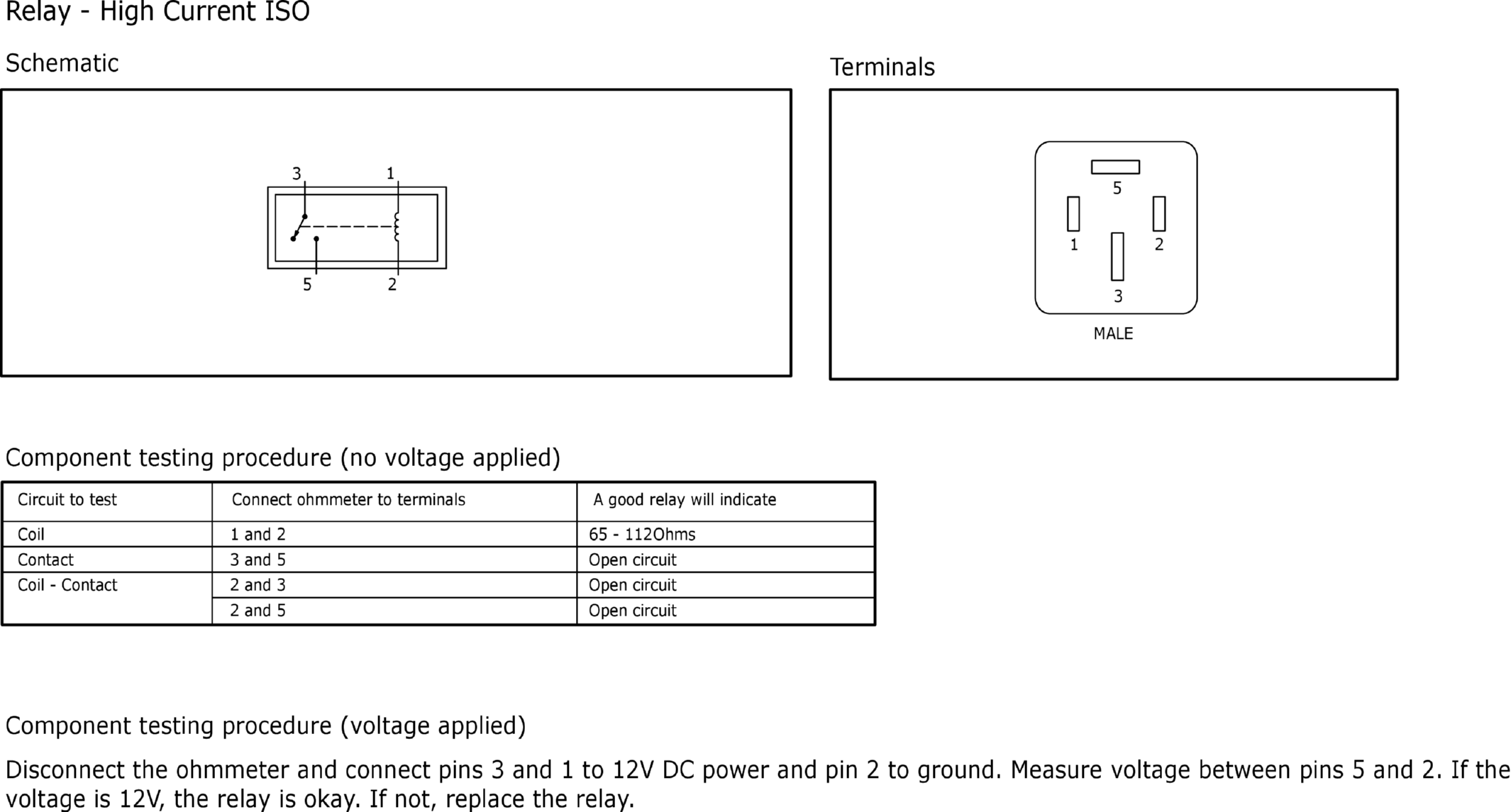

Fig 1: Relay - High Current ISO
GFDW83575Courtesy of FORD MOTOR COMPANY

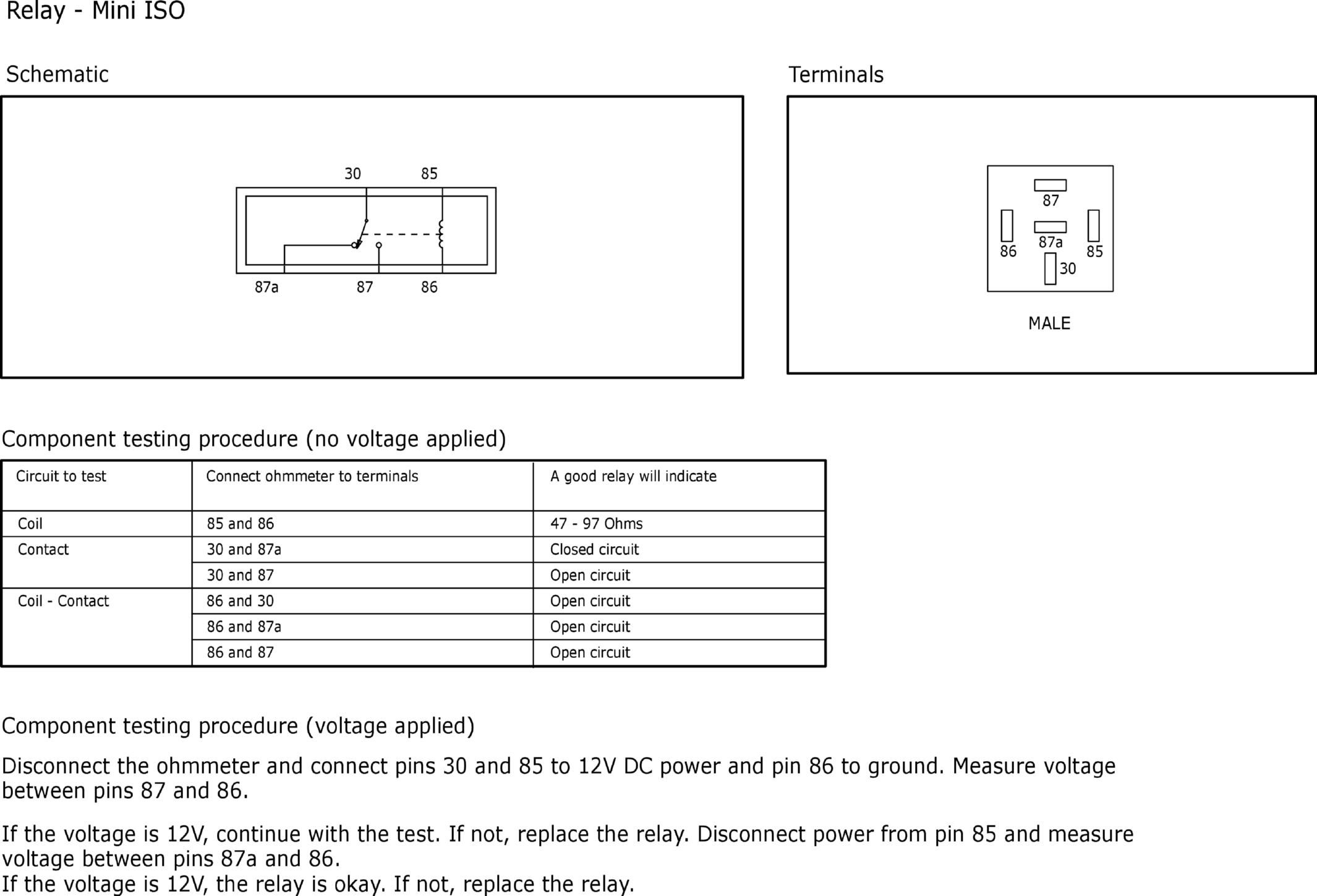

Fig 2: Relay - Mini ISO
GFDW83576Courtesy of FORD MOTOR COMPANY

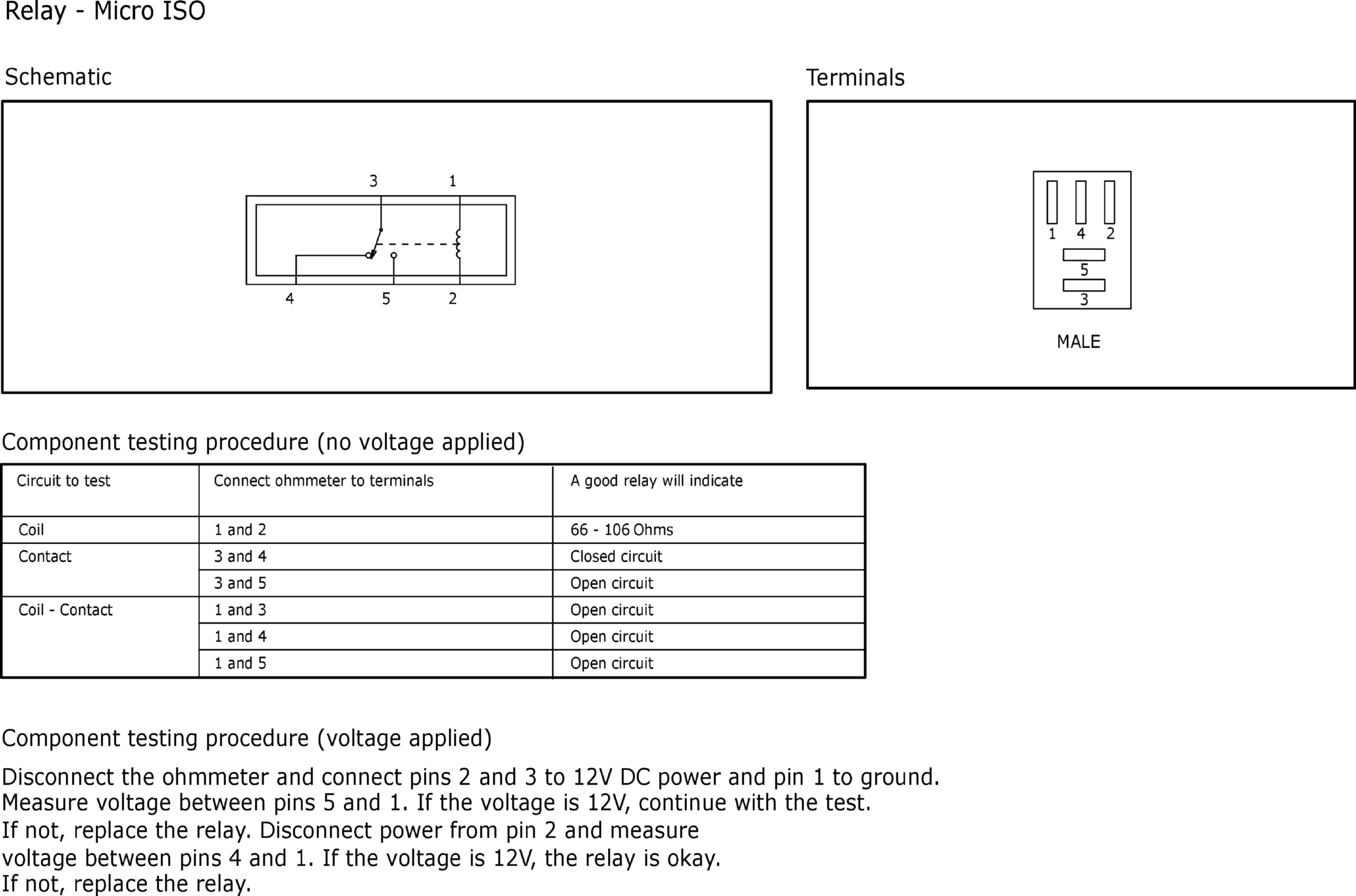

Fig 3: Relay - Micro ISO
GFDW83577Courtesy of FORD MOTOR COMPANY

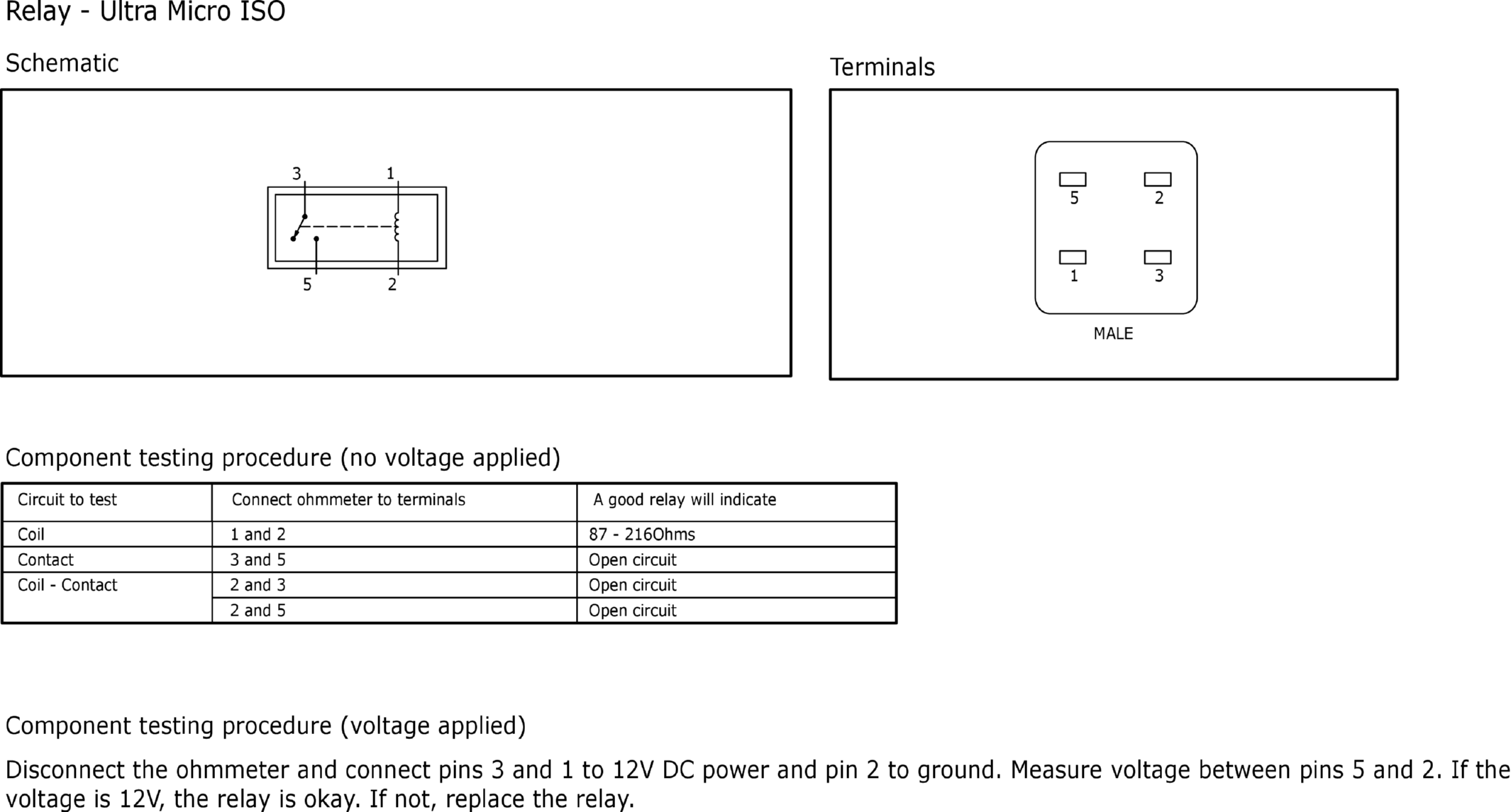

Fig 4: Relay - Ultra Micro ISO
GFDW83579Courtesy of FORD MOTOR COMPANY
