Section 882 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

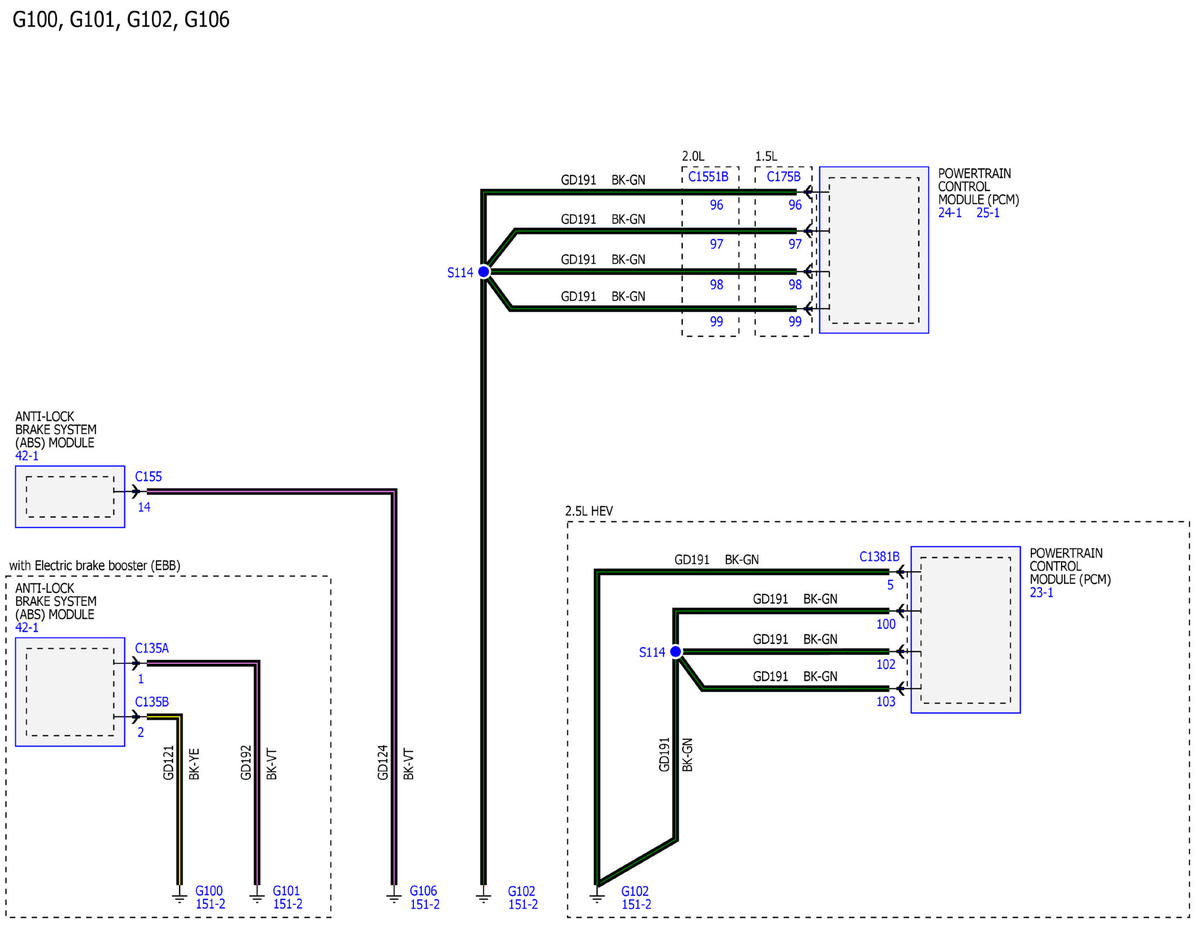

GFDWR165741Courtesy of FORD MOTOR COMPANY

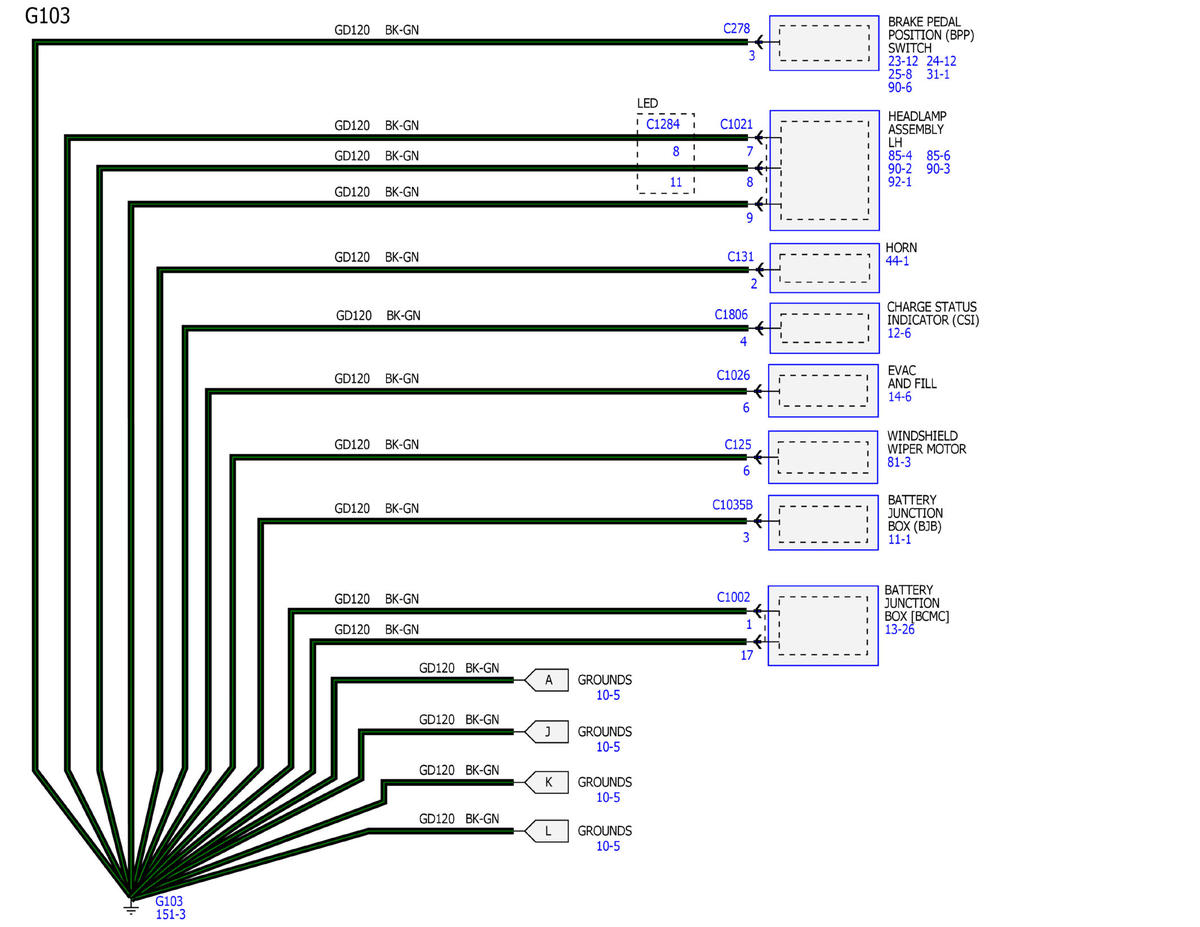

GFDWR165751Courtesy of FORD MOTOR COMPANY

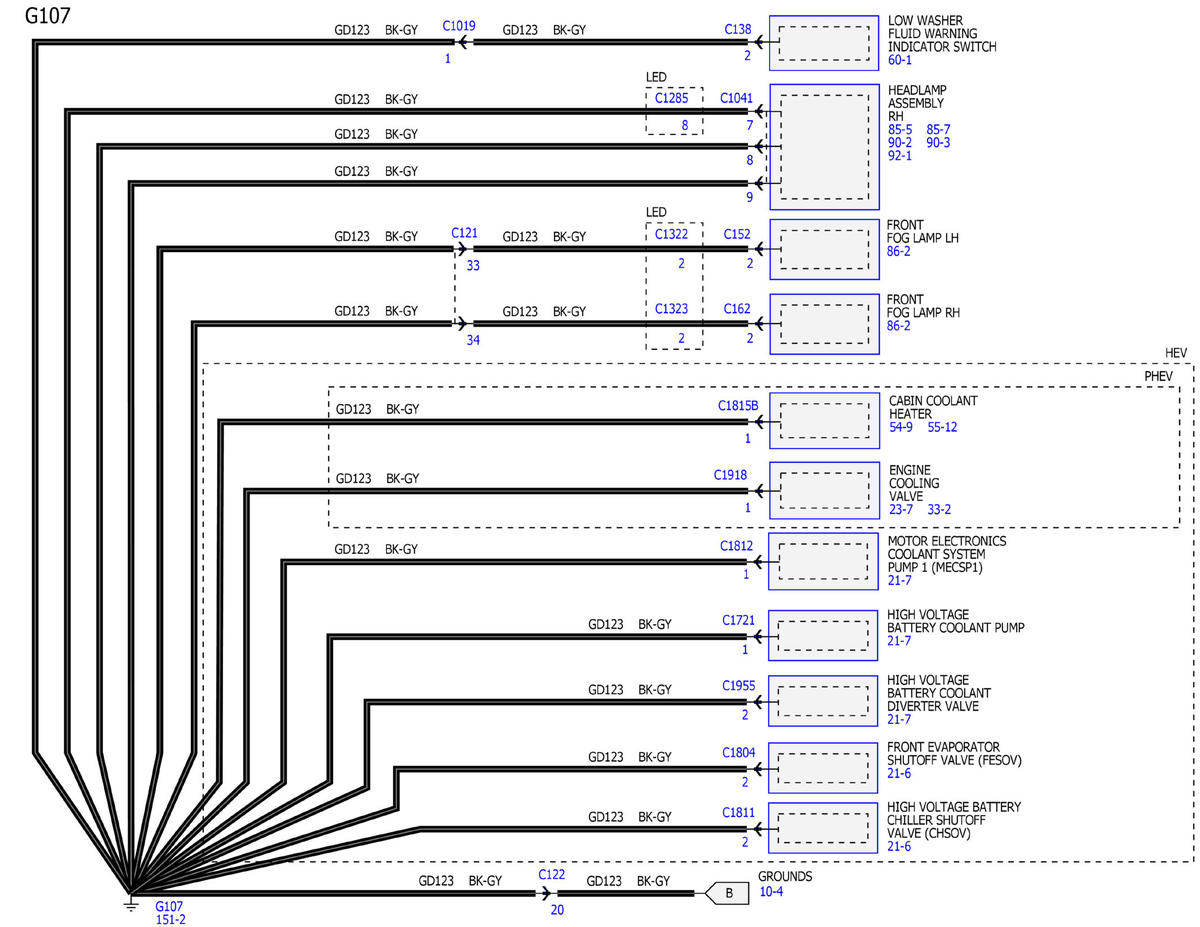

GFDWR165752Courtesy of FORD MOTOR COMPANY

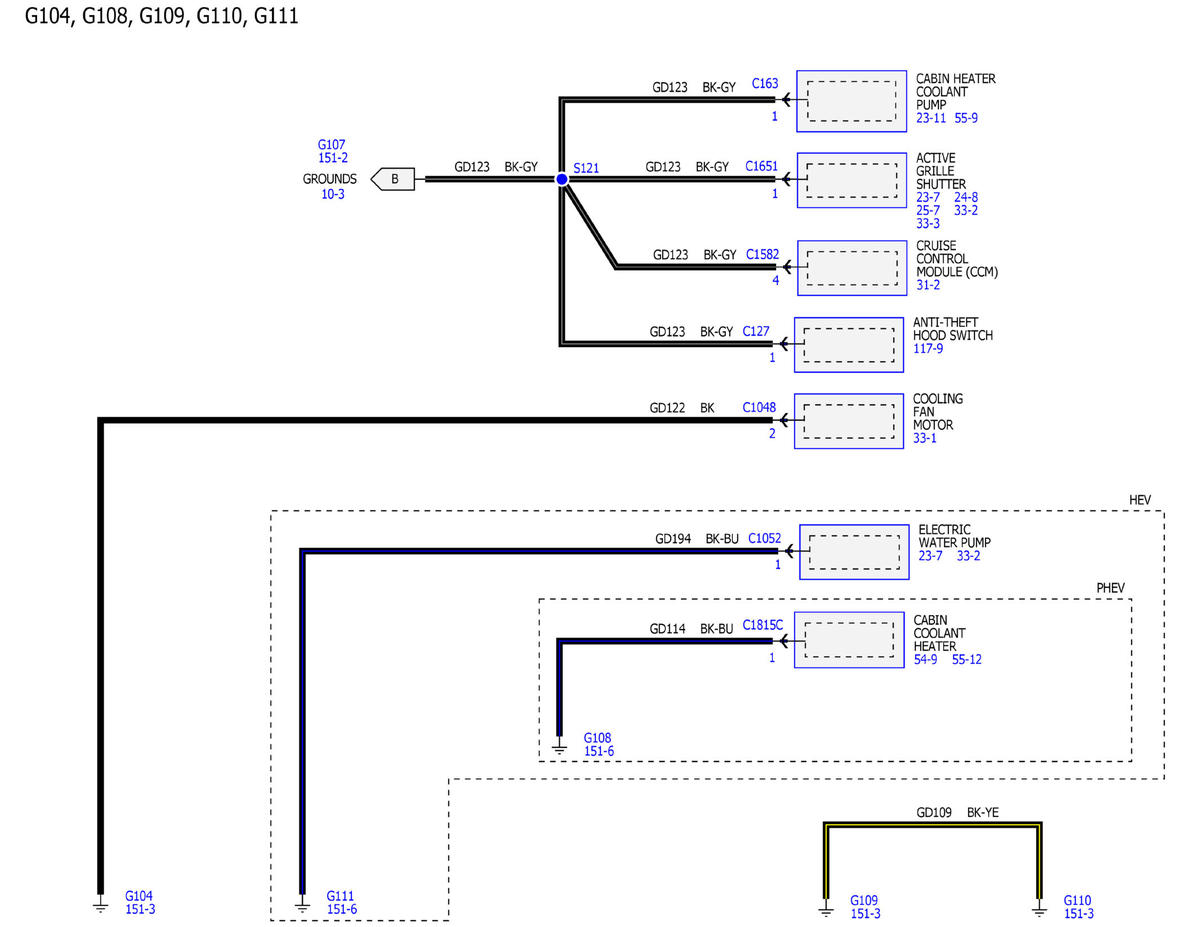

GFDWR165753Courtesy of FORD MOTOR COMPANY

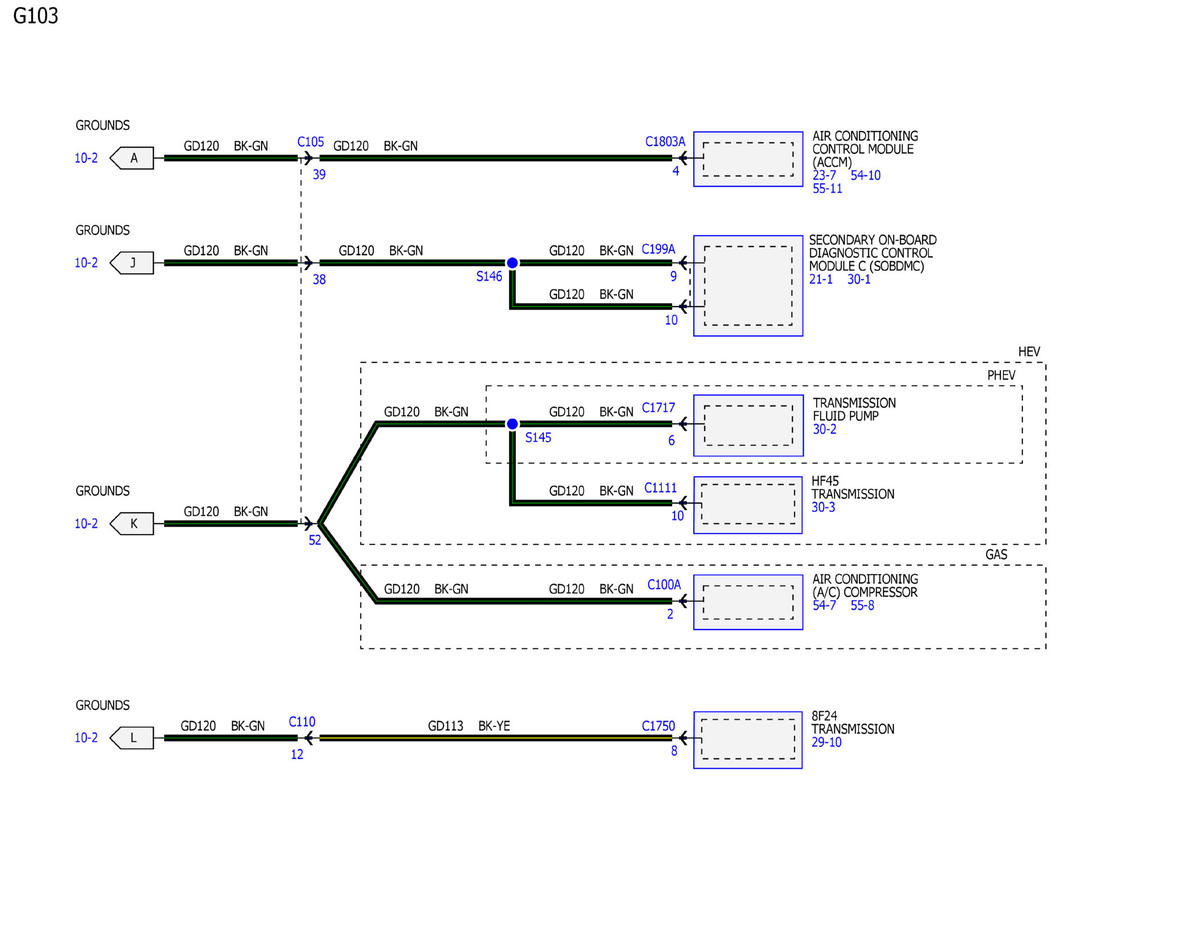

GFDWR165754Courtesy of FORD MOTOR COMPANY

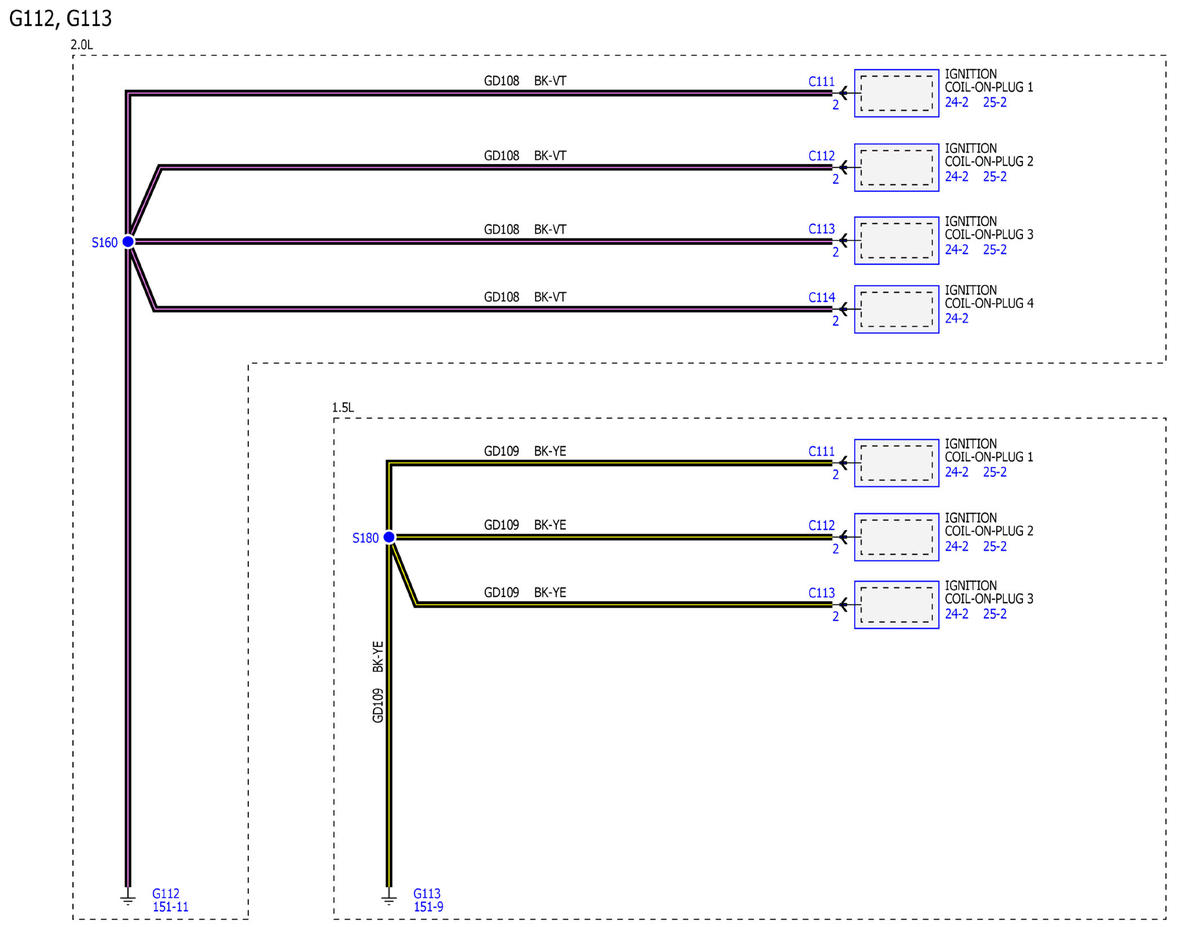

GFDWR165755Courtesy of FORD MOTOR COMPANY

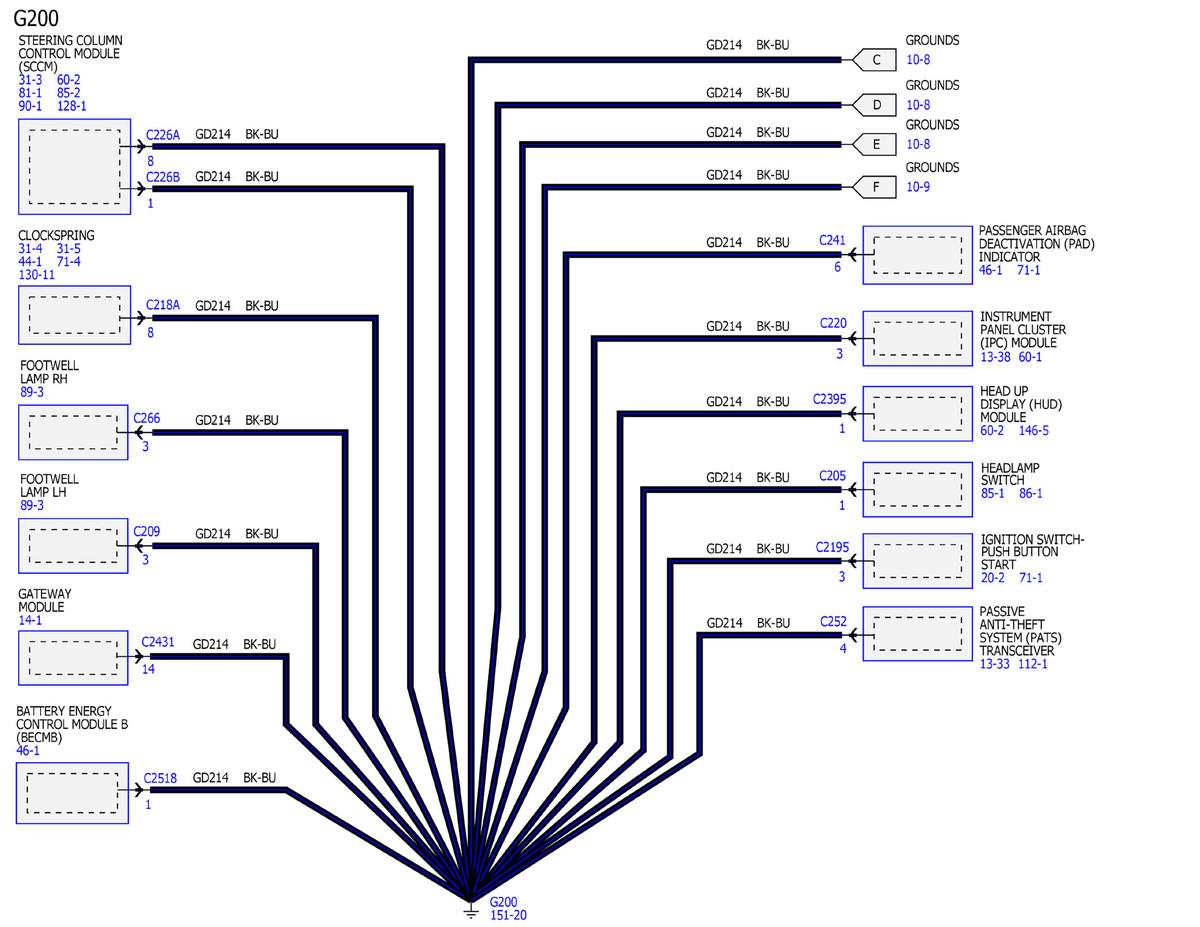

GFDWR165756Courtesy of FORD MOTOR COMPANY

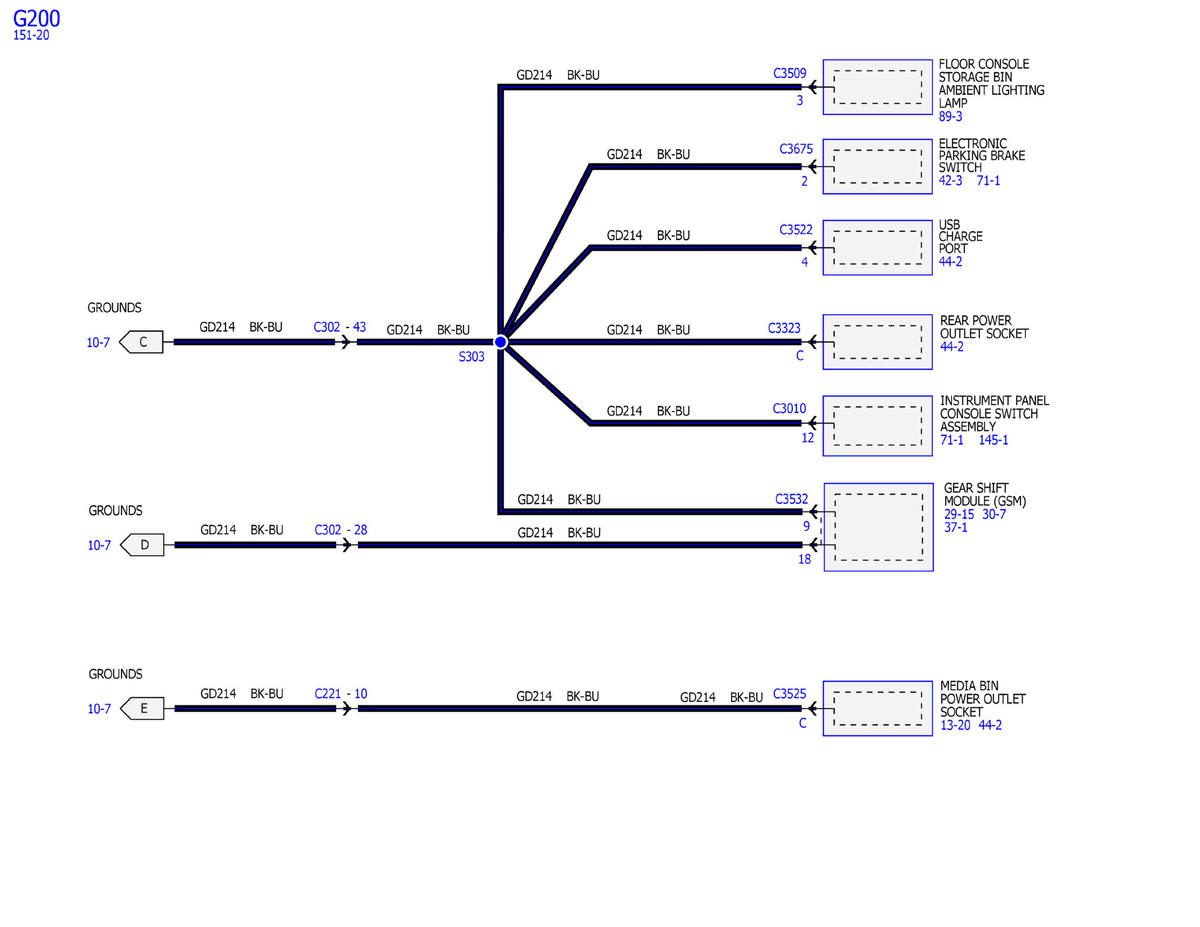

GFDWR165757Courtesy of FORD MOTOR COMPANY

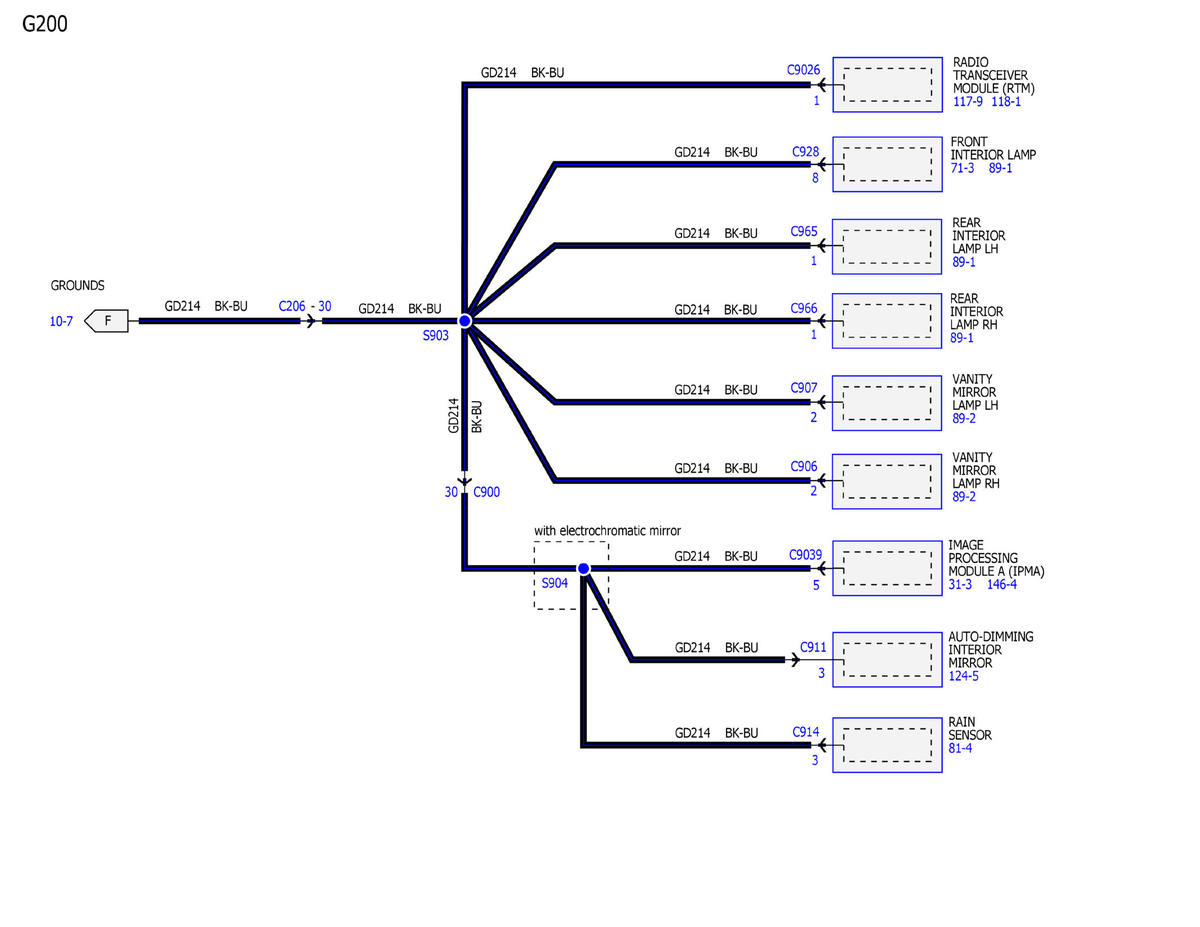

GFDWR165758Courtesy of FORD MOTOR COMPANY
GFDWR165742Courtesy of FORD MOTOR COMPANY

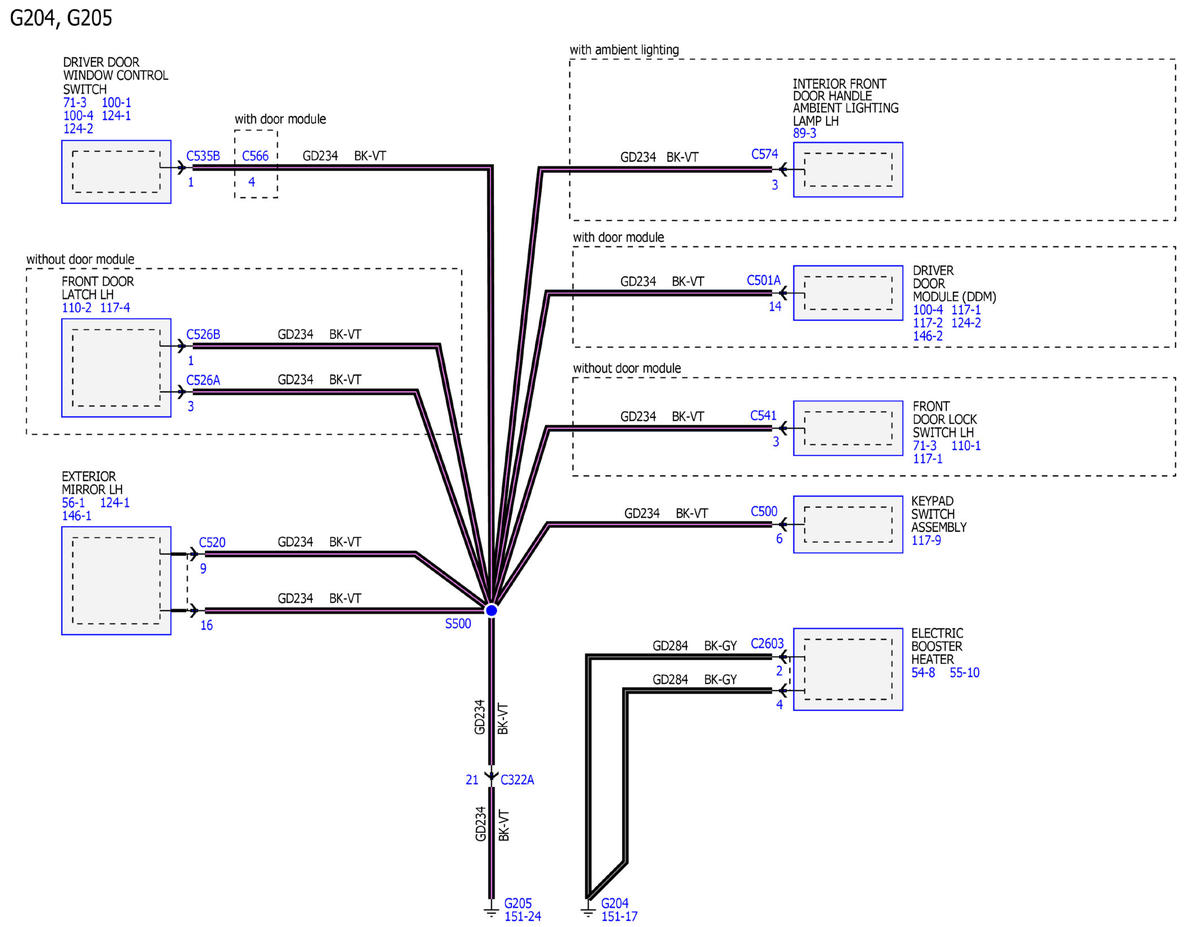

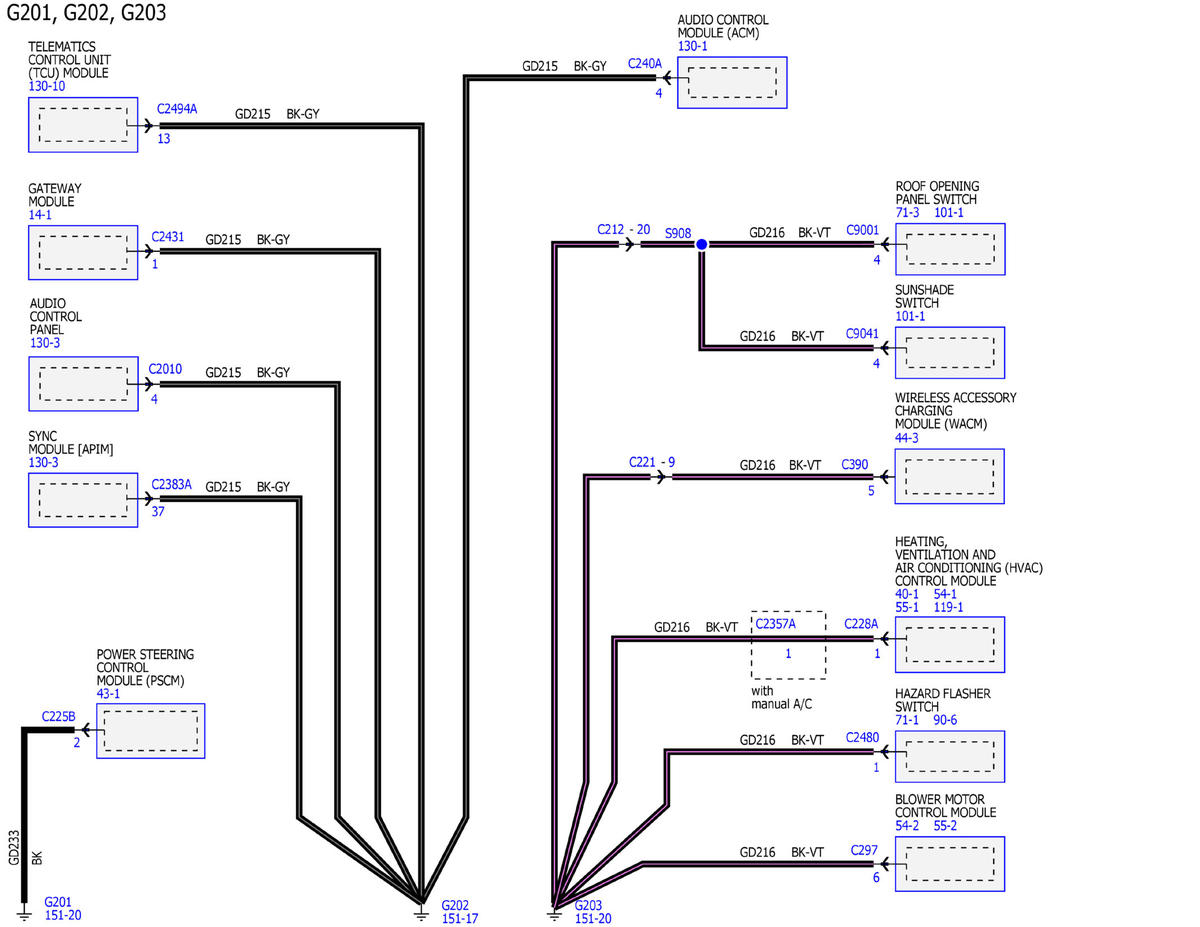

GFDWR165743Courtesy of FORD MOTOR COMPANY

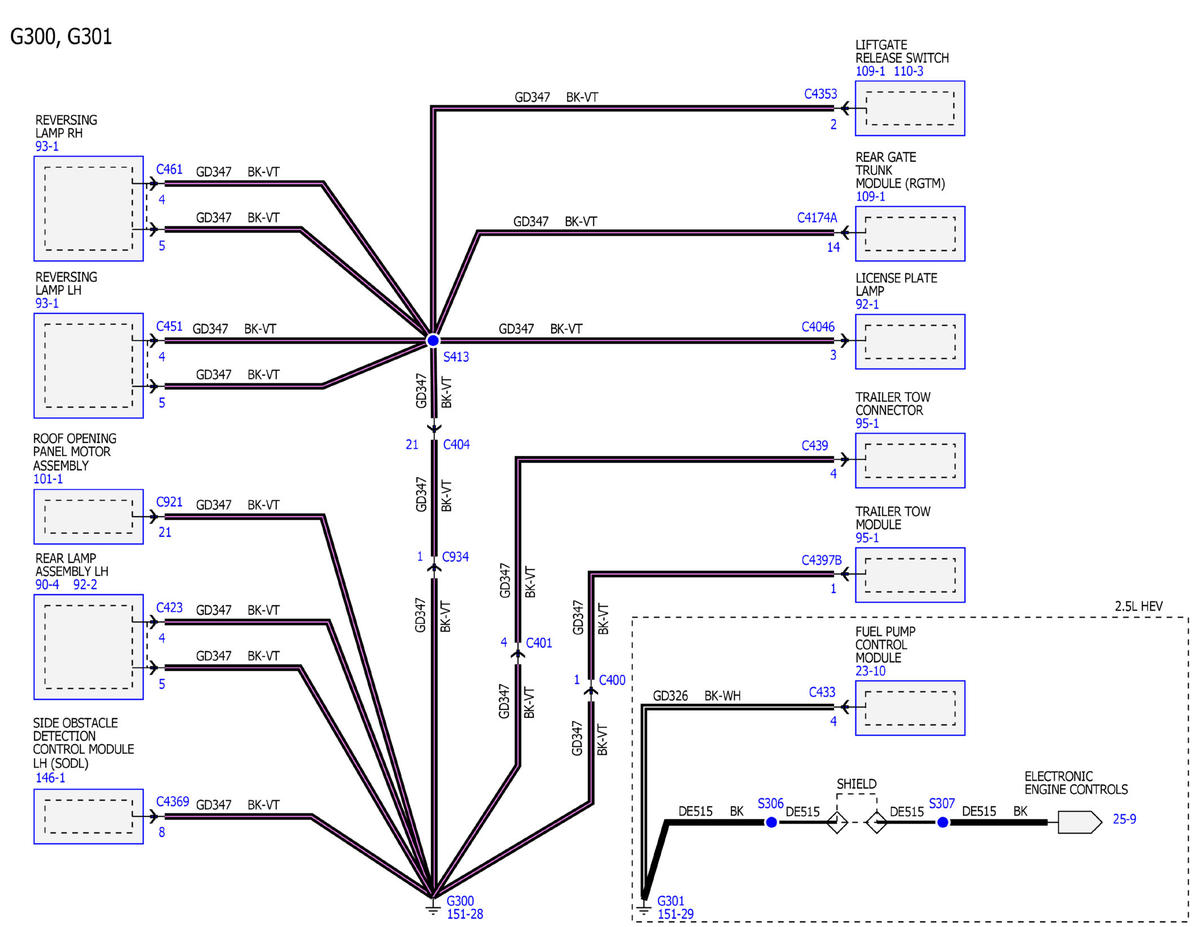

GFDWR165744Courtesy of FORD MOTOR COMPANY

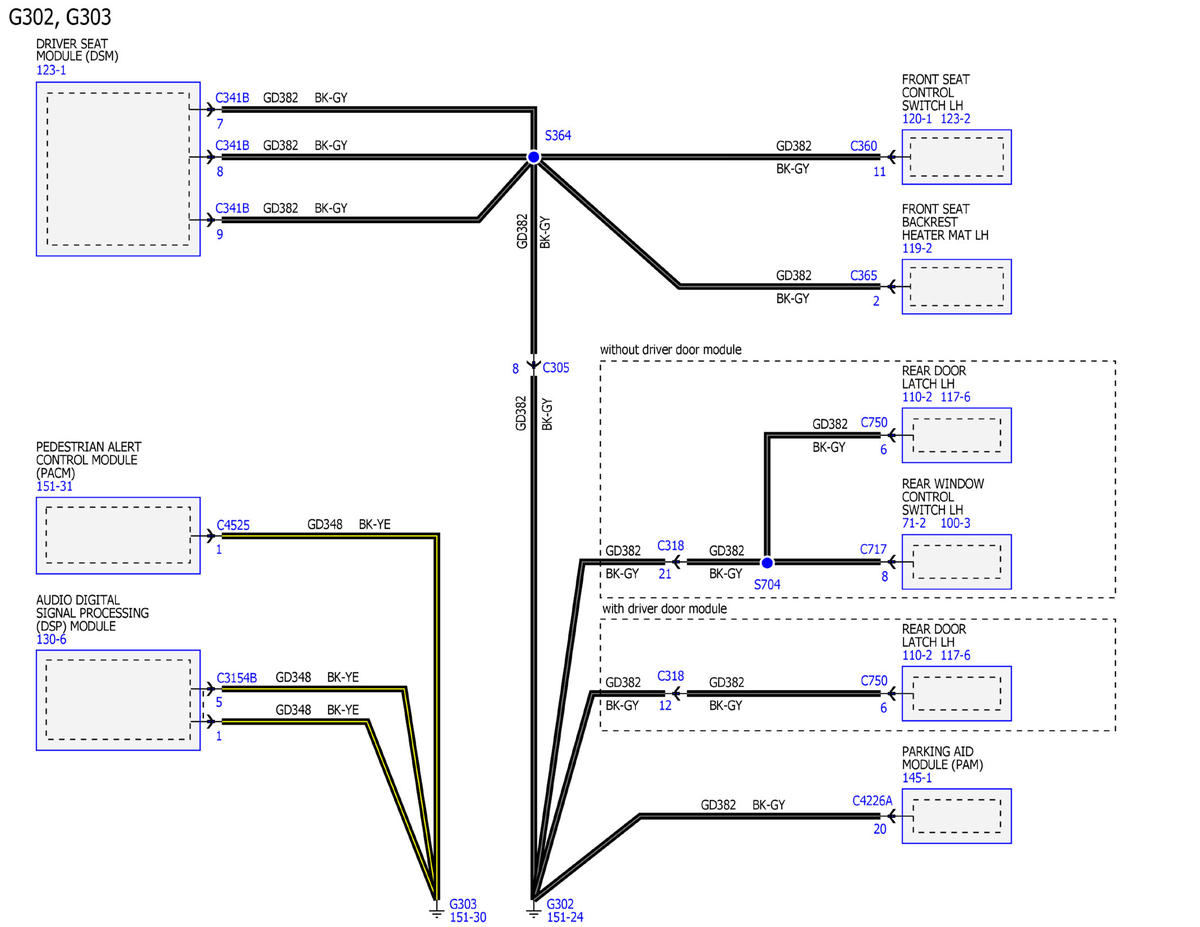

GFDWR165745Courtesy of FORD MOTOR COMPANY

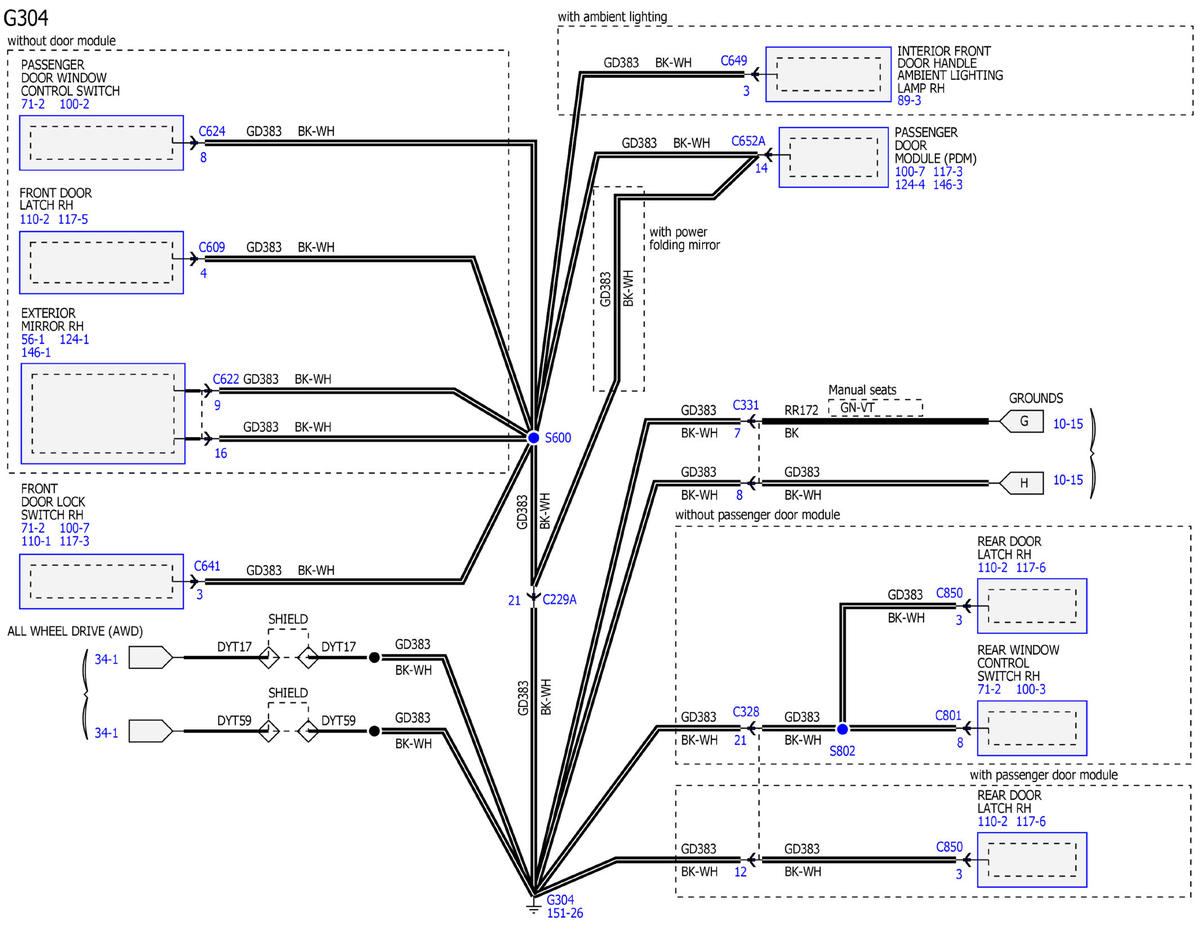

GFDWR165746Courtesy of FORD MOTOR COMPANY

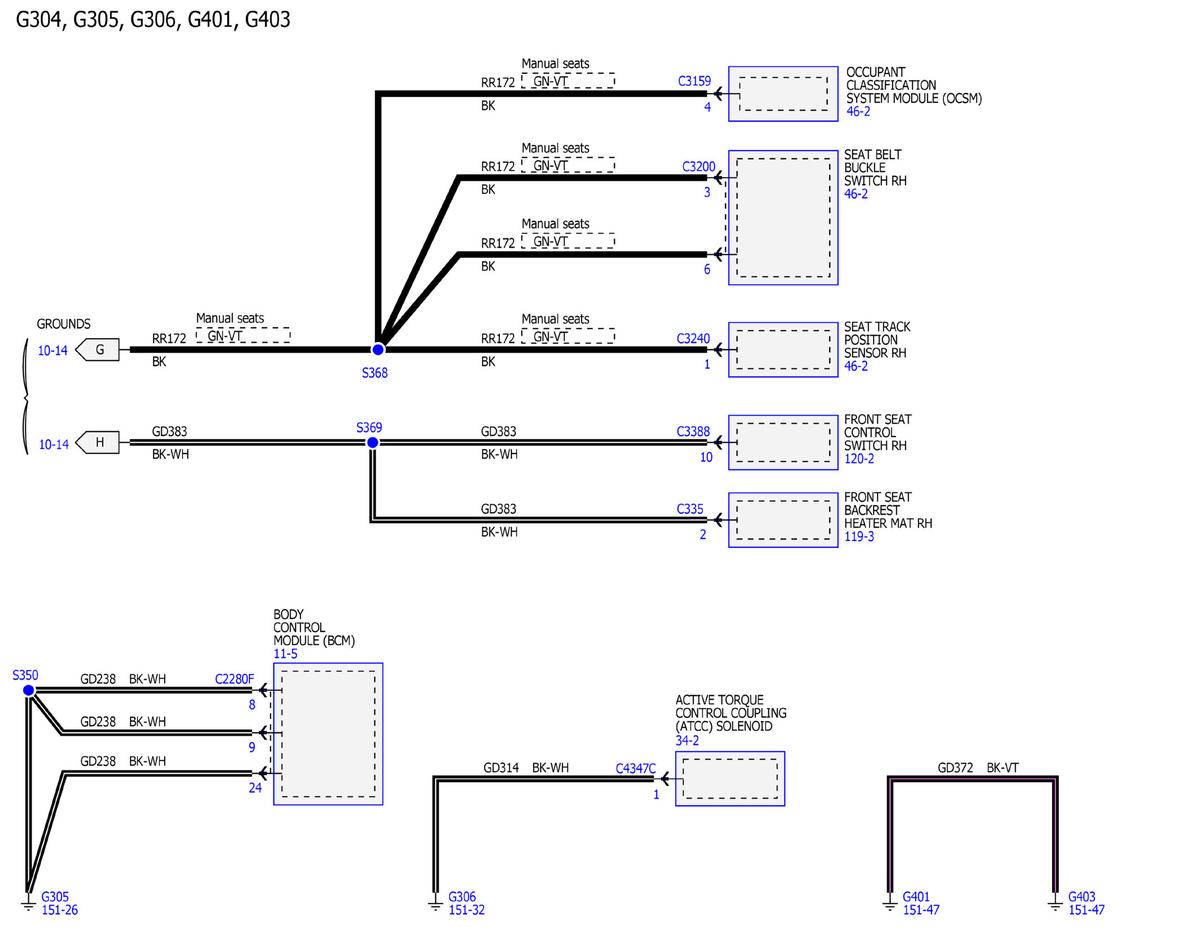

GFDWR165747Courtesy of FORD MOTOR COMPANY

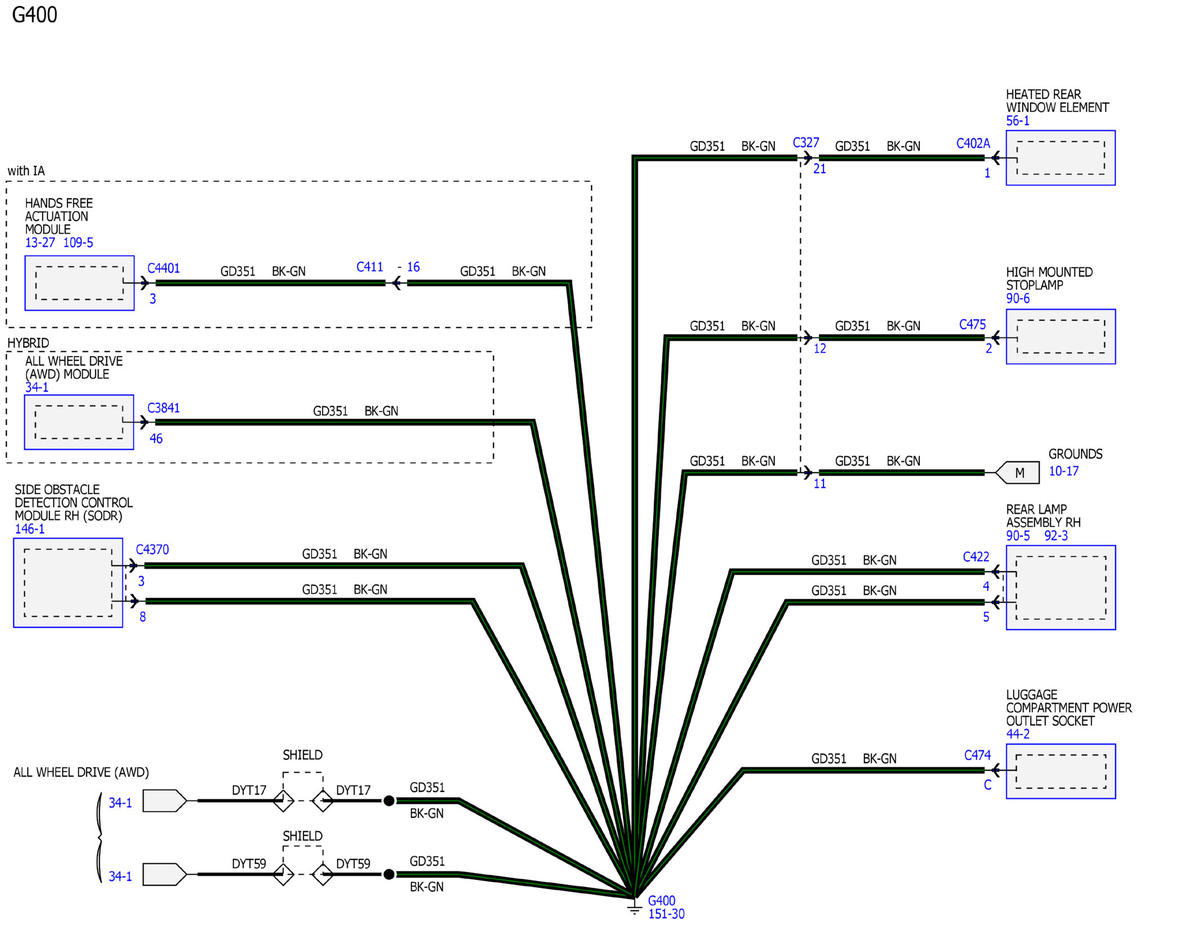

GFDWR165748Courtesy of FORD MOTOR COMPANY

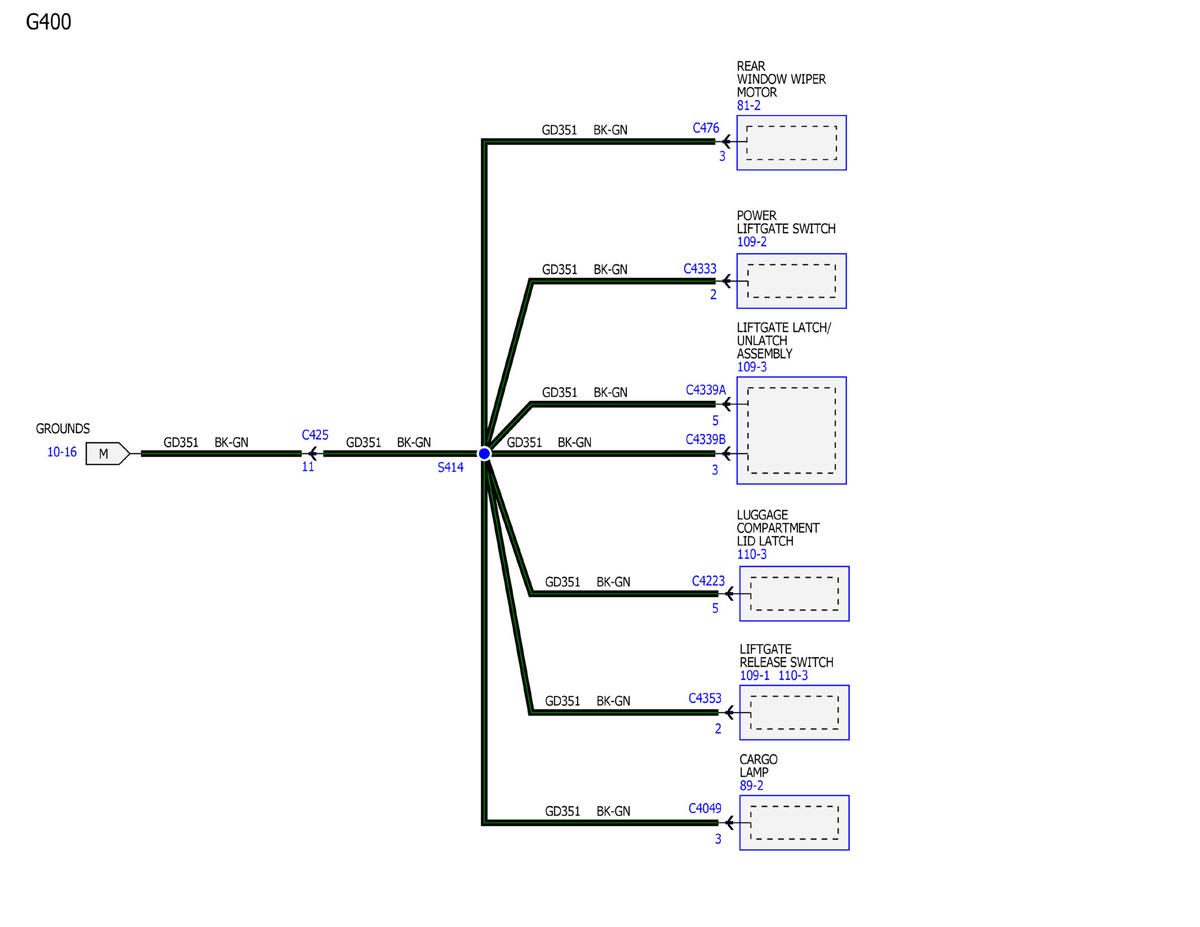

GFDWR165749Courtesy of FORD MOTOR COMPANY

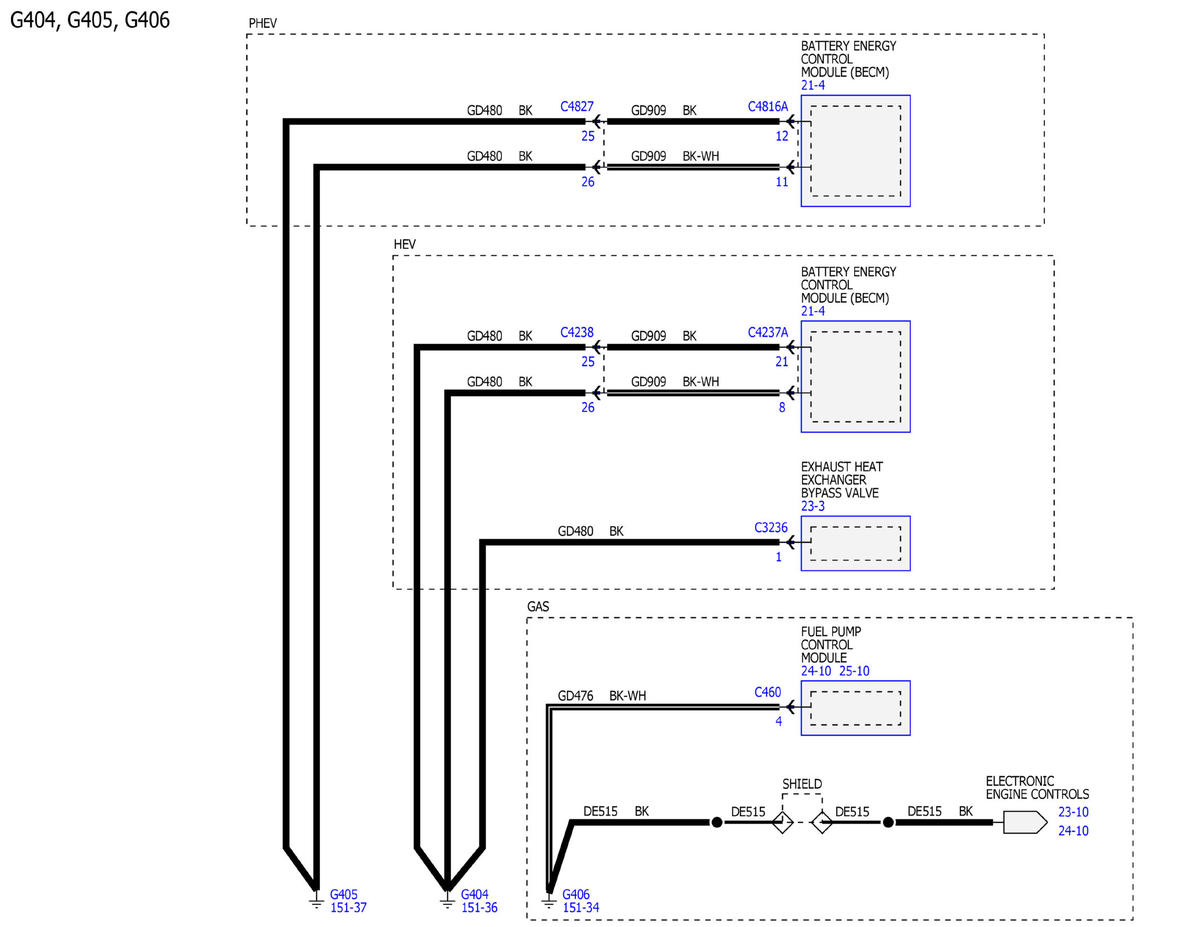

GFDWR165750Courtesy of FORD MOTOR COMPANY
