Body Control Module C (BCMC): Removal

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If the BCMC (body control module C) did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCMC (body control module C) is being replaced.

Using a diagnostic scan tool, begin the PMI process for the BCMC following the on-screen instructions.
Disconnect the battery. Refer to: Battery Disconnect and Connect .
Remove the LH fender splash shield. Refer to: Fender Splash Shield .

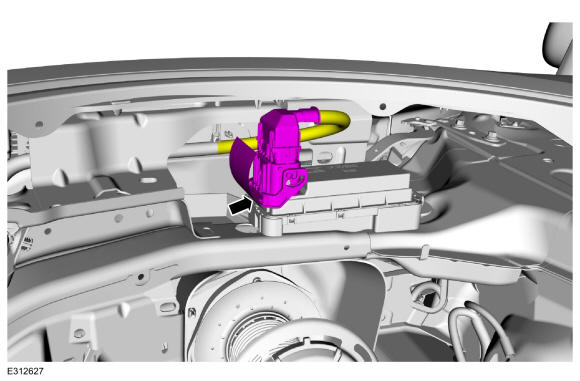

Disconnect the BCMC wiring connector.

Courtesy of FORD MOTOR COMPANY

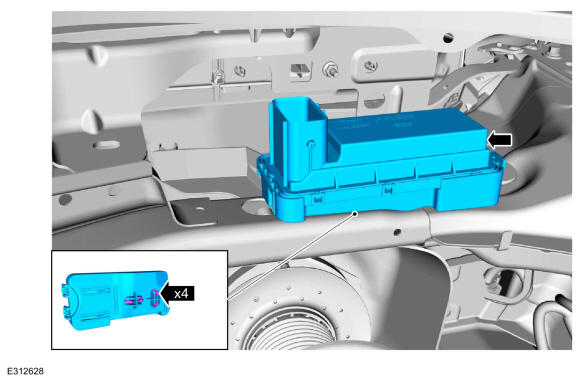

Gently release the clips and remove the BCMC.

Courtesy of FORD MOTOR COMPANY
