Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

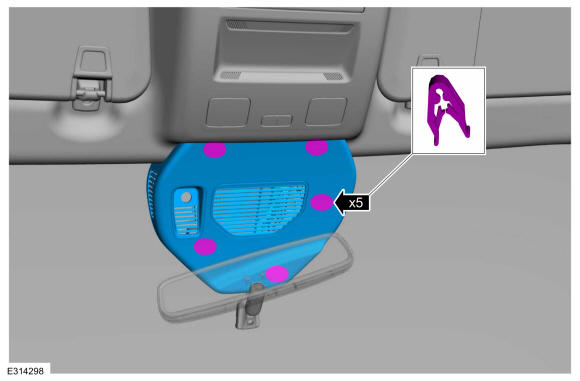

  1. Release the clips and remove the IPMA cover.
    GFD653316Courtesy of FORD MOTOR COMPANY

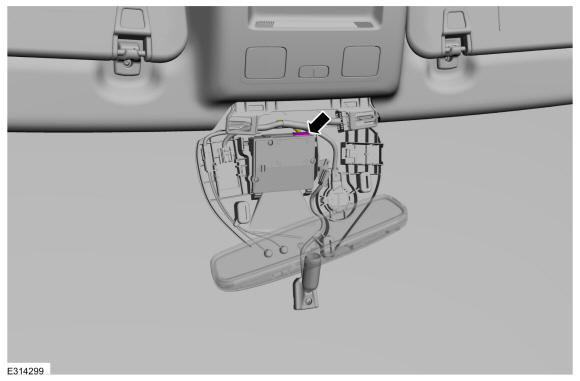

  2. Disconnect the electrical connector.
    GFD653317Courtesy of FORD MOTOR COMPANY

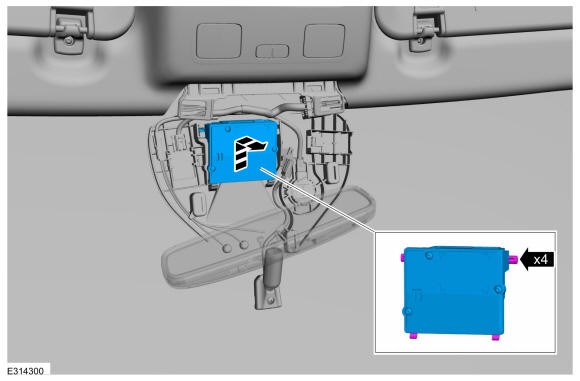

  3. Release the tabs and remove the IPMA.
GFD653318Courtesy of FORD MOTOR COMPANY
