Network Message Chart: Notes

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

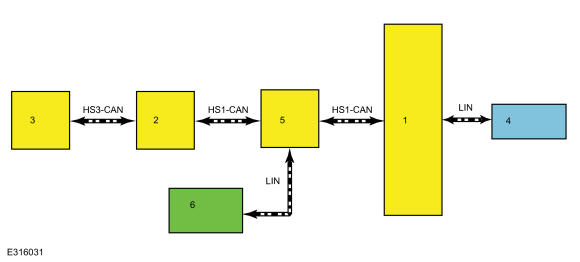

GFD652777Courtesy of FORD MOTOR COMPANY
Item Description
1 PCM
2 GWM
3 IPC
4 Generator
5 BCM
6 Battery Current Sensor
