Component Testing

Fig 1: Introduction
GFDWR198140Courtesy of FORD MOTOR COMPANY

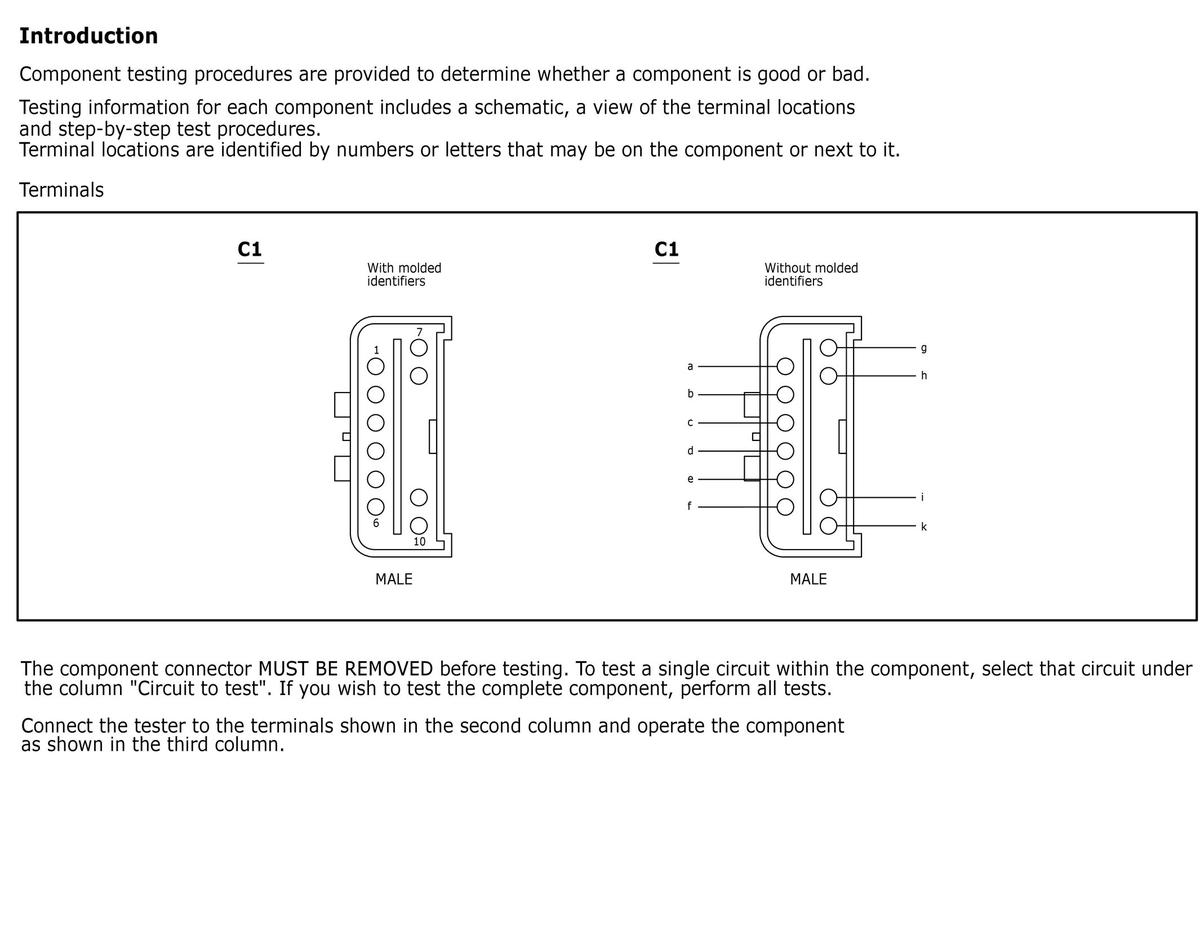

Fig 2: Ignition Switch Component Testing
GFDWR198141Courtesy of FORD MOTOR COMPANY

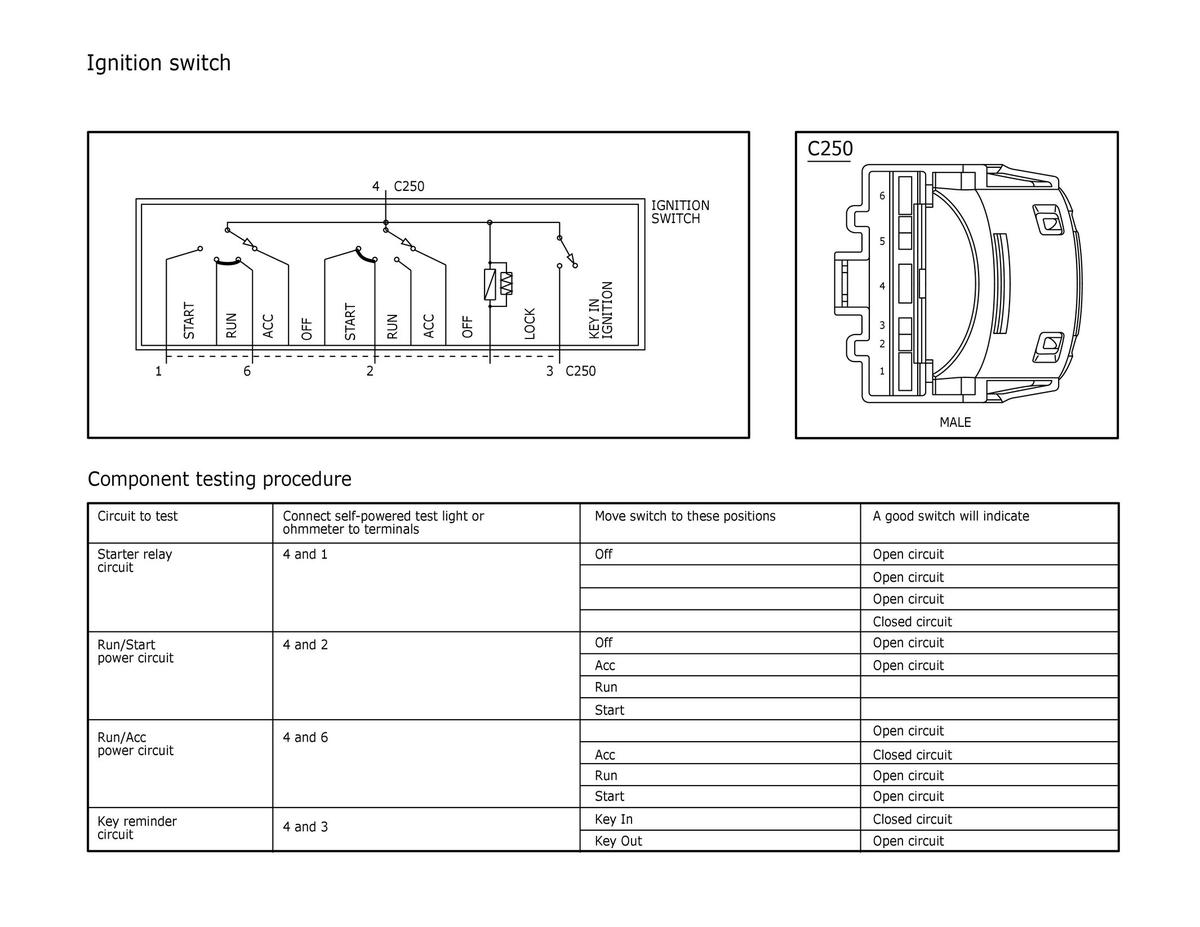

Fig 3: Ignition Switch - Push Button Start Component Testing
GFDWR198142Courtesy of FORD MOTOR COMPANY

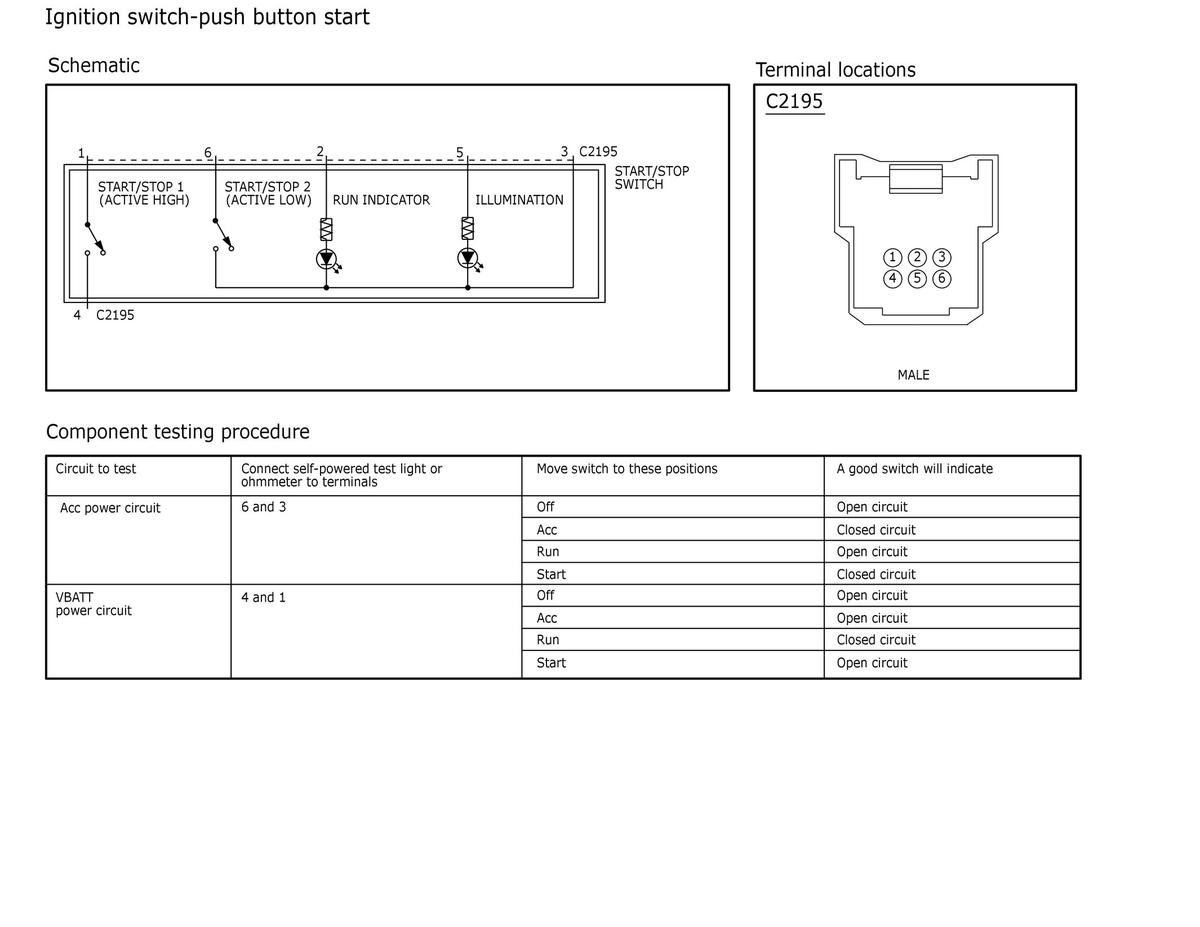

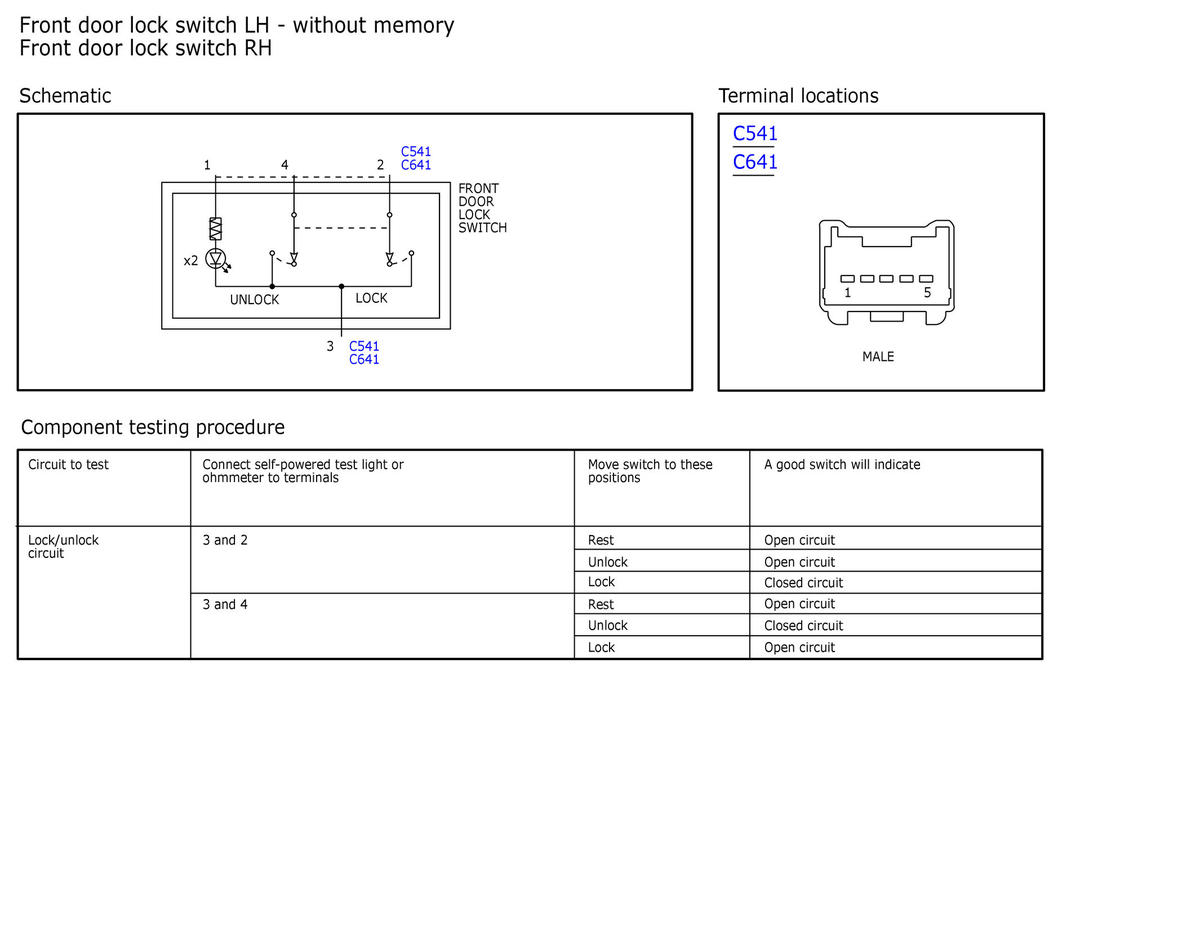

Fig 4: Front Door Lock Switch LH - Without Memory; Front Door Lock Switch RH Component Testing
GFDWR198143Courtesy of FORD MOTOR COMPANY
Fig 5: Front Door Lock Switch LH - With Memory Component Testing
GFDWR198144Courtesy of FORD MOTOR COMPANY

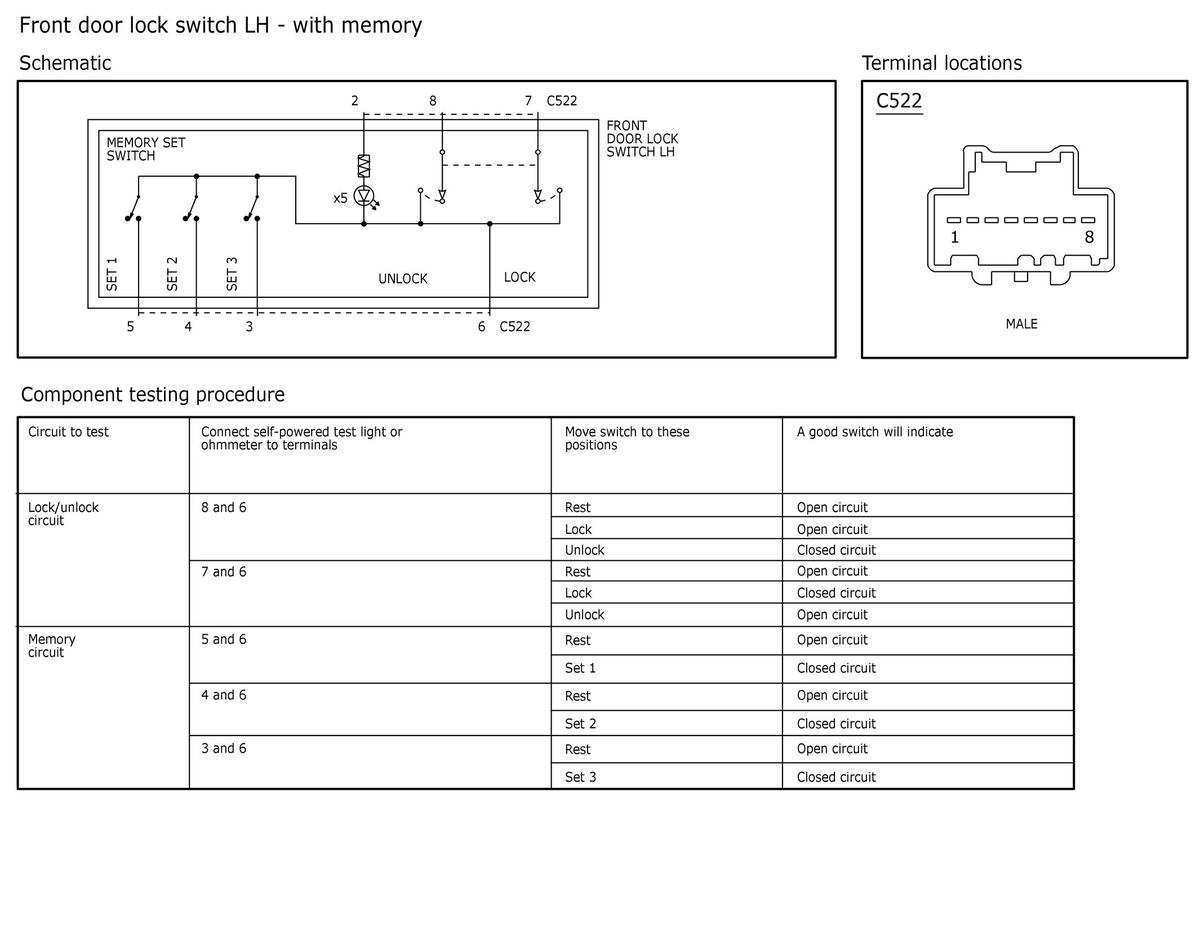

Fig 6: Front Seat Control Switch LH Component Testing
GFDWR198145Courtesy of FORD MOTOR COMPANY

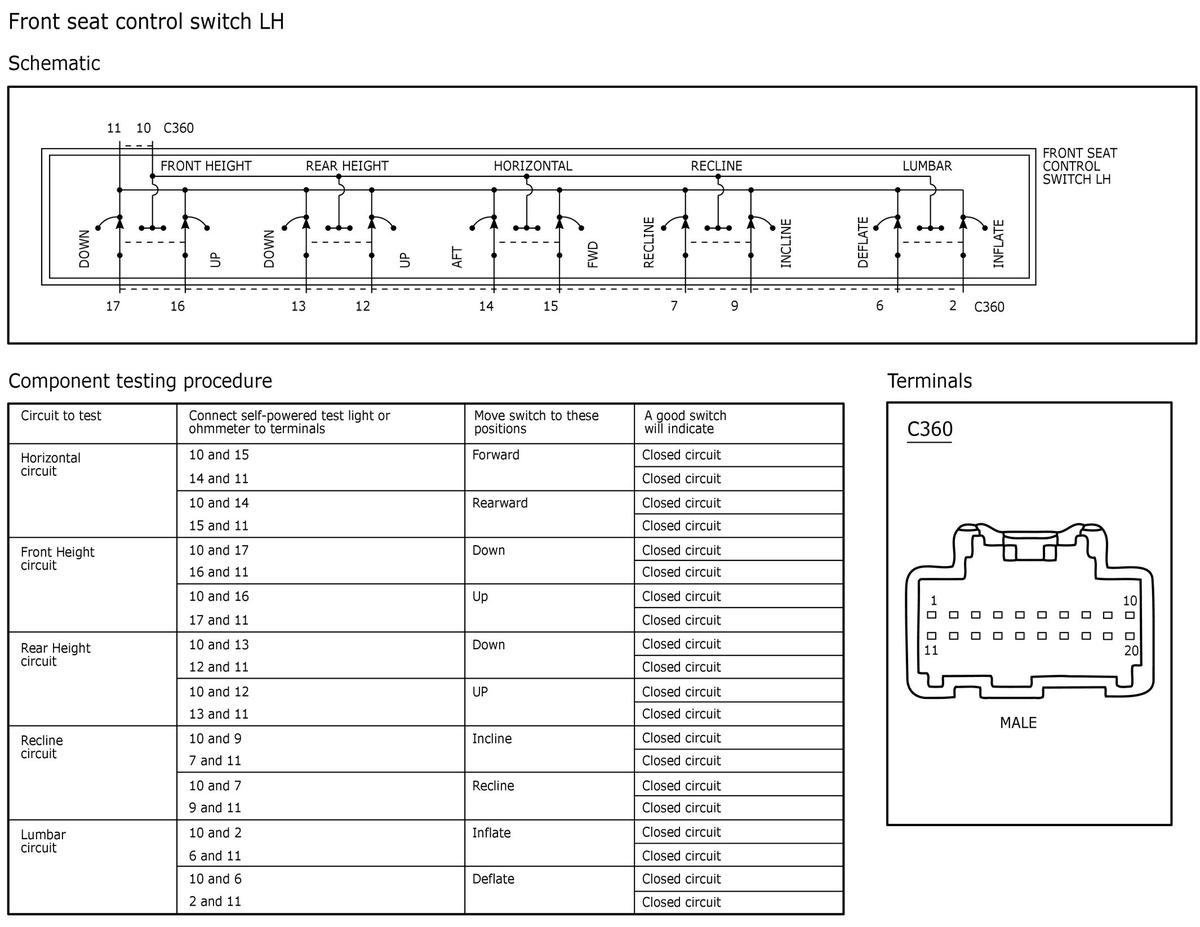

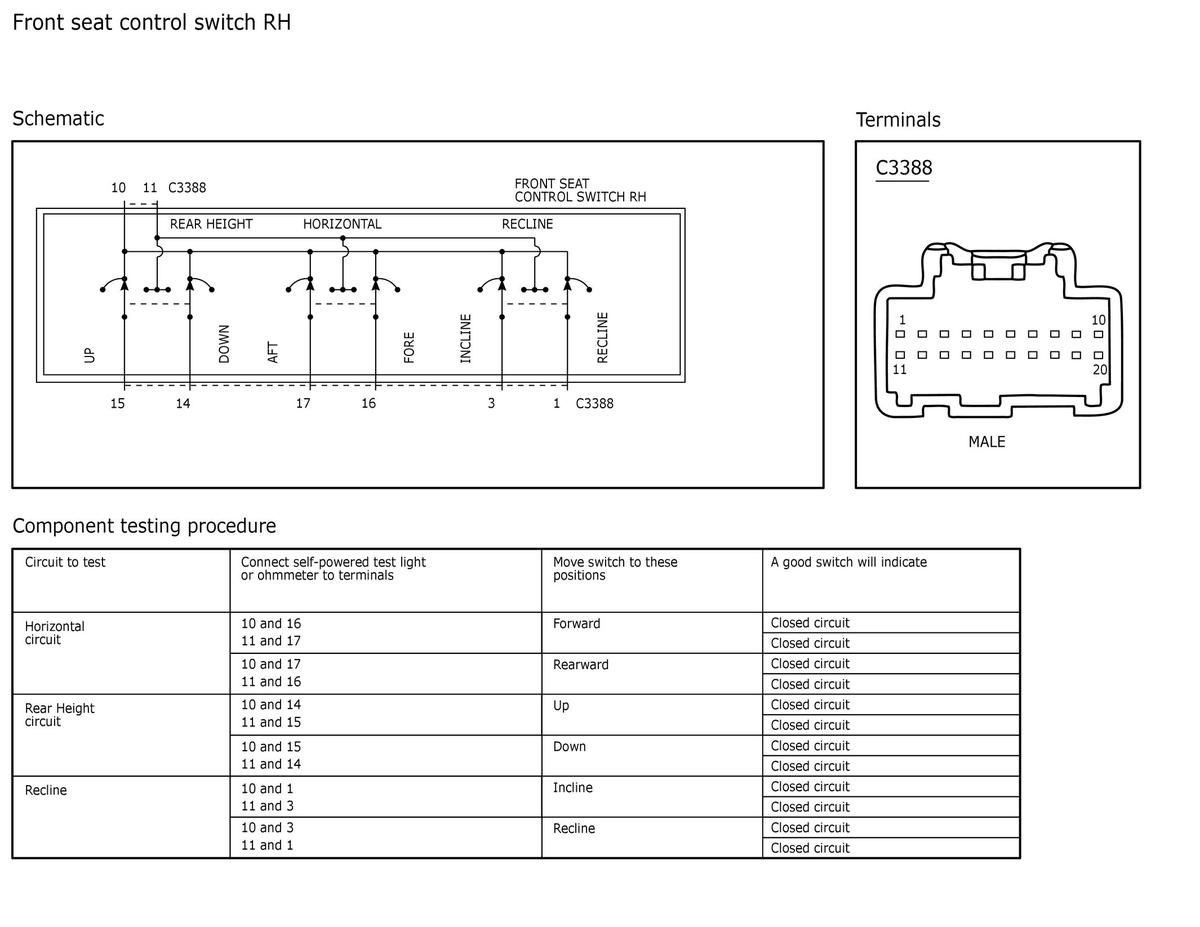

Fig 7: Front Seat Control Switch RH Component Testing
GFDWR198146Courtesy of FORD MOTOR COMPANY

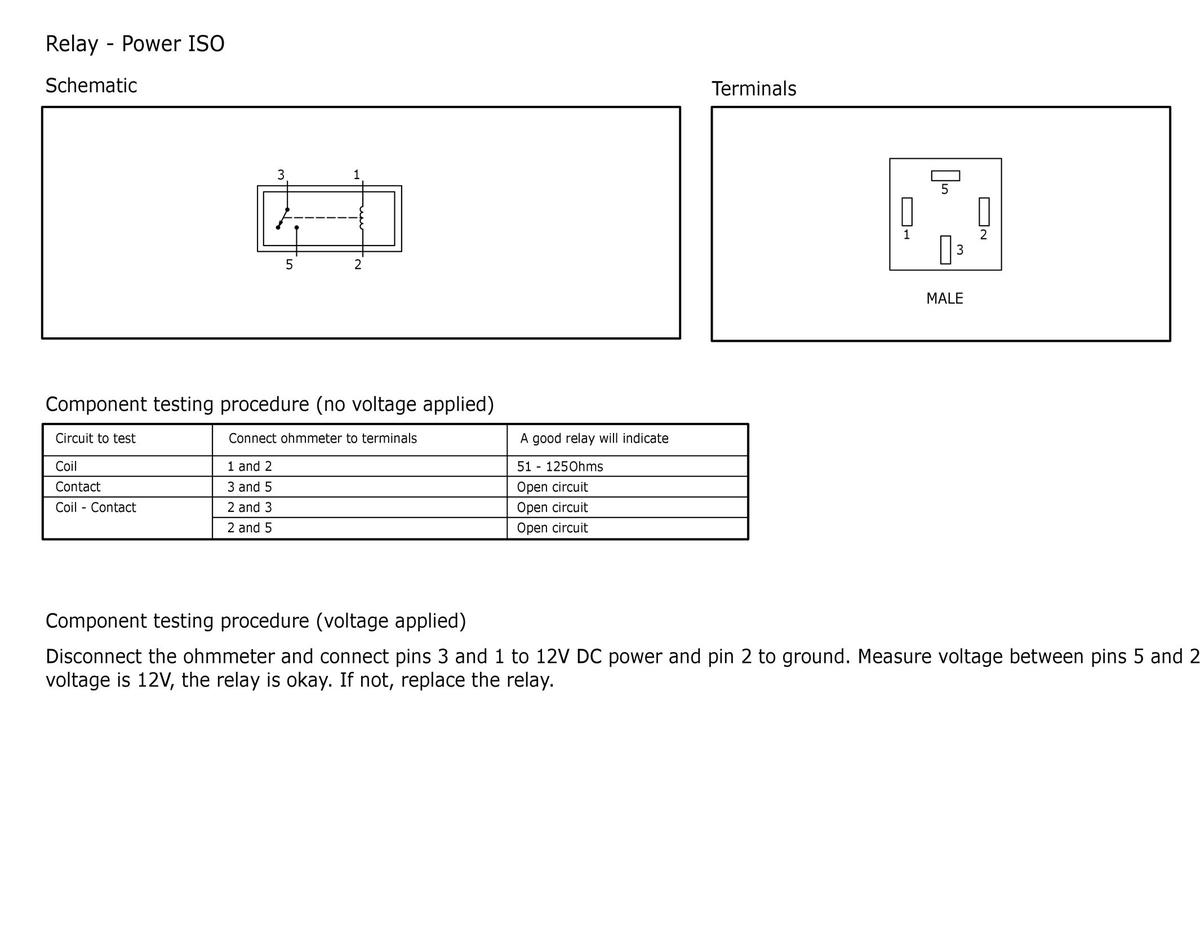

Fig 8: Relay - Micro ISO Component Testing
GFDWR198147Courtesy of FORD MOTOR COMPANY

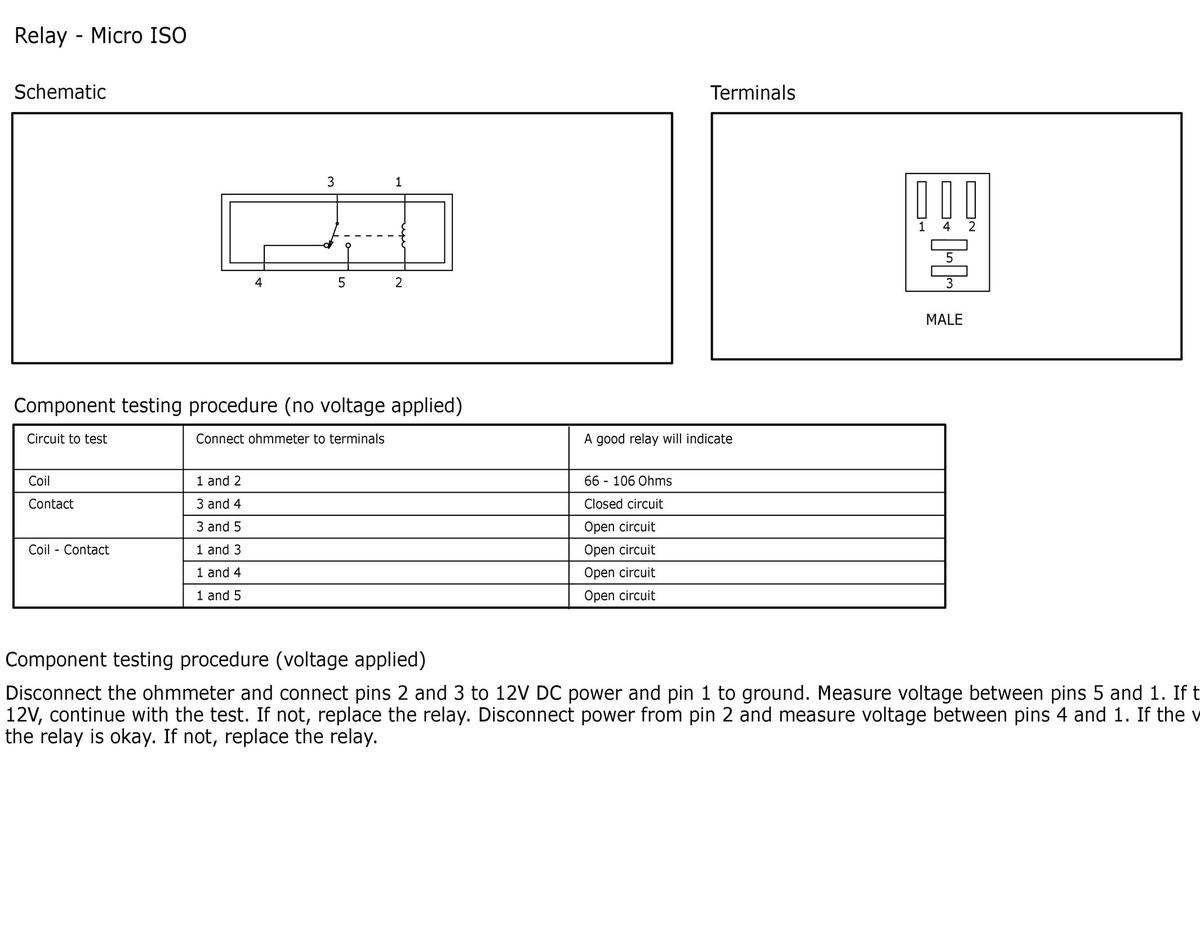

Fig 9: Relay - Ultra Micro ISO Component Testing
GFDWR198148Courtesy of FORD MOTOR COMPANY

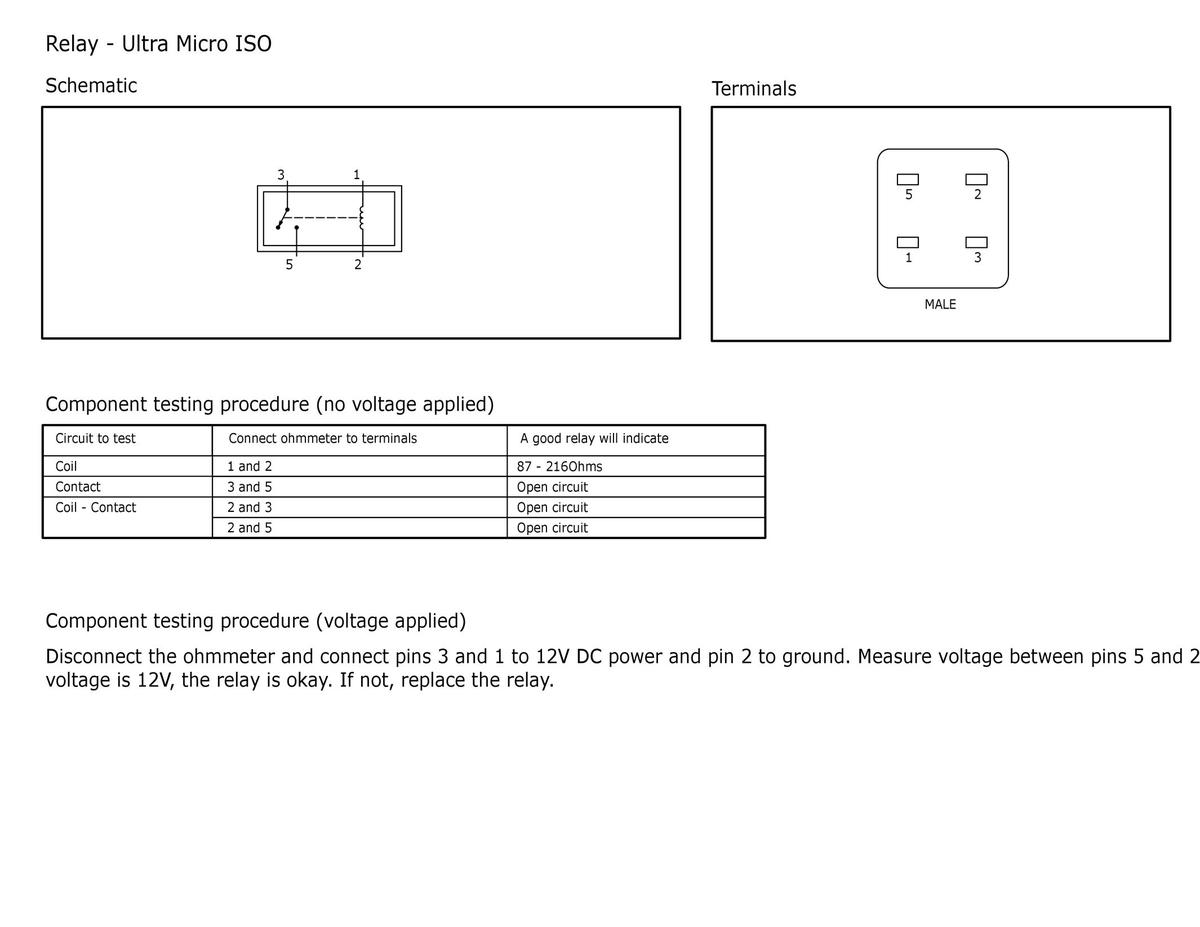

Fig 10: Relay - Power ISO Component Testing
GFDWR198149Courtesy of FORD MOTOR COMPANY
