Ride Height Measurement

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Check

1. Before measuring ride height check:
   • Tires are inflated to the correct pressure.
   • Vehicle should have a full tank of fuel.
   • All fluids at proper levels.
   • No cargo inside the cab or bed.
   • Inspect for aftermarket equipment. Check for aftermarket changes to the steering, suspension, wheel and tire components (such as competition, heavy duty, etc.).

2. Jounce front and rear suspension vigorously to allow the vehicle to settle.

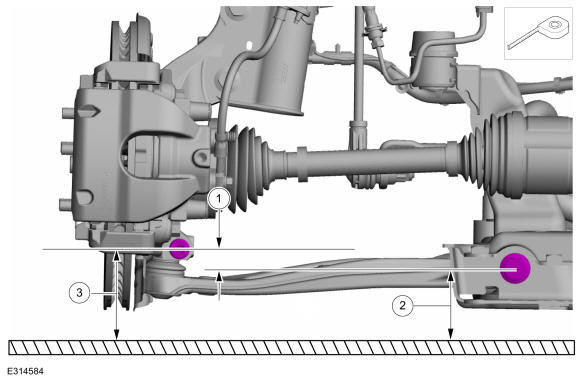

   Ride Height Measurement -- Front

3. 1. Ride height = 3-2
   2. Measure the distance between the flat level surface and the center of the lower arm forward bolt (measurement 2).Use the General Equipment: Surface Gauge
   3. Measure the distance between the flat level surface and the center of the ball joint bolt (measurement 3).Use the General Equipment: Surface Gauge

   Courtesy of FORD MOTOR COMPANY

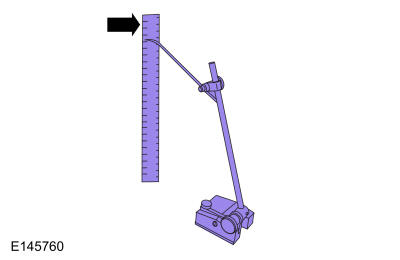

4. With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 2) and (measurement 3).Use the General Equipment: Surface Gauge

   Courtesy of FORD MOTOR COMPANY

5. Subtract measurement 2 from measurement 3 to obtain the front ride height.

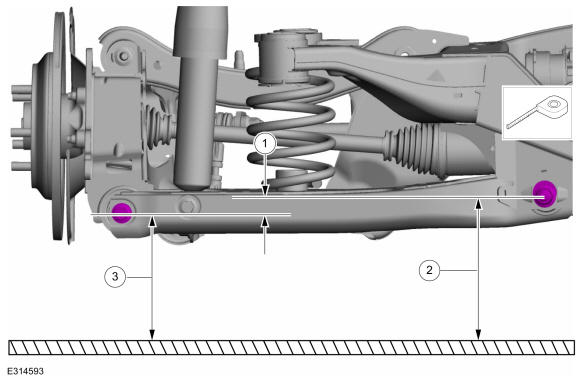

   Ride Height Measurement -- Rear

6. 1. Ride height = 2-3
   2. Measurement 2
   3. Measurement 3Use the General Equipment: Surface Gauge

   Courtesy of FORD MOTOR COMPANY

7. Measure the distance between the flat level surface and the center of the rear lower arm inboard bolt (Cam Adjuster) (measurement 2).Use the General Equipment: Surface Gauge
8. Measure the distance between the flat level surface and the center of the rear lower arm outboard bolt (measurement 3).Use the General Equipment: Surface Gauge
9. Subtract measurement 3 from measurement 2 to obtain the rear ride height. Refer to: Specifications .
