System Diagram

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

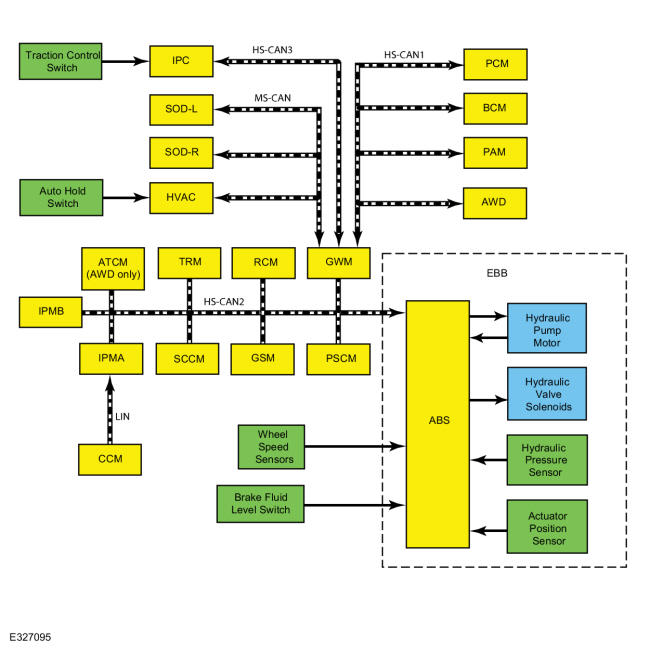

GFD655438Courtesy of FORD MOTOR COMPANY
