Fuel Pump Driver Module (FPDM): Removal

WARNING: This page is about a different variant/trim than selected.

All Vehicles

NOTE: The fuel pump driver module is located on the bottom side of the left front floor panel, above the sound insulation panel.

For fuel pump driver module component location view. Refer to Fuel Charging and Controls - Component Location .
With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting - Overview .
If equipped, remove the fasteners and position the front of the shield down to access the fuel pump driver module.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the fasteners and position the front of the shield down to access the fuel pump driver module.

Courtesy of FORD MOTOR COMPANY

Standard fuel pump driver module
Disconnect the fuel pump driver module electrical connector.

Courtesy of FORD MOTOR COMPANY

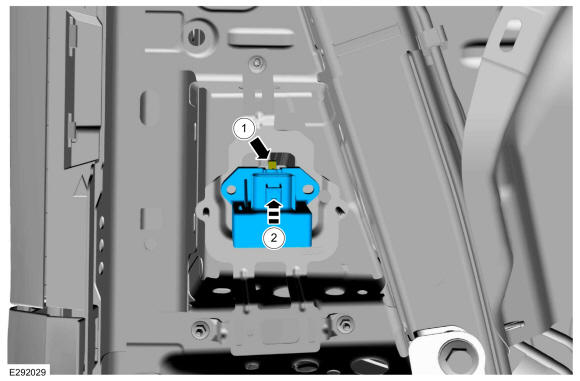

Release the fuel pump driver module retaining tab and then remove the fuel pump driver module from the bracket.

Courtesy of FORD MOTOR COMPANY

Heavy duty fuel pump driver module
Disconnect the wire harness retainer, then disconnect the fuel pump driver module electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the fuel pump driver module fasteners, then remove the fuel pump driver module.

Courtesy of FORD MOTOR COMPANY

All Vehicles
Only if needed, remove the fasteners, then remove the fuel pump driver module bracket.

Courtesy of FORD MOTOR COMPANY
