Wheel Speed Sensor Ring: Installation

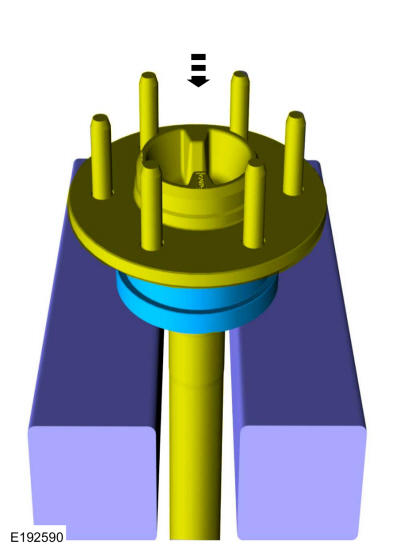

- Using a hydraulic press and wooden blocks, install the wheel speed sensor ring. Use the General Equipment: Hydraulic Press Use the General Equipment: Wooden Block
8 - Install the axle shaft. Refer to: Axle Shaft - 8.8 Inch Ring Gear . Refer to: Axle Shaft - 9.75 Inch Ring Gear
