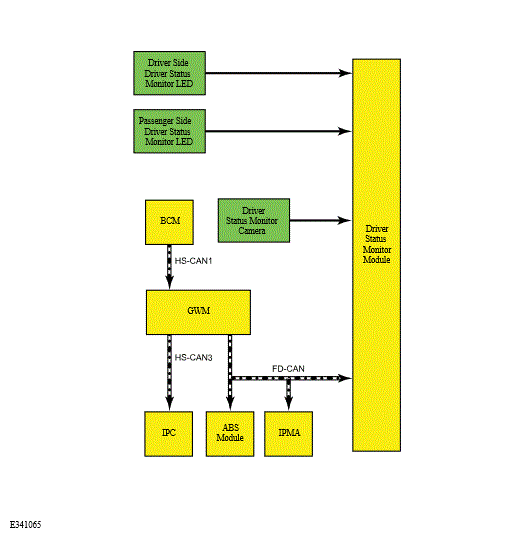

System Diagram

WARNING: This page is about a different car, the 2022 Ford F-150 Lightning and 2022 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
G00612523Courtesy of FORD MOTOR COMPANY
