A/C Flow and State
NOTE:
The following diagrams show the refrigerant system state in each component.

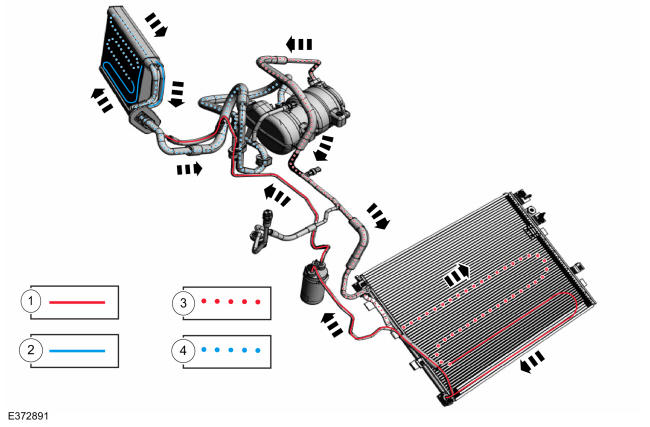

(Vehicles with Standard Trailer Tow)
| Item | Description |
|---|---|
| 1 | High pressure liquid |
| 2 | Low pressure liquid |
| 3 | High pressure vapor |
| 4 | Low pressure vapor |

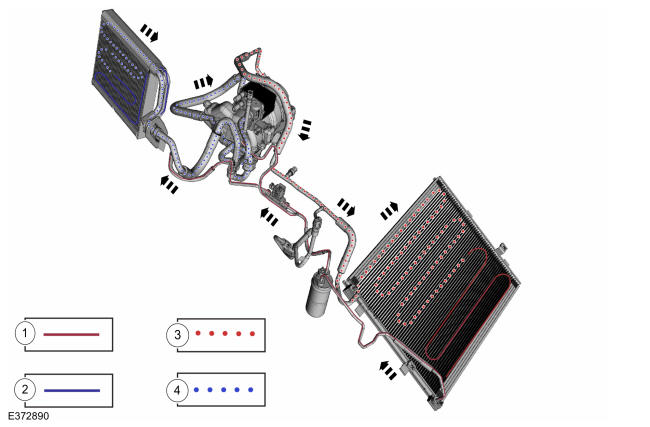

(Vehicles with Max Trailer Tow)
| Item | Description |
|---|---|
| 1 | High pressure liquid |
| 2 | Low pressure liquid |
| 3 | High pressure vapor |
| 4 | Low pressure vapor |
