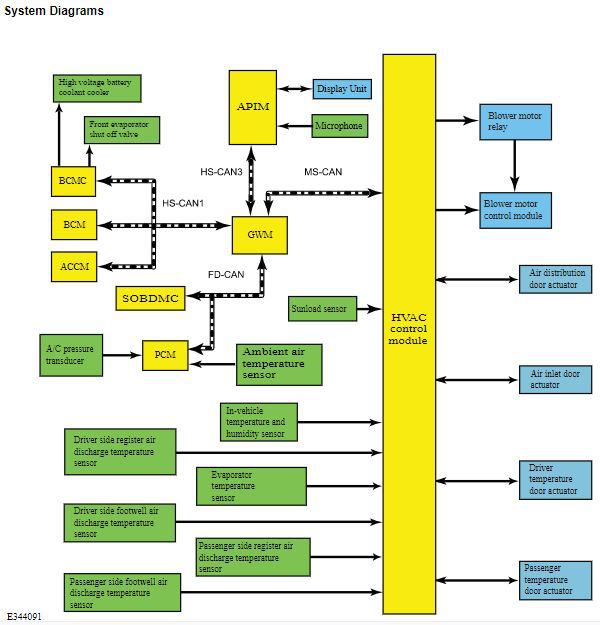

System Diagrams
Courtesy of FORD MOTOR COMPANY

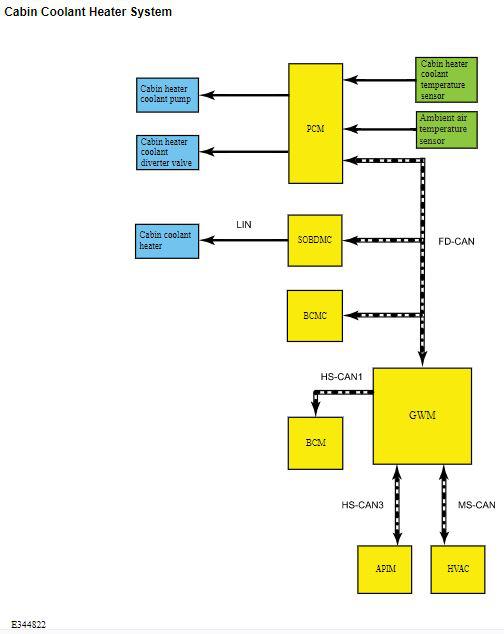

Cabin Coolant Heater System
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
