Connector Repair Procedures

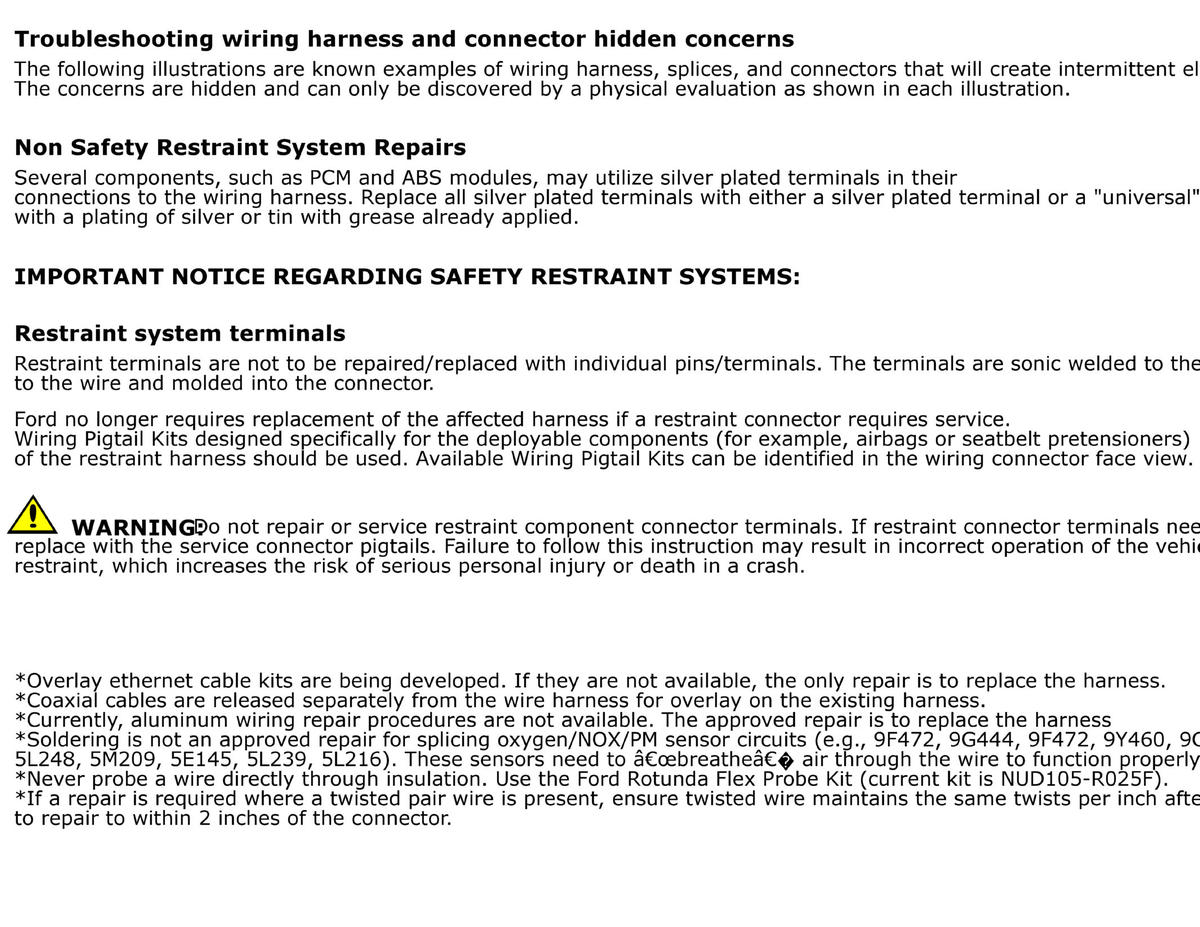

GFDWR204313Courtesy of FORD MOTOR COMPANY

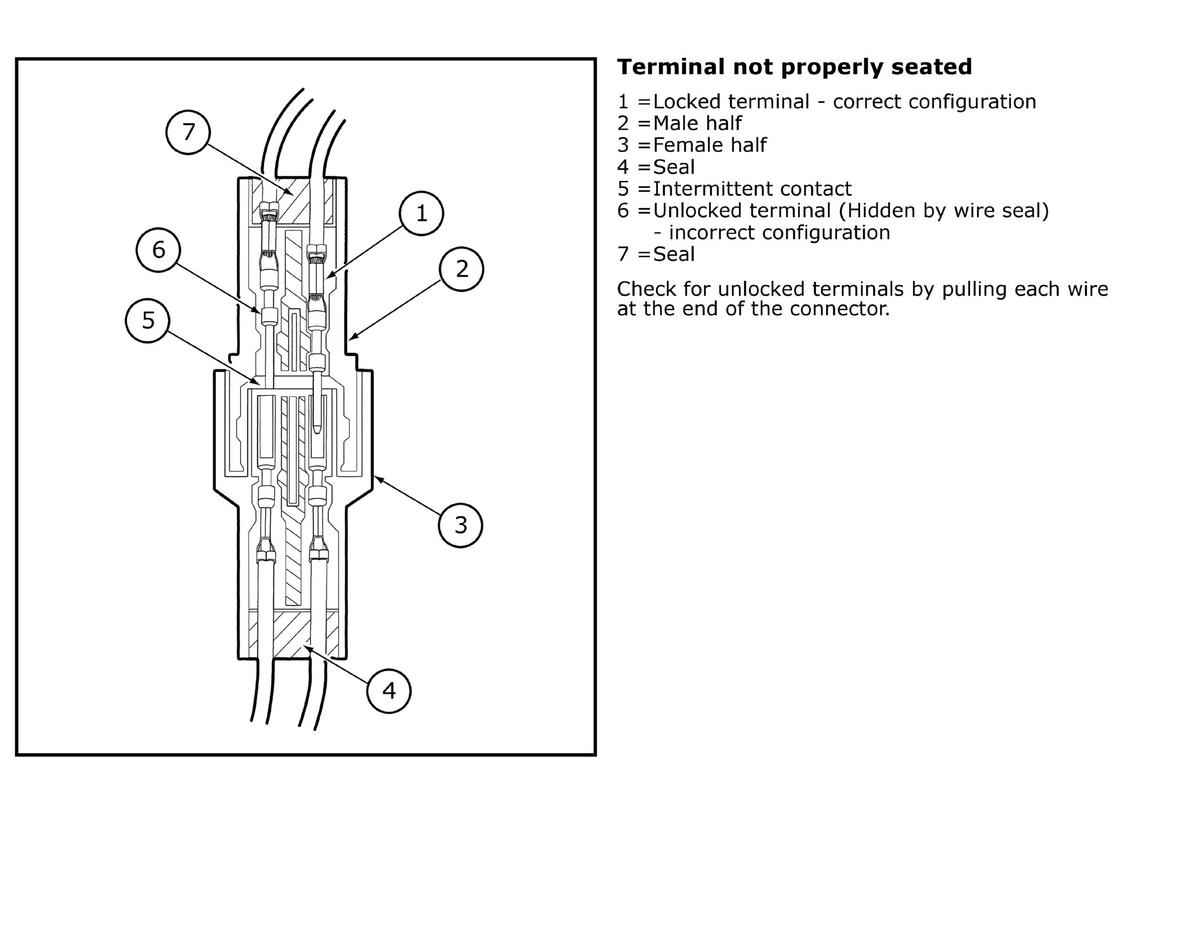

GFDWR204314Courtesy of FORD MOTOR COMPANY

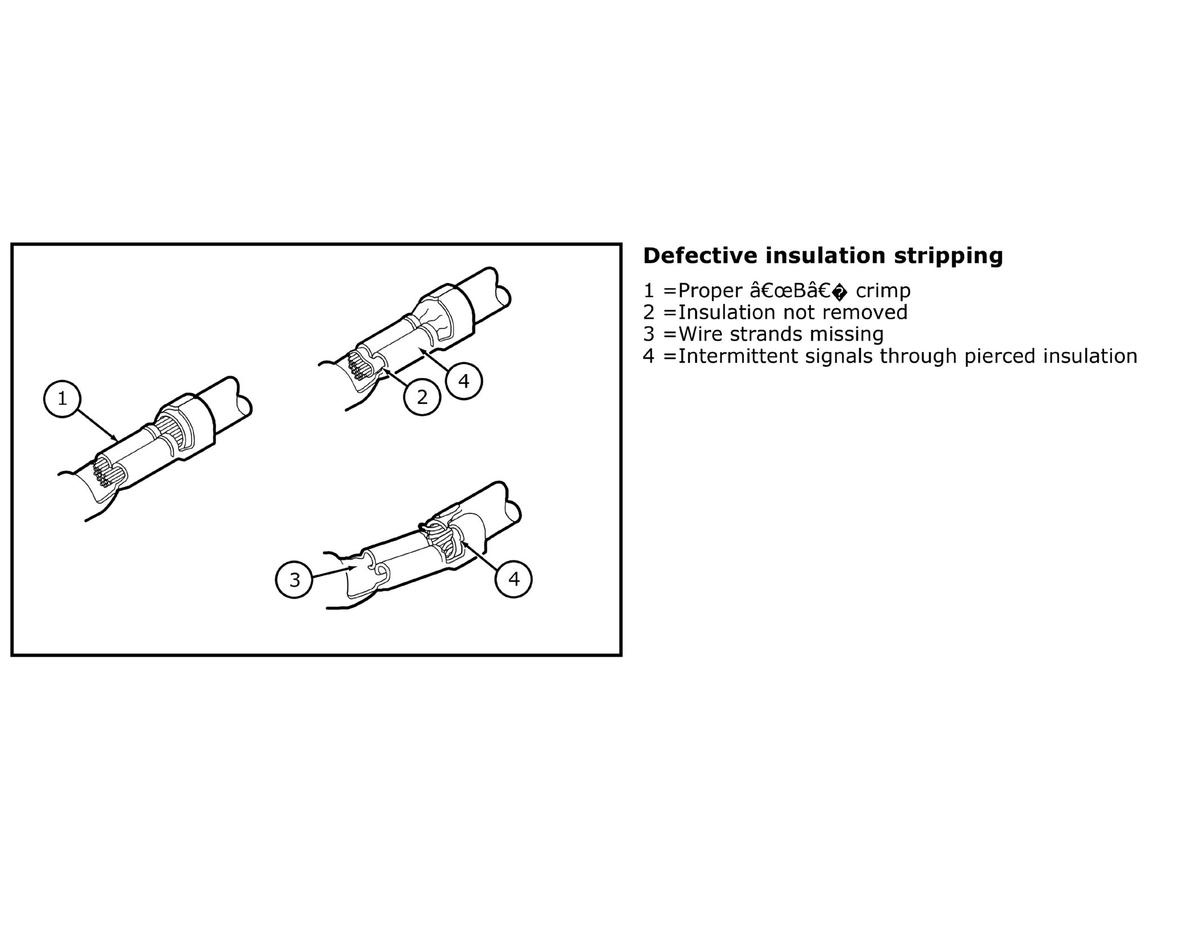

GFDWR204315Courtesy of FORD MOTOR COMPANY

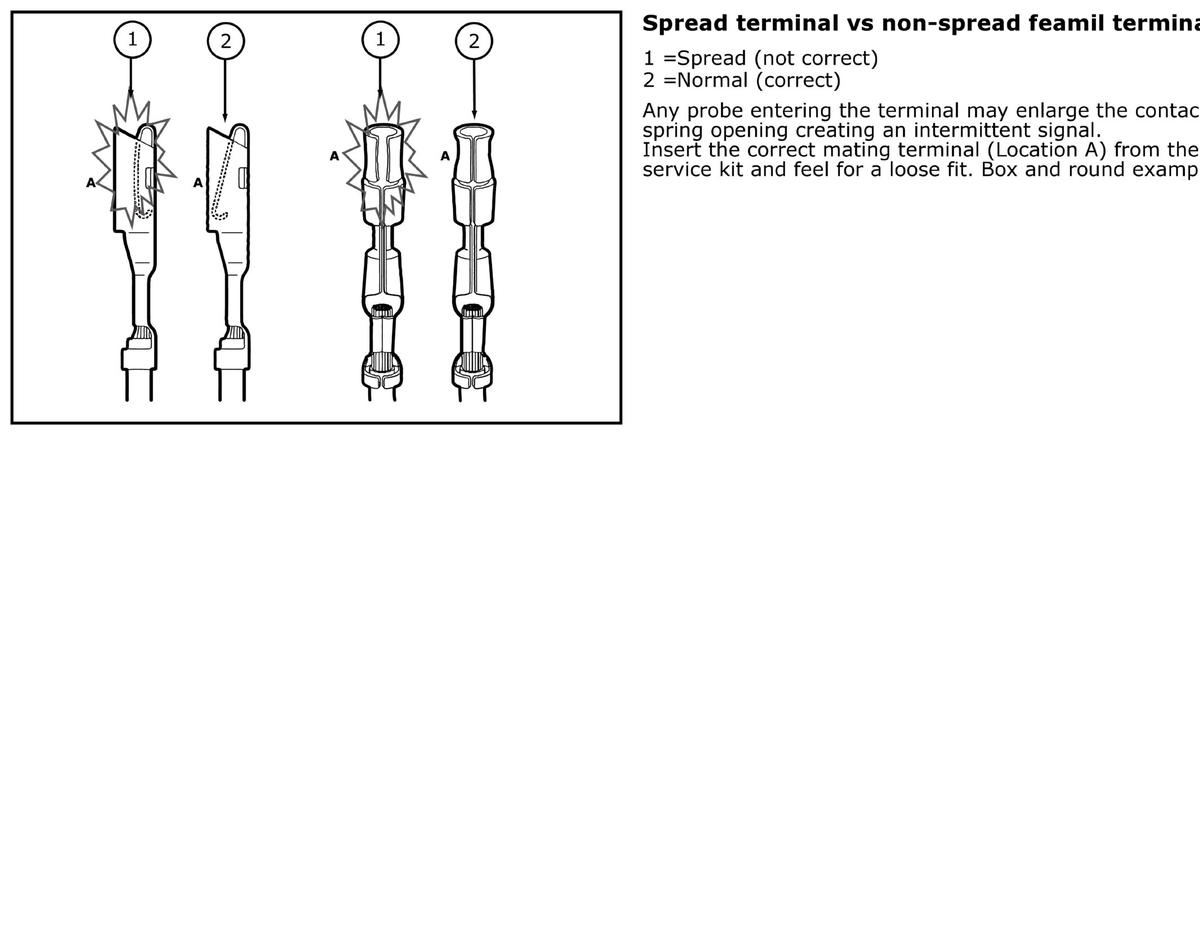

GFDWR204316Courtesy of FORD MOTOR COMPANY

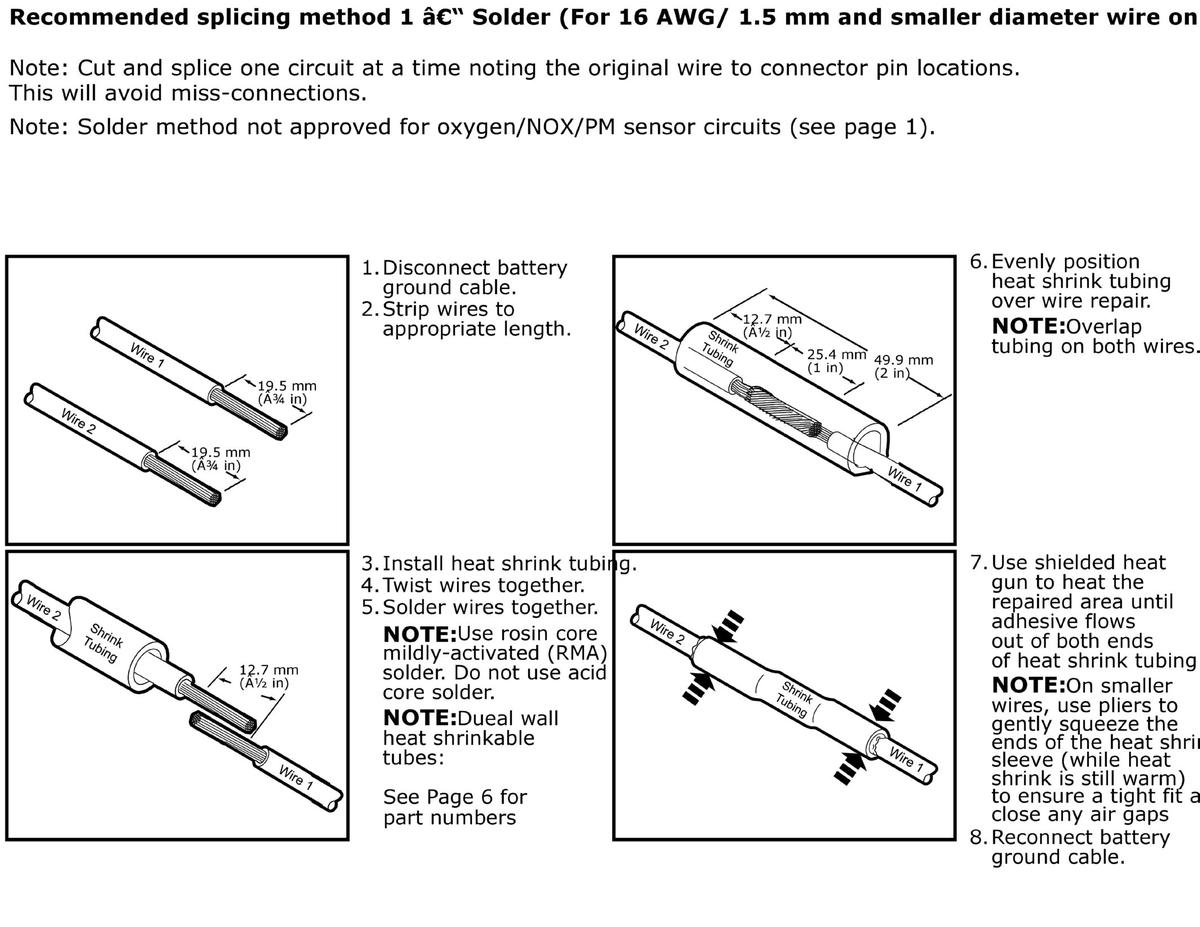

GFDWR204317Courtesy of FORD MOTOR COMPANY
GFDWR204318Courtesy of FORD MOTOR COMPANY

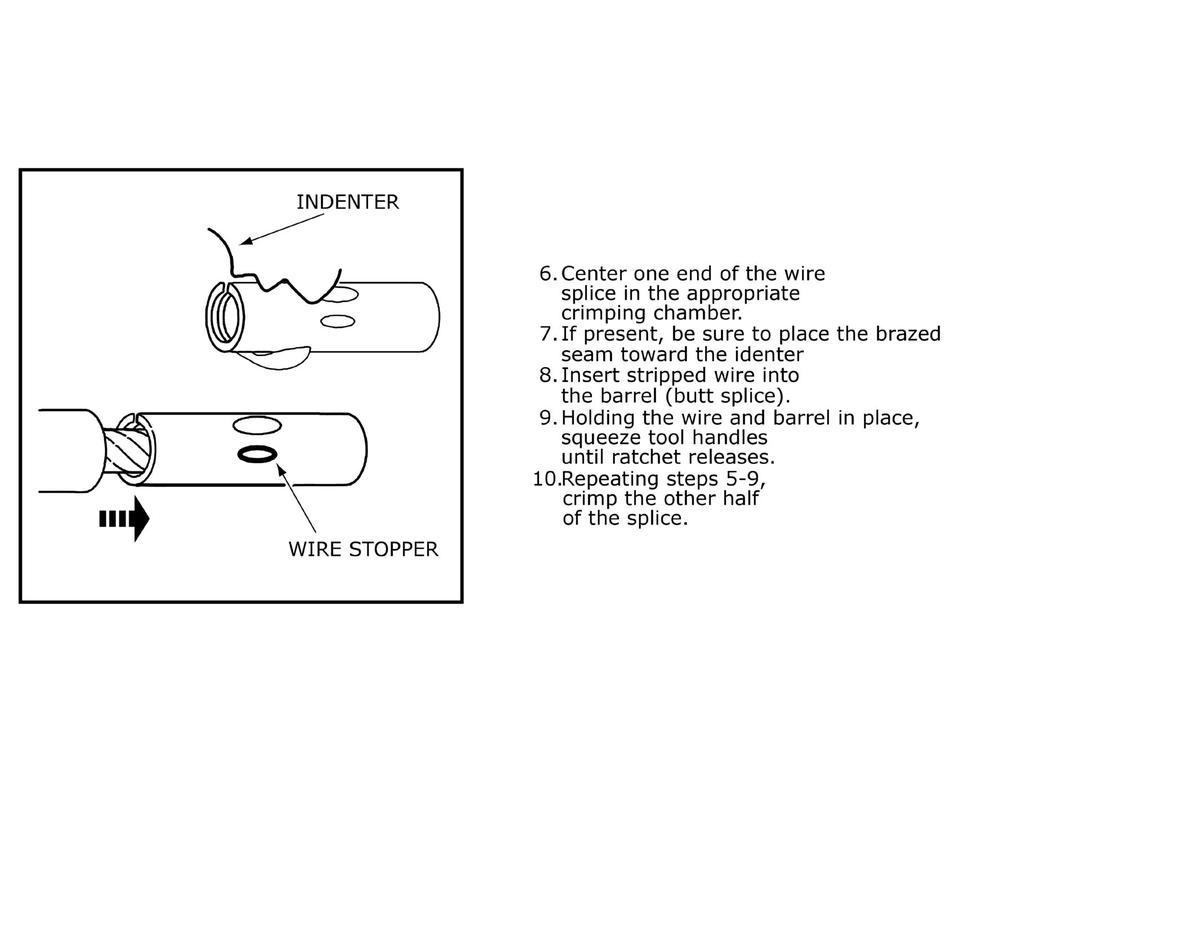

GFDWR204319Courtesy of FORD MOTOR COMPANY

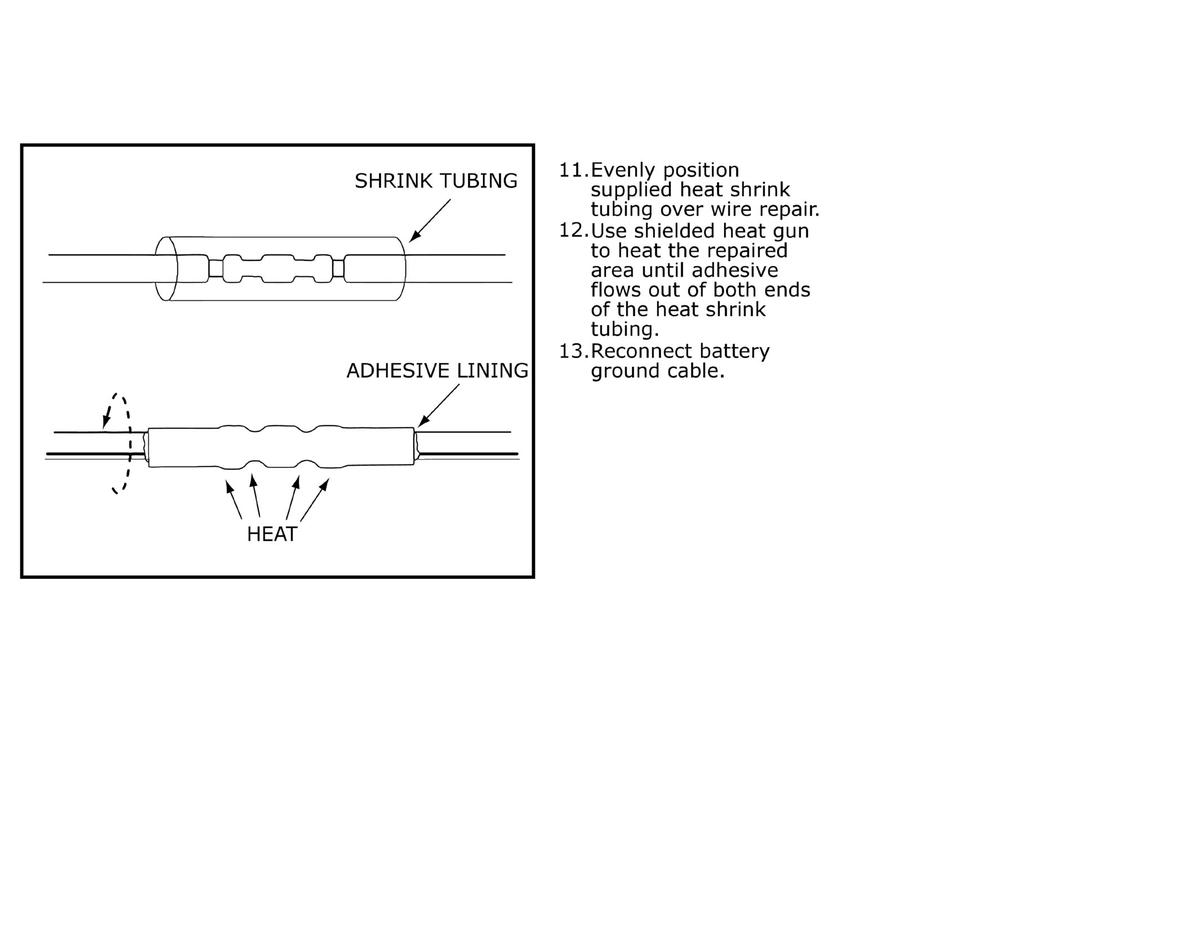

GFDWR204320Courtesy of FORD MOTOR COMPANY

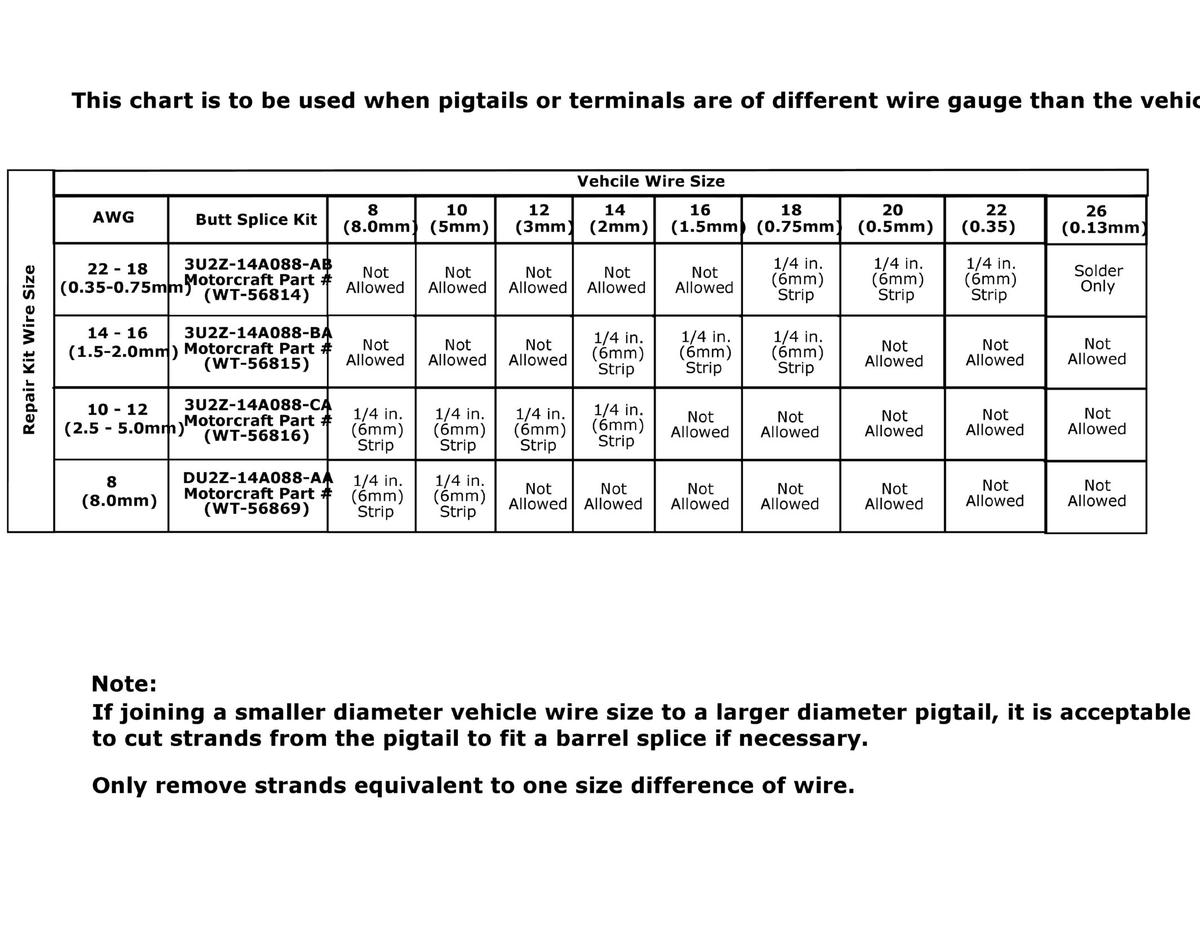

GFDWR204321Courtesy of FORD MOTOR COMPANY
