OEM Ground Distribution: Grounds

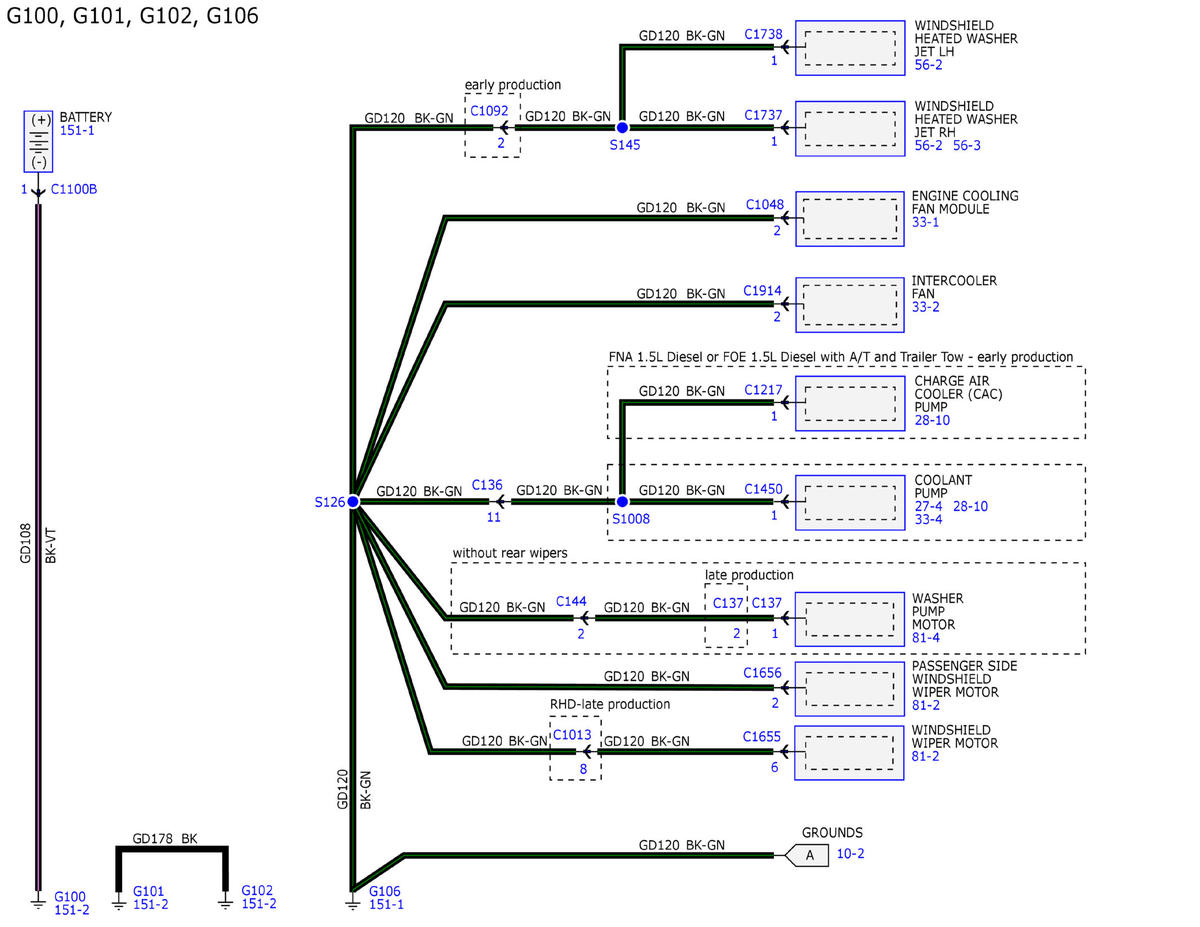

GFDWR206811Courtesy of FORD MOTOR COMPANY

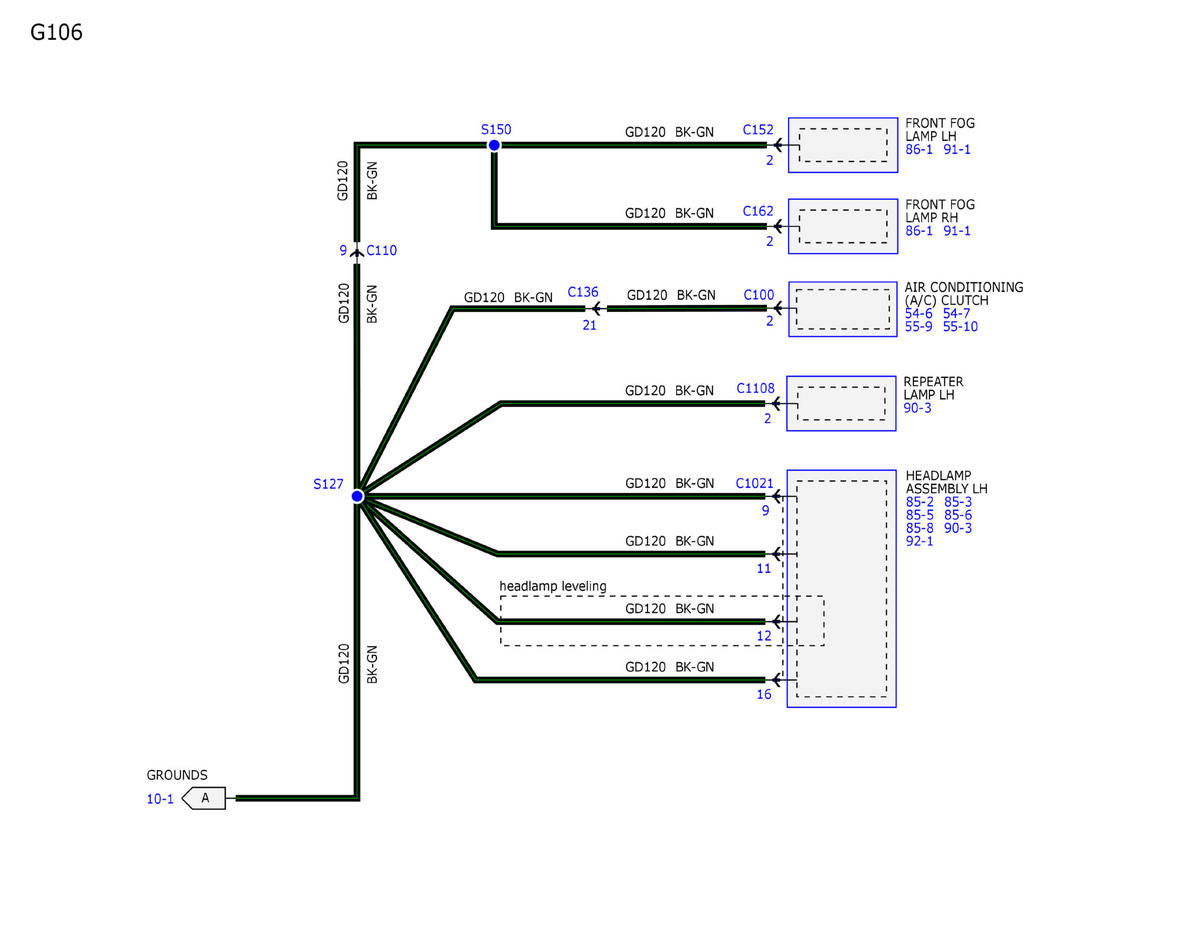

GFDWR206822Courtesy of FORD MOTOR COMPANY

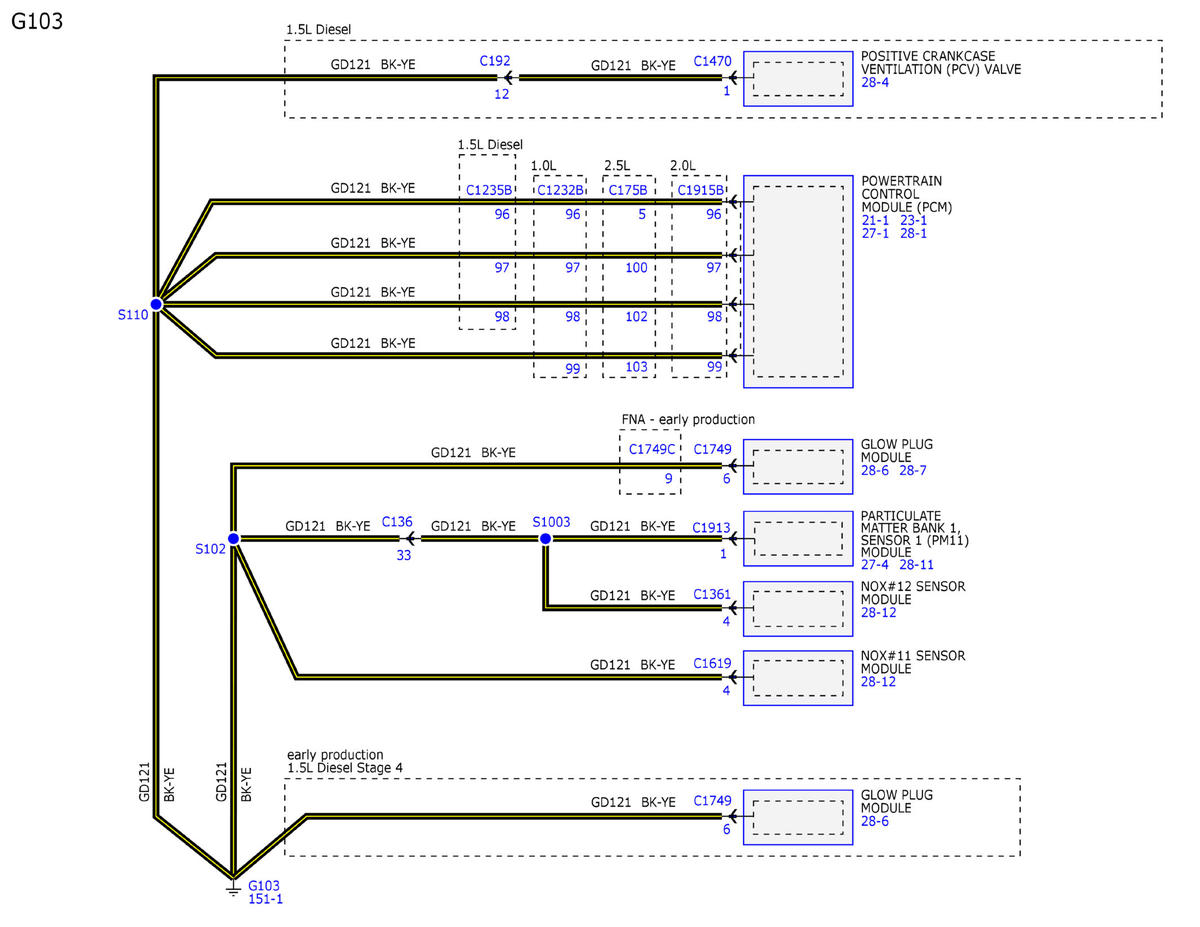

GFDWR206826Courtesy of FORD MOTOR COMPANY

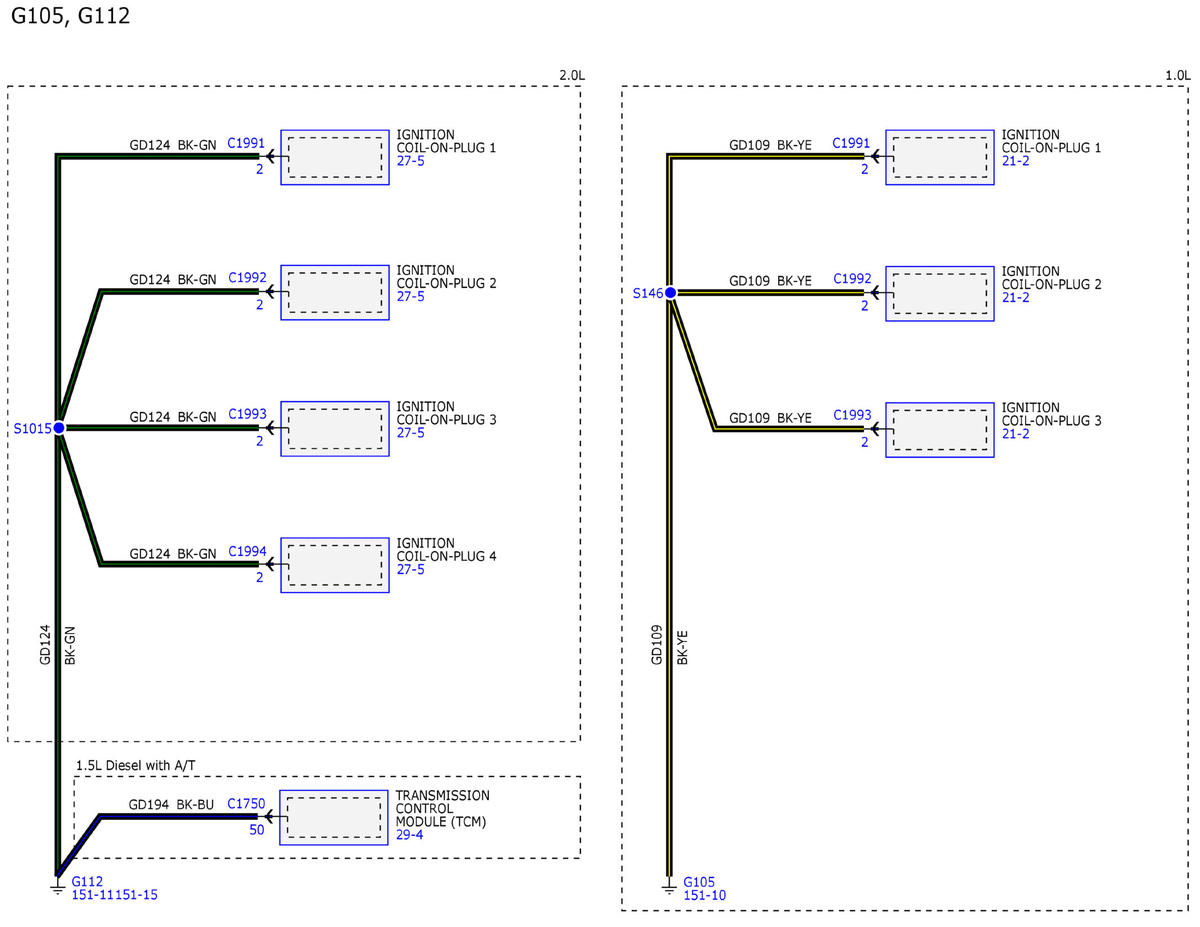

GFDWR206827Courtesy of FORD MOTOR COMPANY

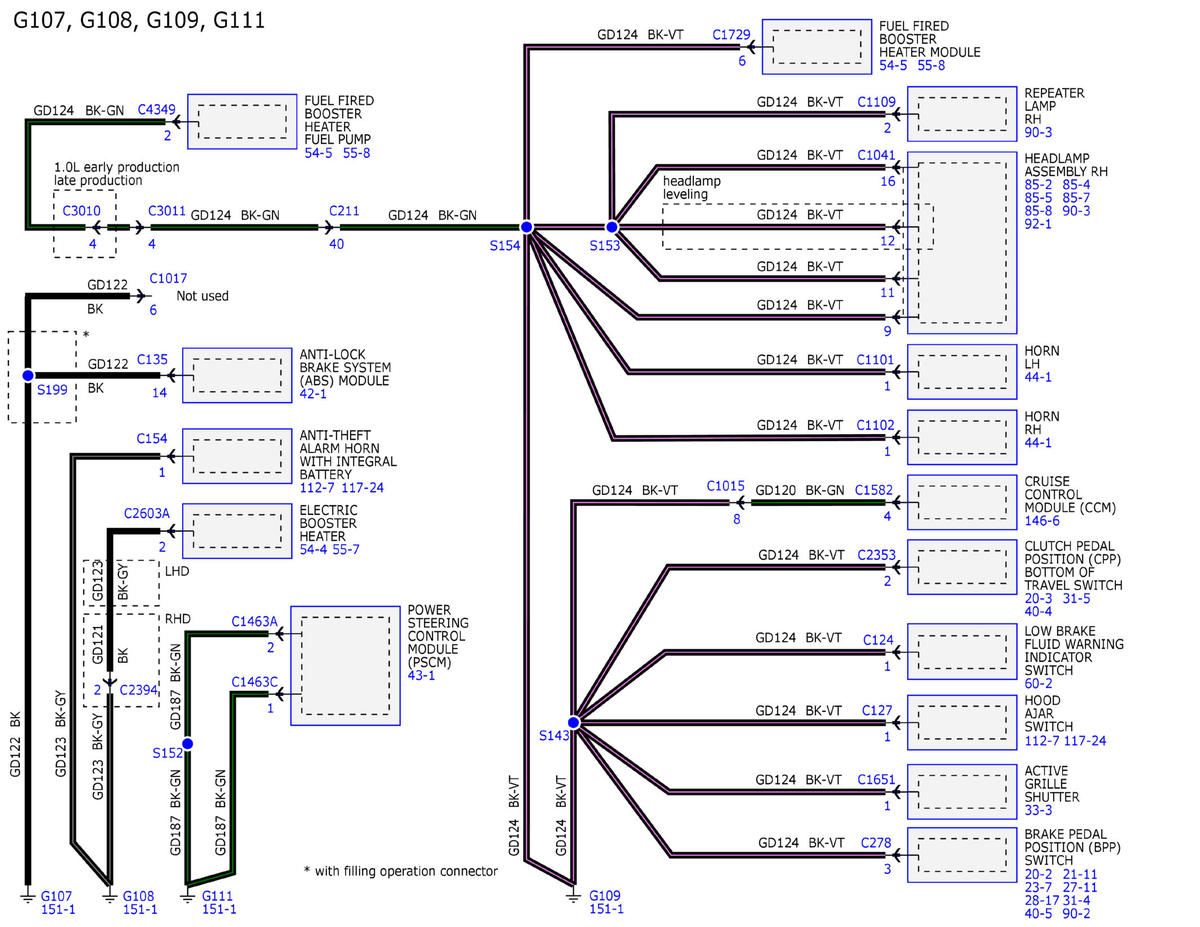

GFDWR206828Courtesy of FORD MOTOR COMPANY

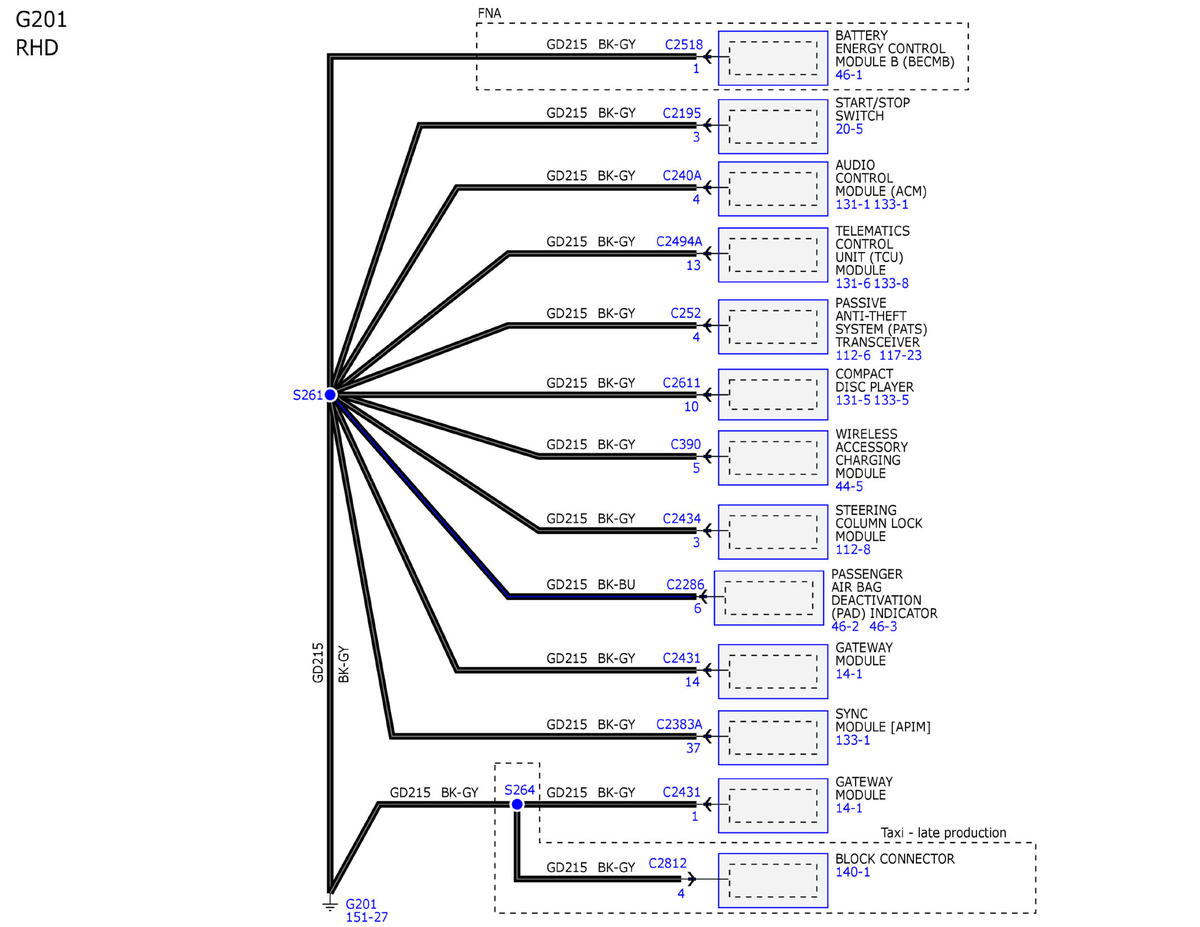

GFDWR206829Courtesy of FORD MOTOR COMPANY

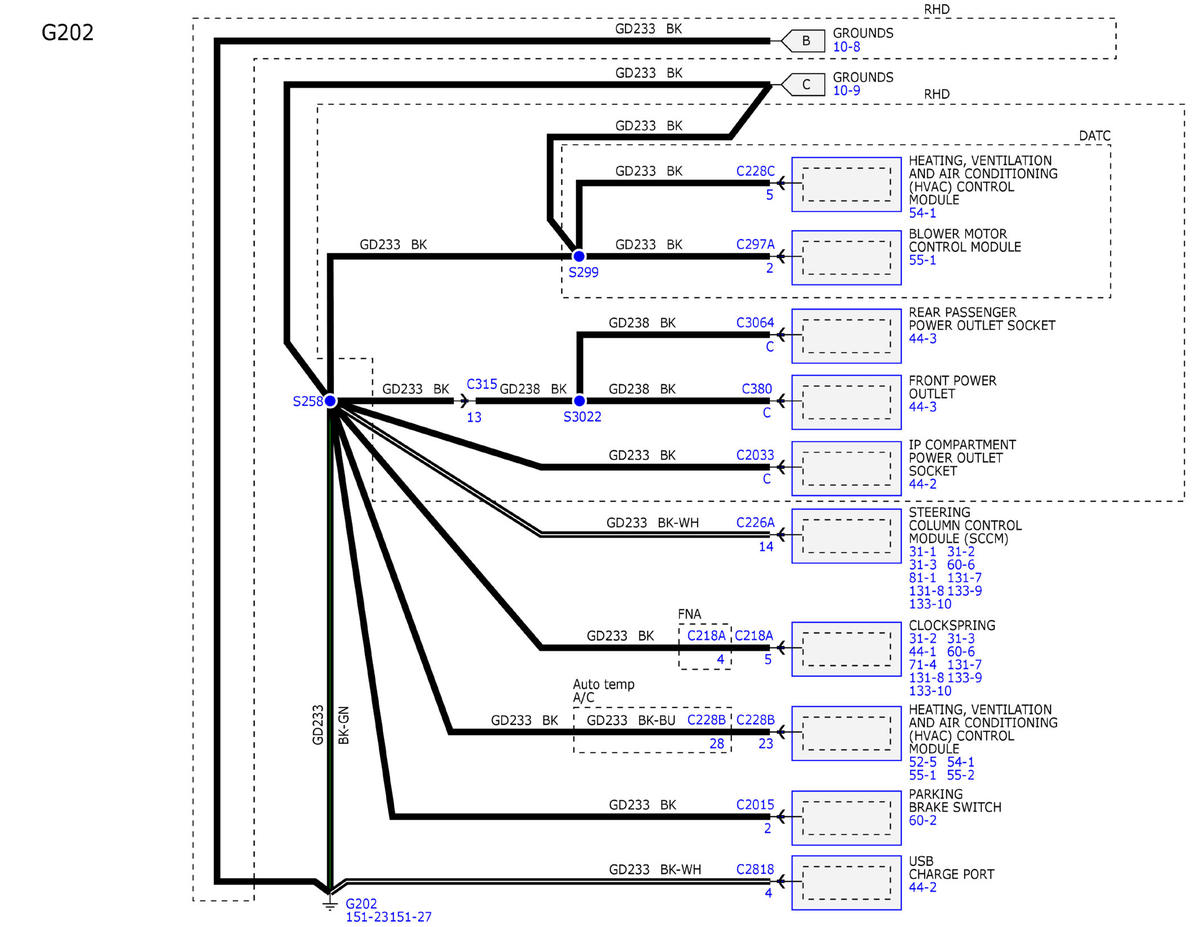

GFDWR206830Courtesy of FORD MOTOR COMPANY

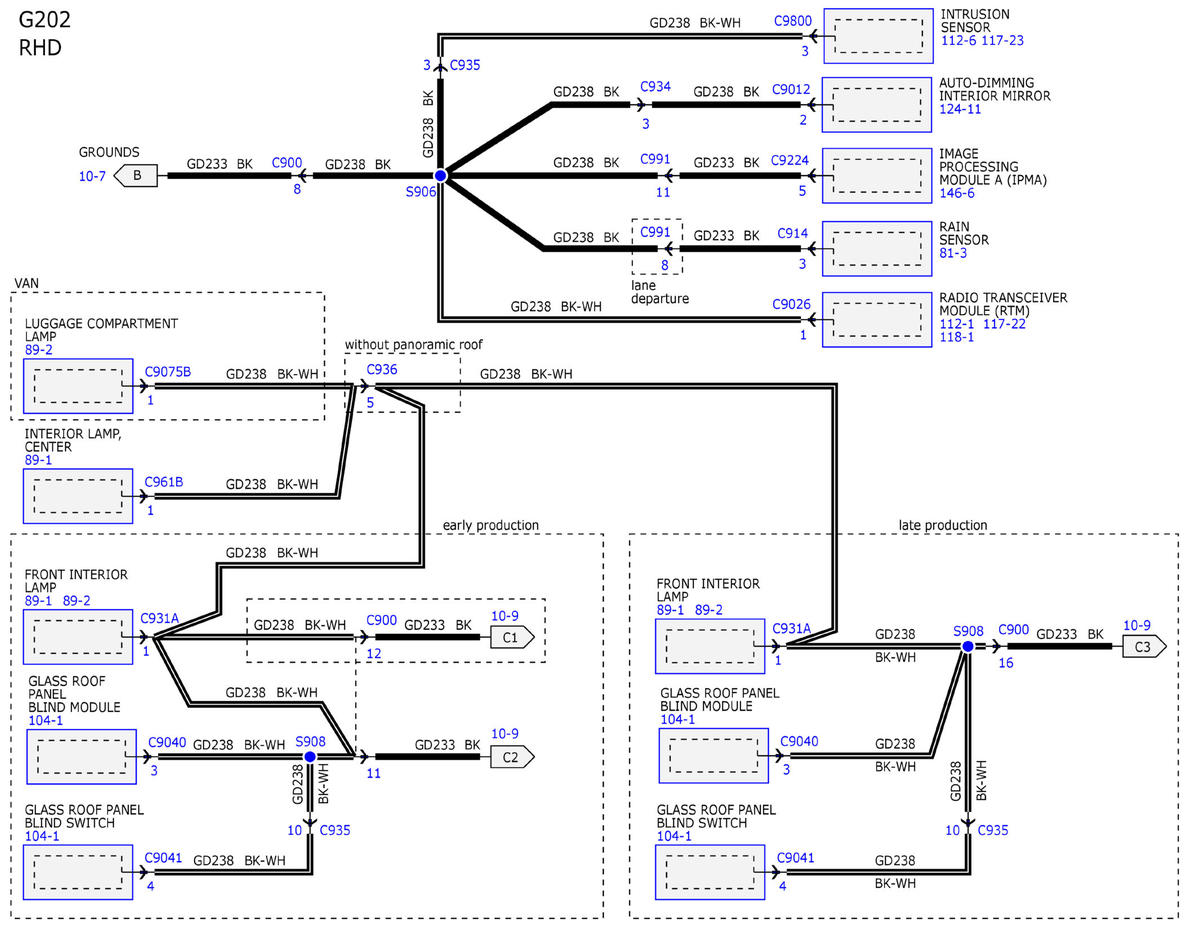

GFDWR206831Courtesy of FORD MOTOR COMPANY

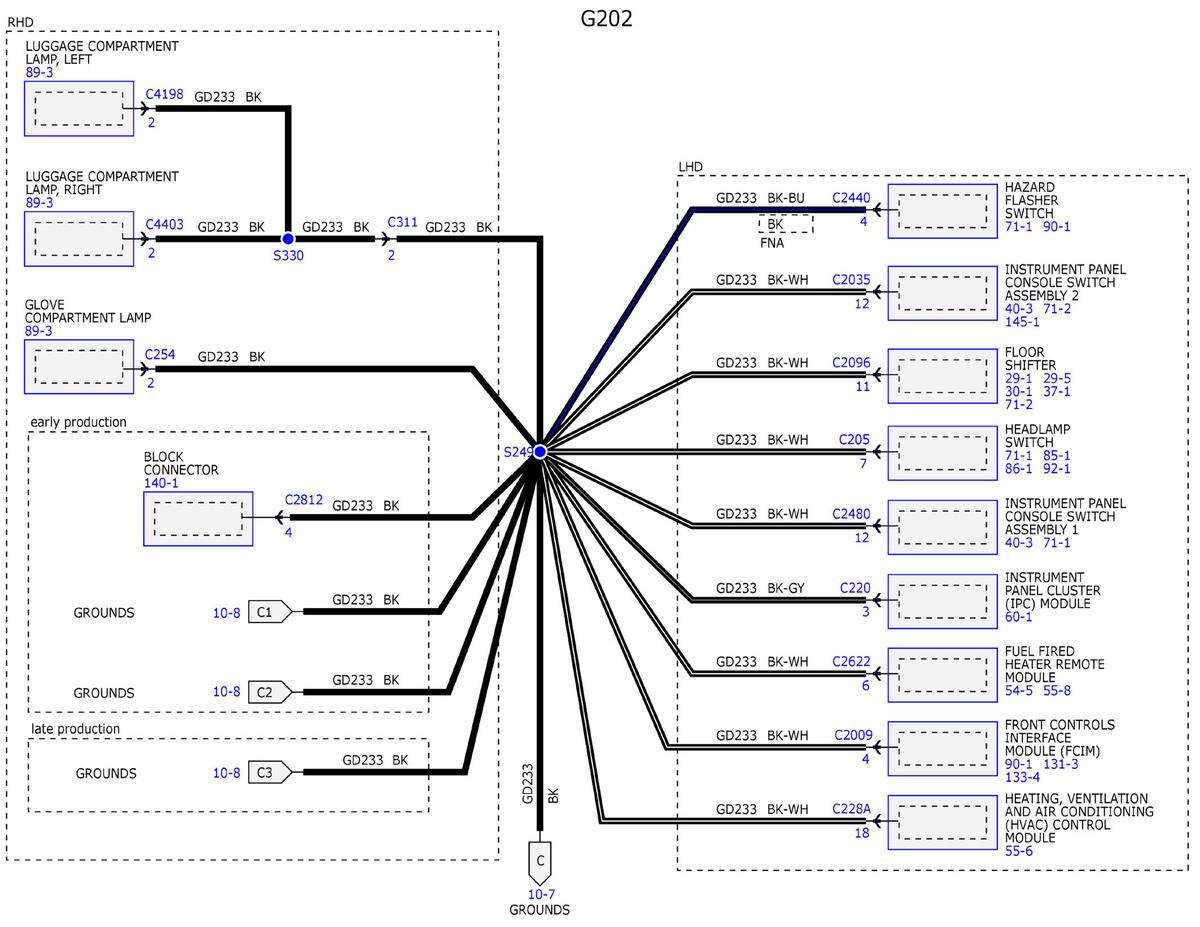

GFDWR206832Courtesy of FORD MOTOR COMPANY

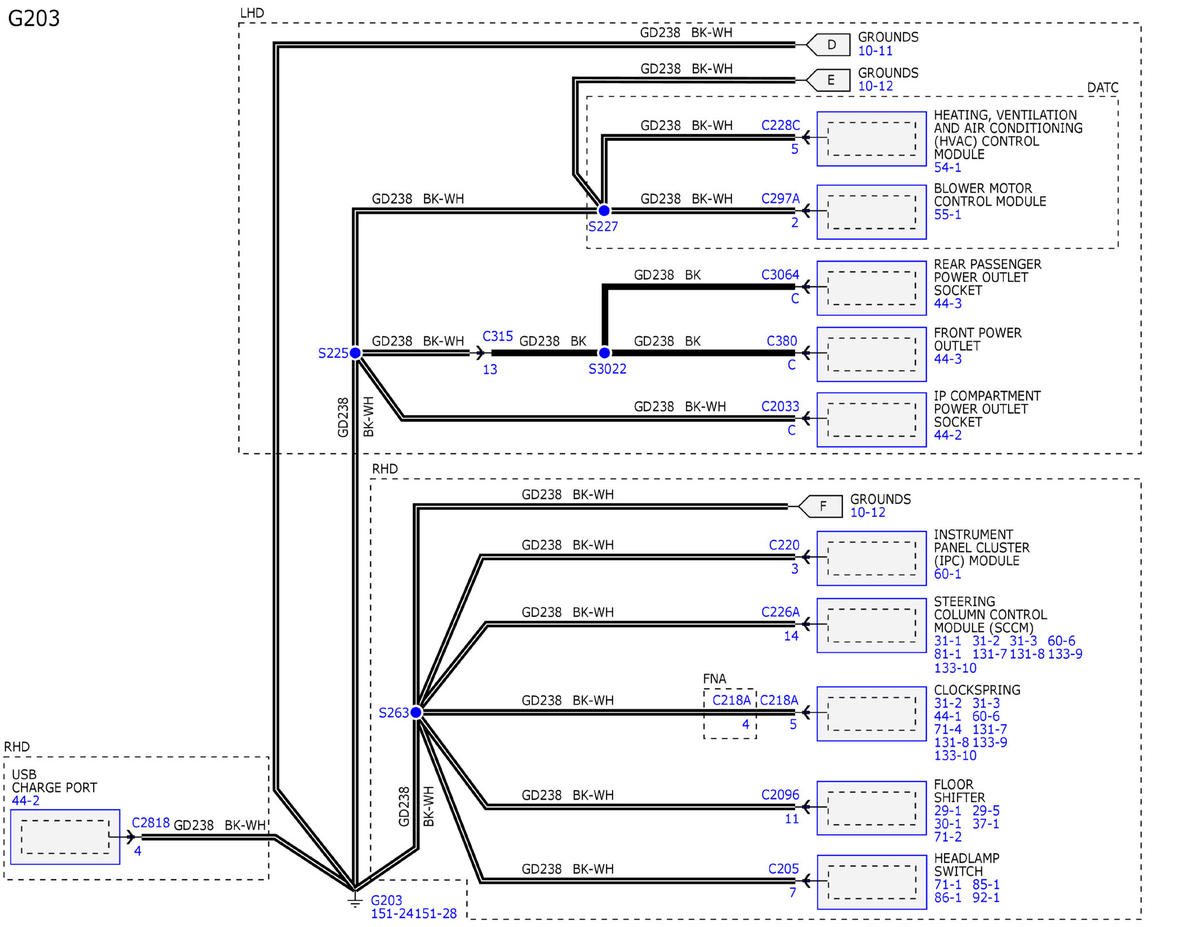

GFDWR206812Courtesy of FORD MOTOR COMPANY

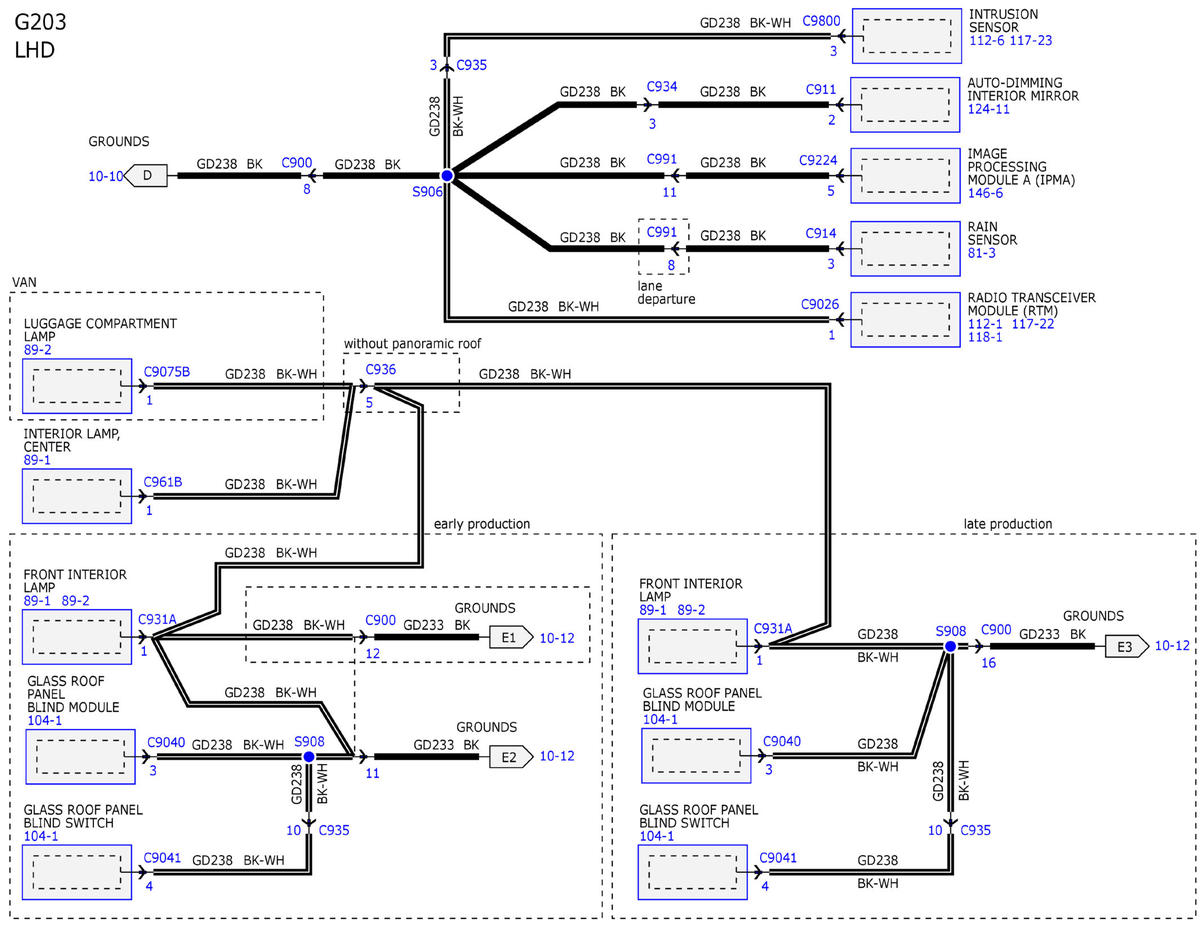

GFDWR206813Courtesy of FORD MOTOR COMPANY

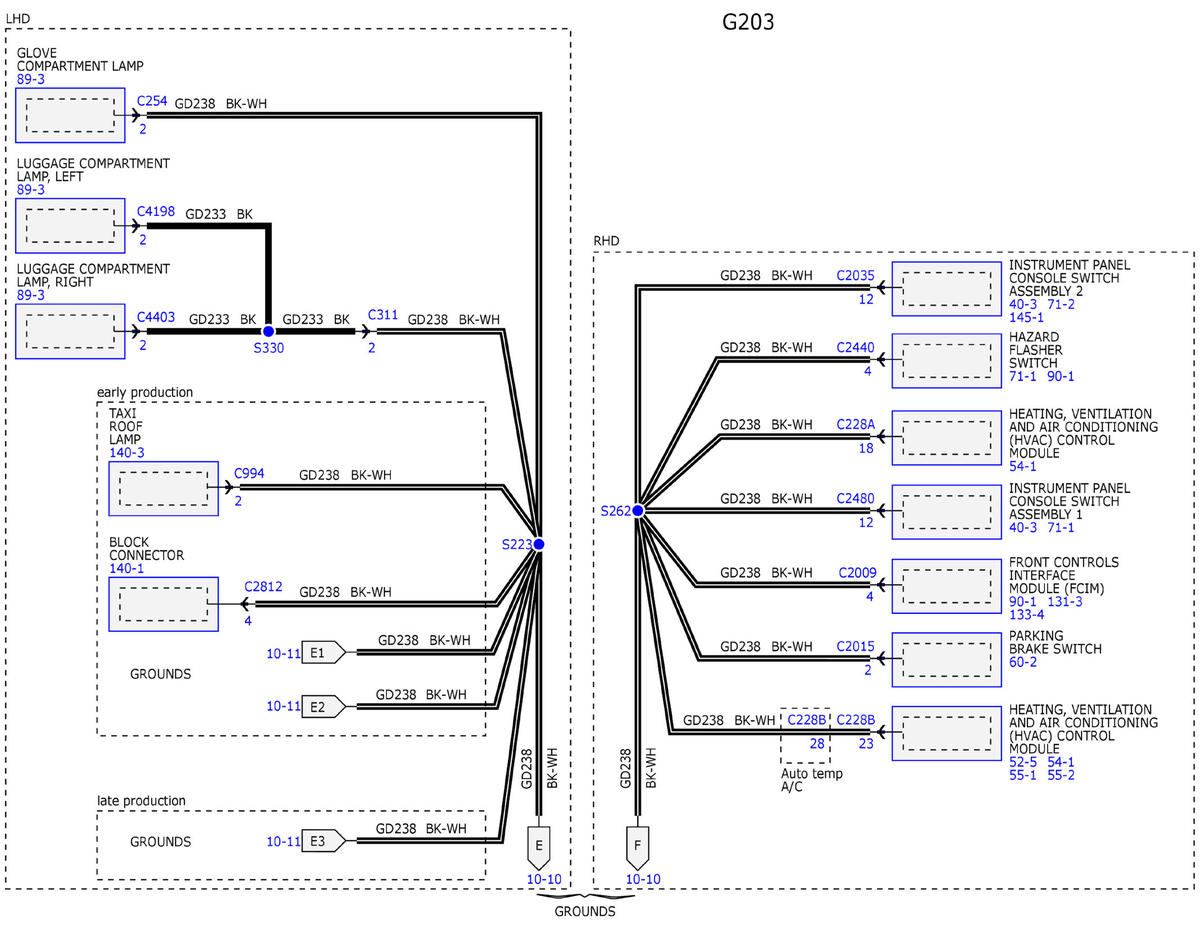

GFDWR206814Courtesy of FORD MOTOR COMPANY

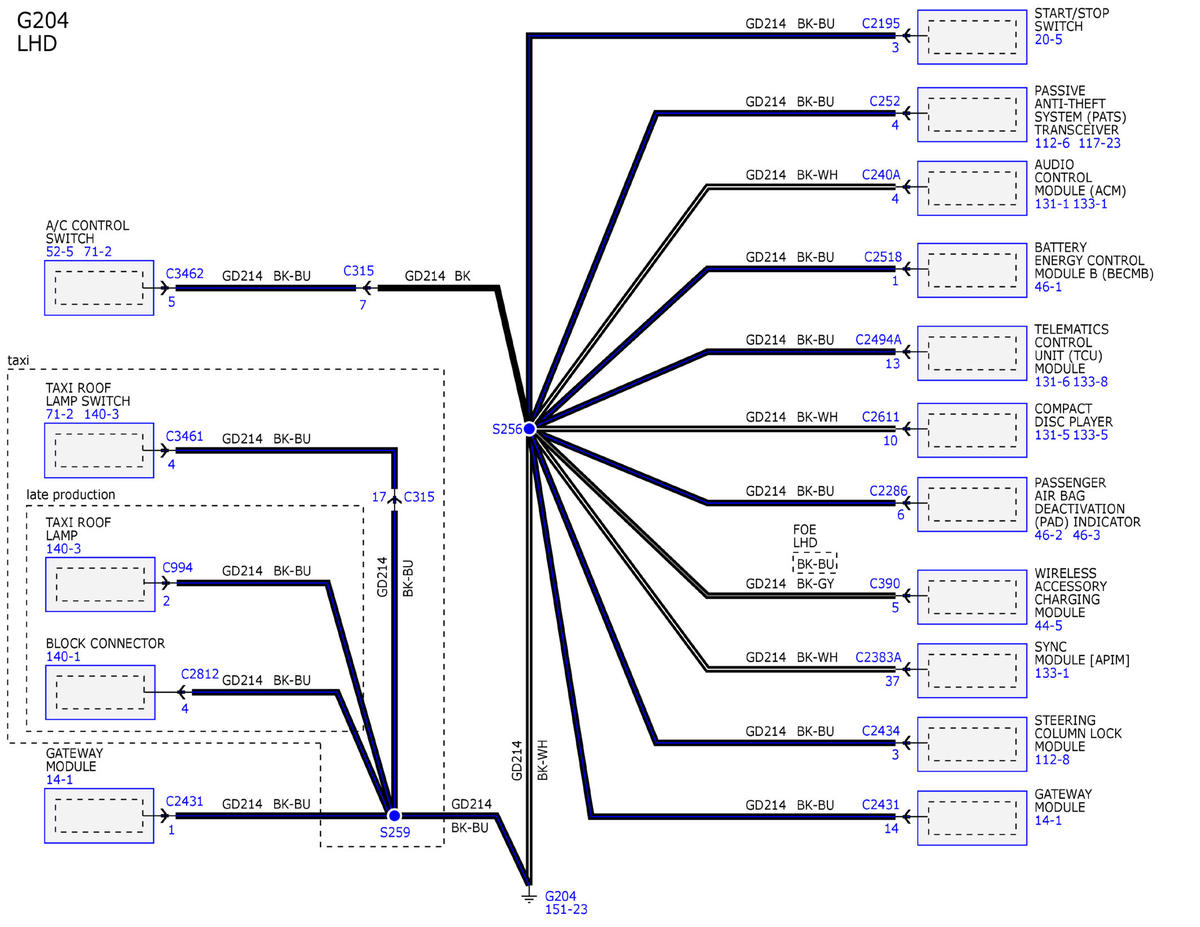

GFDWR206815Courtesy of FORD MOTOR COMPANY

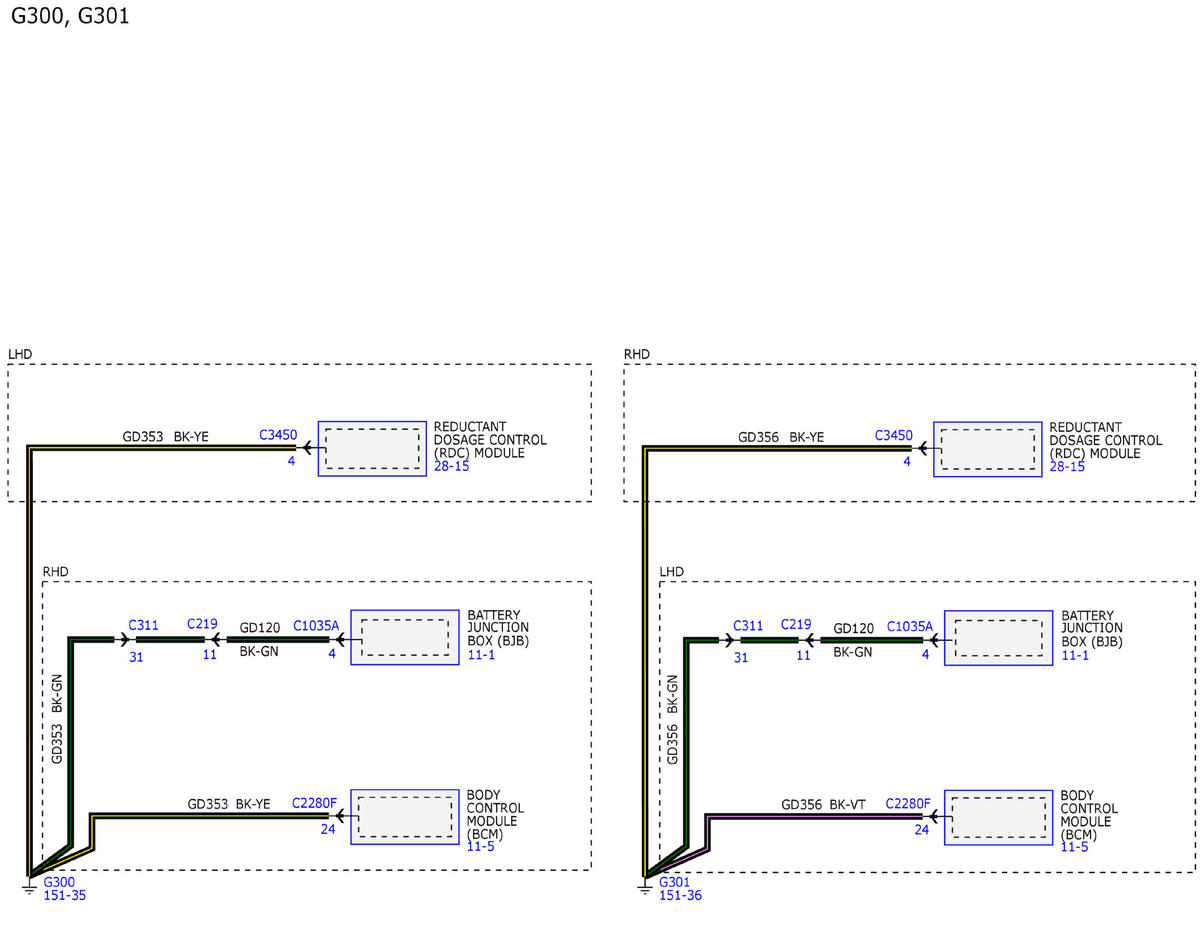

GFDWR206816Courtesy of FORD MOTOR COMPANY

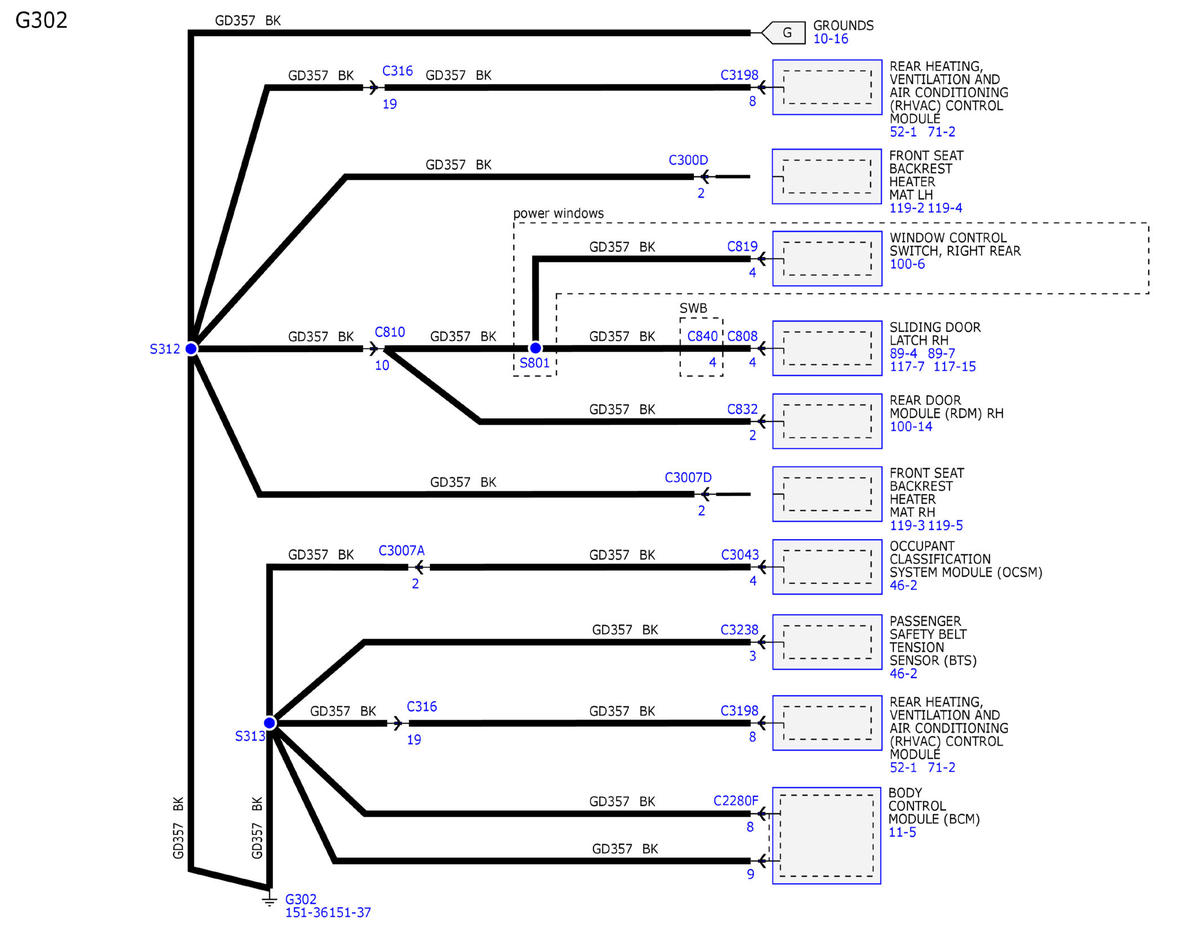

GFDWR206817Courtesy of FORD MOTOR COMPANY

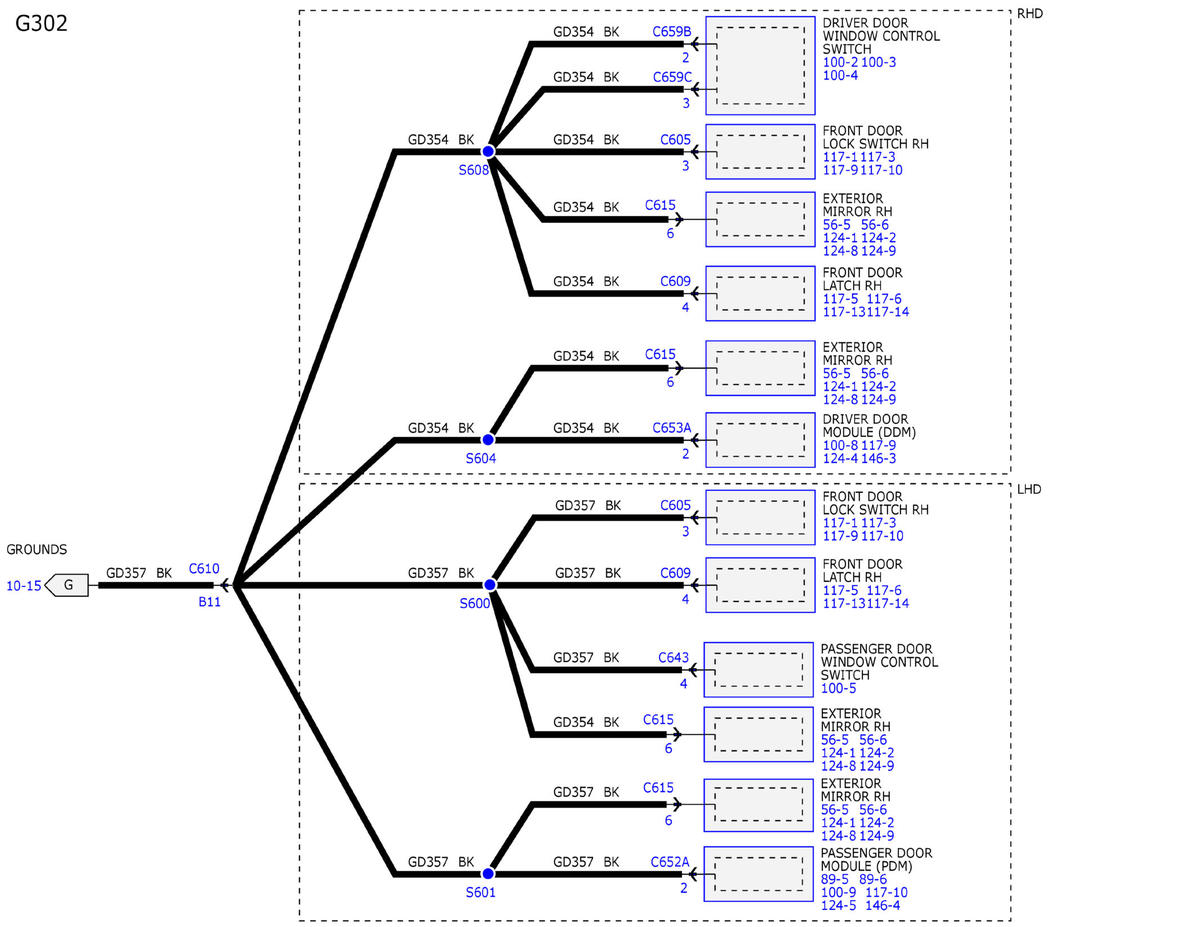

GFDWR206818Courtesy of FORD MOTOR COMPANY

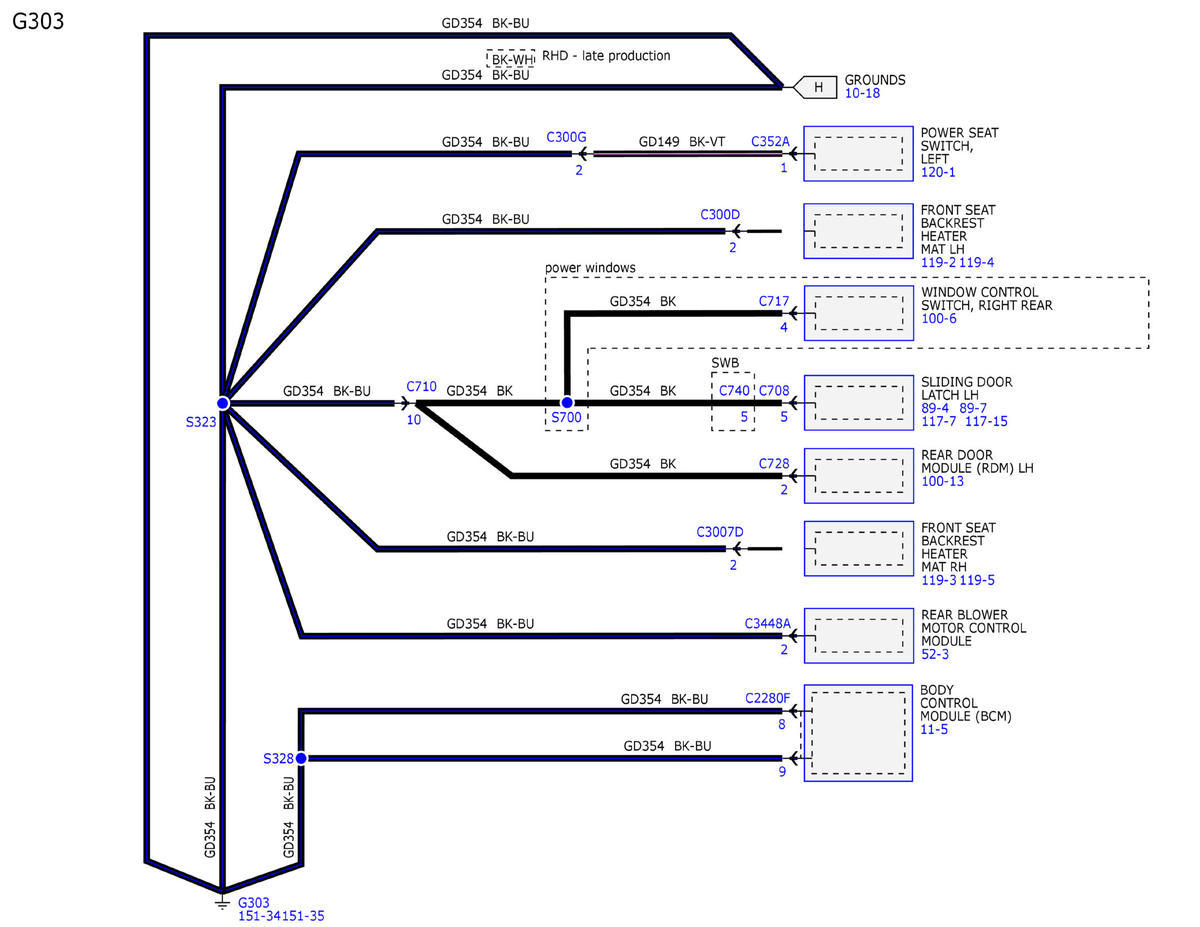

GFDWR206819Courtesy of FORD MOTOR COMPANY

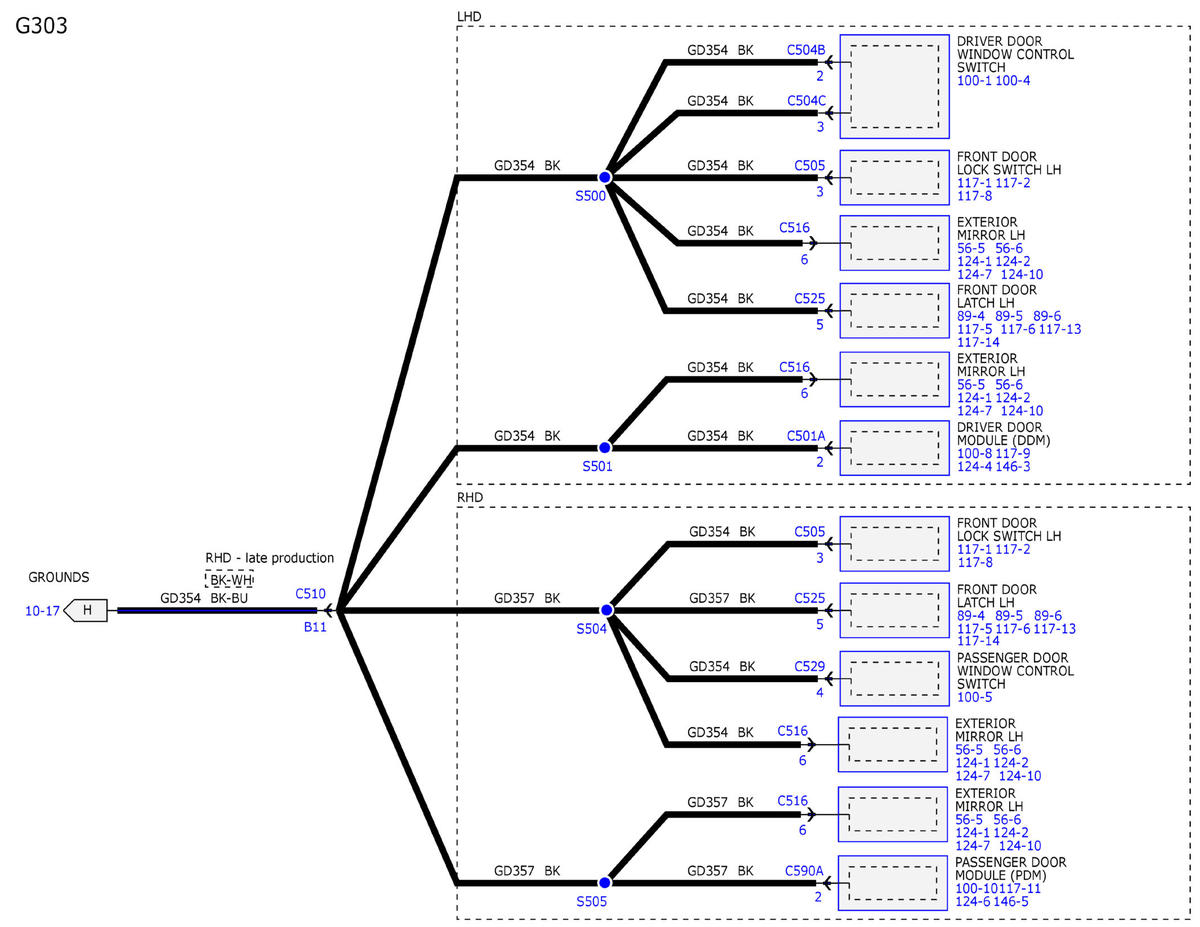

GFDWR206820Courtesy of FORD MOTOR COMPANY

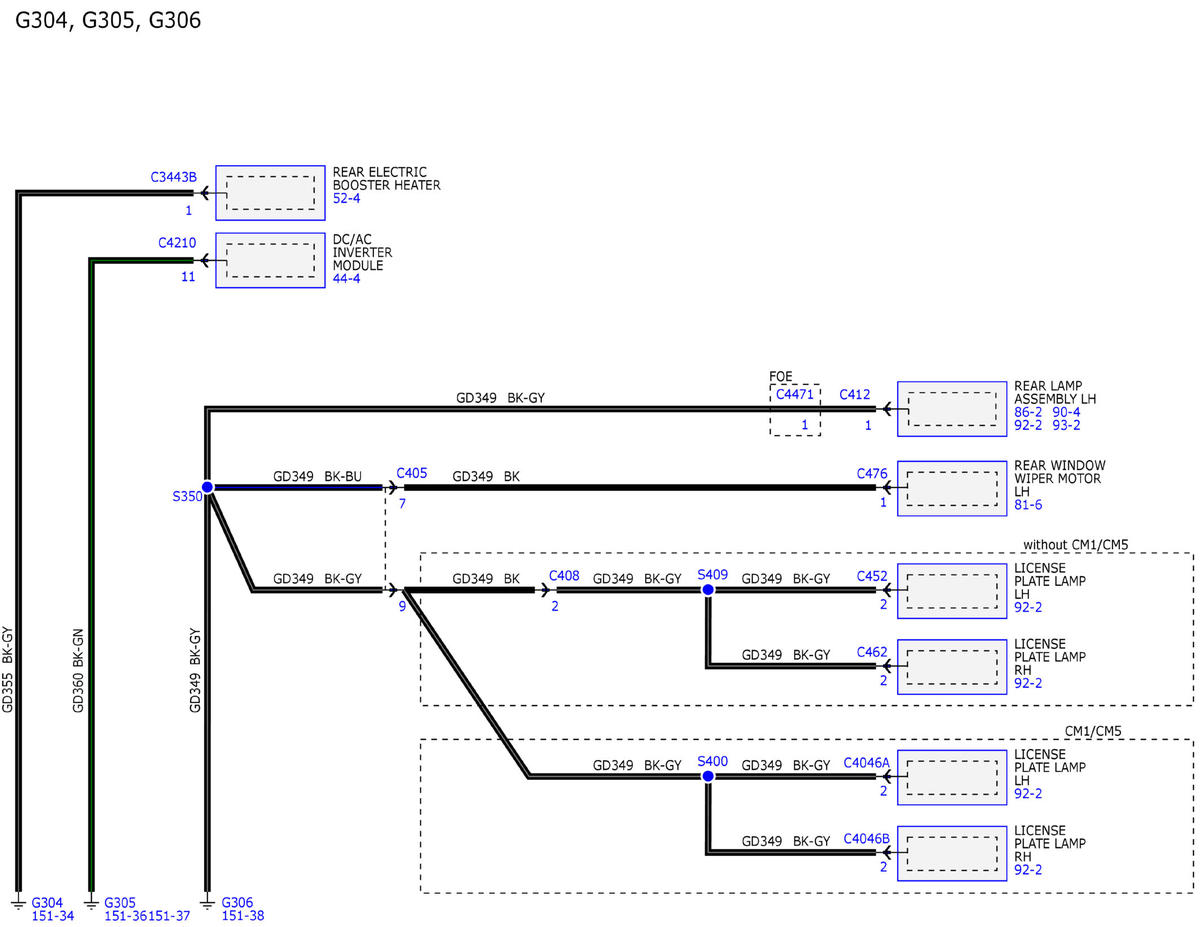

GFDWR206821Courtesy of FORD MOTOR COMPANY

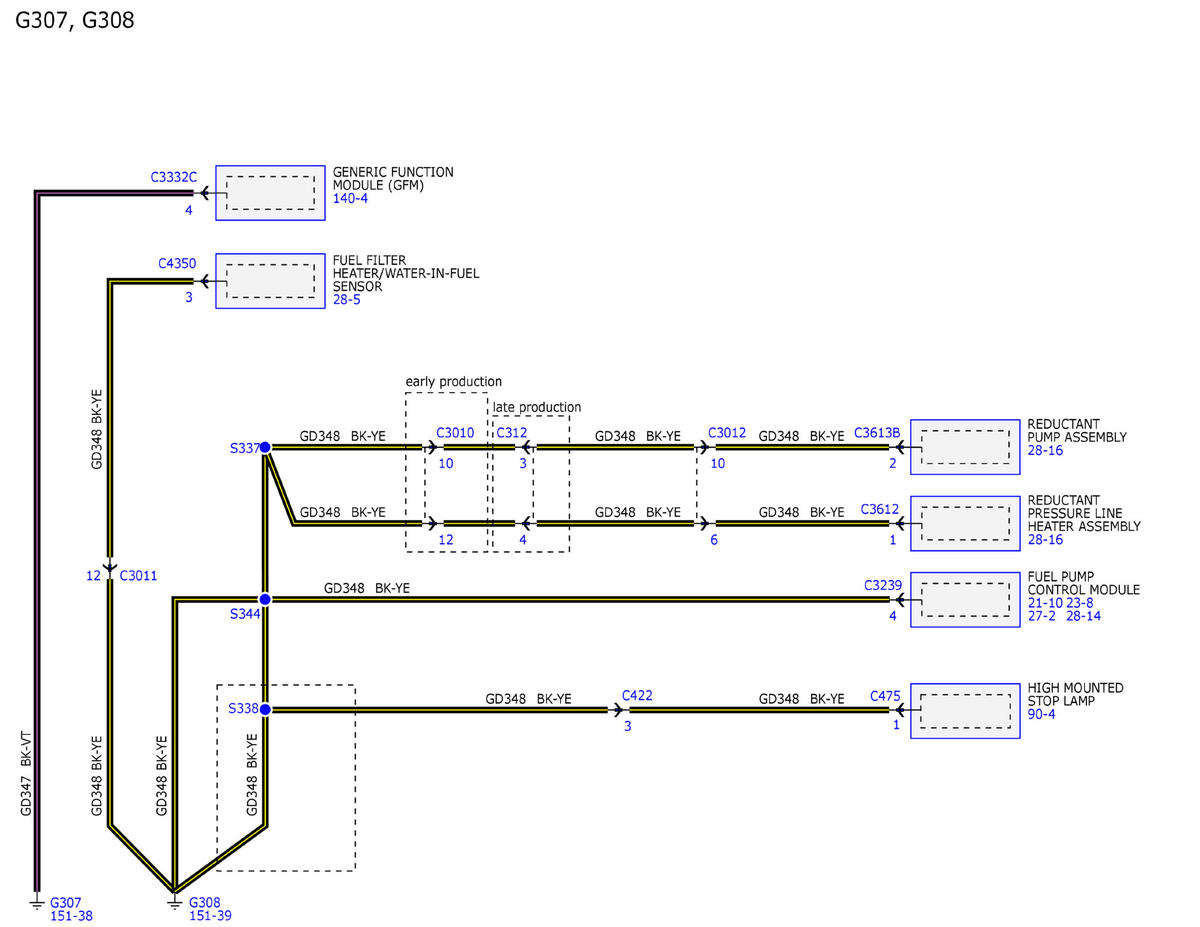

GFDWR206823Courtesy of FORD MOTOR COMPANY

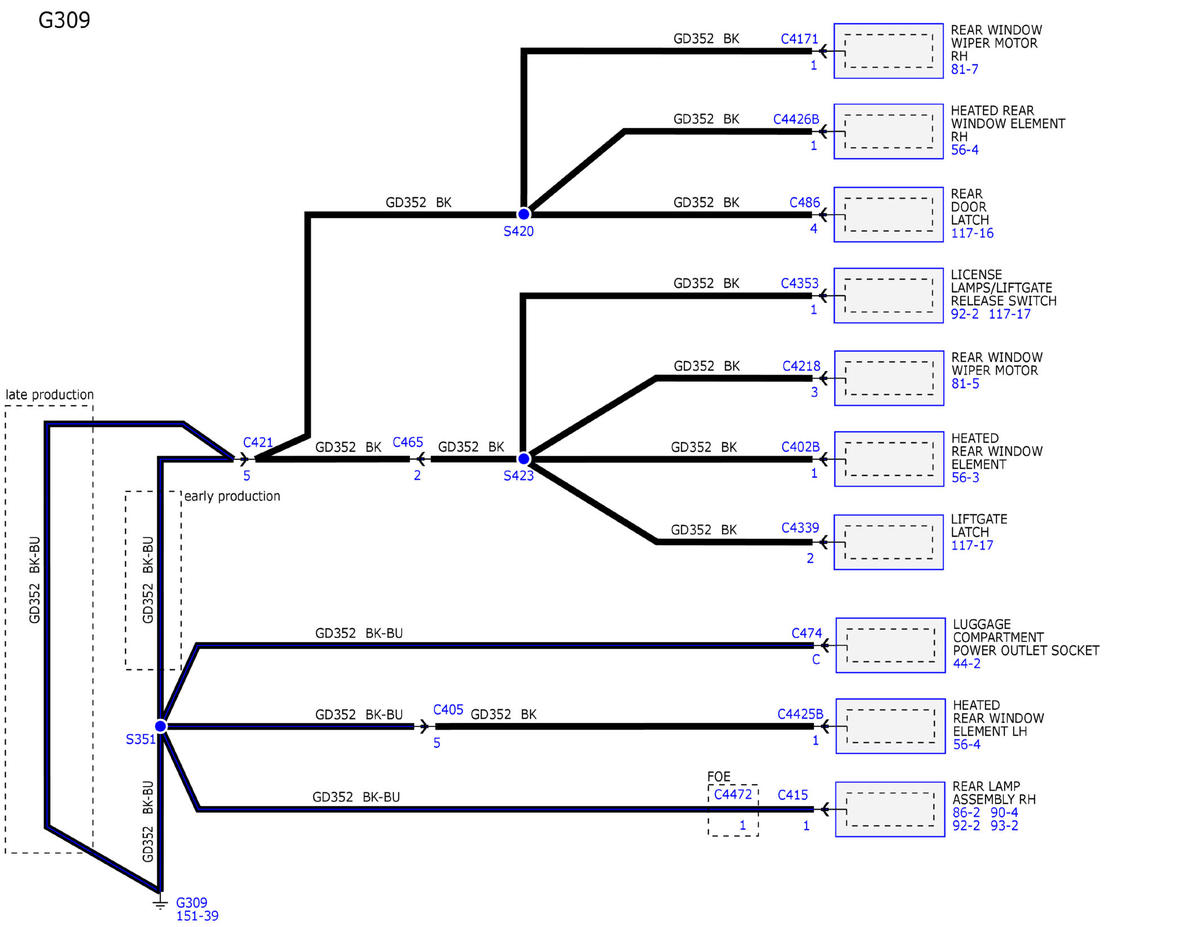

GFDWR206824Courtesy of FORD MOTOR COMPANY

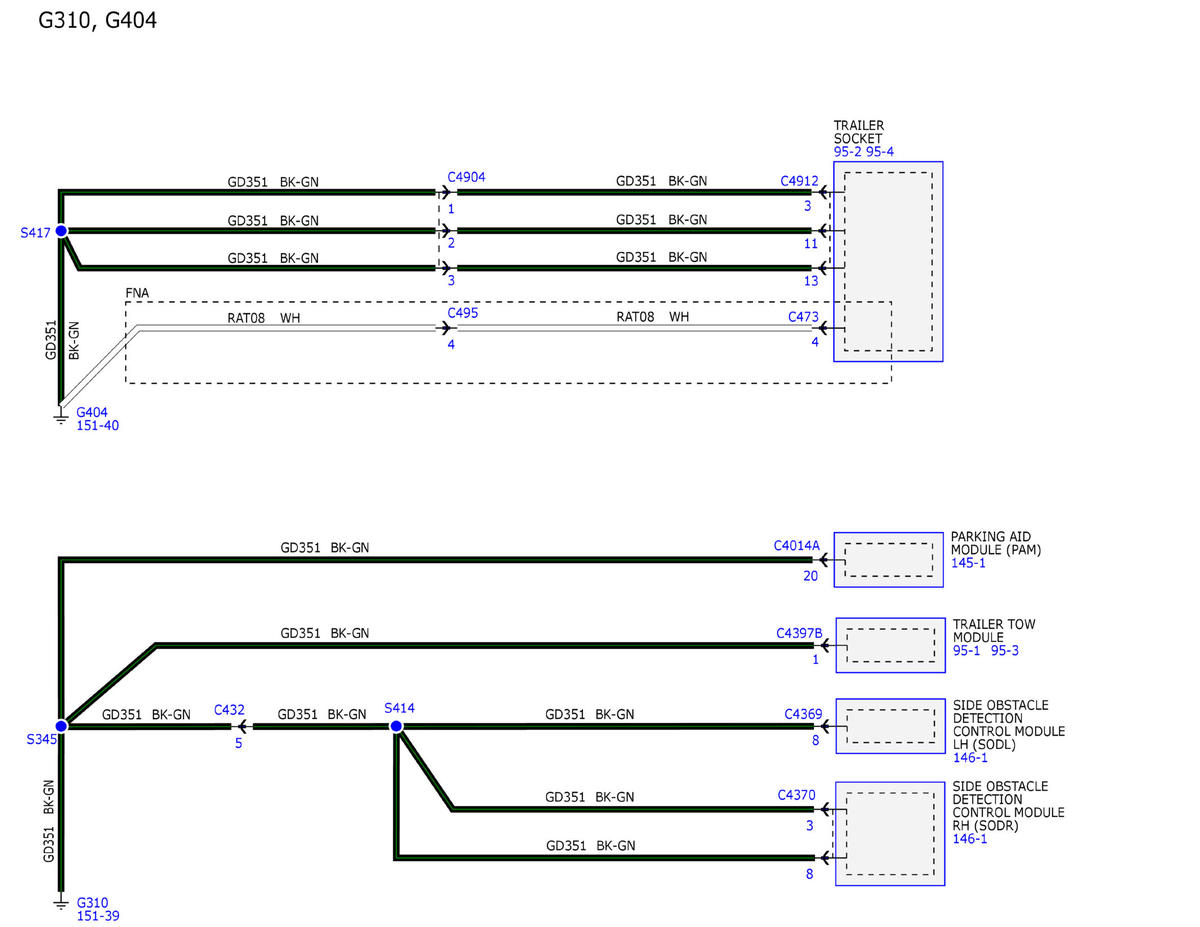

GFDWR206825Courtesy of FORD MOTOR COMPANY
