Powertrain/Drivetrain Mount Neutralizing: Adjustment
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

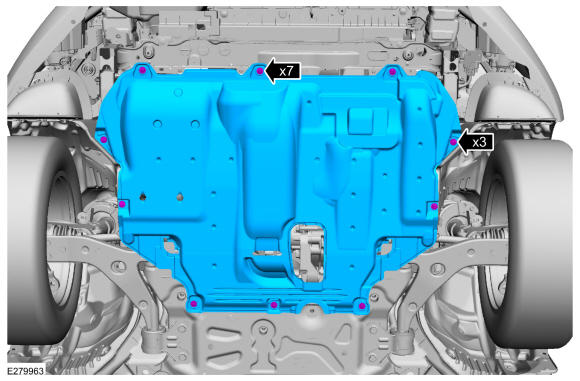

- If equipped. Remove the bolts, pin type retainers and the underbody shield.
- Remove the battery tray. Refer to: BATTERY - 2.0L DURATEC-HE (110KW 150PS) - MI4 .

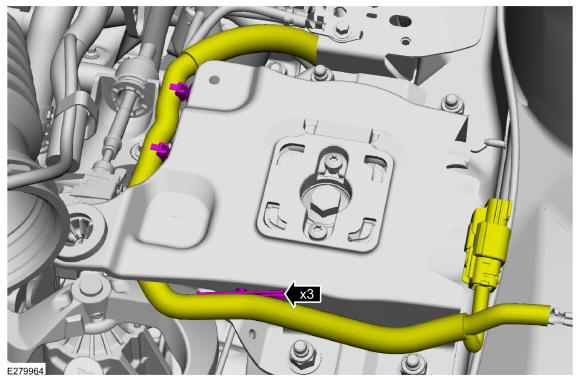

- Disconnect the pin-type retainers and position the wire harness aside.

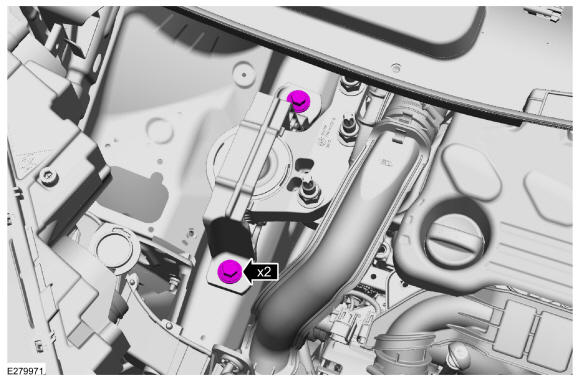

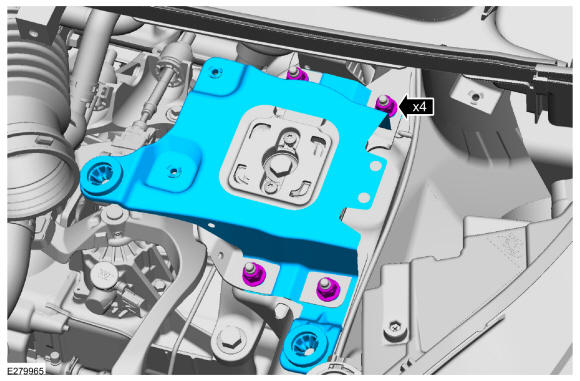

- Remove the nuts and the battery tray support bracket.
- Loosen, but do not remove the transmission mounting assembly nuts.

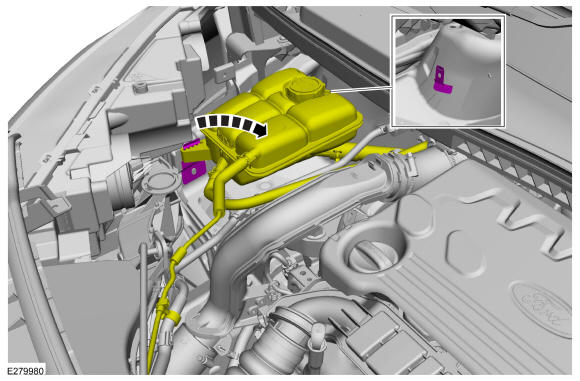

- Position the degas bottle aside.

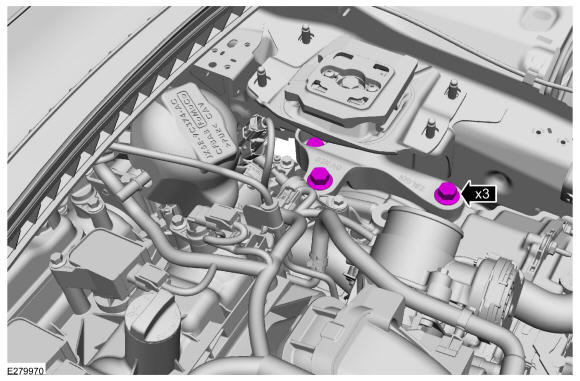

- Loosen, but do not remove the engine mount bolts.

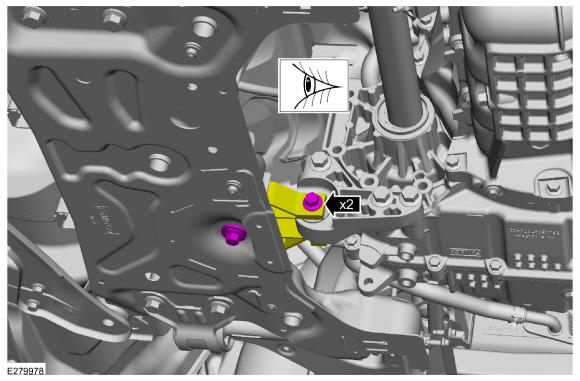

- Loosen, but do not remove the 2 roll restrictor bolts. Verify that the roll restrictor is loose.
- Install the battery. Refer to: BATTERY - 2.0L DURATEC-HE (110KW 150PS) - MI4 .
-
NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

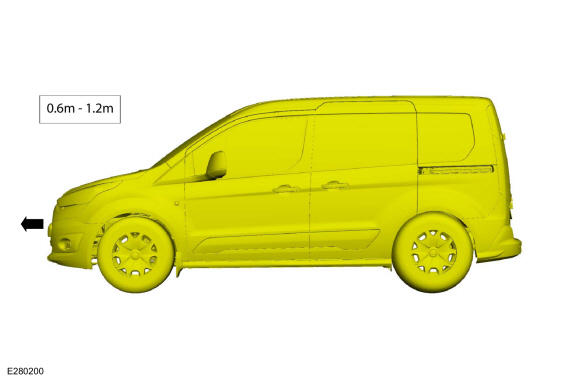

Start the vehicle and move it forward 0.6 m (1.97 ft) - 1.2 m (3.94 ft).
-
NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

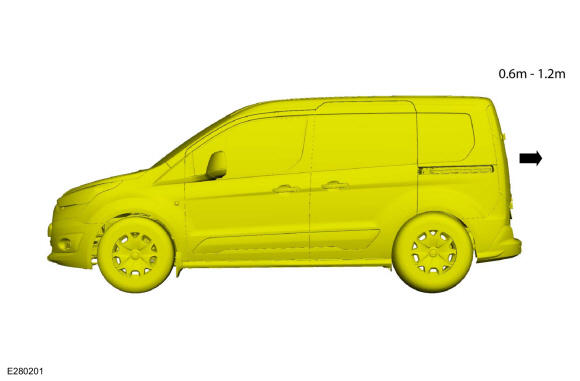

Move the vehicle in reverse the same distance 0.6 m (1.97 ft) - 1.2 m (3.94 ft).
- Remove the battery. Refer to: BATTERY - 2.0L DURATEC-HE (110KW 150PS) - MI4 .
- Raise and support the vehicle. Refer to: Jacking and Lifting - Overview .

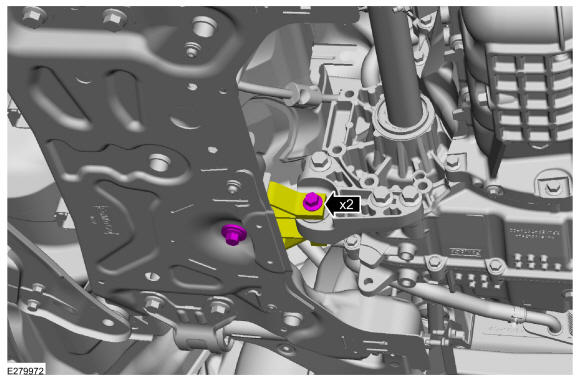

- Tighten the roll restrictor bolt.
Torque
: 76 lb.ft (103 Nm)
- Tighten the transmission mounting assembly nuts.
Torque
: 129 lb.ft (175 Nm)
- Tighten the engine mount bolts.
Torque
: 66 lb.ft (90 Nm)
- Position back the degas bottle.
- Position the wire harness aside back and install the pin-type retainers.
- Install the battery tray support bracket.
Torque
: 35 lb.ft (48 Nm)
- Install the battery tray. Refer to: BATTERY - 2.0L DURATEC-HE (110KW 150PS) - MI4 .
- If equipped. Install the underbody shield and the retainers.
- Test the system for normal operation.
