Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC) - Component Location: Notes

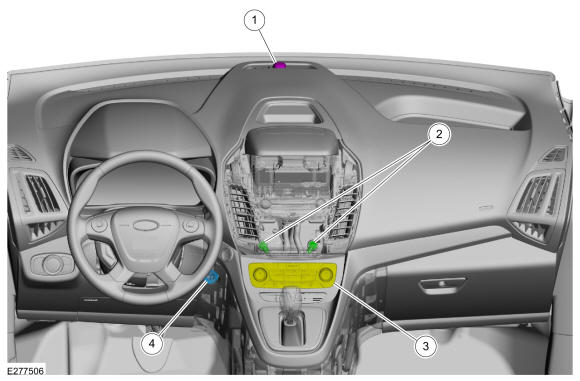

| Item | Description |
|---|---|
| 1 | Sunload sensor |
| 2 | Center register air discharge temperature sensors |
| 3 | HVAC control module |
| 4 | In-vehicle temperature and humidity sensor |
| Item | Description |
|---|---|
| 1 | Heater core |
| 2 | Evaporator |
| 3 | Blower motor |

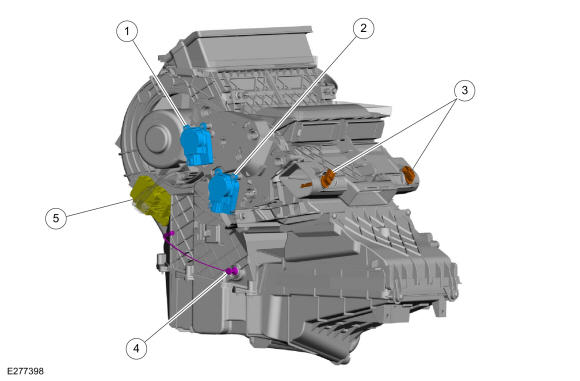

| Item | Description |
|---|---|
| 1 | Footwell vent door actuator |
| 2 | Driver side temperature door actuator |
| 3 | Footwell air discharge temperature sensors |
| 4 | Evaporator temperature sensor |
| 5 | Blower motor speed control |

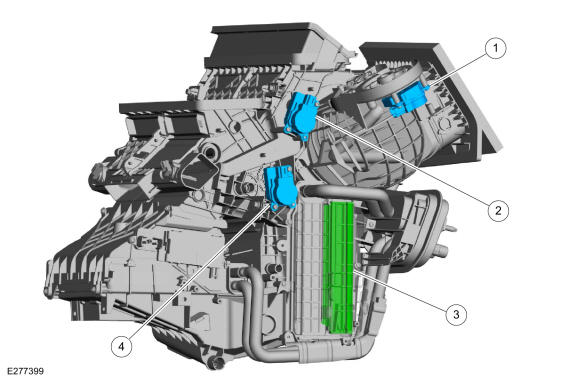

| Item | Description |
|---|---|
| 1 | Air inlet door actuator |
| 2 | Passenger side temperature door actuator |
| 3 | Cabin air filter |
| 4 | Defrost vent/register door actuator |
