Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location: Notes

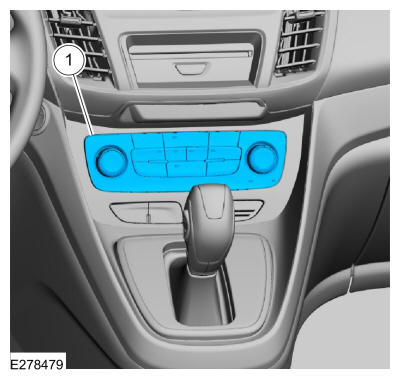

GFD772365Courtesy of FORD MOTOR COMPANY
Item Description
1 HVAC control module

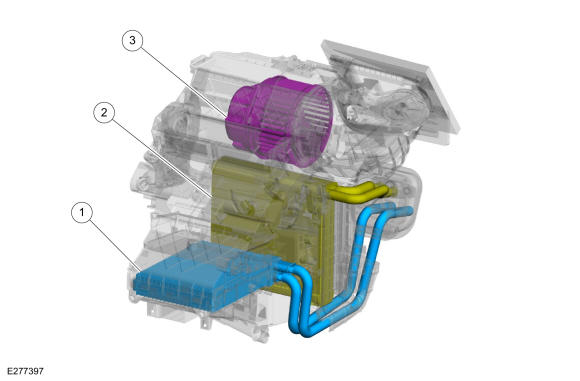

GFD772356Courtesy of FORD MOTOR COMPANY
Item Description
1 Heater core
2 Evaporator
3 Blower motor

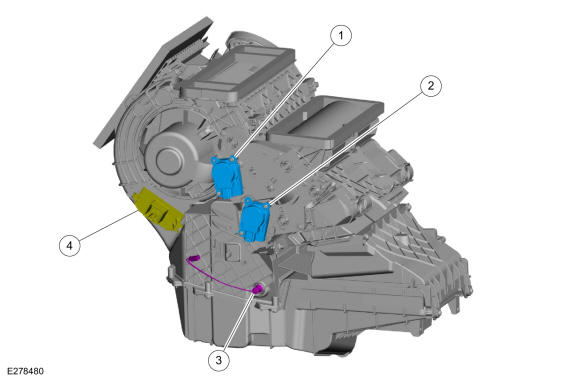

GFD772366Courtesy of FORD MOTOR COMPANY
Item Description
1 Air distribution door actuator
2 Temperature door actuator
3 Evaporator temperature sensor
4 Blower motor resistor
GFD772367Courtesy of FORD MOTOR COMPANY
Item Description
1 Air inlet door actuator
2 Cabin air filter
