Image Processing Module A (IPMA): Installation

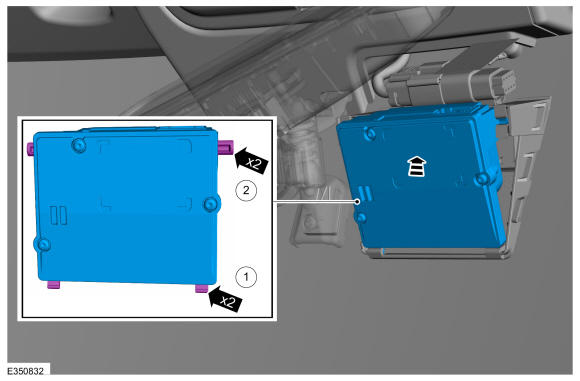

  1. Install the IPMA.

    1. Install the lower tabs.
    2. Install the upper tabs.

    GFD760548Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
  3. NOTE: This step is only necessary when installing a new component.

    • If a new IPMA has been installed, using a diagnostic scan tool, complete the PMI process for the IPMA following the on-screen instructions.

    • If a new IPMA has been installed, carry out the camera alignment using a scan tool.
