Image Processing Module A (IPMA): Removal
NOTE:
Removal steps in this procedure may contain installation details.

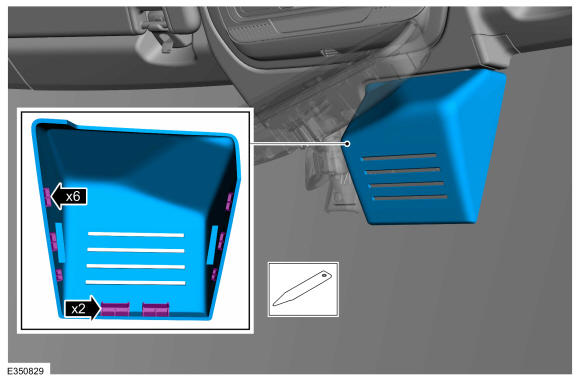

- Using the interior trim remover release the tabs and remove the IPMA cover. Use the General Equipment: Interior Trim Remover
 Courtesy of FORD MOTOR COMPANY
|

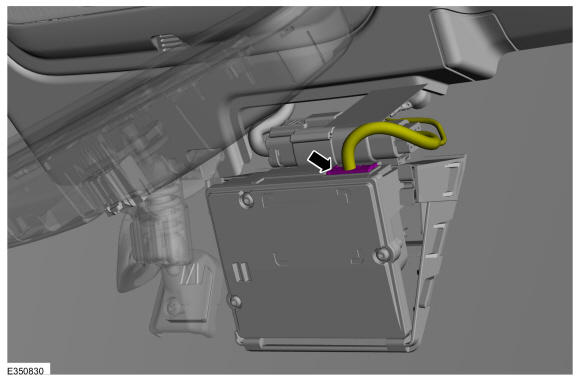

- Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

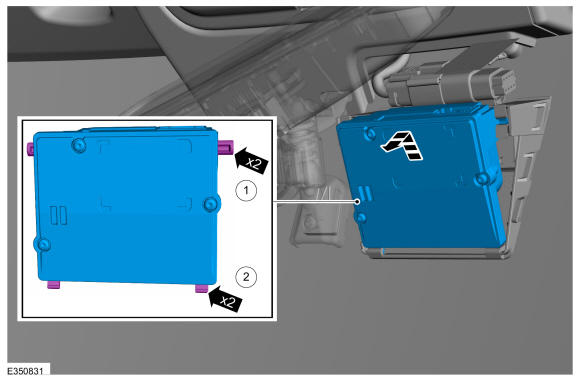

- Remove the IPMA.
- Remove the upper tabs.
- Remove the lower tabs.
 Courtesy of FORD MOTOR COMPANY
|
