Steering Column Control Module (SCCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI (programmable module installation) process must begin with the current SCCM (steering column control module) installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
Remove the clockspring. Refer to: CLOCKSPRING .

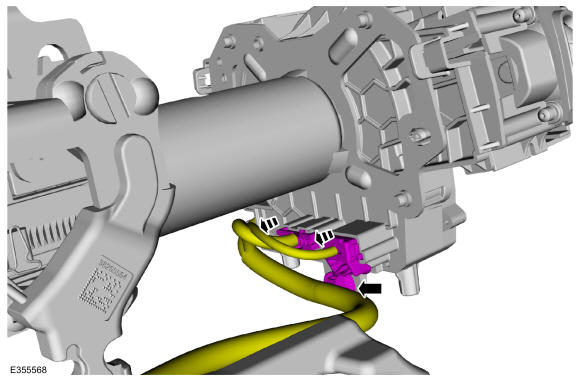

Disconnect the SCCM electrical connector.

Courtesy of FORD MOTOR COMPANY

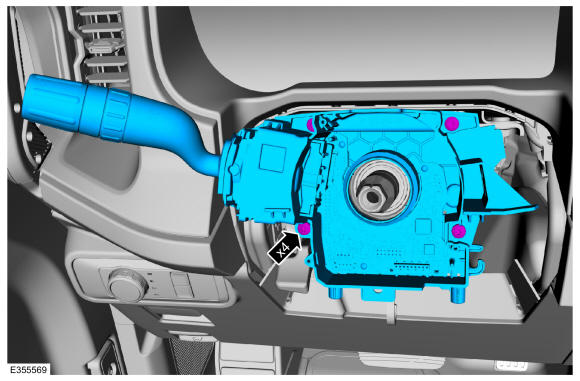

Remove the retainers and remove the SCCM.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
