Electronic Engine Controls - 2.3L ECOBOOST (199KW 270PS) -- Bronco
>>
Description And Operation
>>
Electronic Engine Controls - Component Location
>>
Electronic Engine Controls- Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

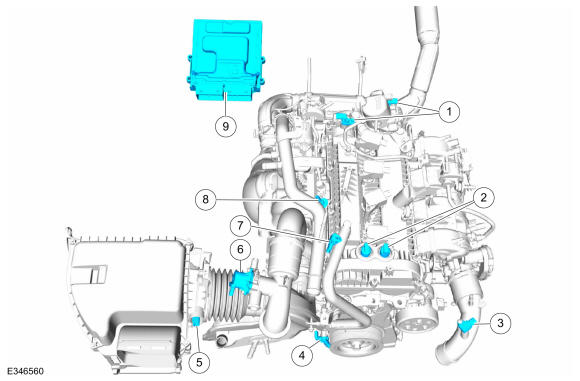

Electronic Engine Controls- Front
Courtesy of FORD MOTOR COMPANY
Item
Description
1
CMP sensors
2
Variable Camshaft Timing VCT Oil Control Solenoids
3
Turbocharger Boost Pressure Sensor
4
CKP sensor
5
IAT sensor
6
Turbocharger Bypass Valve
7
Crankcase pressure sensor
8
Cylinder Head Temperature 2 (CHT2) sensor
9
PCM
