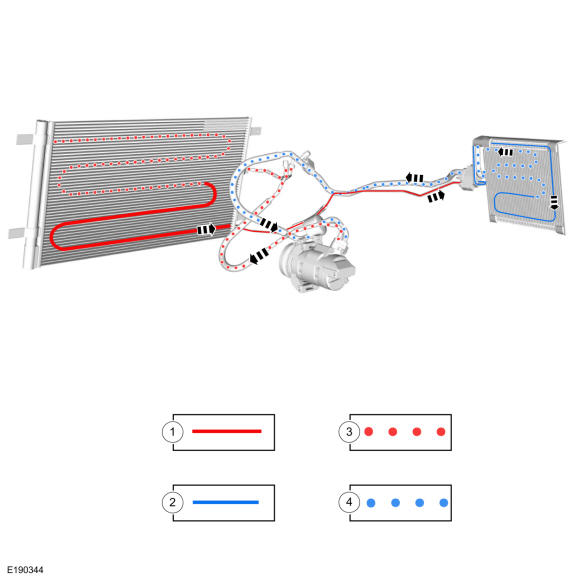

A/C Flow and State

GFD760040Courtesy of FORD MOTOR COMPANY
Item Description
1 High pressure liquid
2 Low pressure liquid
3 High pressure vapor
4 Low pressure vapor
