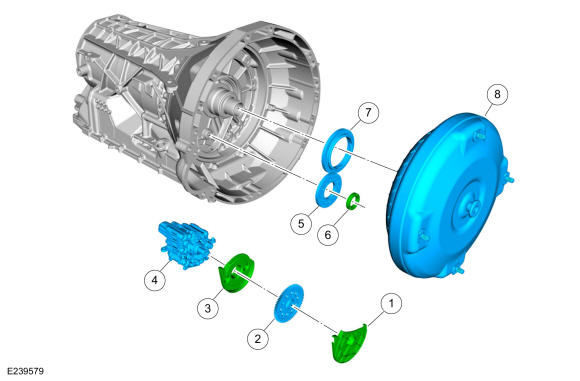

Pump Assembly Exploded View
| Item | Description |
|---|---|
| 1 | Transmission fluid pump driven gear outer cover |
| 2 | Transmission fluid pump driven gear |
| 3 | Transmission fluid pump driven gear inner cover |
| 4 | Transmission fluid pump |
| 5 | Transmission fluid pump idler gear |
| 6 | Transmission fluid pump idler gear bearing |
| 7 | Transmission fluid pump drive gear |
| 8 | Torque converter |
