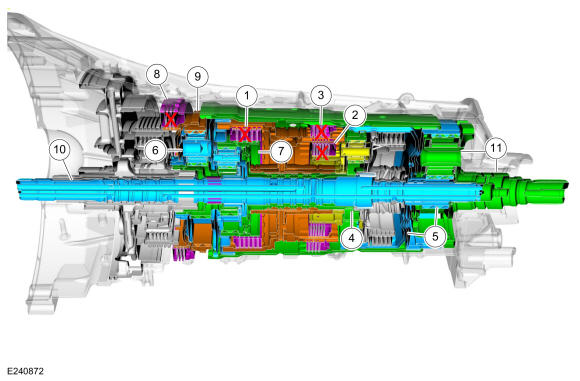

4th Gear
| Item | Description |
|---|---|
| 1 | C clutch |
| 2 | D clutch |
| 3 | F clutch |
| 4 | Planetary gearset No. 3 |
| 5 | Planetary gearset No. 4 |
| 6 | Planetary carrier No. 1 |
| 7 | Ring gear No. 2 |
| 8 | A clutch |
| 9 | Ring gear No. 1 |
| 10 | Input shaft |
| 11 | Output shaft and planetary carrier No. 4 |
The C clutch, D clutch, and F clutch are applied effectively locking the 3rd and 4th planetary gearsets, the planetary carrier No. 1, and the ring gear No. 2 together. The A clutch is holding the ring gear No. 1. The 2 inputs to the planetary gearset No. 1 cause the sun gear No. 1 and the sun gear No. 2 to rotate at a 0.56 overdrive ratio. The input shaft turns the planetary carrier No. 2 and causes the ring gear No. 2 and the 4th planetary gearset to rotate at a 1.77 ratio.
