Connector End View C1381B - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2023 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C1381B POWERTRAIN CONTROL MODULE (PCM) 14290 part# N/A Not Available

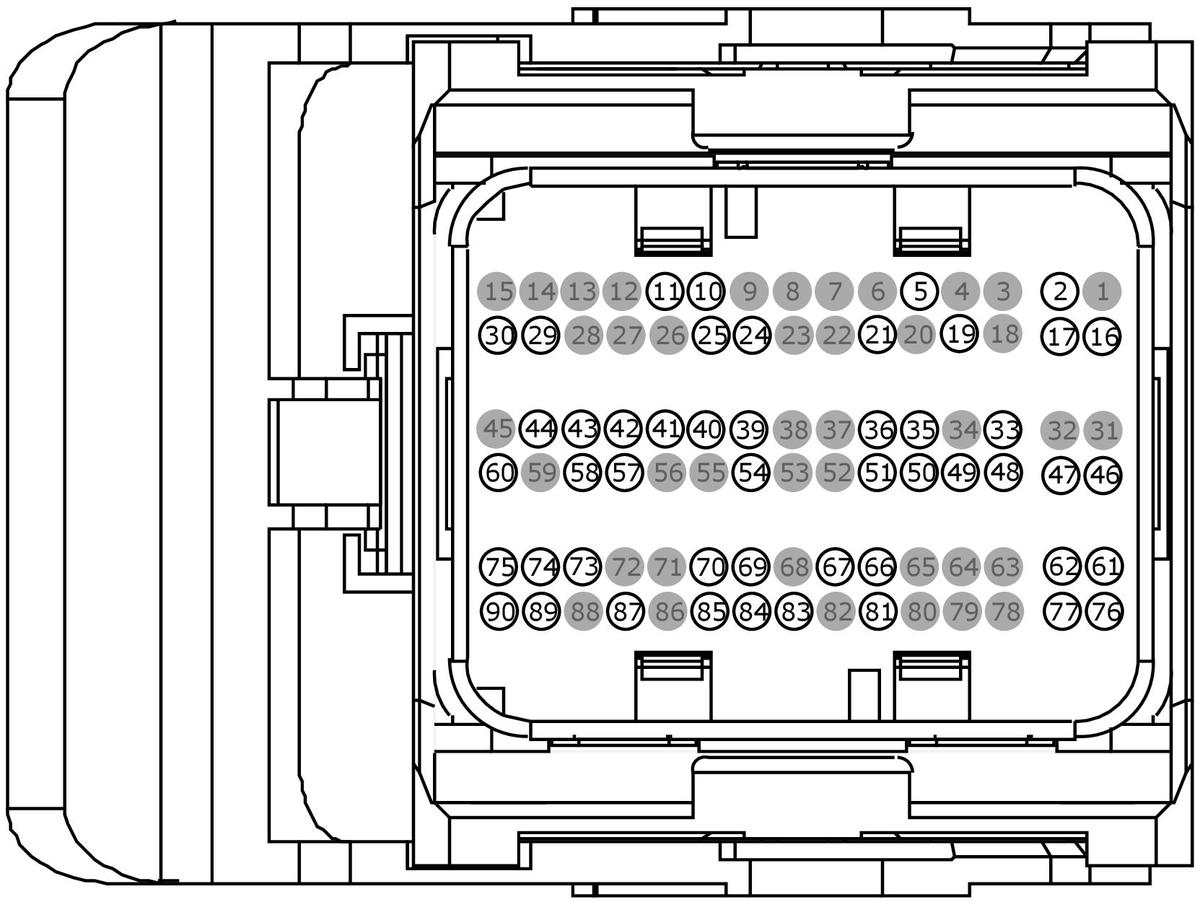

GFDWR199950Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
GU5T-14474-DA Not Available
GU5T-14474-CA DU2Z-14474-BA 0.64
BU5T-14474-AB DU2Z-14474-CAFC 0.64
BU5T-14474-BB DU2Z-14474-CAFC 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 CBK01 (BU) 18 FUSE - 1 OR CIRCUIT BREAKER (VPWR 1) GU5T-14474-CA
3 * * Not Used N/A
4 * * Not Used N/A
5 VE792 (GY) 20 SENSOR - CHARGE AIR COOLER COOLANT TEMPERATURE (CACCT) + BU5T-14474-AB
6 * * Not Used N/A
7 * * Not Used N/A
8 * * Not Used N/A
9 * * Not Used N/A
10 VE462 (WH-BN) 20 CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE BU5T-14474-AB
11 CDC54 (WH-GN) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) BU5T-14474-AB
12 * * Not Used N/A
13 * * Not Used N/A
14 * * Not Used N/A
15 * * Not Used N/A
16 CBK01 (BU) 18 FUSE - 1 OR CIRCUIT BREAKER (VPWR 1) GU5T-14474-CA
17 CBK01 (BU) 18 FUSE - 1 OR CIRCUIT BREAKER (VPWR 1) GU5T-14474-CA
18 * * Not Used N/A
19 RE480 (WH) 20 CTRL MOD. - POWERTRAIN # SUPERCHARGER MANIFOLD ABSOLUTE PRESSURE SENSOR (SMAP) - BU5T-14474-AB
20 * * Not Used N/A
21 RE143 (BN-BU) 20 CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 - N/A
22 * * Not Used N/A
23 * * Not Used N/A
24 CR167 (YE-VT) 20 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) BU5T-14474-AB
25 CBB24 (VT-GN) 20 FUSE - 24 OR CIRCUIT BREAKER BU5T-14474-AB
26 * * Not Used N/A
27 * * Not Used N/A
28 * * Not Used N/A
29 CE114 (GN-BU) 18 CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) BU5T-14474-BB
30 VE225 (YE-OG) 20 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) BU5T-14474-AB
31 * * Not Used N/A
32 * * Not Used N/A
33 VDB50 (BU-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 BU5T-14474-AB
34 * * Not Used N/A
35 VE740 (VT-GY) 20 SENSOR - INTAKE AIR TEMPERATURE (IAT) BU5T-14474-AB
36 VE750 (GN-BU) 20 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) BU5T-14474-AB
37 * * Not Used N/A
38 * * Not Used N/A
39 VE702 (BU-WH) 20 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) BU5T-14474-AB
40 RE407 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) BU5T-14474-AB
41 VE518 (BN-WH) 20 MONITOR - FUEL PUMP (FPM) BU5T-14474-AB
42 CET42 (GN-VT) 20 SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) BU5T-14474-AB
43 CPK34 (GN-WH) 20 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + BU5T-14474-AB
44 CH302 (WH-BN) 20 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) BU5T-14474-AB
45 * * Not Used N/A
46 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT GU5T-14474-DA
47 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT GU5T-14474-DA
48 VDB49 (YE-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 BU5T-14474-AB
49 VE181 (WH-GN) 20 CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 BU5T-14474-AB
50 VE701 (YE-OG) 20 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) BU5T-14474-AB
51 VH433 (VT-OG) 20 TRANSDUCER - A/C PRESSURE (ACPT) + BU5T-14474-AB
52 * * Not Used N/A
53 * * Not Used N/A
54 VE922 (VT-GN) 20 TRANSDUCER - FUEL TANK PRESSURE (FTPT) BU5T-14474-AB
55 * * Not Used N/A
56 * * Not Used N/A
57 CET43 (GY) 20 SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) BU5T-14474-AB
58 CES09 (VT-OG) 20 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + BU5T-14474-AB
59 * * Not Used N/A
60 CDC12 (YE) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) BU5T-14474-AB
61 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT GU5T-14474-DA
62 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT GU5T-14474-DA
63 * * Not Used N/A
64 * * Not Used N/A
65 * * Not Used N/A
66 RE136 (VT-GN) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) BU5T-14474-AB
67 LE136 (GN-OG) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) BU5T-14474-AB
68 * * Not Used N/A
69 RE137 (YE-GN) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) BU5T-14474-AB
70 LE137 (BU-GY) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) BU5T-14474-AB
71 * * Not Used N/A
72 * * Not Used N/A
73 CE436 (VT-OG) 20 CTRL MOD. -WAKE UP PCM BU5T-14474-AB
74 CE302 (YE-BU) 20 CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) BU5T-14474-AB
75 VE203 (YE-GY) 20 CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V) BU5T-14474-AB
76 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT GU5T-14474-DA
77 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT GU5T-14474-DA
78 * * Not Used N/A
79 * * Not Used N/A
80 * * Not Used N/A
81 RH433 (BU-GY) 20 TRANSDUCER - A/C PRESSURE (ACPT) - BU5T-14474-AB
82 * * Not Used N/A
83 LE230 (BN-BU) 20 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) BU5T-14474-AB
84 LE424 (YE-GN) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (VREF) BU5T-14474-AB
85 LE111 (VT-GN) 20 CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) N/A
86 * * Not Used N/A
87 CCB08 (VT-WH) 20 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN BU5T-14474-AB
88 * * Not Used N/A
89 CE226 (YE-VT) 20 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + BU5T-14474-AB
90 RE226 (GN-VT) 20 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - BU5T-14474-AB
