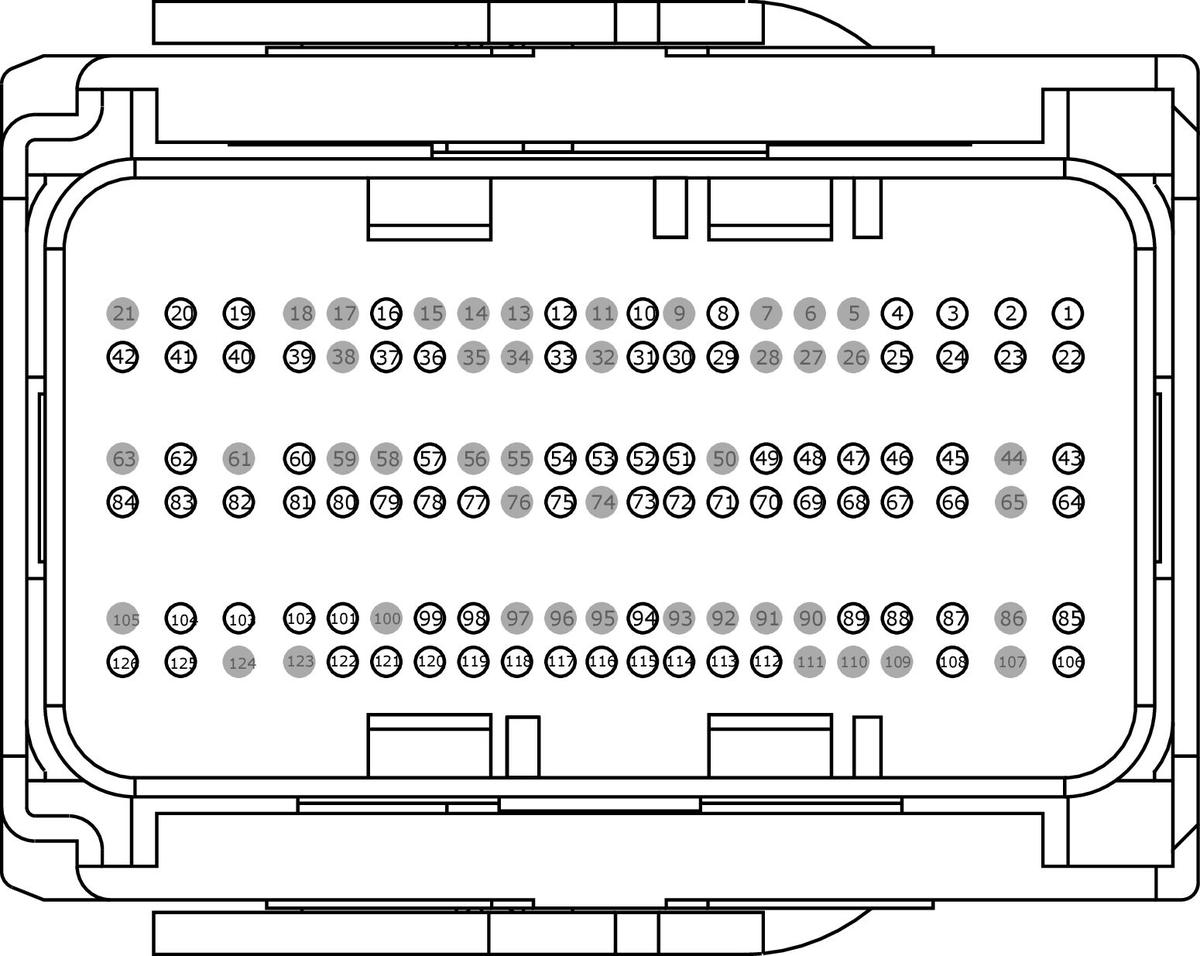

Connector End View C1551E - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2023 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1551E	POWERTRAIN CONTROL MODULE (PCM)	12C508			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
GU5T-14474-DA	Not Available
GU5T-14474-CA	DU2Z-14474-BA	0.64
BU5T-14474-AB	DU2Z-14474-CAFC	0.64
BU5T-14474-BB	DU2Z-14474-CAFC	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE226 (YE-VT)	16	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	GU5T-14474-DA
2	RE164 (BN-YE)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. BYPASS POSITION -	GU5T-14474-CA
3	CE426 (BU-GN)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)	GU5T-14474-CA
4	RE466 (GN-BN)	18	CTRL MOD. - POWERTRAIN # SUPERCHARGER BYPASS ACTUATOR MOTOR -	BU5T-14474-BB
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	VE818 (BN)	20	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS)	BU5T-14474-BB
9	*	*	Not Used	N/A
10	VE802 (BN-BU)	22	SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+]	BU5T-14474-AB
11	*	*	Not Used	N/A
12	VE801 (VT-OG)	22	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+]	BU5T-14474-AB
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	CH307 (GY-BU)	18	CTRL MOD. - POWERTRAIN # HEATED PUMP CONTROL RELAY (HPCR)	BU5T-14474-BB
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	CE303 (WH-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A)	GU5T-14474-CA
20	CE308 (VT-BN)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP-F)	GU5T-14474-CA
21	*	*	Not Used	N/A
22	RE226 (GN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -	GU5T-14474-DA
23	LE164 (BU-GN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. BYPASS POSITION +	GU5T-14474-CA
24	CE412 (YE-VT)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)	GU5T-14474-CA
25	CE466 (VT-GN)	18	CTRL MOD. - POWERTRAIN # SUPERCHARGER BYPASS ACTUATOR MOTOR +	BU5T-14474-BB
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	CMC14 (BN-YE)	18	SENSOR - LOW LEVEL ENGINE OIL	BU5T-14474-BB
30	VE779 (YE-GN)	18	SENSOR - CRANKCASE PRESSURE	BU5T-14474-BB
31	RE324 (BN-GN)	22	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-]	BU5T-14474-AB
32	*	*	Not Used	N/A
33	RE323 (WH-BN)	22	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] -	BU5T-14474-AB
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	CE443 (BN-VT)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4	BU5T-14474-BB
37	CE421 (VT)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1)	BU5T-14474-BB
38	*	*	Not Used	N/A
39	RE401 (GN-BU)	18	CTRL MOD. - POWERTRAIN # SCREEN GROUNDS -	BU5T-14474-BB
40	CE305 (BU-OG)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C)	GU5T-14474-CA
41	CE306 (GN-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D)	GU5T-14474-CA
42	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B)	GU5T-14474-CA
43	RE207 (GN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) -	GU5T-14474-DA
44	*	*	Not Used	N/A
45	RE206 (BU-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) -	GU5T-14474-DA
46	CBK01 (BU)	18	FUSE - 1 OR CIRCUIT BREAKER (VPWR 1)	BU5T-14474-BB
47	VE850 (WH-VT)	20	SENSOR - WASTE GATE CONTROL PRESSURE (WGCP)	BU5T-14474-AB
48	VE727 (OG)	22	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)	BU5T-14474-AB
49	VE740 (VT-GY)	22	SENSOR - INTAKE AIR TEMPERATURE (IAT)	BU5T-14474-AB
50	*	*	Not Used	N/A
51	VE738 (YE-BU)	18	SENSOR - CAMSHAFT POSITION BANK 2 EX	BU5T-14474-BB
52	VE707 (GN-VT)	18	SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2)	BU5T-14474-BB
53	VE706 (BN-BU)	18	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1)	BU5T-14474-BB
54	VE736 (WH-GN)	18	SENSOR - CAMSHAFT POSITION BANK 1 EX	BU5T-14474-BB
55	*	*	Not Used	N/A
56	*	*	Not Used	N/A
57	RE144 (BN)	18	CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 2 -	BU5T-14474-BB
58	*	*	Not Used	N/A
59	*	*	Not Used	N/A
60	VE821 (WH-VT)	18	SENSOR - VACUUM RESERVOIR PRESSURE (VRP)	BU5T-14474-BB
61	*	*	Not Used	N/A
62	CE307 (WH-BN)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP-E)	GU5T-14474-CA
63	*	*	Not Used	N/A
64	CE207 (VT-GY)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) +	GU5T-14474-DA
65	*	*	Not Used	N/A
66	CE206 (GY-YE)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) +	GU5T-14474-DA
67	VE354 (GN-BU)	18	CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) +	BU5T-14474-BB
68	RE354 (WH-BU)	18	CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) -	BU5T-14474-BB
69	VE728 (GN)	22	SENSOR - FUEL RAIL TEMPERATURE (FRT)	BU5T-14474-AB
70	VE712 (BU-GY)	18	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)	BU5T-14474-BB
71	VE716 (YE)	22	SENSOR - ENGINE COOLANT TEMPERATURE (ECT)	BU5T-14474-AB
72	VE804 (GN-BN)	22	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) +	BU5T-14474-AB
73	VE719 (GY-VT)	20	SENSOR - EXHAUST GAS RECIRCULATION TEMPERATURE	BU5T-14474-AB
74	*	*	Not Used	N/A
75	VE836 (VT-GN)	18	SENSOR - WASTEGATE POSITION (WGT_PS)	BU5T-14474-BB
76	*	*	Not Used	N/A
77	VE761 (BN-BU)	22	SENSOR - FUEL LOW PRESSURE (FLPS)	BU5T-14474-AB
78	VE851 (GY-BN)	18	SENSOR - WASTE GATE CONTROL PRESSURE (WGCP)	BU5T-14474-BB
79	VE713 (GN-OG)	18	SENSOR - DELTA PRESSURE FEEDBACK EGR (DPFE)	BU5T-14474-BB
80	CE113 (WH-BN)	18	CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)	BU5T-14474-BB
81	CE422 (WH-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2)	BU5T-14474-BB
82	RE208 (BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) -	GU5T-14474-DA
83	RE210 (BN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) -	GU5T-14474-DA
84	CE265 (WH)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 4	GU5T-14474-CA
85	RE209 (WH-GN)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) -	GU5T-14474-DA
86	*	*	Not Used	N/A
87	RE205 (YE-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) -	GU5T-14474-DA
88	RE238 (BU-BN)	18	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR -	BU5T-14474-BB
89	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	BU5T-14474-BB
90	*	*	Not Used	N/A
91	*	*	Not Used	N/A
92	*	*	Not Used	N/A
93	*	*	Not Used	N/A
94	RE134 (BU-OG)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	BU5T-14474-BB
95	*	*	Not Used	N/A
96	*	*	Not Used	N/A
97	*	*	Not Used	N/A
98	VE711 (YE-VT)	18	SENSOR - CRANKSHAFT POSITION (CKPP) +	BU5T-14474-BB
99	CE442 (YE-GY)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 3	BU5T-14474-BB
100	*	*	Not Used	N/A
101	CE262 (GN)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 1	BU5T-14474-BB
102	VE175 (WH-BN)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC COMPRESSOR BYPASS VALVE (ECBV_PWM)	BU5T-14474-BB
103	CE208 (YE-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) +	GU5T-14474-DA
104	CE210 (GN-WH)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) +	GU5T-14474-DA
105	*	*	Not Used	N/A
106	CE209 (BN)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) +	GU5T-14474-DA
107	*	*	Not Used	N/A
108	CE205 (GN-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +	GU5T-14474-DA
109	*	*	Not Used	N/A
110	*	*	Not Used	N/A
111	*	*	Not Used	N/A
112	RE135 (GN-BN)	18	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) -	BU5T-14474-BB
113	RE238 (BU-BN)	18	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR -	BU5T-14474-BB
114	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	BU5T-14474-BB
115	LE134 (YE)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	BU5T-14474-BB
116	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	BU5T-14474-BB
117	LE135 (GY-VT)	18	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) +	BU5T-14474-BB
118	LE458 (BU-WH)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)	BU5T-14474-BB
119	LE238 (GY)	18	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR +	BU5T-14474-BB
120	RE238 (BU-BN)	18	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR -	BU5T-14474-BB
121	CE266 (VT-GN)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 5	BU5T-14474-BB
122	CE267 (BU-GY)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 6	BU5T-14474-BB
123	*	*	Not Used	N/A
124	*	*	Not Used	N/A
125	CE264 (YE-VT)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 3	GU5T-14474-CA
126	CE263 (BU-GN)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 2	GU5T-14474-CA
