Front Seat Control Switch RH Component Testing

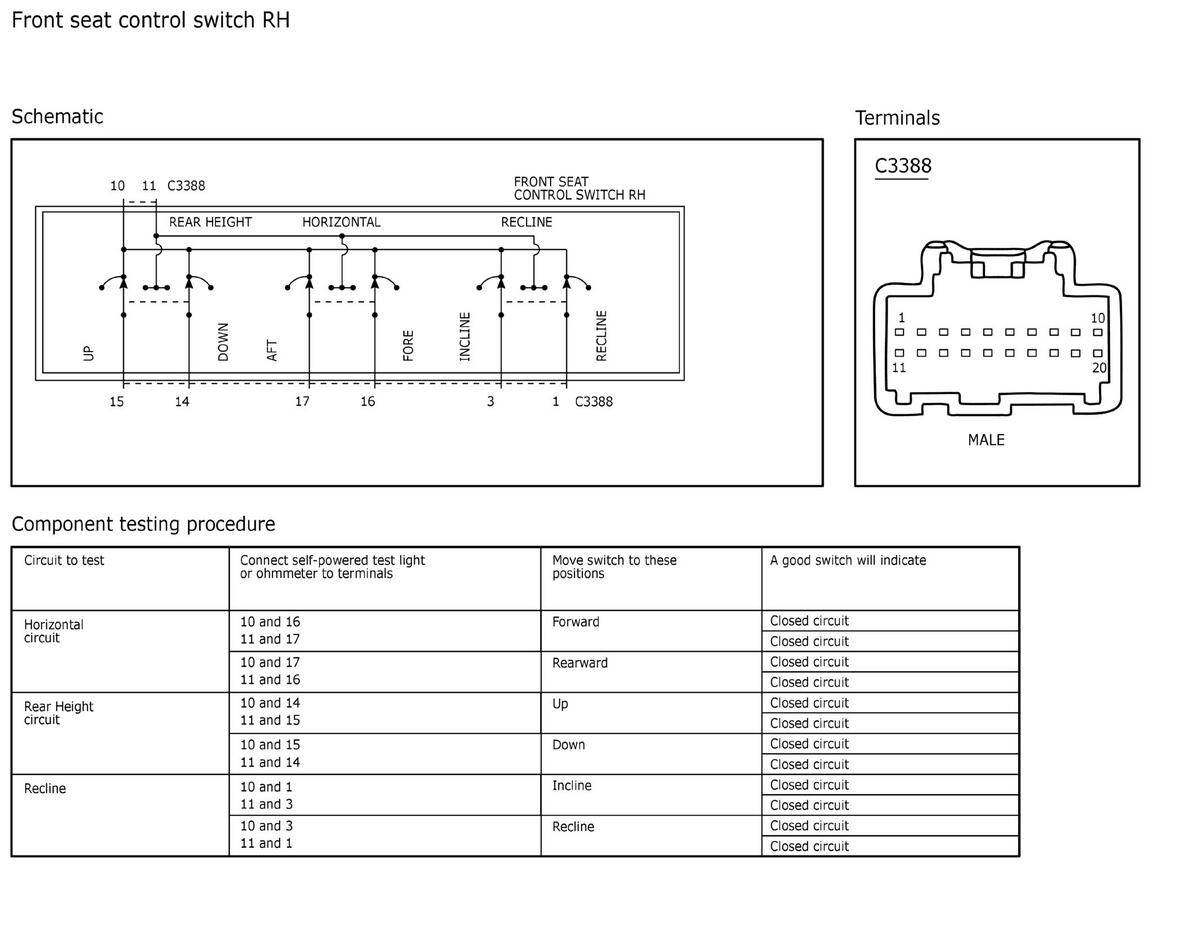

Fig 1: Front Seat Control Switch RH Component Testing
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
