Pedestrian Alert System - Electric
>>
Description And Operation
>>
Pedestrian Alert System - System Operation and Component Description
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

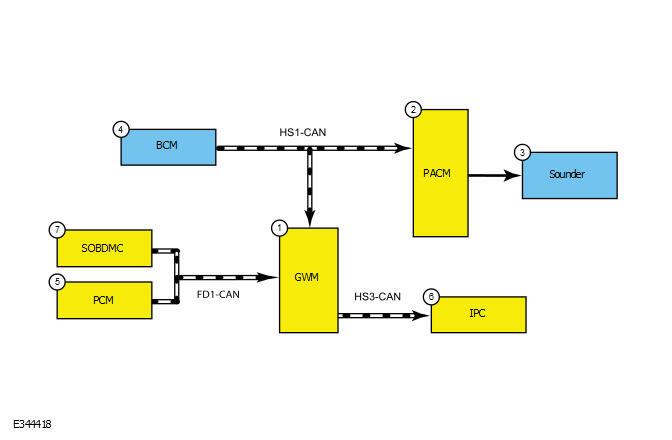

System Diagram
Courtesy of FORD MOTOR COMPANY
Item
Description
1
GWM
2
PACM
3
Sounder
4
BCM
5
PCM
6
IPC
7
SOBDMC
Courtesy of FORD MOTOR COMPANY
