Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Programming .
Remove the coolant expansion tank. Refer to: Coolant Expansion Tank .

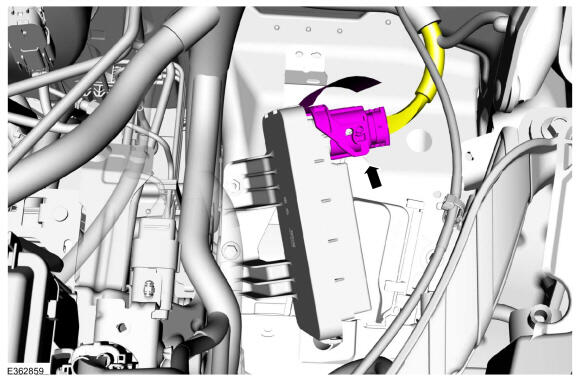

Disconnect the electrical connector and harness retainer and position harness aside.

Courtesy of FORD MOTOR COMPANY

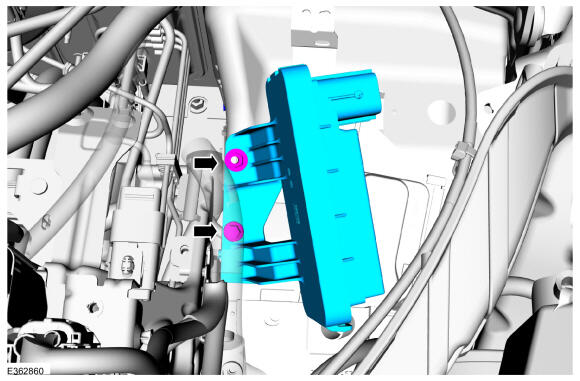

Remove the retainer and module.
Torque: Nut: 4.8 Nm Bolt: 10.5 Nm

Courtesy of FORD MOTOR COMPANY

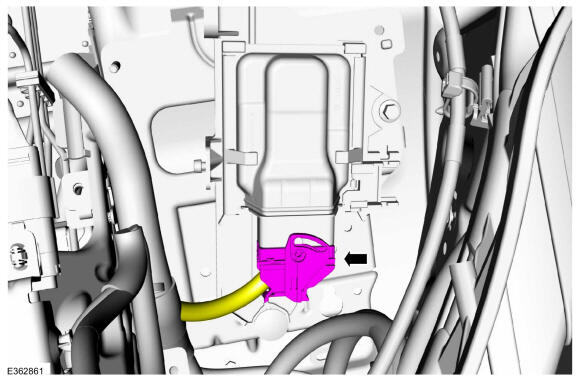

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

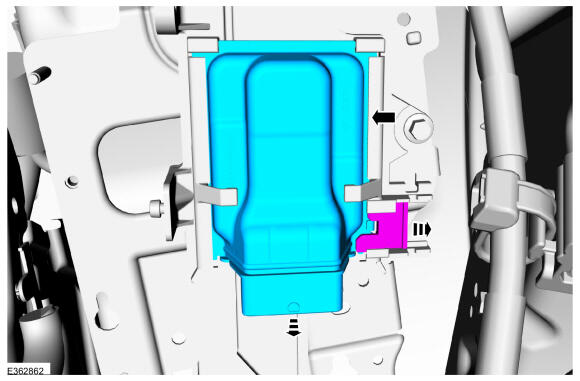

Position the lock pin away from the PCM mounting bracket and slide the PCM out from the mounting bracket.
