Front Strut and Spring Assembly: Assembly

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the components are installed to the position noted before removal.

To assemble, reverse the disassembly procedure.

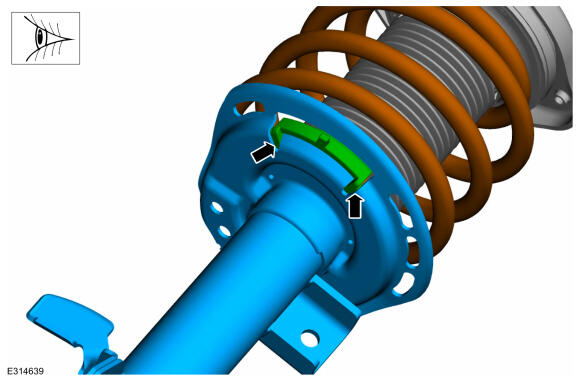

Make sure that the lower spring seat is properly installed.

Courtesy of FORD MOTOR COMPANY

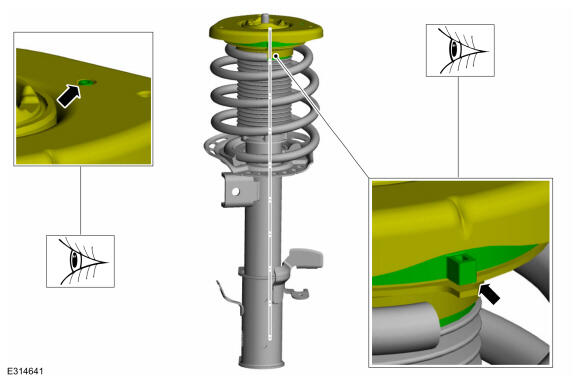

NOTE: Make sure the components are correctly aligned during assembly.

NOTE: Make sure the strut bearing tabs are aligned before compressing the spring.

Align the strut bearing tabs.

Courtesy of FORD MOTOR COMPANY
WARNING: Coil springs and strut assemblies are compressed under extreme load. Always use a spring compressor for disassembly. Follow procedure instructions carefully and make sure the spring compressor has the correct spring plates or adapters. Failure to follow these instructions may result in serious personal injury.

NOTE: Make sure that the spring coating is not damaged during assembly process.

NOTE: Typical strut and spring assembly shown.

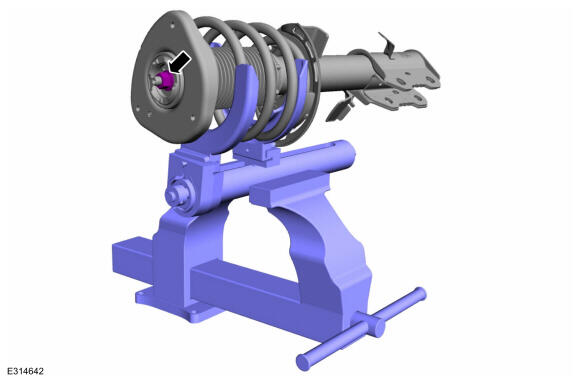

NOTE: Utilize the hex holding feature to prevent the strut rod from turning while installing the strut rod nut.

Install the new strut rod nut.Use the General Equipment: Spring CompressorUse the General Equipment: Vise

Torque

: 55 Nm

Courtesy of FORD MOTOR COMPANY
Install the front strut and spring assembly. Refer to: Front Strut and Spring Assembly .
