Front Strut and Spring Assembly: Disassembly

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Disassembly steps in this procedure may contain assembly details.

Remove the front strut and spring assembly. Refer to: Front Strut and Spring Assembly .
WARNING: Coil springs and strut assemblies are compressed under extreme load. Always use a spring compressor for disassembly. Follow procedure instructions carefully and make sure the spring compressor has the correct spring plates or adapters. Failure to follow these instructions may result in serious personal injury.

NOTE: When installing a suitable spring compressor, use care not to damage the spring coating.

NOTE: Take extra care not to damage the component.

NOTE: Do not use power tools to remove the nut.

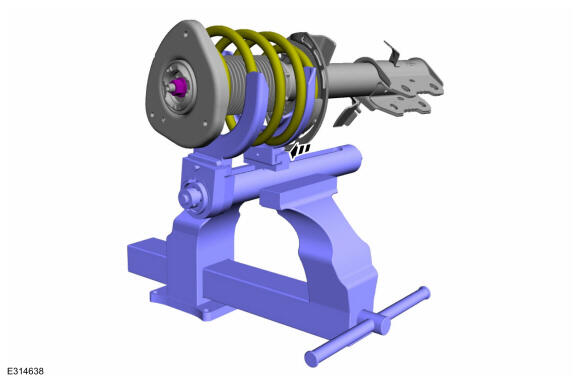

Compress the coil spring enough to relieve the tension on the strut assembly.Use the General Equipment: Spring CompressorUse the General Equipment: Vise

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the components before removal.

NOTE: Do not use an impact wrench on the strut rod nut.

NOTE: Use the hex-holding feature to prevent the strut rod from turning while removing the strut rod nut.

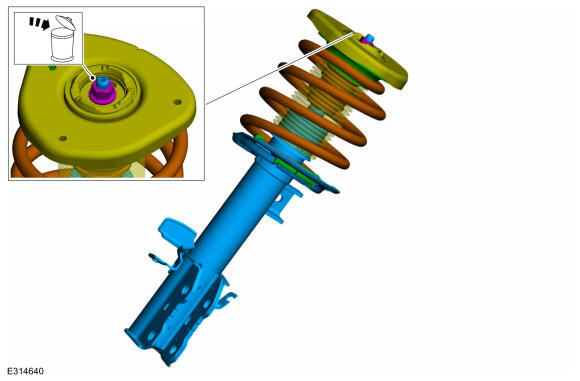

Remove and discard the front strut and spring assembly rod nut. Disassemble the front strut and spring assembly.

Courtesy of FORD MOTOR COMPANY
