System Diagram
NOTE:
The system diagrams include all component options. Some components may not be equipped on the vehicle.

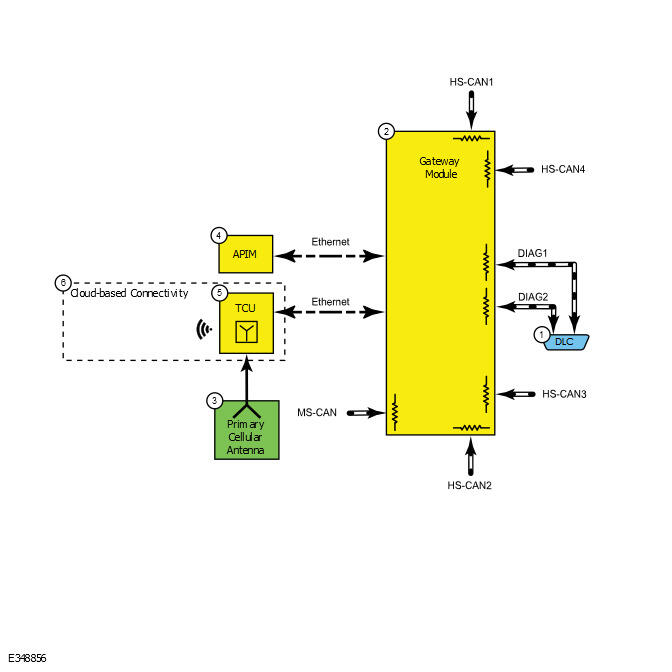

Ethernet Communication Network
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
DLC |
| 2 |
Gateway Module |
| 3 |
Primary Cellular Antenna |
| 4 |
APIM |
| 5 |
TCU |
| 6 |
Cloud-based Connectivity |
