Cruise Control Module (CCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper cover. Refer to: FRONT BUMPER COVER .

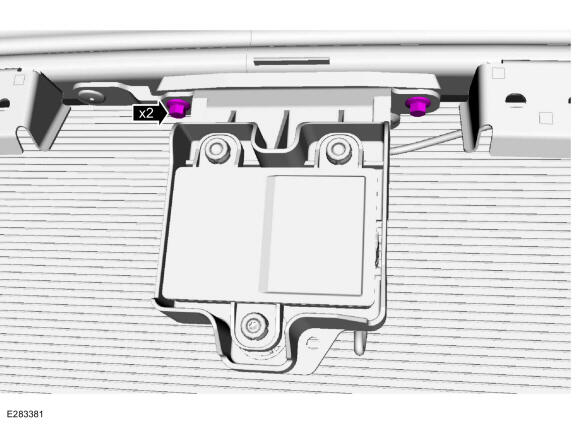

Remove the CCM bolts.
Torque

: 13. 5 Nm

Courtesy of FORD MOTOR COMPANY

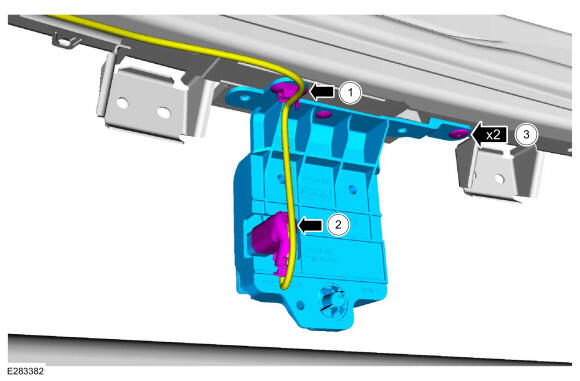

Remove the CCM and bracket.
1. Detach the wiring harness retainer from the bracket.
2. Disconnect the CCM electrical connector.
3. Detach the CCM bracket push pins and remove the CCM and bracket.

Courtesy of FORD MOTOR COMPANY
