Power Transfer Unit Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Name	Specification
WSS-M2C942-A

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped, remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

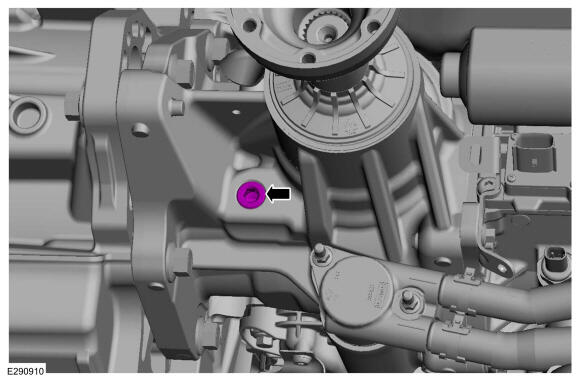

Remove the PTU fill plug.

Courtesy of FORD MOTOR COMPANY
Fill the PTU with clean fluid, level with the fill plug opening. Refer to: Specifications .
Material

: (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY
Install the PTU fill plug.
Torque

: 45 Nm

Courtesy of FORD MOTOR COMPANY
If equipped, install the underbody shield.

Courtesy of FORD MOTOR COMPANY
