Oil Temperature Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

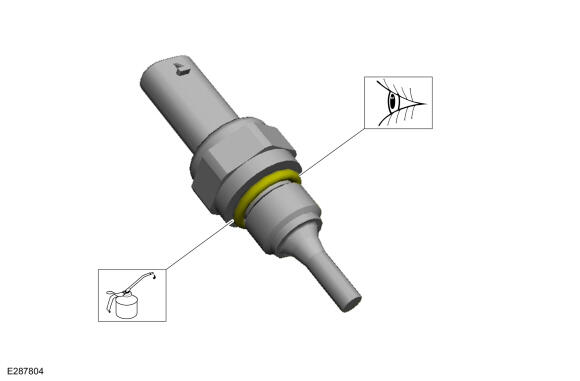

  1. Lubricate and inspect the O ring.

    Material

    : (WSS-M2C942-A)

    GFD814322Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
  3. Fill the PTU. Refer to: Power Transfer Unit Draining and Filling .
