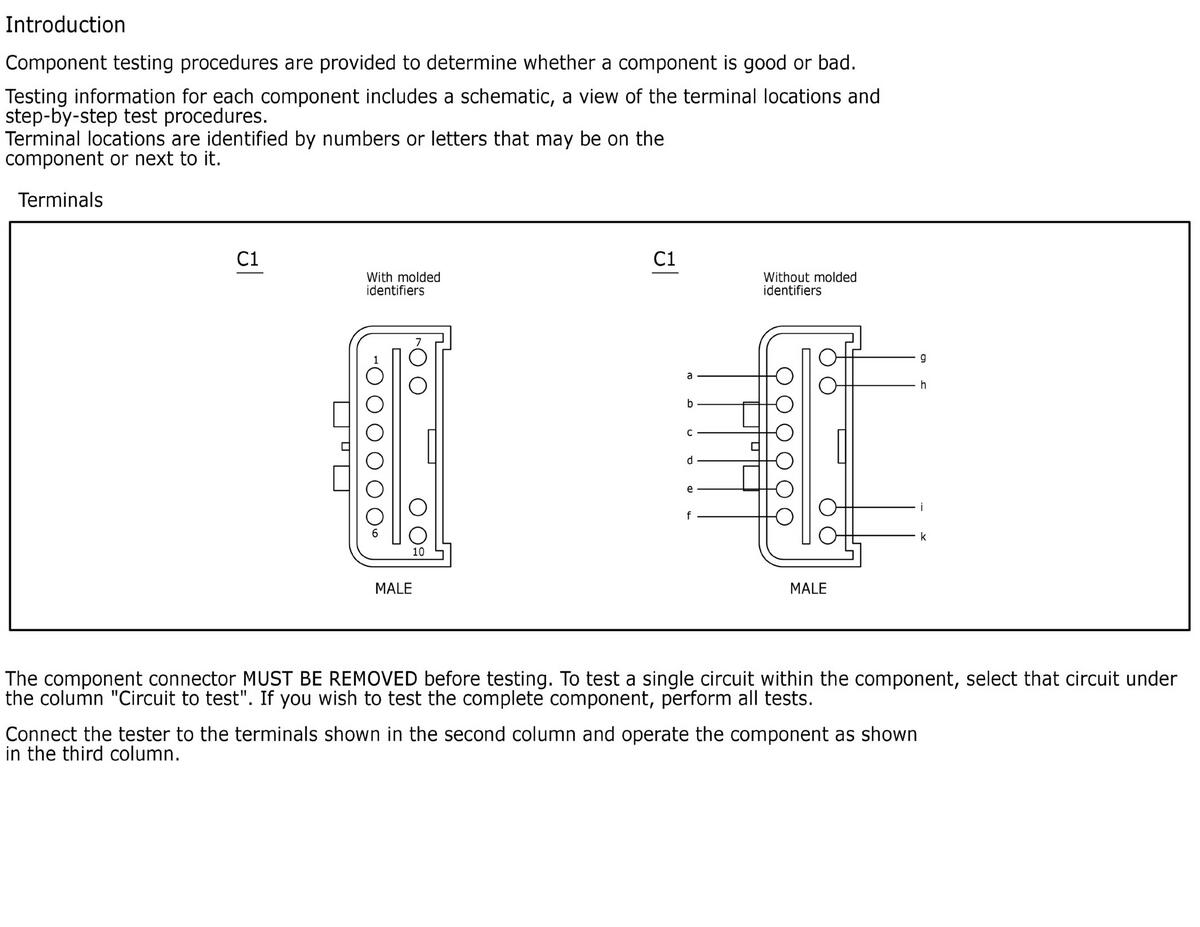

Component Testing
Courtesy of FORD MOTOR COMPANY

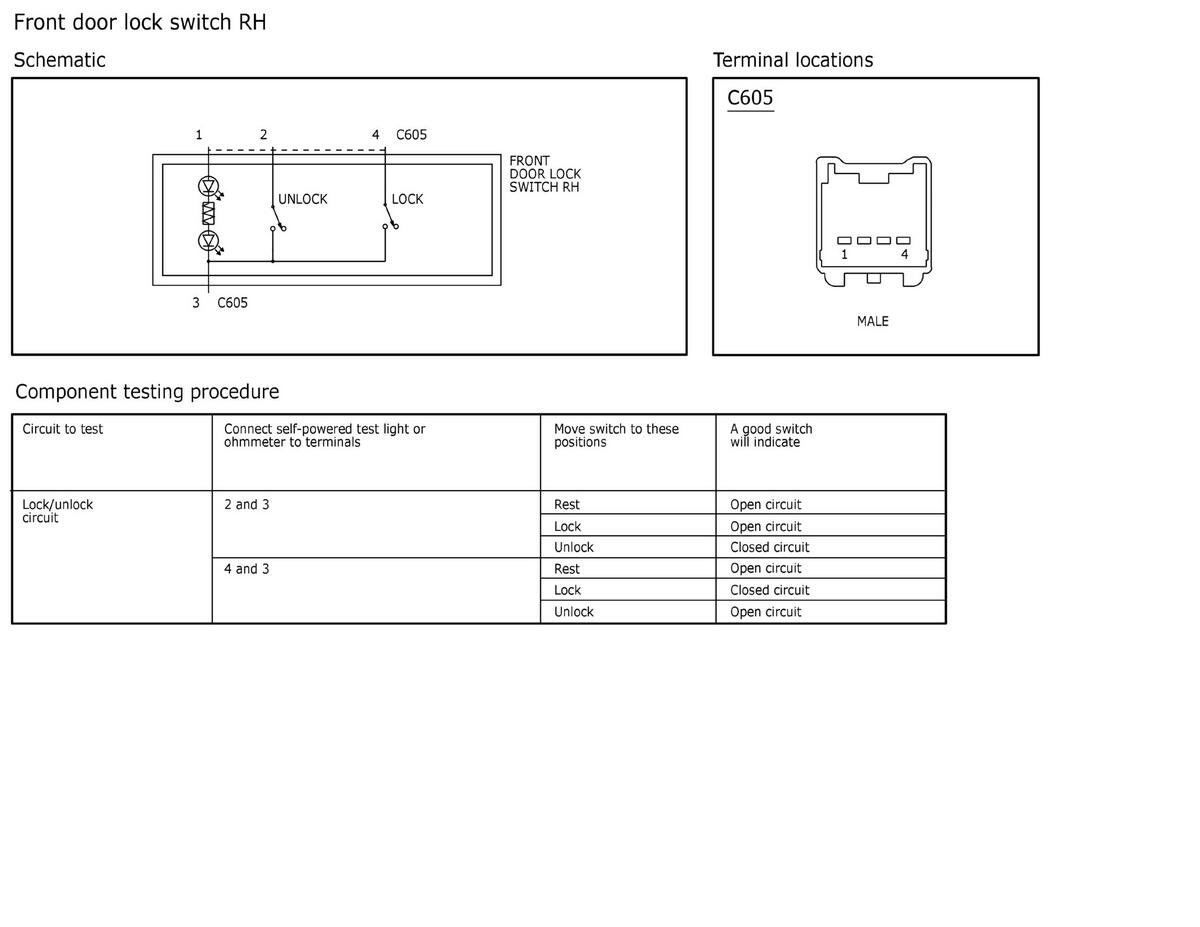

Fig 1: Front Door Lock Switch RH
Courtesy of FORD MOTOR COMPANY

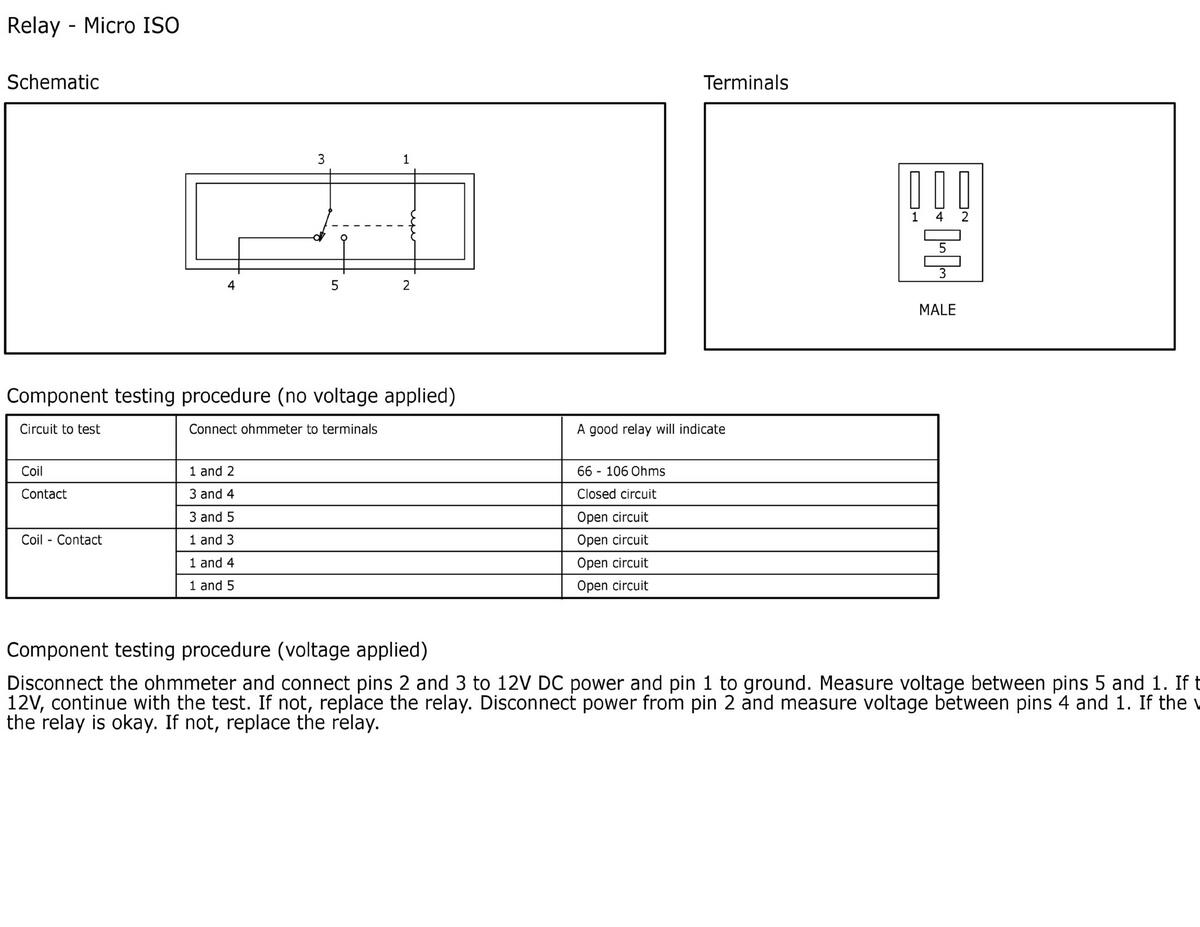

Fig 2: Relay - Micro ISO
Courtesy of FORD MOTOR COMPANY

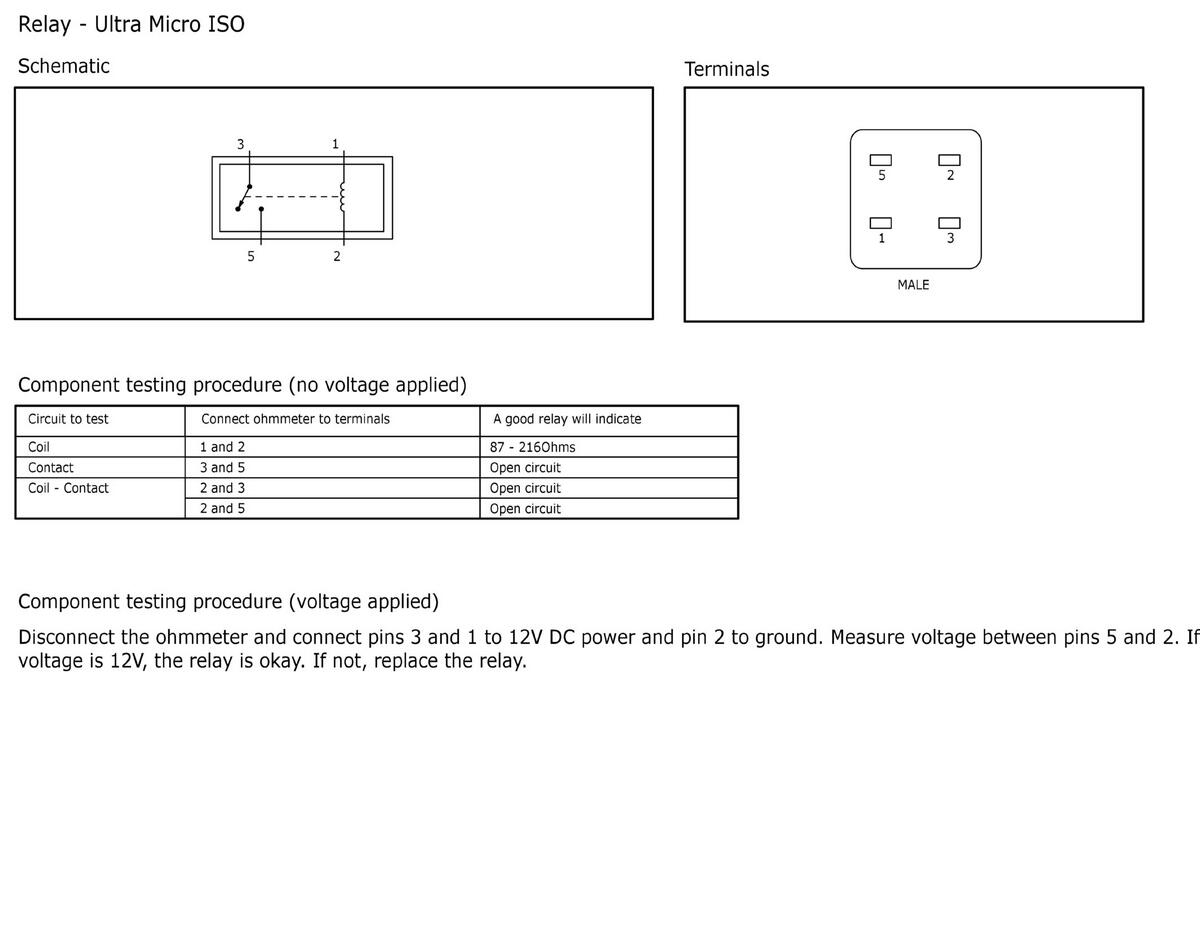

Fig 3: Relay - Ultra Micro ISO
Courtesy of FORD MOTOR COMPANY

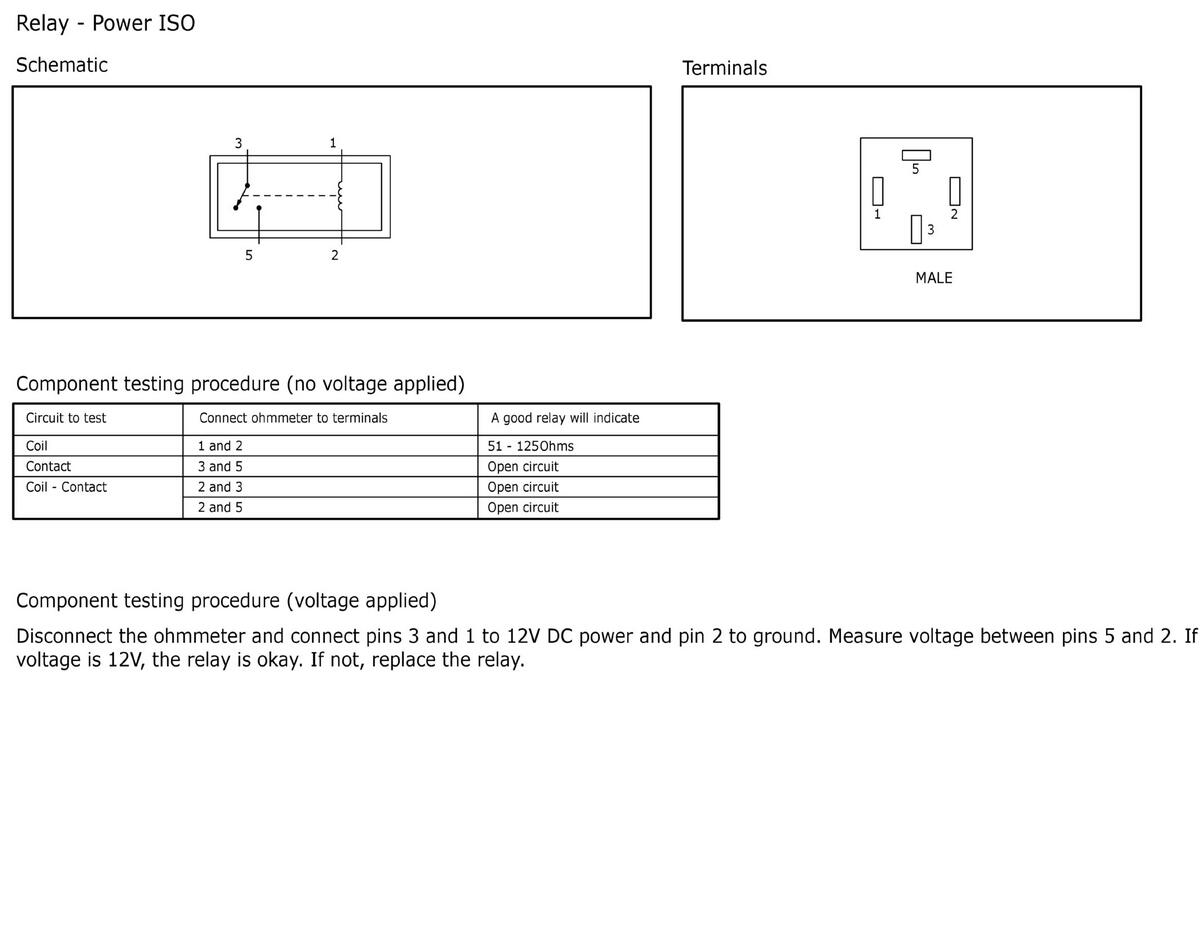

Fig 4: Relay - Power ISO
Courtesy of FORD MOTOR COMPANY

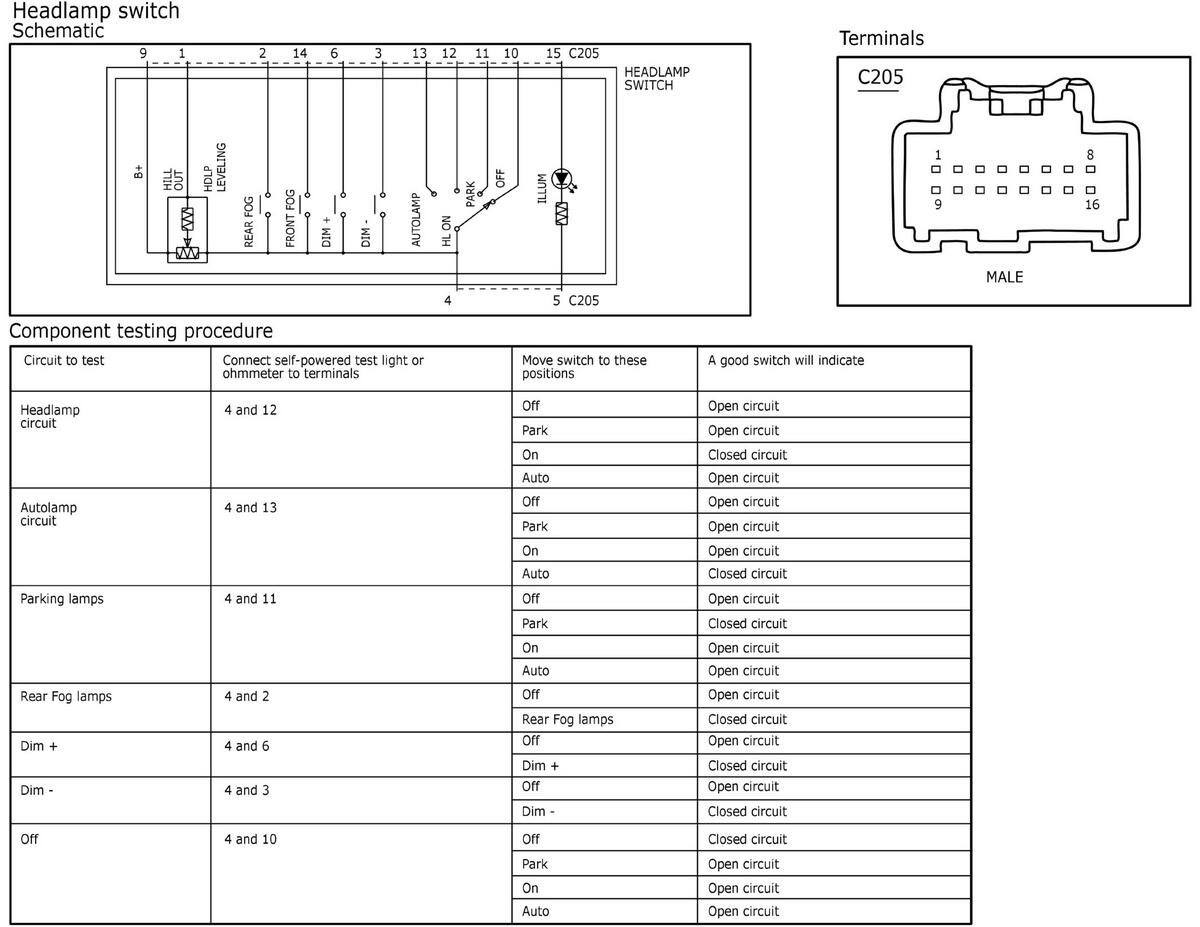

Fig 5: Headlamp Switch
Courtesy of FORD MOTOR COMPANY

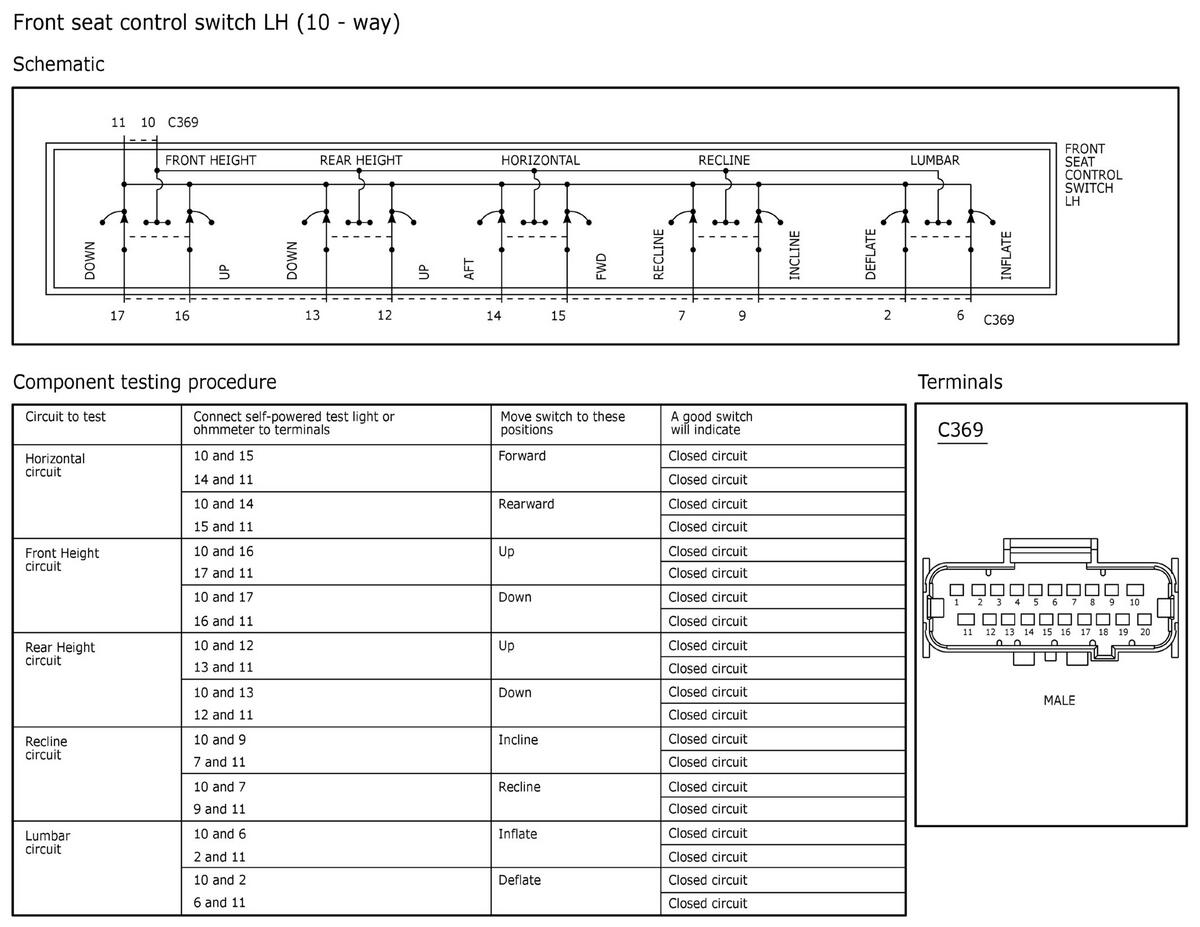

Fig 6: Front Seat Control Switch LH (10 - Way)
Courtesy of FORD MOTOR COMPANY

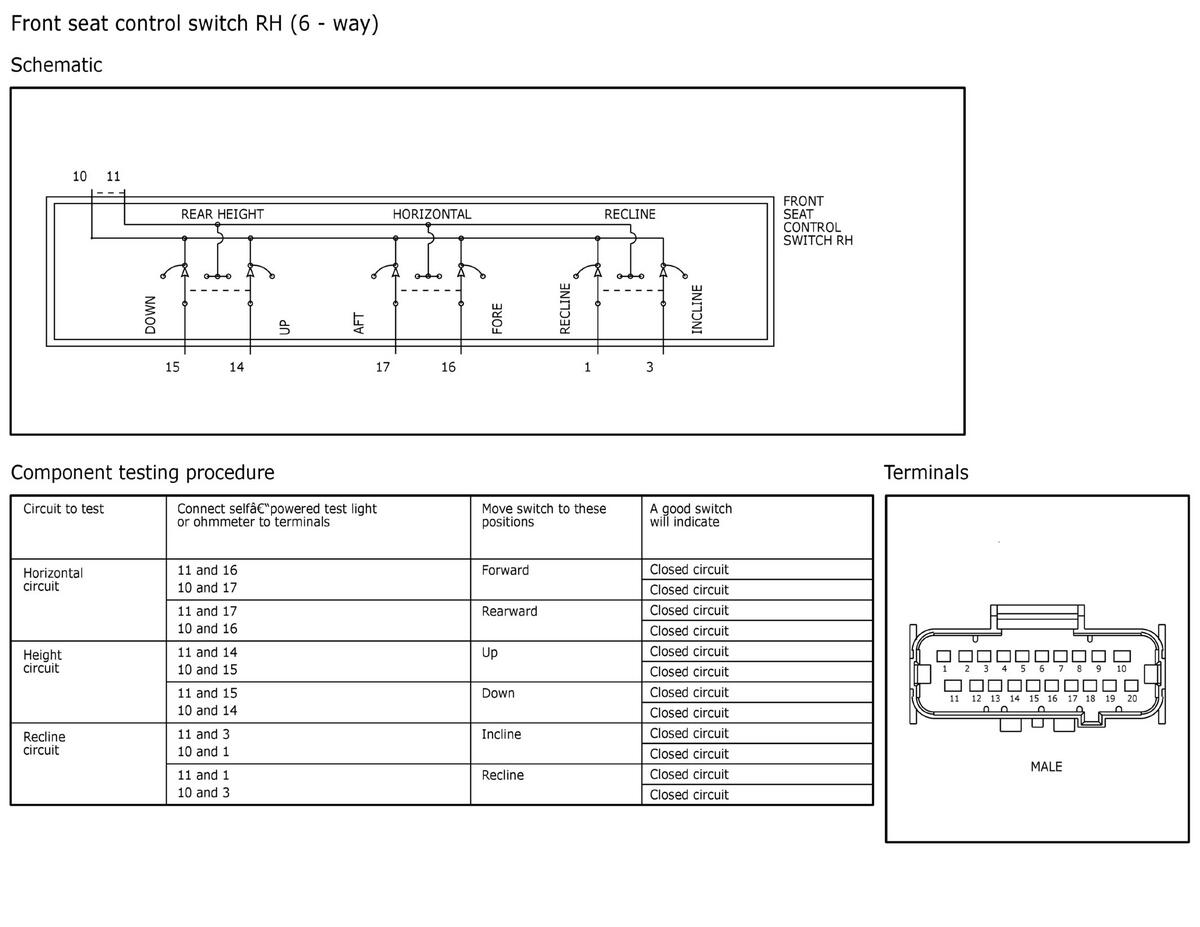

Fig 7: Front Seat Control Switch RH (6 - Way)
Courtesy of FORD MOTOR COMPANY

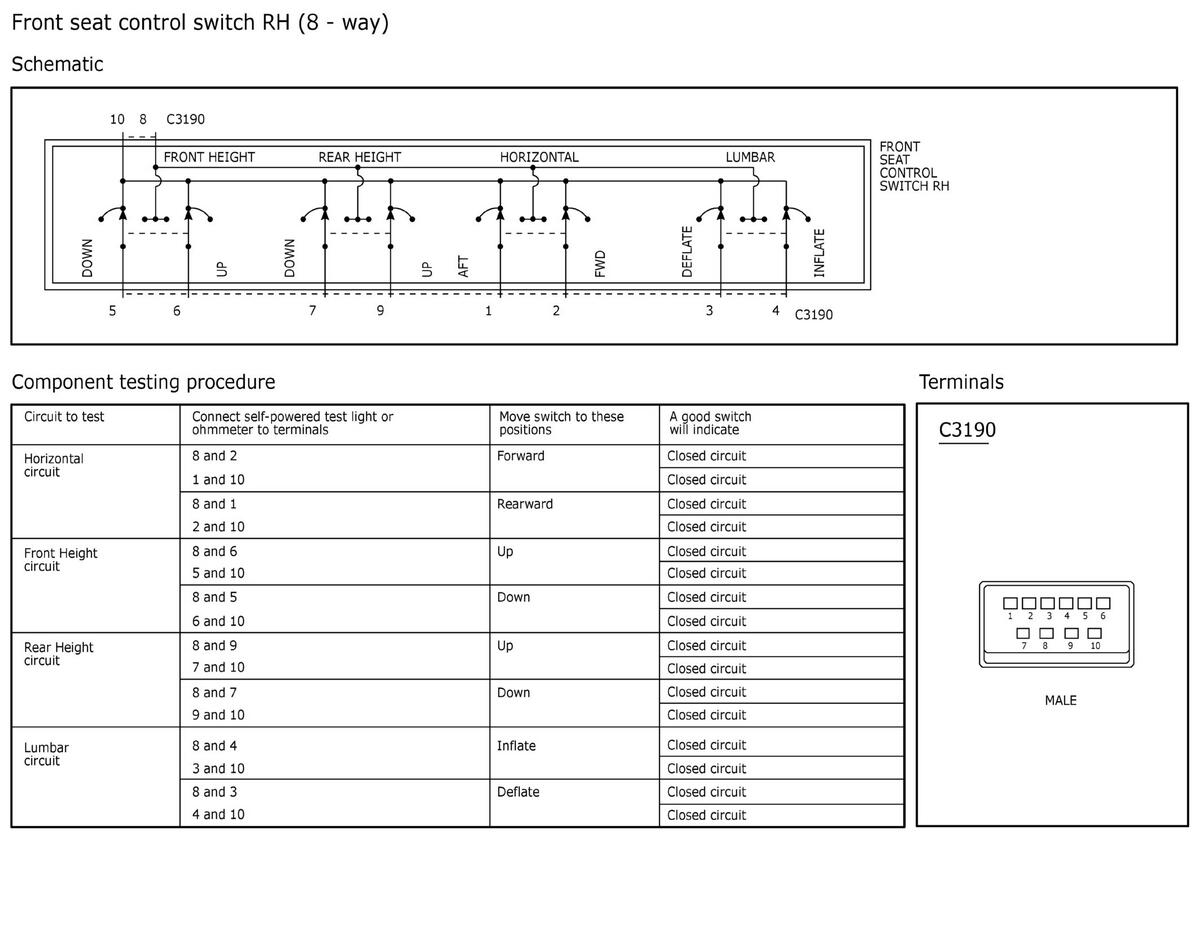

Fig 8: Front Seat Control Switch RH (8 - Way)
Courtesy of FORD MOTOR COMPANY

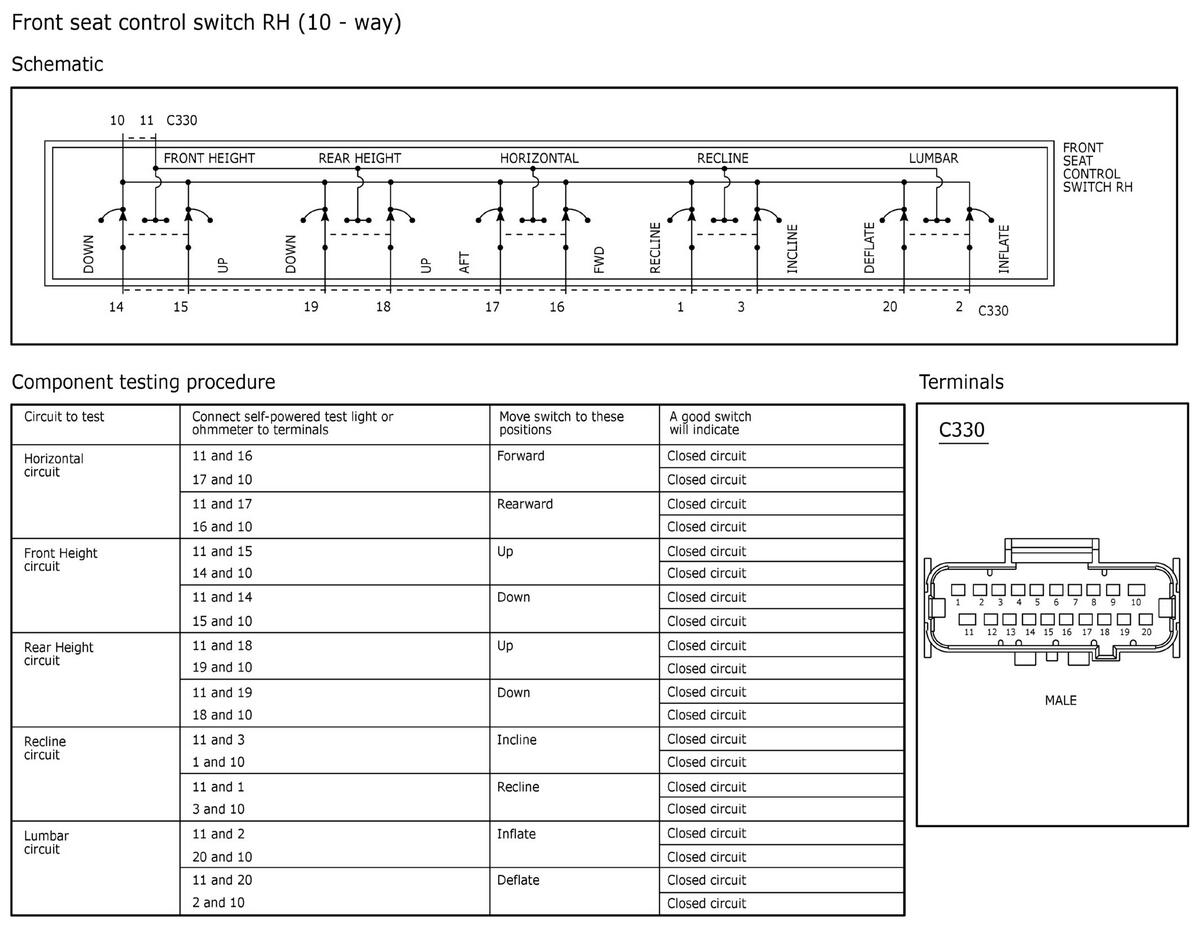

Fig 9: Front Seat Control Switch RH (10 - Way)
Courtesy of FORD MOTOR COMPANY

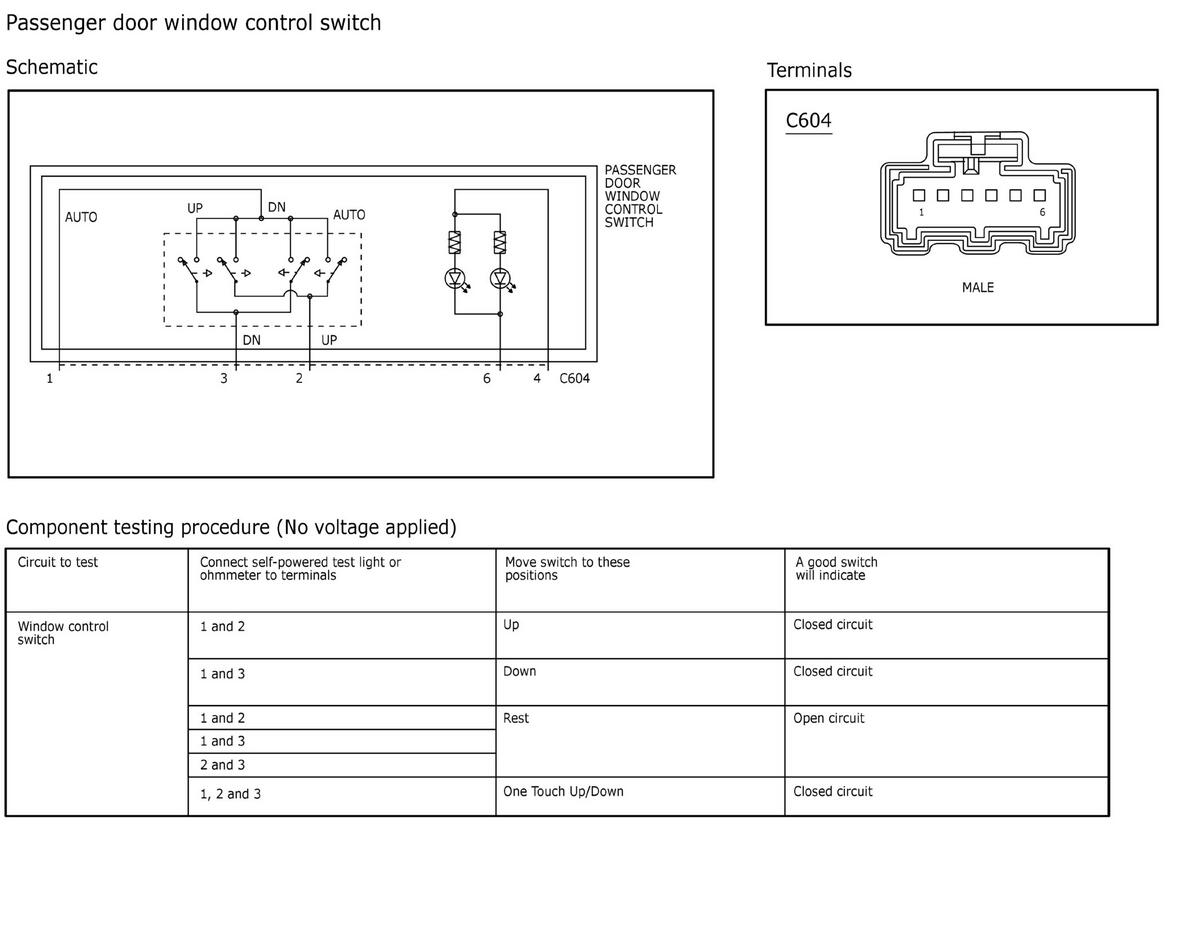

Fig 10: Passenger Door Window Control Switch
Courtesy of FORD MOTOR COMPANY

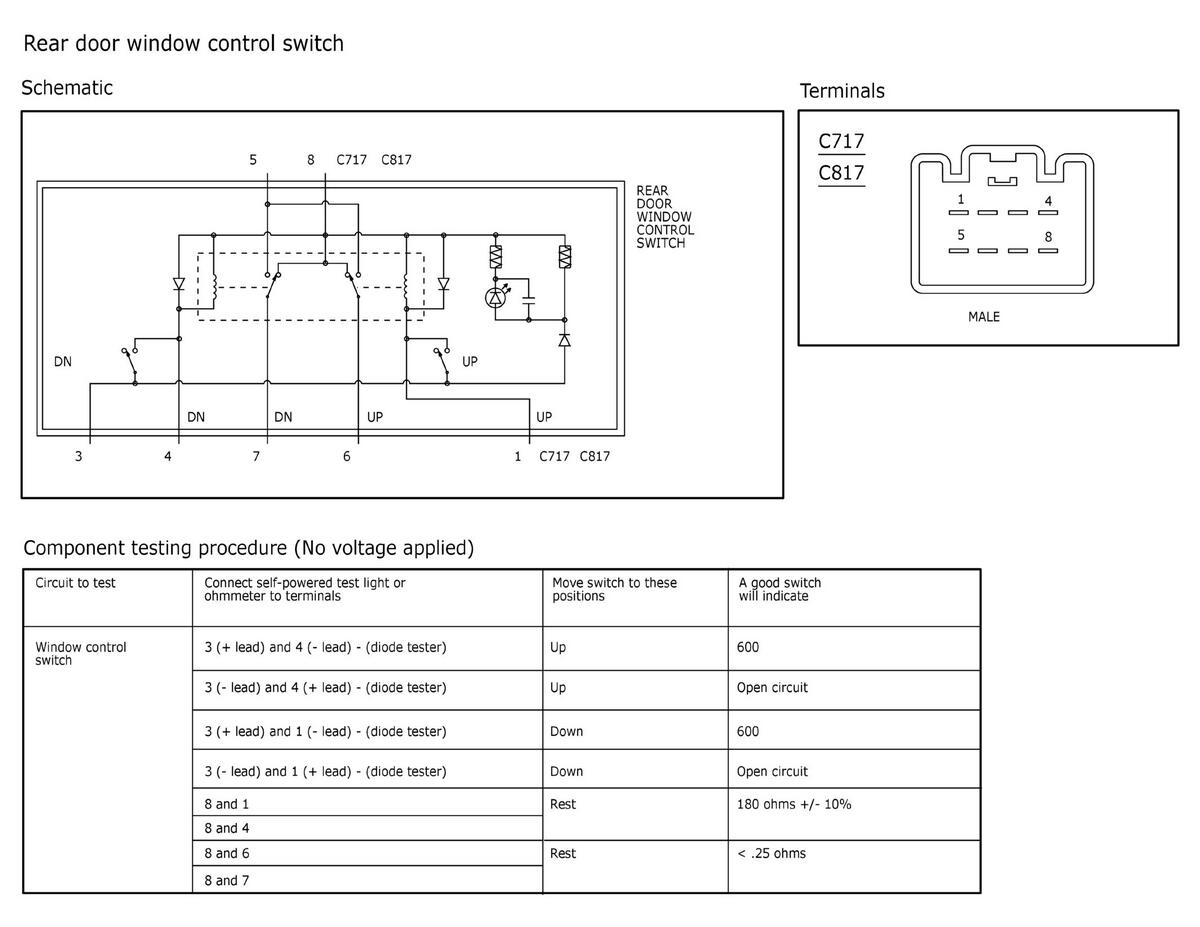

Fig 11: Rear Door Window Control Switch
Courtesy of FORD MOTOR COMPANY

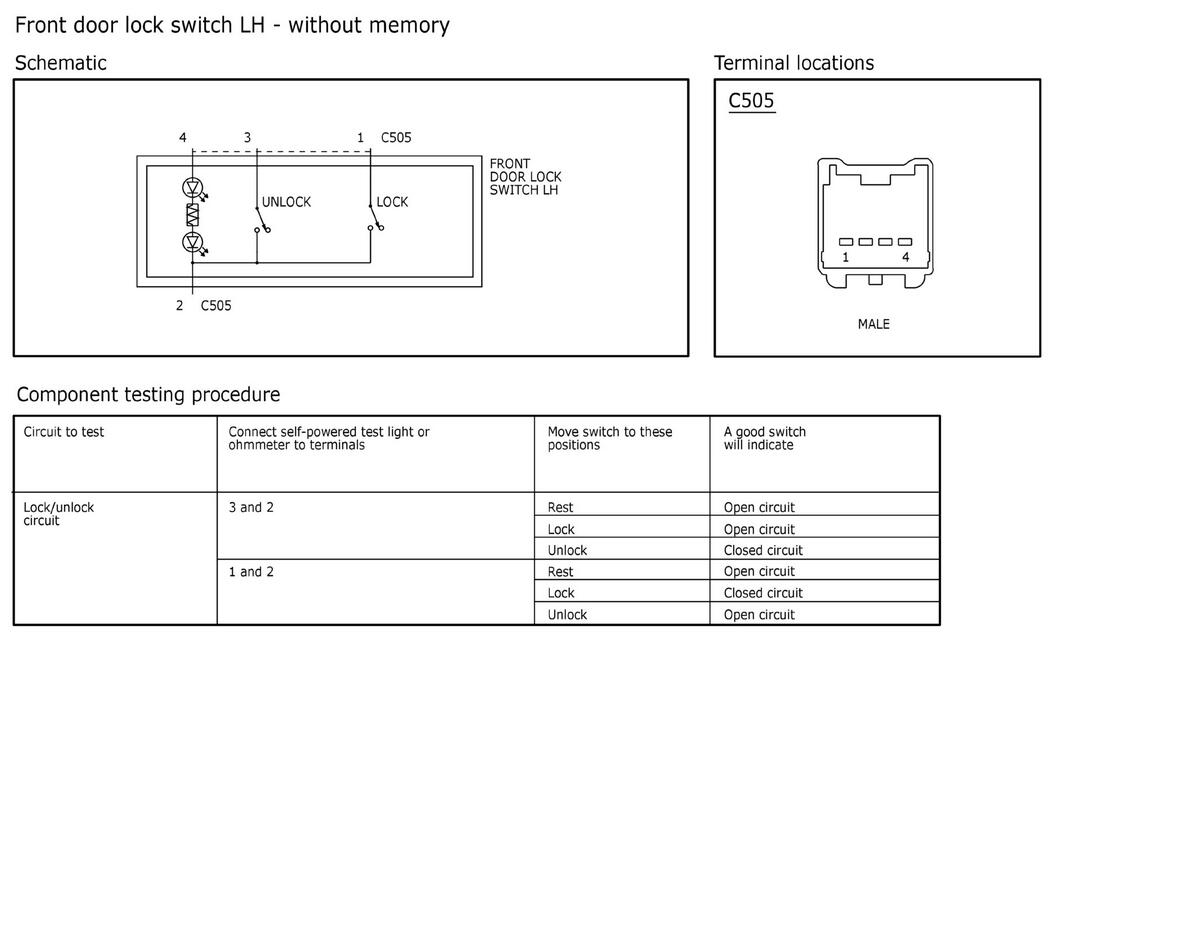

Fig 12: Front Door Lock Switch LH - Without Memory
Courtesy of FORD MOTOR COMPANY

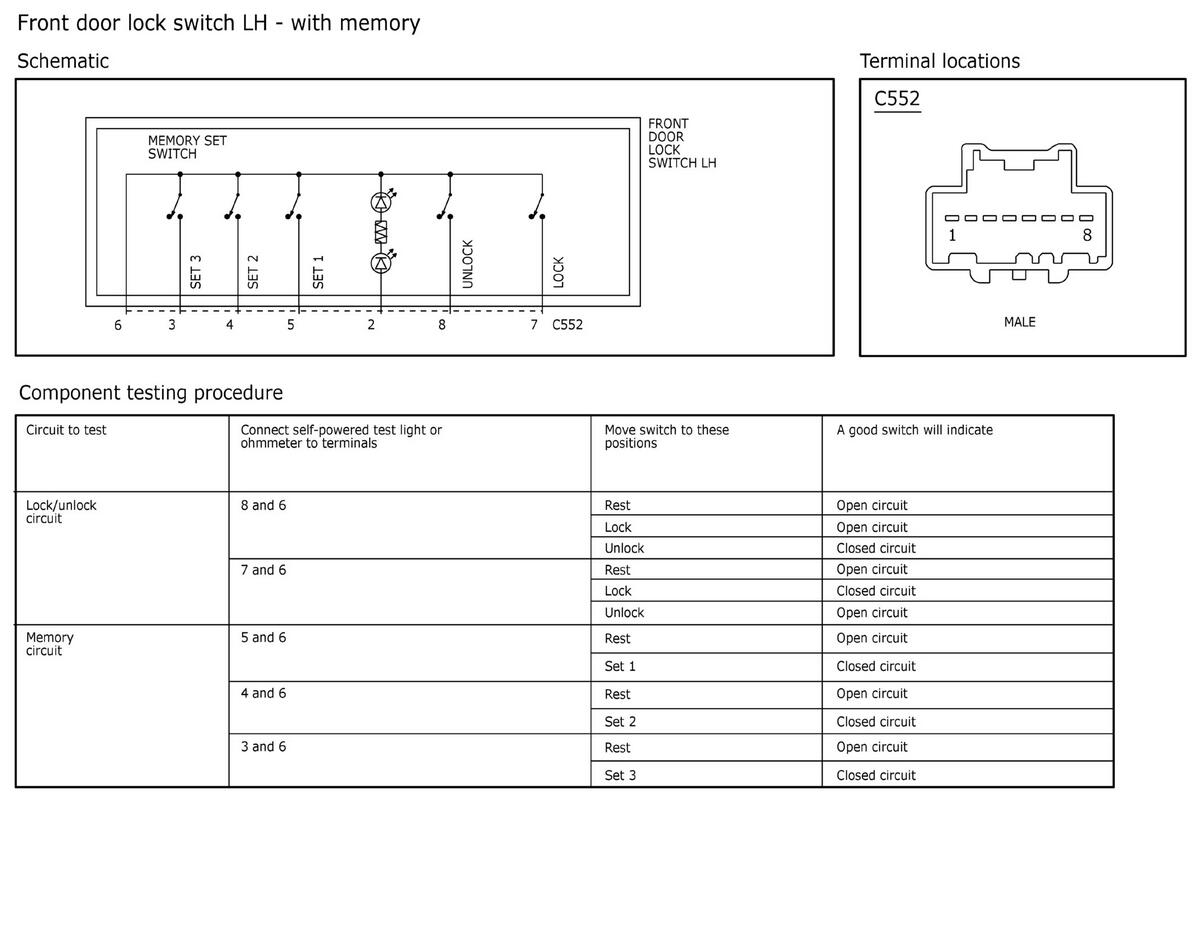

Fig 13: Front Door Lock Switch LH - With Memory
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
