Image Processing Module A (IPMA) Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.

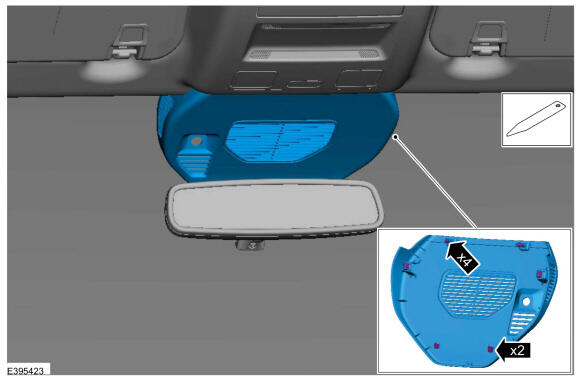

  1. Remove the rain sensor cover. Use the General Equipment: Interior Trim Remover
    GFD830955Courtesy of FORD MOTOR COMPANY

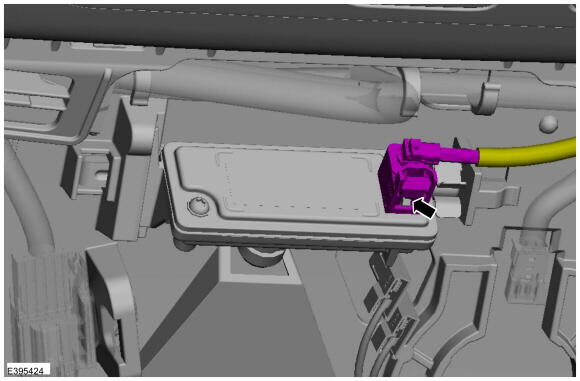

  2. Disconnect the IPMA camera electrical connector.
    GFD830956Courtesy of FORD MOTOR COMPANY

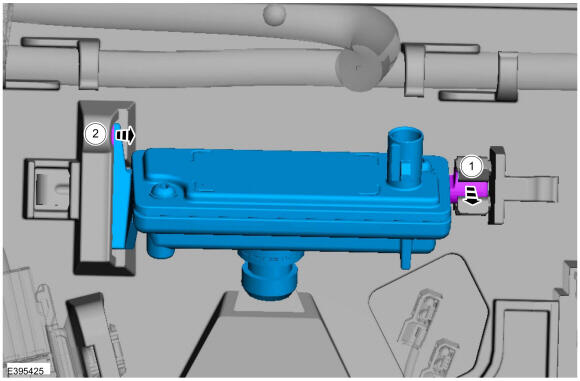

    1. Release the tab.
    2. Release the tab and remove the IPMA camera.
GFD830957Courtesy of FORD MOTOR COMPANY
