Escape ST-Line Select
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Pedestrian Alert System
>>
Description And Operation
>>
Pedestrian Alert System - System Operation and Component Description
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

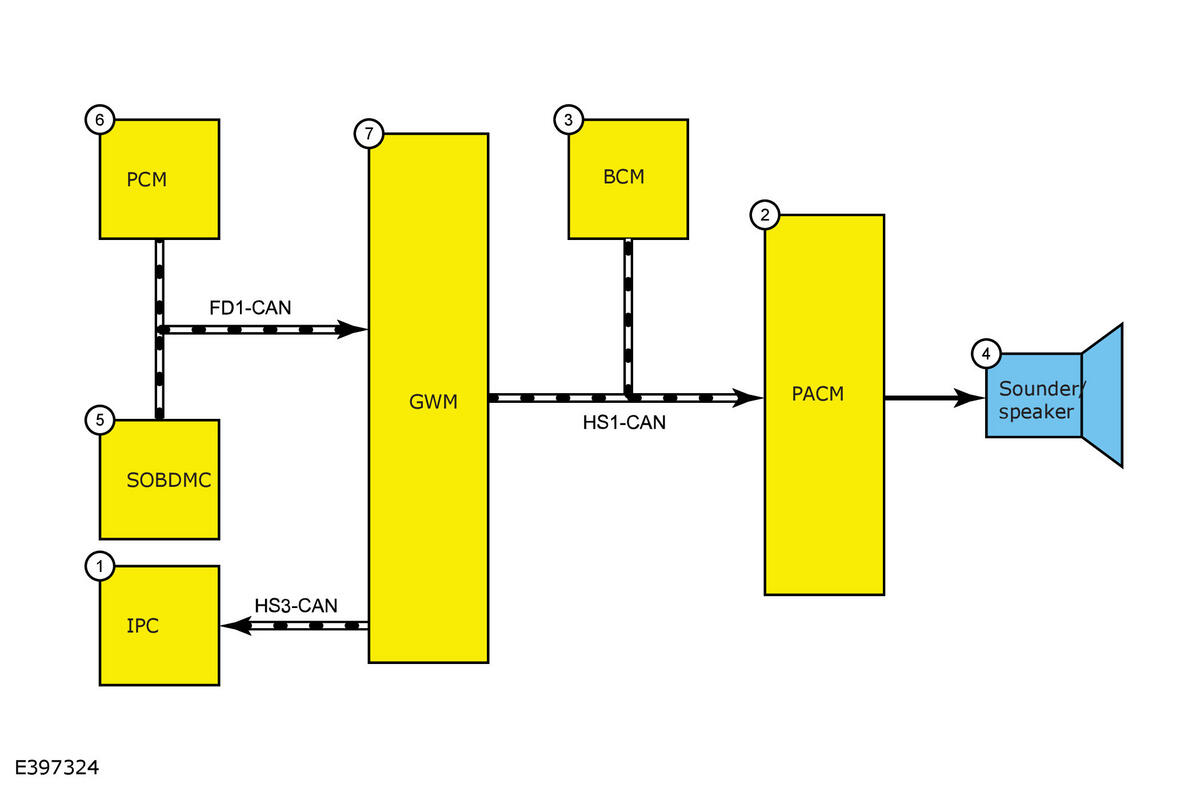

System Diagram
Courtesy of FORD MOTOR COMPANY
Item
Description
1
IPC
2
PACM
3
BCM
4
Sounder/ speaker
5
SOBDMC
6
PCM
7
GWM
Courtesy of FORD MOTOR COMPANY
