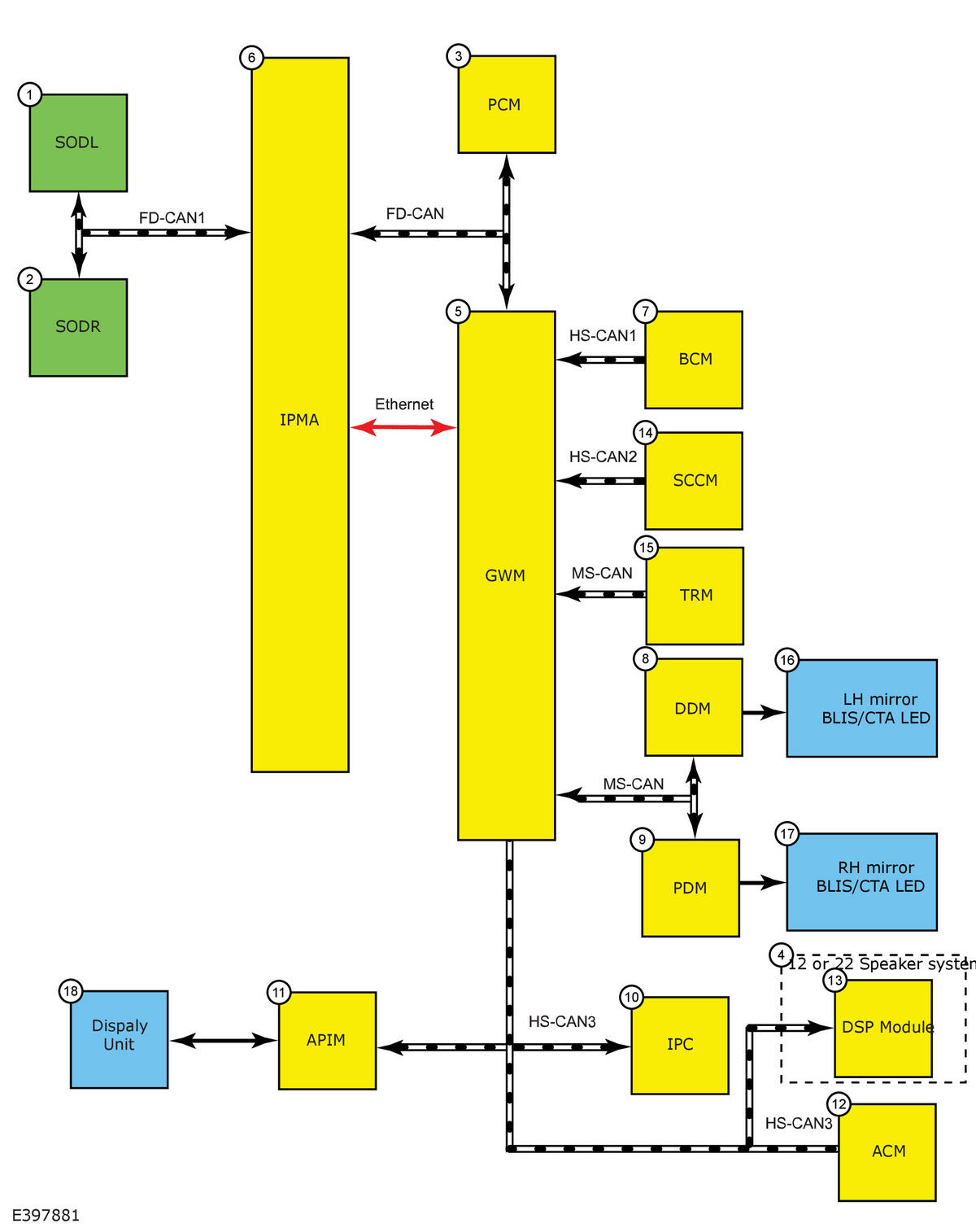

System Diagram - Vehicle With DDM/PDM: Notes

GFD830942Courtesy of FORD MOTOR COMPANY
Item Description
1 SODL
2 SODR
3 PCM
4 12 or 22 Speaker System
5 GWM
6 IPMA
7 BCM
8 DDM
9 PDM
10 IPC
11 APIM
12 ACM
13 DSP Module
14 SCCM
15 TRM
16 LH Mirror BLIS / CTALED
17 RH Mirror BLIS / CTALED
18 Display Unit
