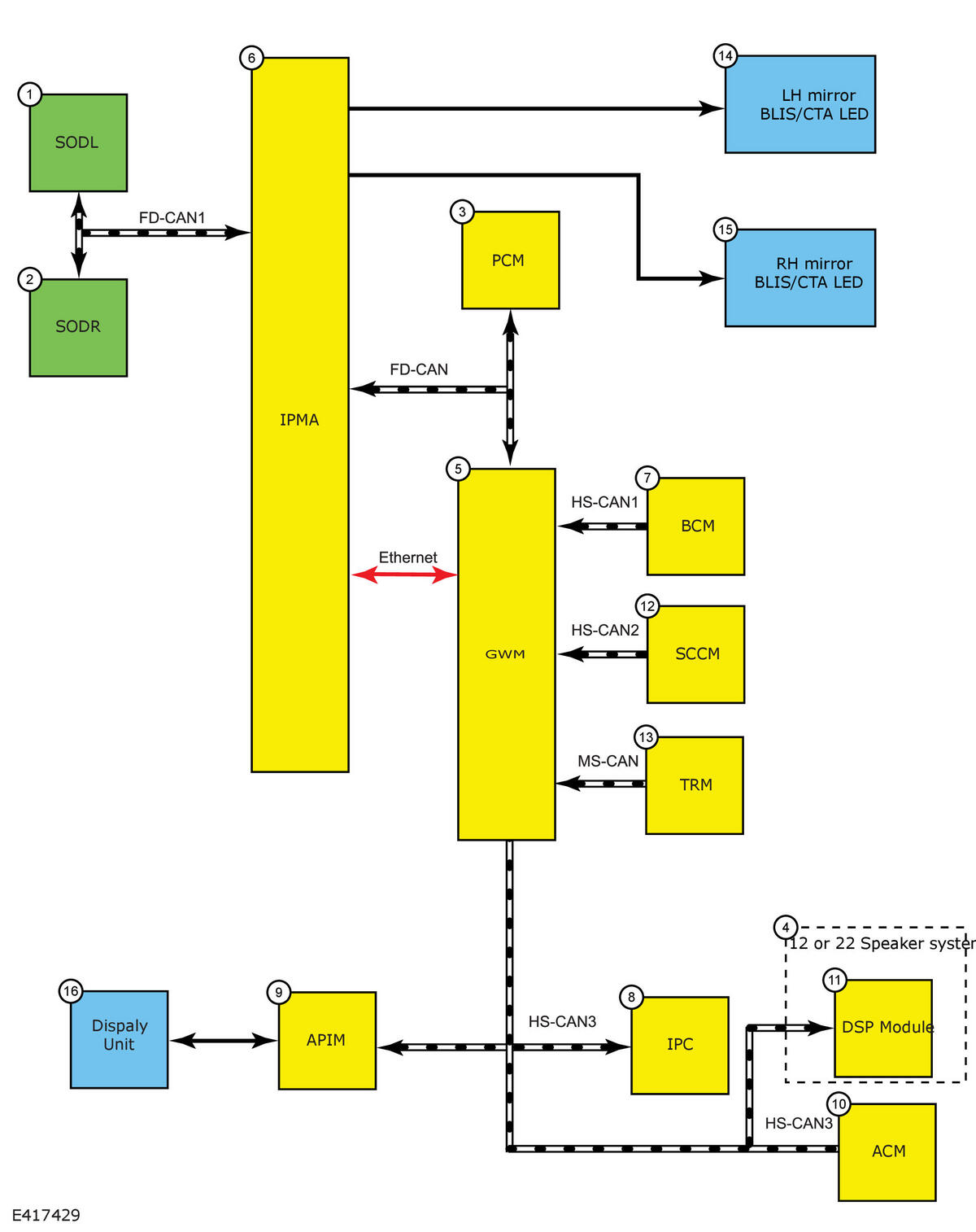

System Diagram - Vehicle Without DDM/PDM: Notes

Courtesy of FORD MOTOR COMPANY

Item	Description
1	SODL
2	SODR
3	PCM
4	12 or 22 Speaker System
5	GWM
6	IPMA
7	BCM
8	IPC
9	APIM
10	ACM
11	DSP Module
12	SCCM
13	TRM
14	LH Mirror BLIS / CTALED
15	RH Mirror BLIS / CTALED
16	Display Unit
