Engine Sensor

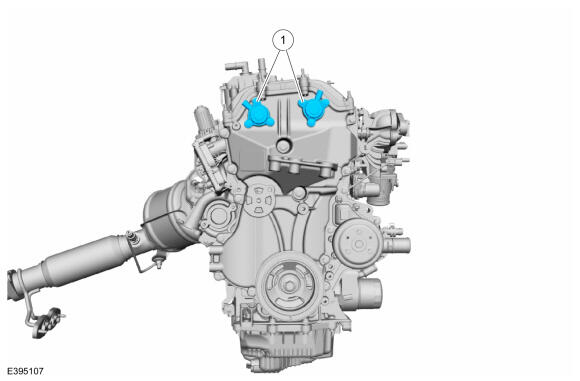

GFD828851Courtesy of FORD MOTOR COMPANY
Item Description
1 VCT oil control solenoids

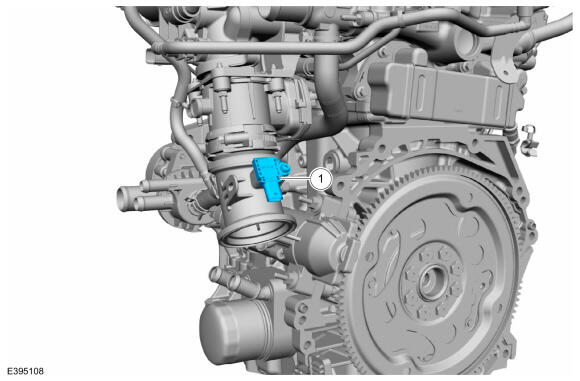

GFD828852Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) sensor
