Fuel System Pressure Release

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Activation

1. Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
2. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

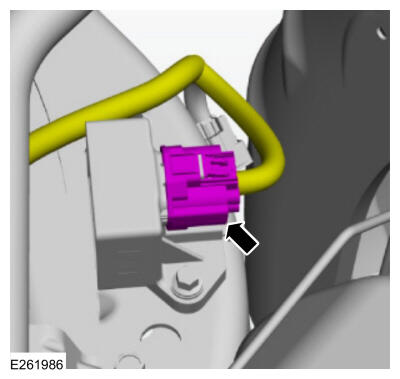

3. NOTE: The FPCM is located on the LH rear frame rail above the spare tire.

   Disconnect the FPCM electrical connector.

   Courtesy of FORD MOTOR COMPANY

4. Start the engine and allow it to idle until it stalls.
5. After the engine stalls, crank the engine for approximately 5 seconds to make sure the fuel rail pressure has been released.
6. Turn the ignition switch to the OFF position.
7. When the fuel system service is complete, reconnect the Fuel Pump Control Module electrical connector.

   Courtesy of FORD MOTOR COMPANY

8. Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.
9. When service on the fuel system is completed, start the engine and check for leaks.
