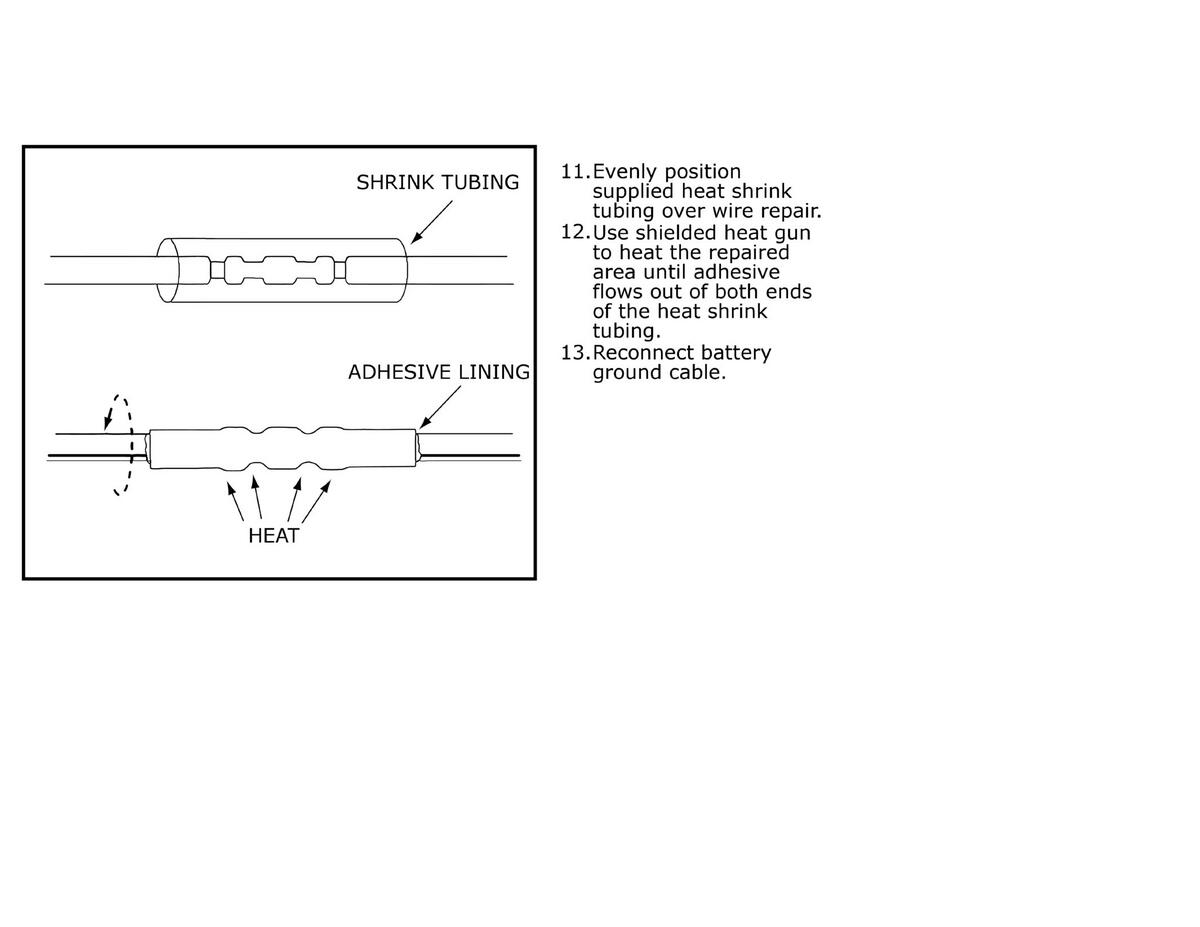

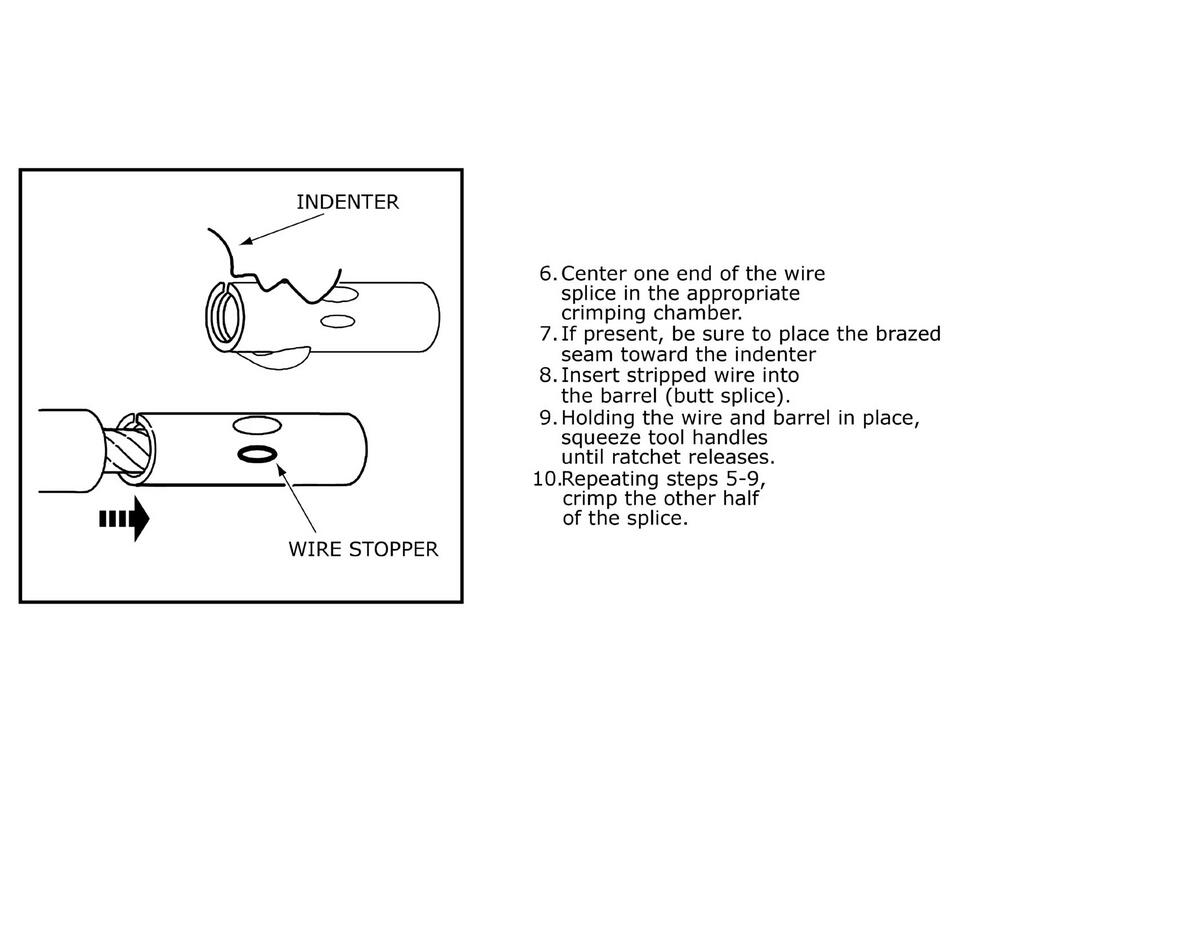

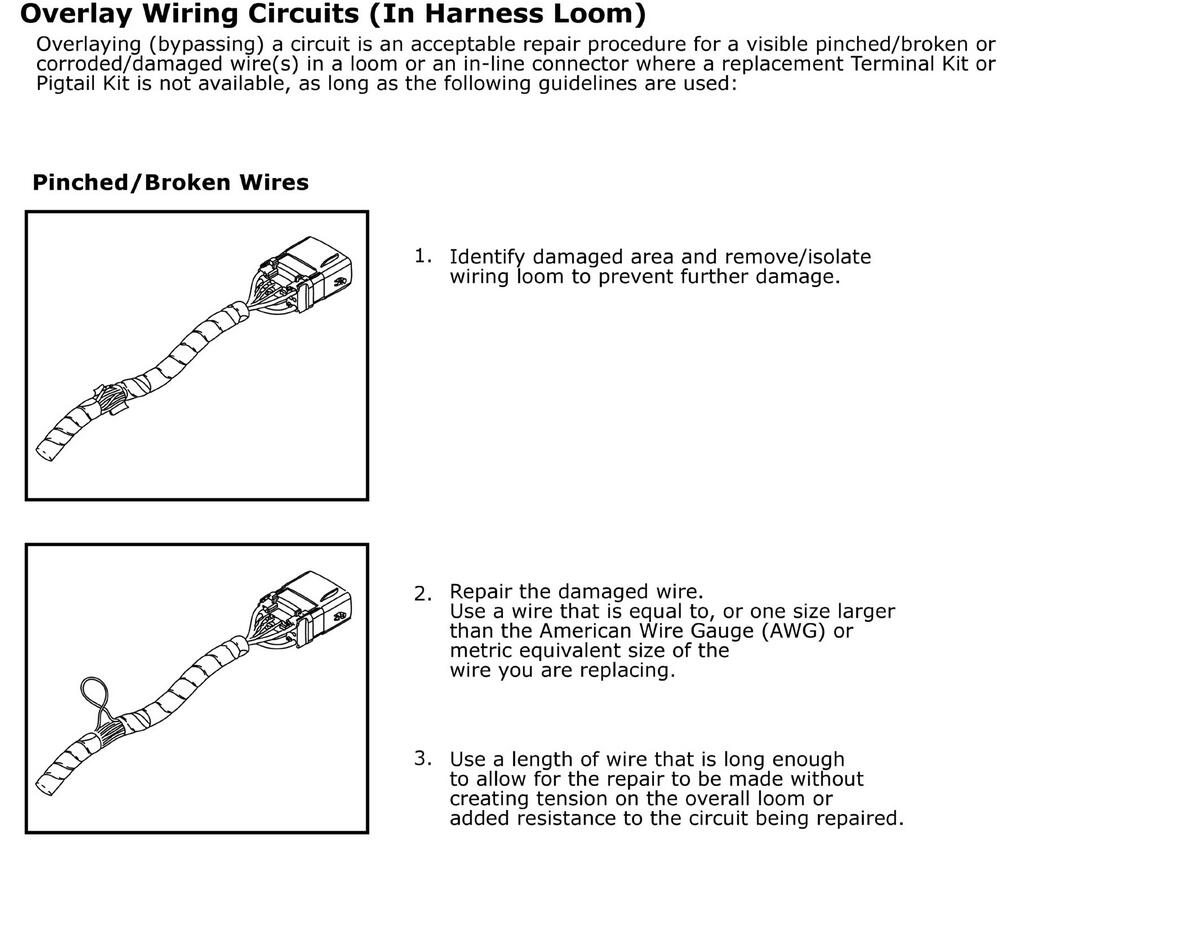

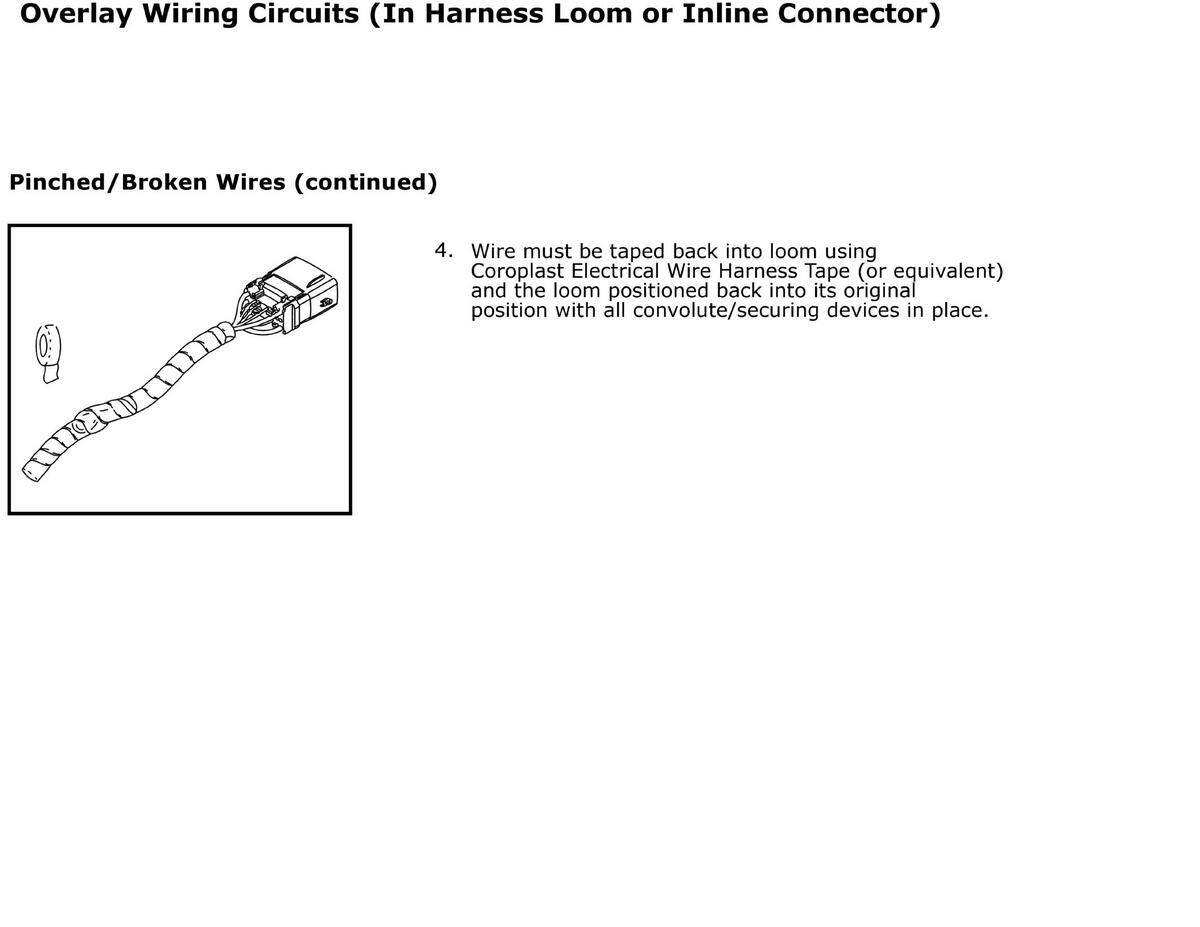

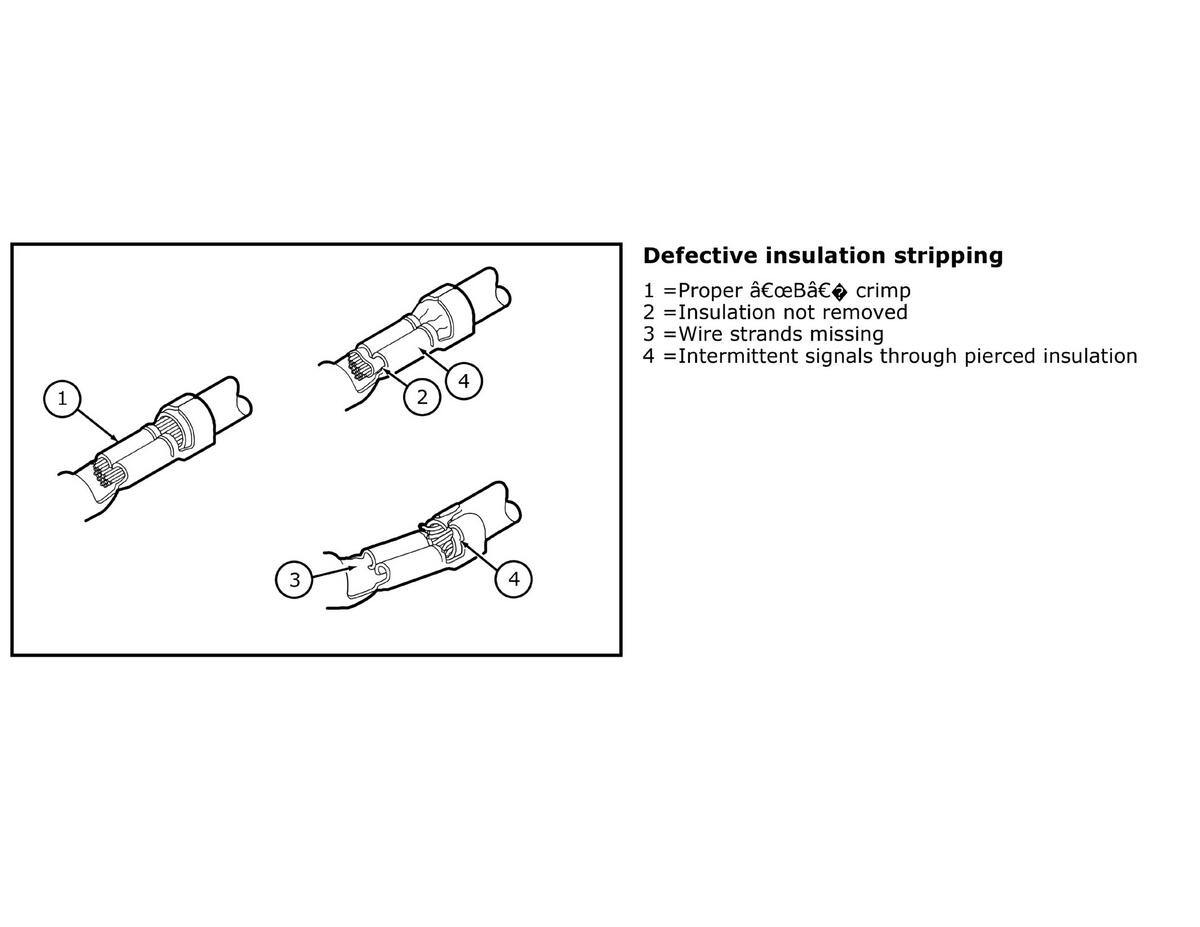

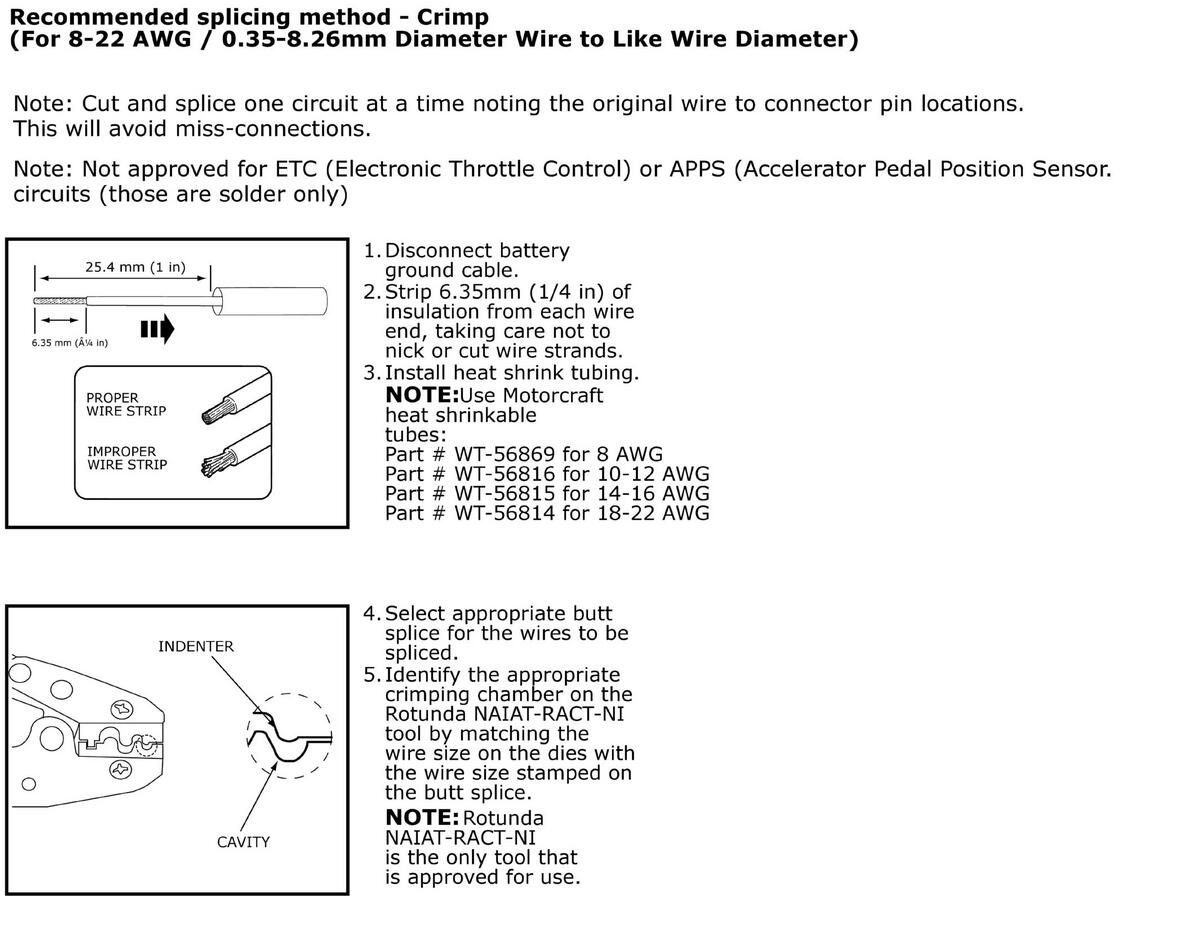

Connector Repair Procedures

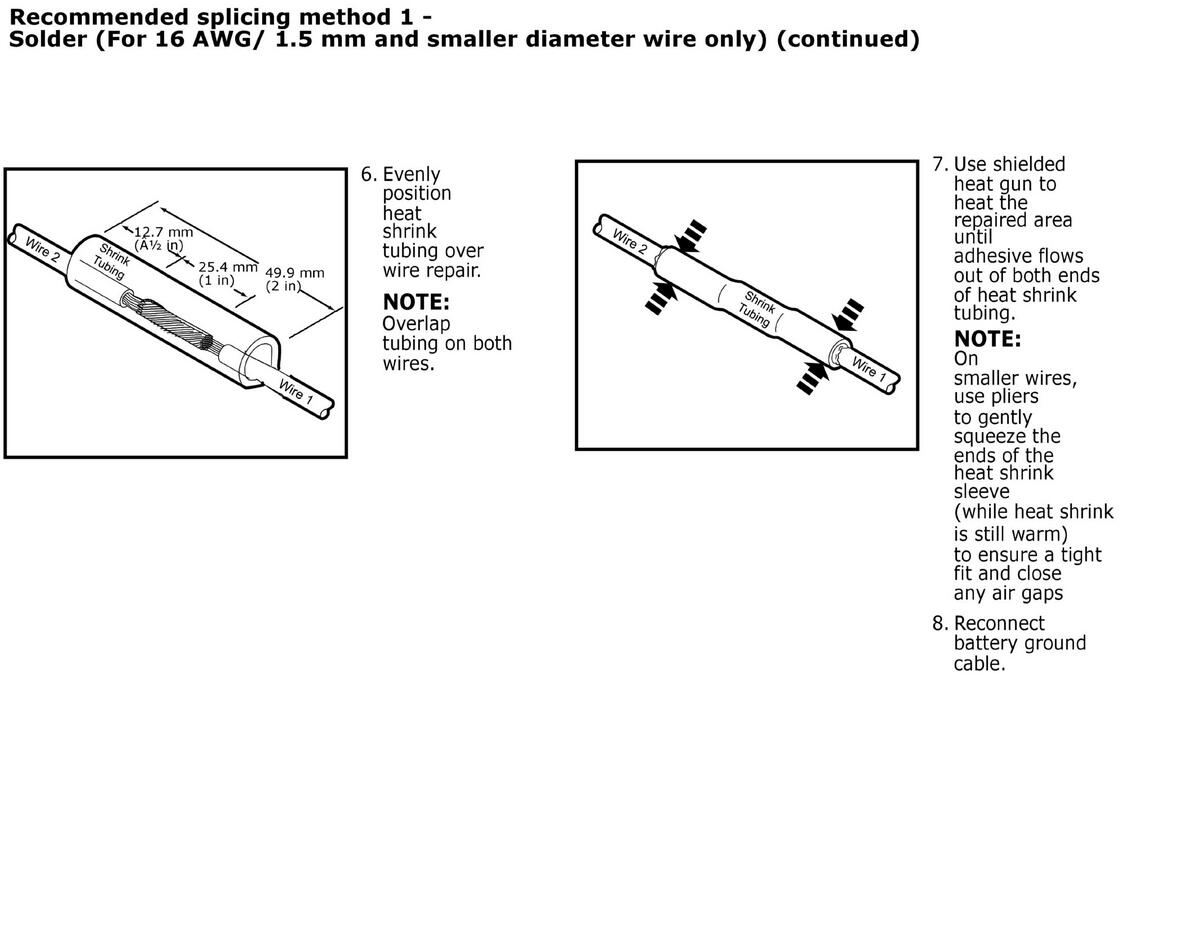

GFDWR247179Courtesy of FORD MOTOR COMPANY

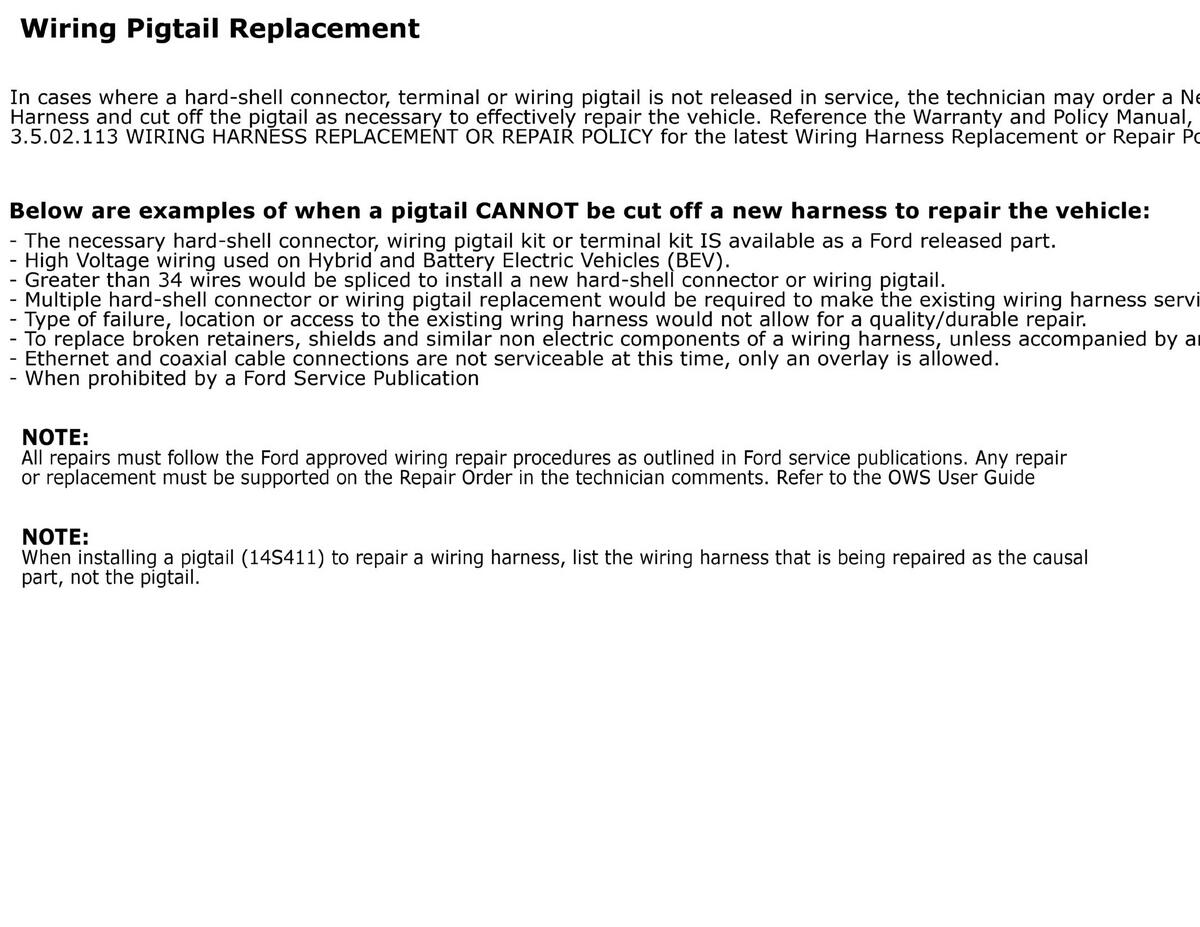

GFDWR247186Courtesy of FORD MOTOR COMPANY

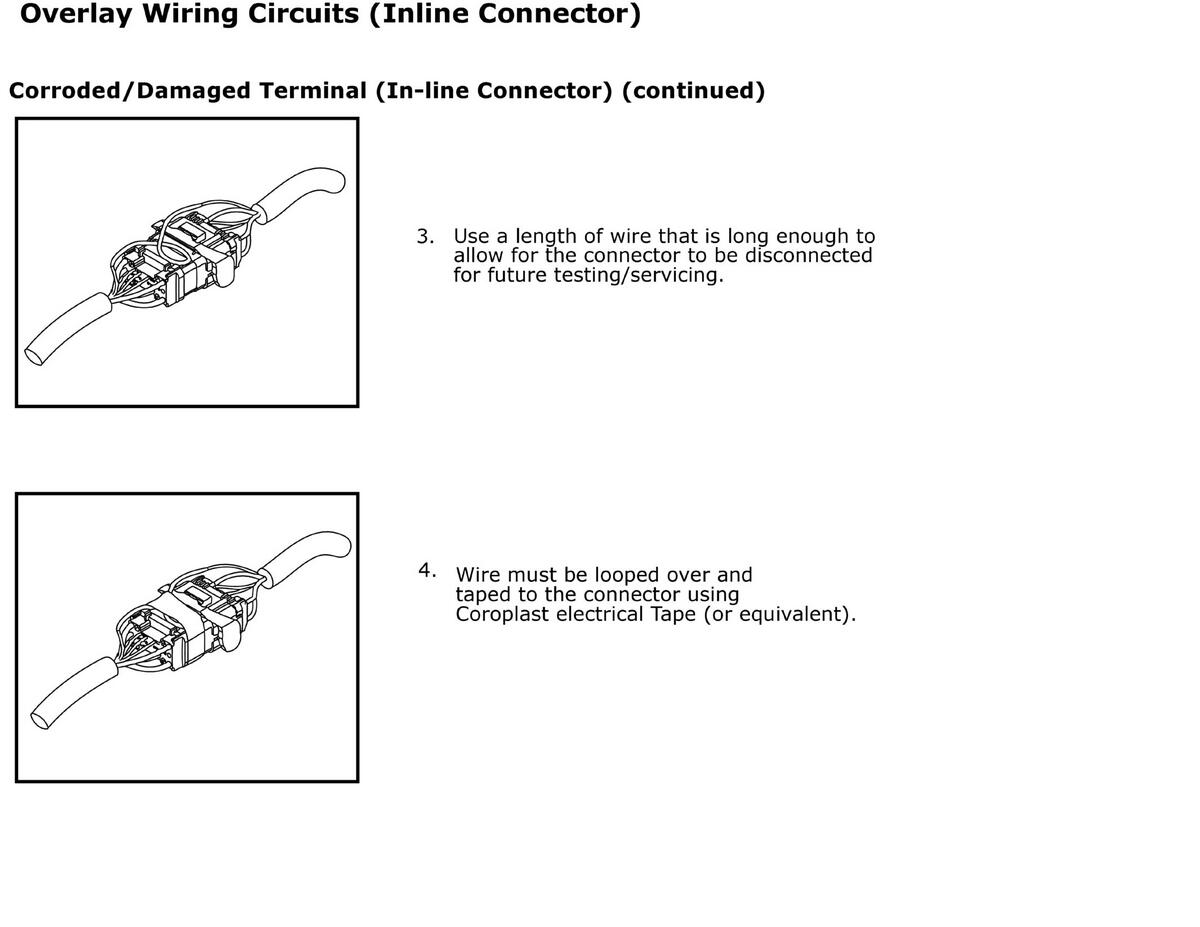

GFDWR247187Courtesy of FORD MOTOR COMPANY

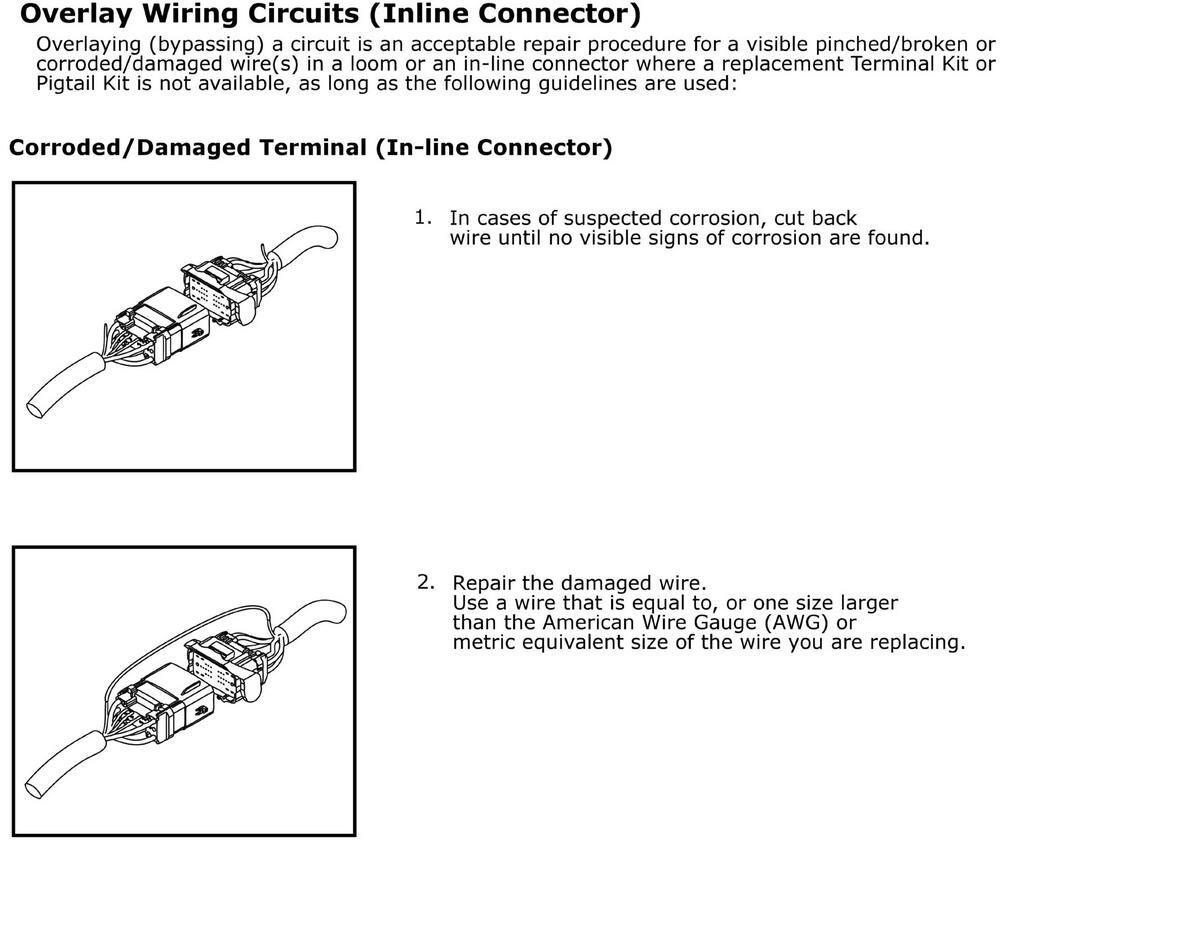

GFDWR247188Courtesy of FORD MOTOR COMPANY

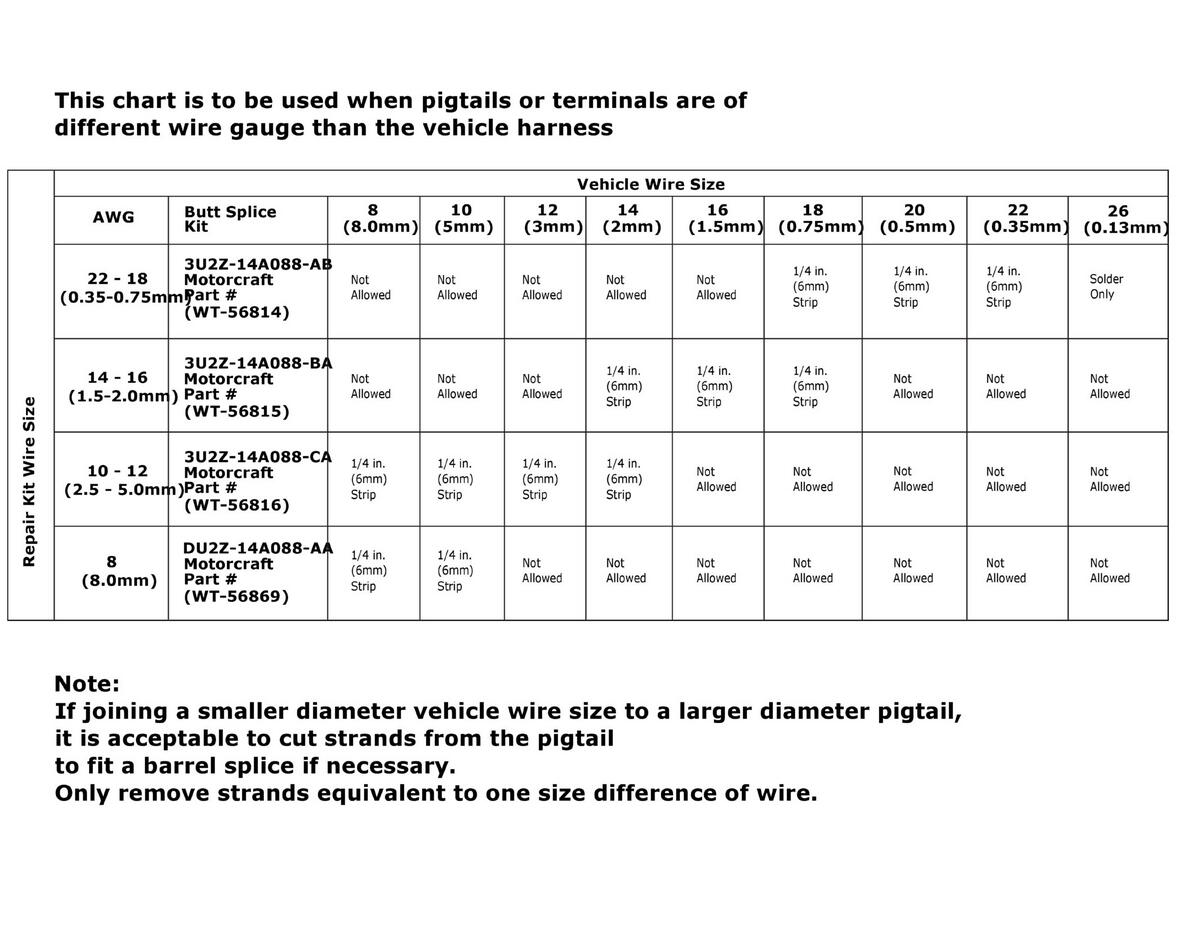

GFDWR247189Courtesy of FORD MOTOR COMPANY

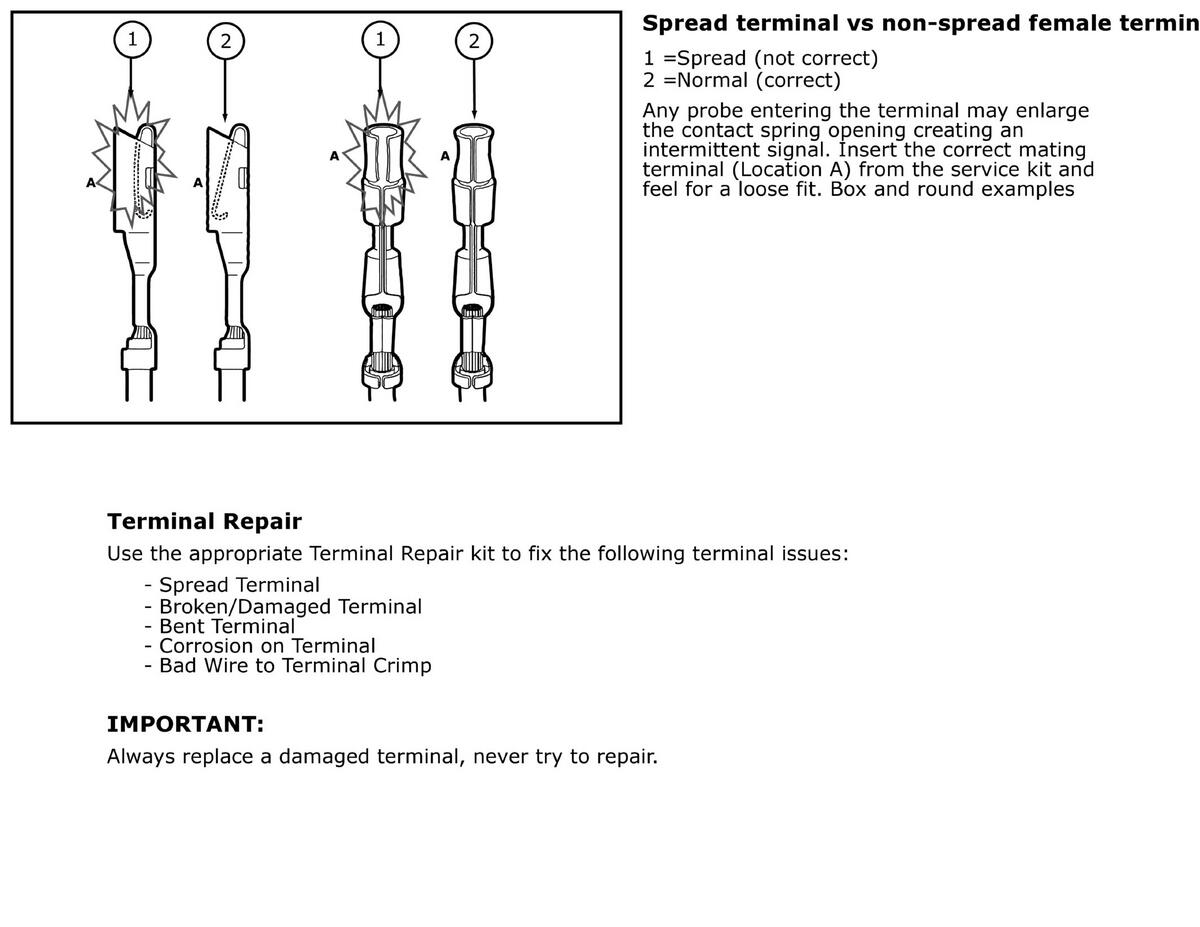

GFDWR247190Courtesy of FORD MOTOR COMPANY

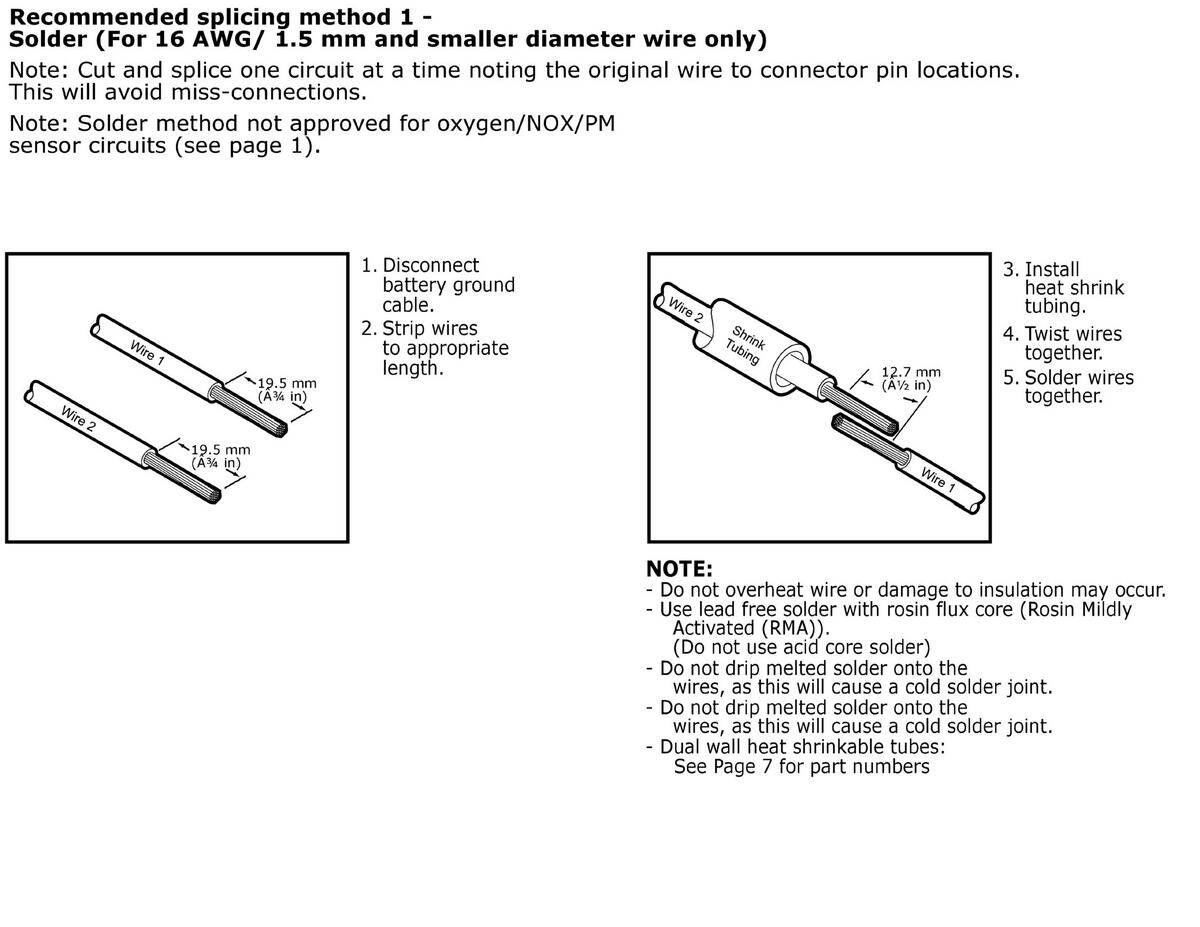

GFDWR247191Courtesy of FORD MOTOR COMPANY

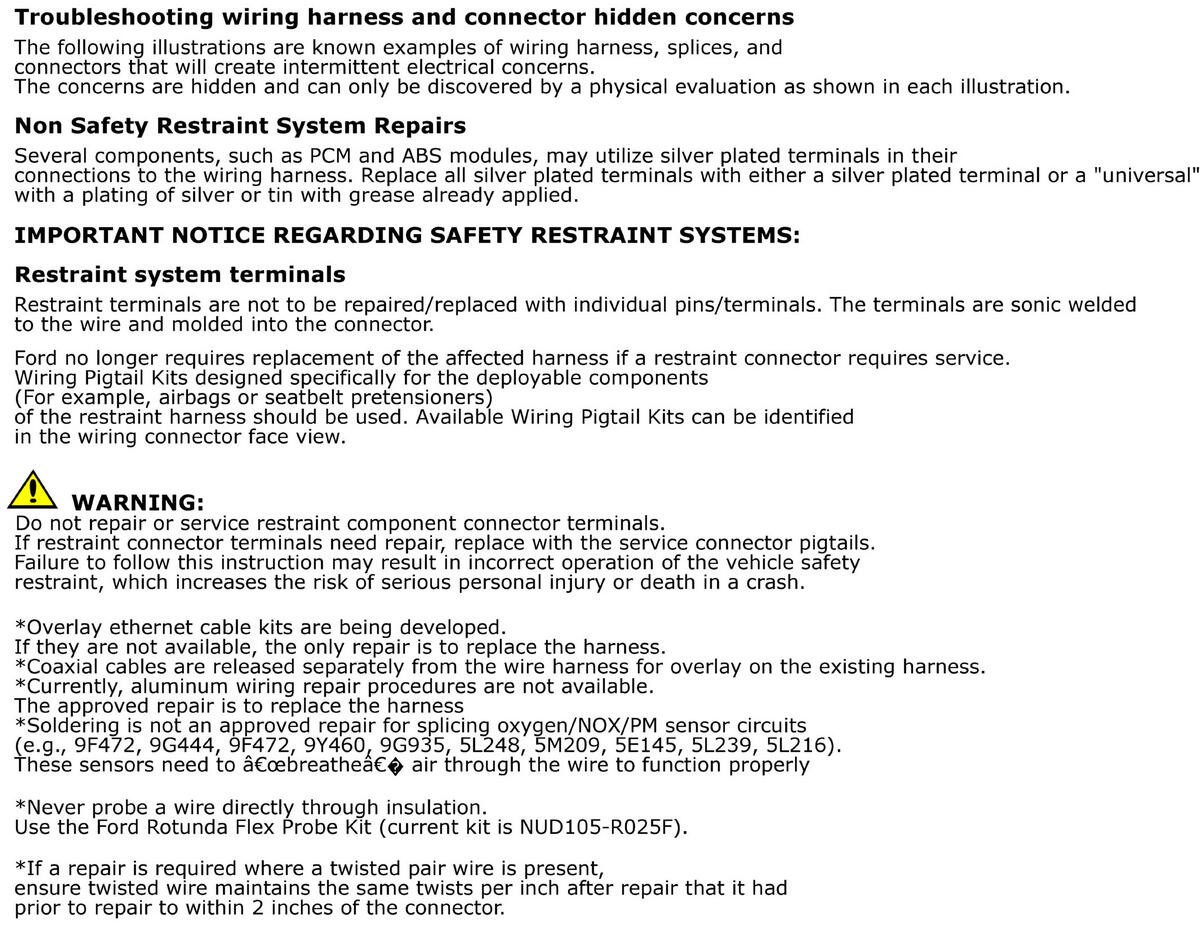

GFDWR247192Courtesy of FORD MOTOR COMPANY
GFDWR247193Courtesy of FORD MOTOR COMPANY
GFDWR247180Courtesy of FORD MOTOR COMPANY
GFDWR247181Courtesy of FORD MOTOR COMPANY
GFDWR247182Courtesy of FORD MOTOR COMPANY
GFDWR247183Courtesy of FORD MOTOR COMPANY
GFDWR247184Courtesy of FORD MOTOR COMPANY
GFDWR247185Courtesy of FORD MOTOR COMPANY
