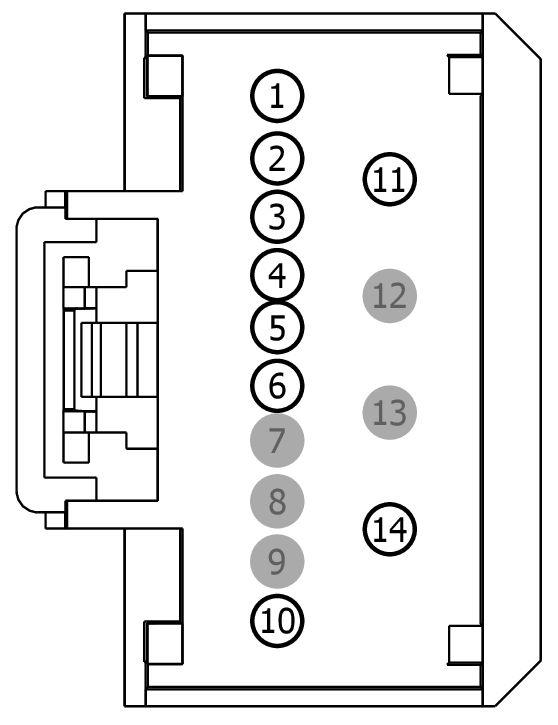

Connector End View C2123 - Front Control/Display Interface Module (FCDIM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2123	FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)	BK	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VAP05 (WH-BN)	20	*	N/A
2	RAP05 (YE-BU)	20	*	N/A
3	VAP06 (BU-WH)	20	*	N/A
4	RAP06 (YE-GN)	20	*	N/A
5	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	N/A
6	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	VMED7 (VT)	22	CTRL MOD. - SYNC LIN BUS	N/A
11	SBP29 (GY-RD)	16	FUSE - 29 OR CIRCUIT BREAKER	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	GD215 (BK-GY)	16	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	N/A
