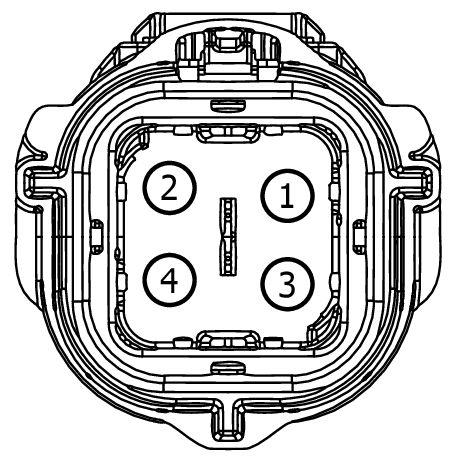

Connector End View C1457A - Direct Current/Direct Current (DC/DC) Converter Control Module

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1457A	DIRECT CURRENT/DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE		14B322	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	HYD16 (OG)	10	CTRL MOD. - HYBRID AIR CONDITIONING # HIGH VOLTAGE NEG (HV-)		N/A
2	HYT01 (OG)	10	CTRL MOD. - HYBRID TRANSAXLE # DC/DC		N/A
3	HYT02 (OG)	10	CTRL MOD. - HYBRID TRANSAXLE # DC/DC NEG (-)		N/A
4	HYD15 (OG)	10	CTRL MOD. - HYBRID AIR CONDITIONING # HIGH VOLTAGE POS (HV+)		N/A
